Internal Components

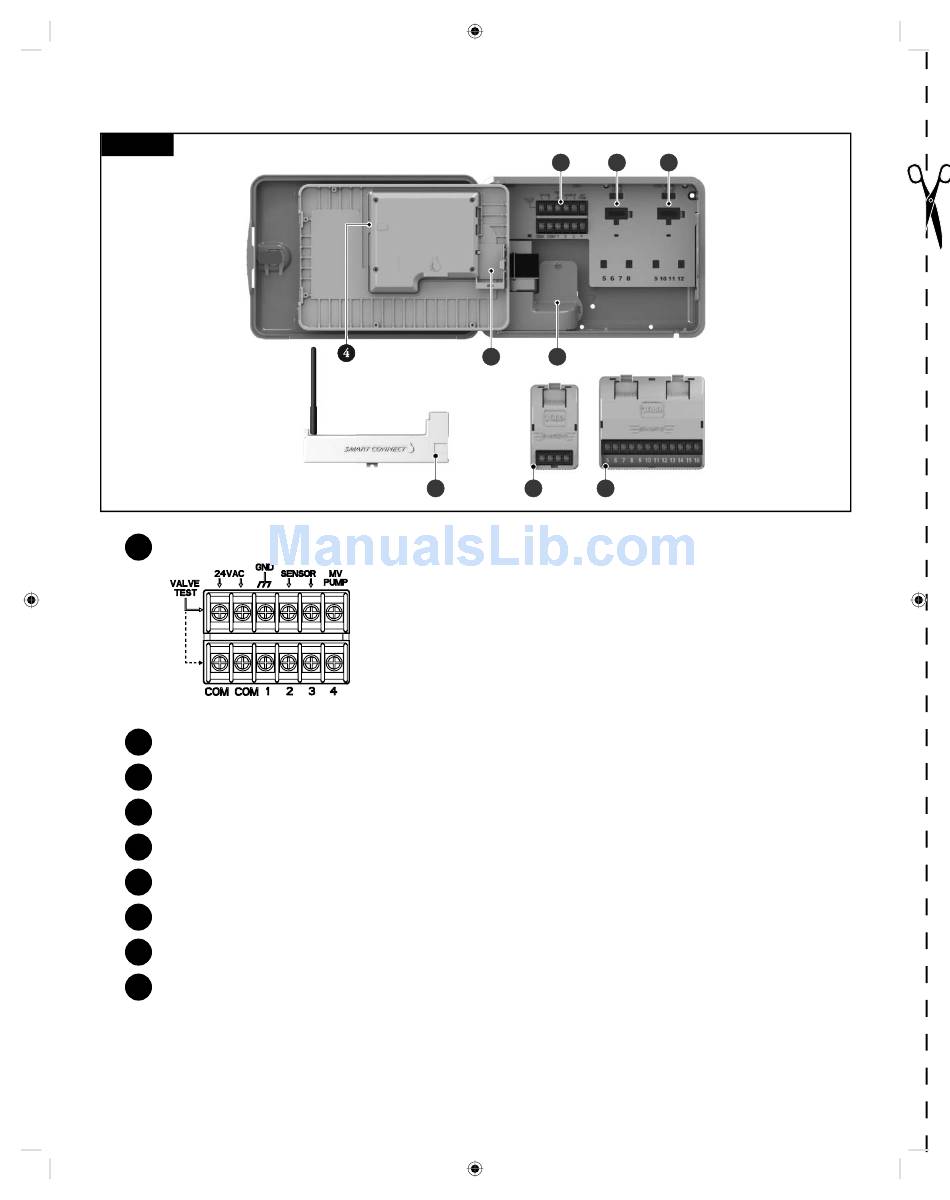

Figure 2
1
– Valves and Sensor Terminals
2
– Valves' 5, 6, 7 and 8 Expansion Module Socket
3
– Valves' 9, 10, 11 and 12 Expansion Module Socket
4
– USB Flash Drive Connector
5
– 9 Volt Battery Compartment
6
– Power Supply Terminal Compartment
7
– A-EVO-SC Module (Available Separately)
8
– A-EMOD-4, Four-Valve Expansion Module (Available Separately)
9
– A-EMOD-12, Twelve-Valve Expansion Module (Available Separately)
2
4
5
7
VALVE TEST – Use this terminal to test a valve for proper function.
24VAC – 24 VAC Power Source
GND – Power Source Ground
SENSOR – Sensor Terminals
MV PUMP – Master Valve Terminal
COM – Valves' and Master Valve Common Terminals
1, 2, 3 and 4 – Valve 1, Valve 2, Valve 3, and Valve 4 Terminals
1 2 3
6
8 7 9
