2
Section
In the Set mode, you can change various transceiver
settings to suit your operating requirements.
q Hold down [TOP] for 2 seconds to enter the Set
mode.
• If no key is pushed for 30 seconds, the transceiver will
return to the normal mode.
w Push [Side 1] or [Side 2] to select an item.
• You can also select an item by pushing [TOP].
e Rotate [ROTARY SELECTOR] to select an option in
the selected item.
r Hold down [TOP] for 2 seconds to set and exit the
Set mode, or simply turn OFF the transceiver.

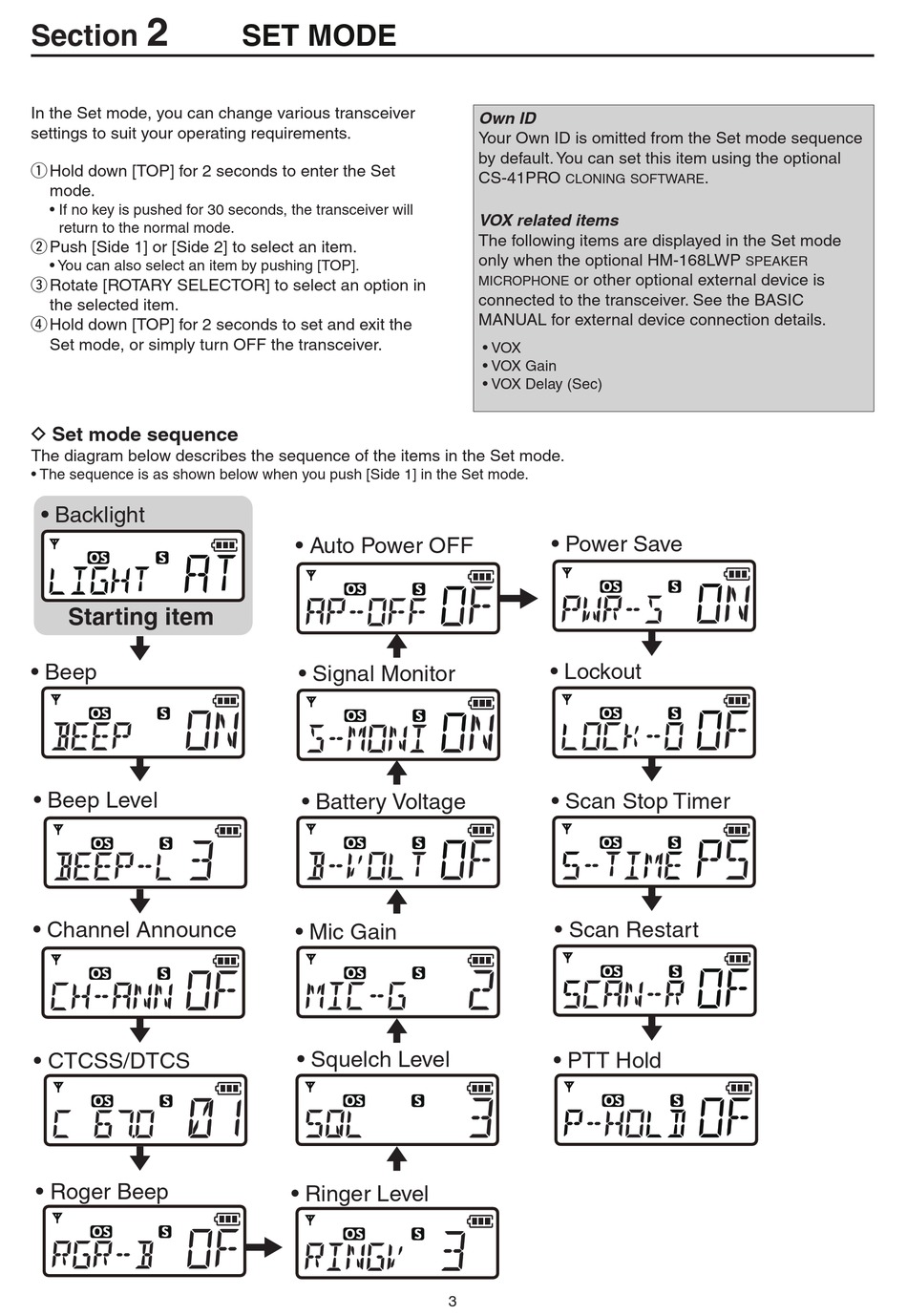

D Set mode sequence
The diagram below describes the sequence of the items in the Set mode.
• The sequence is as shown below when you push [Side 1] in the Set mode.
• Backlight
Starting item
• Beep
• Beep Level
• Channel Announce
• CTCSS/DTCS
• Roger Beep
SET MODE
• Auto Power OFF
• Signal Monitor
• Battery Voltage
• Mic Gain
• Squelch Level
• Ringer Level
Own ID
Your Own ID is omitted from the Set mode sequence
by default. You can set this item using the optional
CS-41PRO
clOning sOftware
VOX related items
The following items are displayed in the Set mode
only when the optional HM-168LWP
or other optional external device is
micrOPhOne
connected to the transceiver. See the BASIC
MANUAL for external device connection details.
• VOX
• VOX Gain
• VOX Delay (Sec)
• Power Save
• Lockout
• Scan Stop Timer
• Scan Restart
• PTT Hold
3
.
sPeaker
