Connection For Sta-Rite/Pentair ® Heater With Ddtc - Intermatic MultiWave Installation Manual

Connection for Sta-Rite/Pentair
Remove power.
1.
Connect two #14 gauge wires minimum, with an
2.
insulation rating of 105°C, to terminals 8 and 9 on
the PE653 (or to the Heater #1 or Heater #2 hookup
when using P5043ME).
Route the wires through the low voltage knockout
3.
in the PE653 (or P5043ME) enclosure.
Make sure that the Low Voltage Divider is in place.
4.
Remove the heater service door.
5.
Locate the DDTC circuit board. Refer to the
6.
manufacturer's instructions for location.
Connect the wire lead from PE653 terminal 8 (or
7.
P5043ME hookup) to the "COM" terminal on the
DDTC board.
Connect the wire lead from PE653 terminal 9 (or
8.
P5043ME hookup) to the "POOL" terminal on the
DDTC board.
Replace service door.
9.
Re-apply power.
10.
With the "POWER" and "PRESSURE" lights lit on the front panel, depress the remote button
11.
on the front display panel of the DDTC. The "REMOTE" light will come on and the remote
system now has control.
Heater with DDTC
®

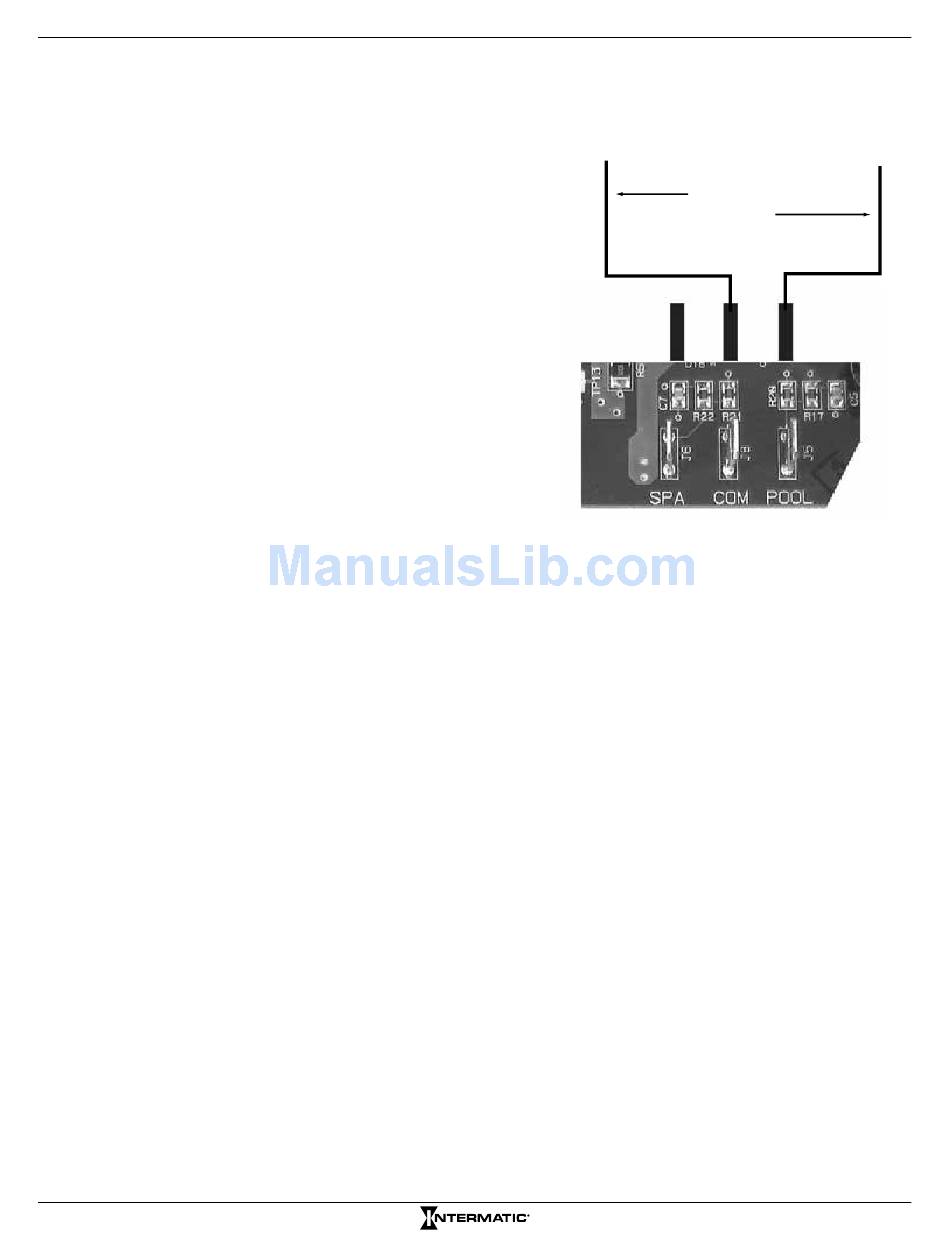

Figure 6-7. DDTC Control Board.
Heaters
Wires from
Receiver (or
Expansion
Module)
