Basic Wiring — 240V Cleaner/Lights/Actuators
35
Lights
Receiver
Power
Supply
120V
Neutral Bus
240V
120 VAC GFCI
or
12 VAC Safety Transformer
Neutral
Lights
Load Side of GFCI
or
Safety Transformer

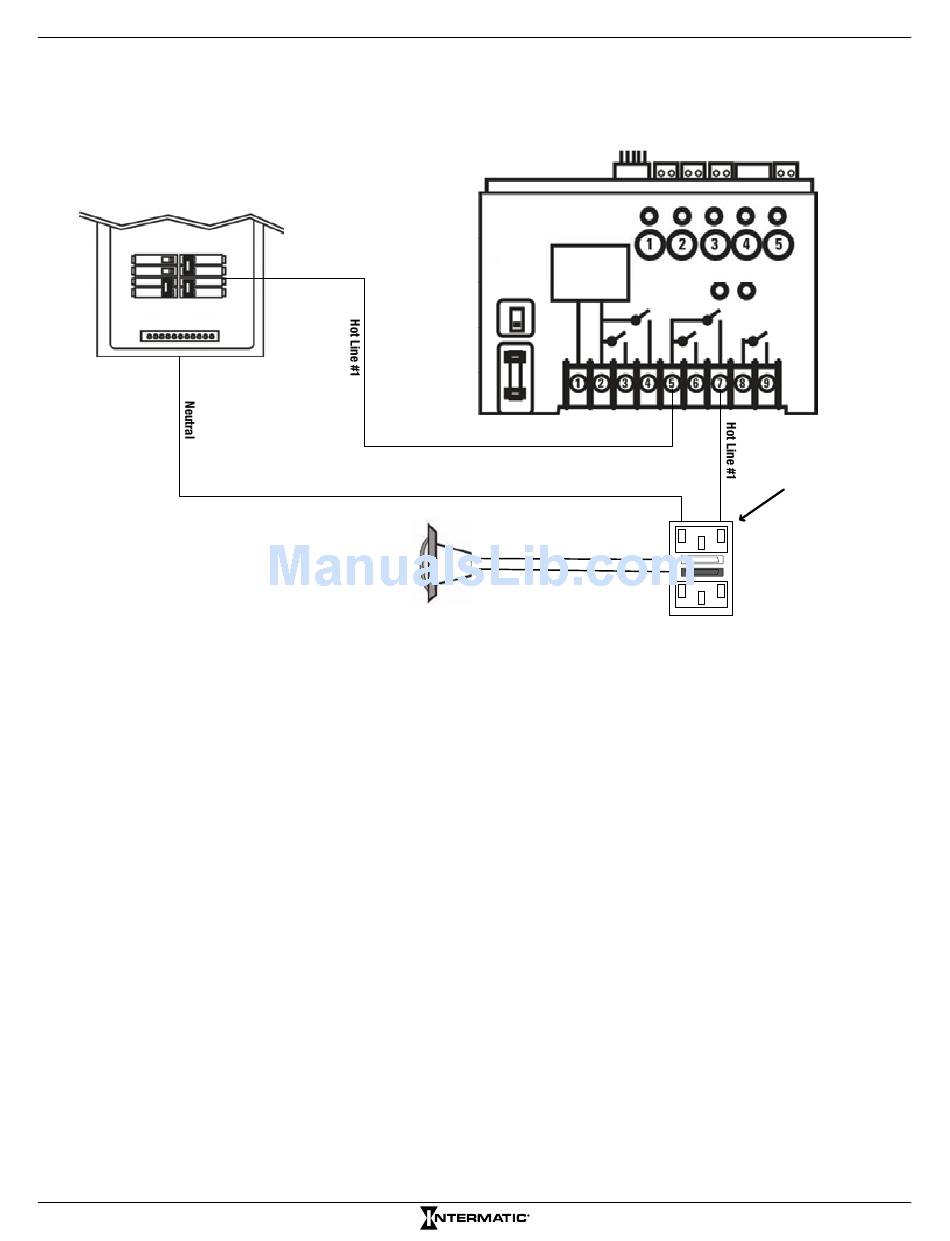

Figure 5-2. Wiring Circuit #4 to a 120 VAC Light with GFCI for PE653RC.
