38 MultiWave Control System Installation Guide
Chapter 6:
Heaters
1 Heater on PE653
Neutral Bus
2-Pole Breakers
Hot Line #1
Hot Line #2

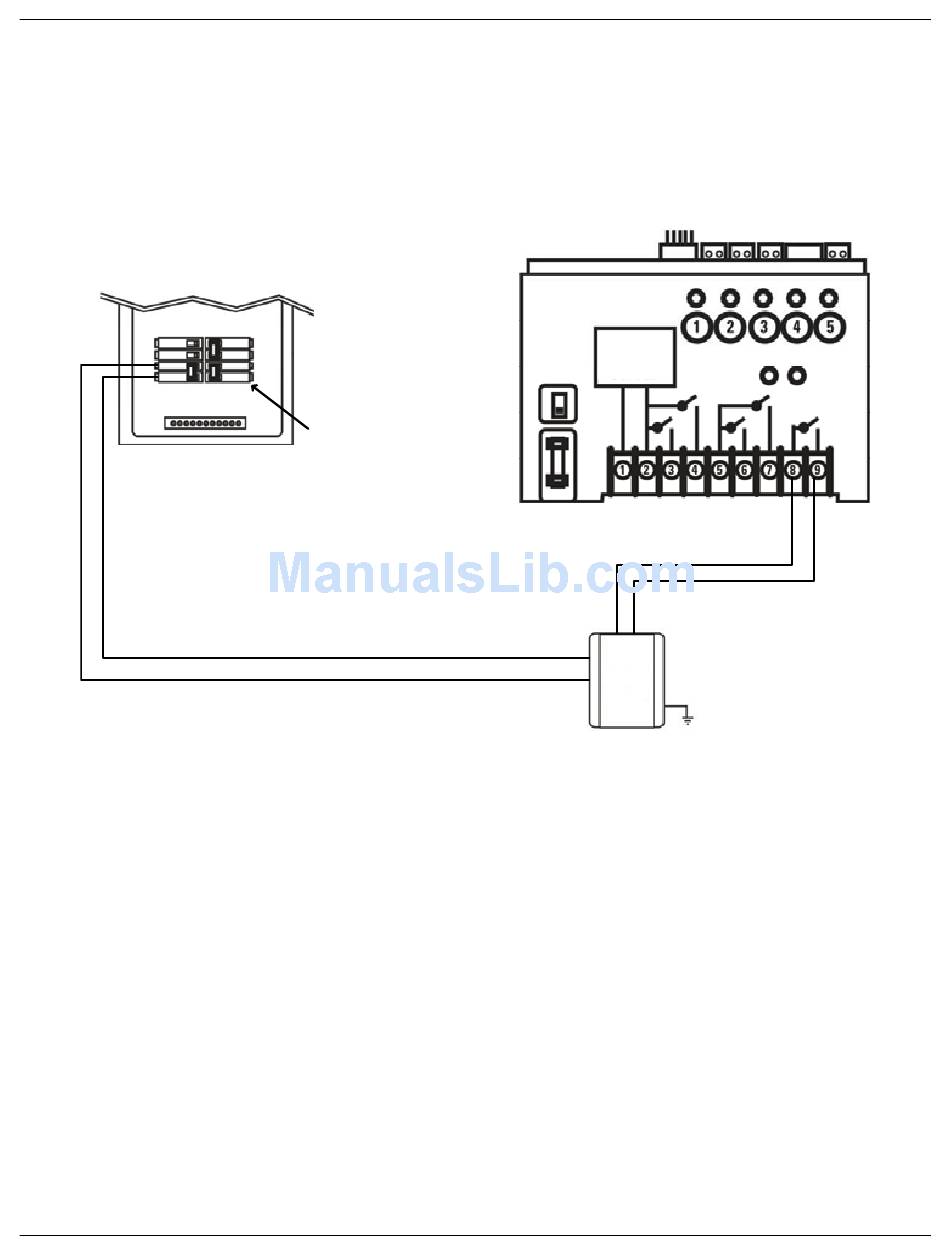

Figure 6-1. Wiring Circuit #5 to a 240 VAC Heater for PE653RC.
www.intermatic.com
Receiver
Power
Supply
120V
240V
Low Voltage External Thermostat
Fireman's Switch Connection
240 VAC
NOTE: Low Voltage Divider
HEATER
provided must be installed for
or
Heater circuit.
