240V Wiring Applications; Power To/From Pe653Rc - Intermatic MultiWave Installation Manual

240V Wiring Applications

This Installation Guide covers most typical applications. If you need more instructions for 240V or
specific applications (i.e. water feature, auxiliary devices), please go to http://www.intermatic.com
to access the MultiWave Configurator for more wiring diagrams or call technical support for
assistance.

Power to/from PE653RC

NOTE: Contact Tech Support at Intermatic for additional diagrams.
NEUTRAL BUS
Installing — Ratings, 120V/240V Wiring, Power In/Out
2-Pole Breaker
Hot Line #1
Hot Line #2

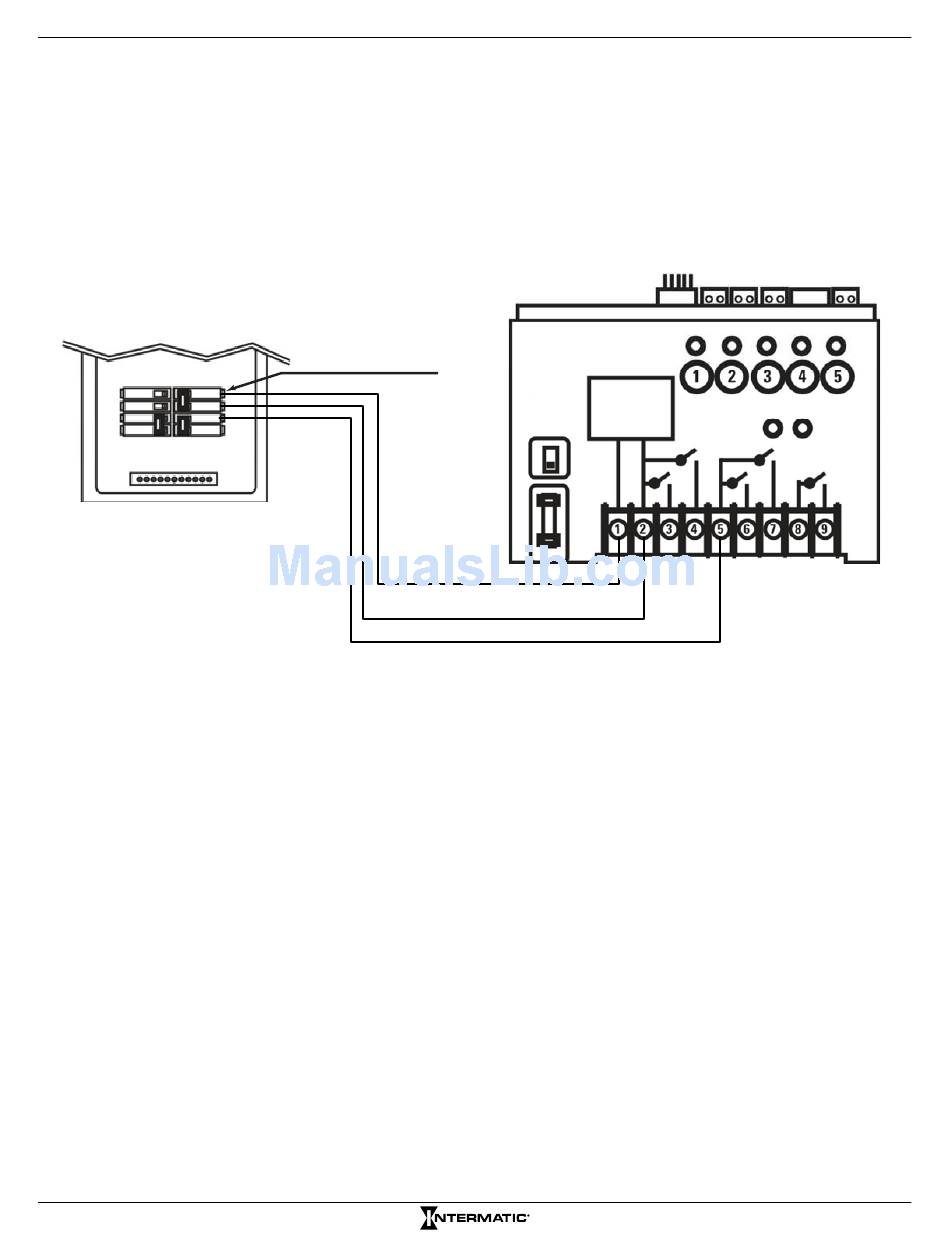

Figure 3-4. Wiring 240V incoming power to PE653RC.
RECEIVER
POWER
SUPPLY
120V
240V
Hot Line #1
