120V Wiring Applications
This Installation Guide covers most typical applications. If you need more instructions for 120V or
specific applications (i.e. water feature, auxiliary devices), please go to http://www.intermatic.com
to access the MultiWave Configurator for more wiring diagrams or call technical support for
assistance.
Select breaker to match wire size
and load requirement. Observe
maximum control circuit capacity.
NEUTRAL BUS
Single Pole
Breaker
120 VAC
1-Speed Pump
(Circuit 1)

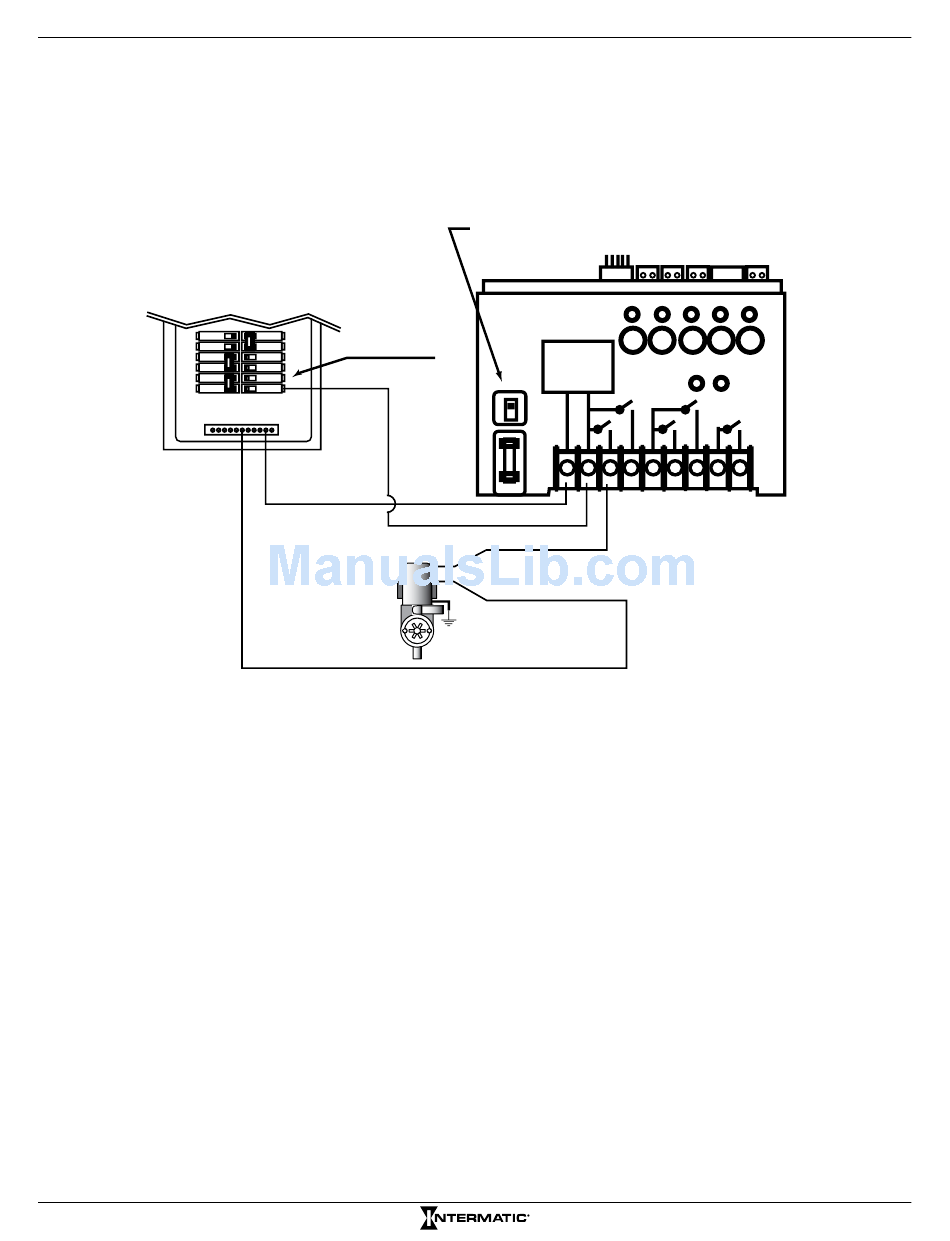

Figure 3-2. Wiring for 120V 1-Speed Pump
Installing — Ratings, 120V/240V Wiring, Power In/Out
Make sure that voltage selector switch is in 120V position
before applying power to terminals 1 & 2
1
RECEIVER
POWER
SUPPLY
120V
240V
1
2
3 4
5
HOT (Circuit 1)
NEUTRAL
2
5
3
4
7
8
6
9
17
