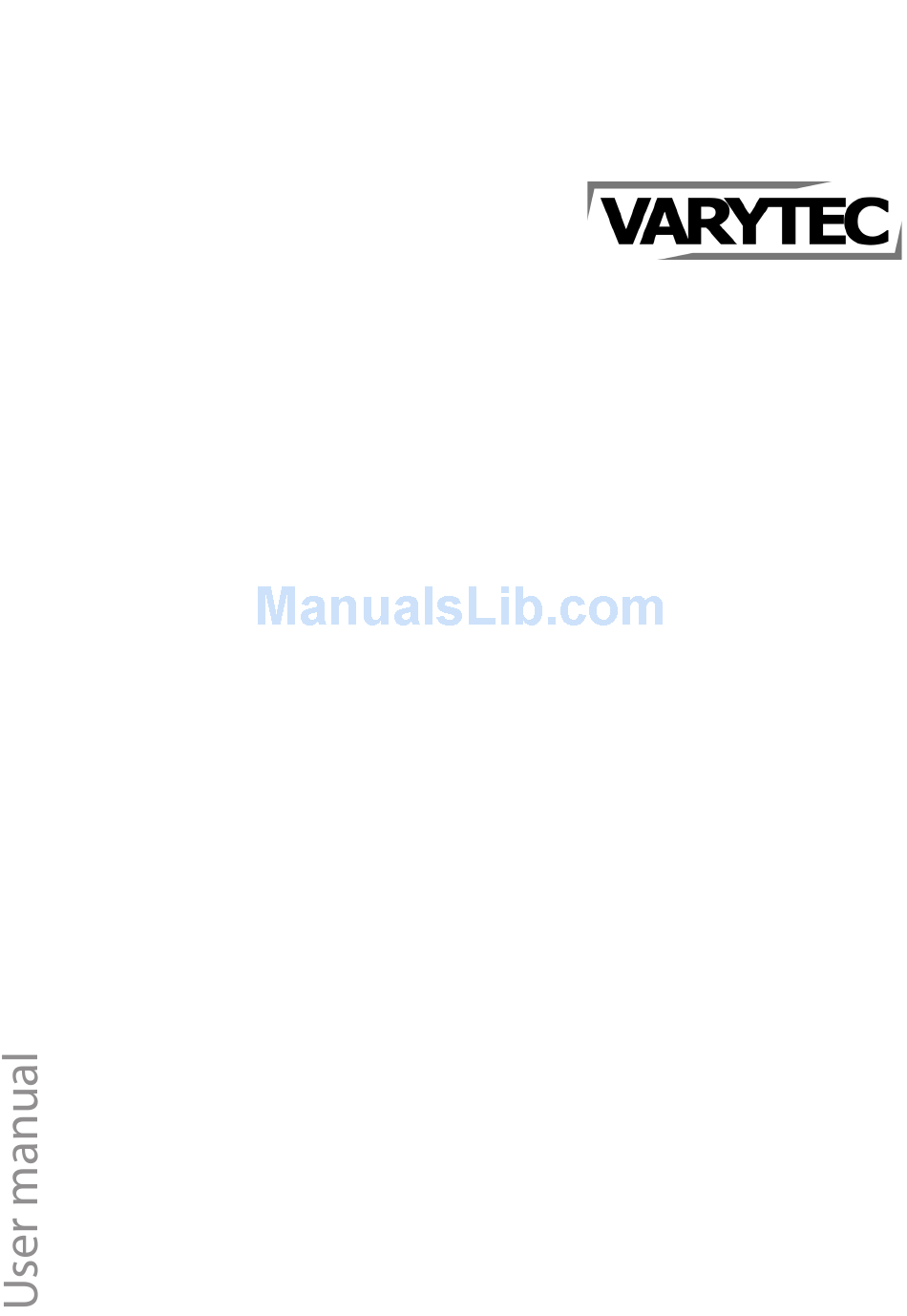

- Page 1 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor LED outdoor PAR...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 25.01.2018, ID: 420255...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes..........................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................8 Installation..........................9 Starting up..........................11 Connections and controls....................12 Operating..........................16 7.1 Starting the device....................... 16 7.2 Main menu........................ -
Page 4: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Symbols And Signal Words
General notes Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. -
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED tech- nics. The device is designed for professional use and is not suitable for use in house- holds. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in per- sonal injury or property damage. - Page 7 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes.
-
Page 8: Features
Connections for power supply and DMX control by means of – LED Typhoon PAR Outdoor 12x10 (item no. 386284): permanently connected cables with splash-proof screwable and lockable plugs and couplings – LED Typhoon True PAR 12x10 Outdoor (item no. 420255): splash-proof... -
Page 9: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules... - Page 10 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the bracket (with item no. 386284) or to the safety eyelet (item no. 420255).
-
Page 11: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. -
Page 12: Connections And Controls
Connections and controls Connections and controls LED Typhoon PAR Outdoor 12x10 (item no. 386284) 1 Display and keypad The header displays the current operating mode, for example ‘DMX’ or ‘SLAVE’ . The dot-shaped DMX indicator lights green when a DMX signal is received and red when transmission is interrupted. The display shows the cur- rent device temperature top right. - Page 13 Connections and controls 5 [DMX OUT] DMX output 6 [DMX IN] DMX input 7 [POWER IN] Connection supply voltage incoming (Power Twist IP65) 8 Pressure compensation element LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor LED outdoor PAR...
- Page 14 Connections and controls LED Typhoon True PAR 12x10 Out- door (item no. 420255) 1 Display and keypad The header displays the current operating mode, for example ‘DMX’ or ‘SLAVE’ . The dot-shaped DMX indicator lights green when a DMX signal is received and red when transmission is interrupted. The display shows the cur- rent device temperature top right.
- Page 15 Connections and controls 6 [POWER OUT] Connection supply voltage outgoing (Power Twist IP65) 7 [POWER IN] Connection supply voltage incoming (Power Twist IP65) 8 [DMX IN] DMX input, designed as 5-pin XLR chassis-mounted plug 9 Pressure compensation element LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor LED outdoor PAR...
-
Page 16: Operating
Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. The dis- play shows the operating mode that was selected when the unit was last powered off. - Page 17 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Key locks’ Key lock ‘OFF’ ‘ON’ Enabled To unlock the keys, press successively [ENTER], [DOWN], [UP], [DOWN], [UP] and [ENTER]. ‘Max temp’ Maximum temperature whose exceeding is to be reported on the display ‘002’...
- Page 18 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘STAT GREEN’ ‘0’ … ‘255’ Amount green (0 % to 100 %) ‘STAT BLUE’ ‘0’ … ‘255’ Amount blue (0 % to 100 %) ‘STAT WHITE’ ‘0’ … ‘255’ Amount white (0 % to 100 %) ‘STAT AMB’...
-
Page 19: Menu Overview
Operating 7.3 Menu overview 7.4 Functions in 3-channel DMX mode Channel Value Function 0…255 Colour hue 0…255 Saturation (0 % to 100 %) 0…255 Brightness (0 % to 100 %) LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor LED outdoor PAR... -
Page 20: Functions In 6-Channel Dmx Mode
Operating 7.5 Functions in 6-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…255... - Page 21 Operating Channel Value Function 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…255 Intensity UV (0 % to 100 %) Dimmer curves with afterglow effect 0…49 Standard...
- Page 22 Operating Channel Value Function 96…99 RGB white 100…103 Light pink 104…107 Dark pink 108…111 Magenta 2 112…115 Turquoise 116…119 Medium teal 120…123 Blue green 124…127 Bright pink 128…131 Medium blue 132…135 Golden amber 136…139 Deep golden amber 140…143 Bright lavender 144…147 Apricot 148…151...
-
Page 23: Functions In 13-Channel Dmx Mode
Operating Channel Value Function 224…255 Beaming rosé Colour macros 0…6 No function 7…255 Colour macros Strobe effect 0…8 Open, no stroboscope effect 9…255 Stroboscope effect, increasing speed 7.8 Functions in 13-channel DMX mode Channel Value Function 0…255 Brightness (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) 0…255... - Page 24 Operating Channel Value Function 201…205 White 1 206…210 White 2 211…215 White 3 216…220 White 4 221…225 White 5 226…230 White 6 231…235 White 7 236…240 White 8 241…245 White 9 246…250 White 10 251…255 White 11 0…255 Running speed, if channel 10 = 9…255 0…8 Standard 9…255...
- Page 25 Operating Channel Value Function 161…170 Self-created automatic show 8 171…180 Self-created automatic show 9 181…190 Self-created automatic show 10 200…255 Self-created automatic show 11 0…255 Running speed, if channel 10 = 9…255 Dimmer curves with afterglow effect 0…49 Standard 50…99 Dimmer mode 1 (slight afterglow) 100…149 Dimmer mode 2...
-
Page 26: Technical Specifications
Technical specifications Technical specifications LEDs 12 × six-colour LEDs (RGBWAUV, each 10 W) Beam angle 15 ° Number of DMX channels 3, 6, 8, 10 or 13, depending on operating mode Operating supply voltage 100 – 240 V 50/60 Hz Power consumption 120 W Protection class... -
Page 27: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 28: Troubleshooting
Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables. Never connect the DMX input or output to audio devices such as mixers or amplifiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy... -
Page 29: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating envi- ronment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 30: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
