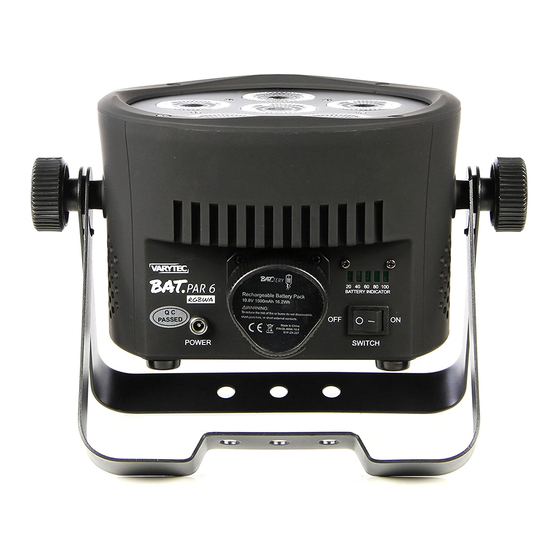

Varytec BAT.PAR 6 RGBWA User Manual

Led spotlight
Hide thumbs
Table of Contents

Advertisement

Quick Links

BAT.PAR 6 RGBWA
BAT.PAR 6 RGBUV
LED spotlight

Advertisement

Table of Contents
loading

Related Manuals for Varytec BAT.PAR 6 RGBWA

Summary of Contents for Varytec BAT.PAR 6 RGBWA

  • Page 1 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.12.2017, ID: 385435, 385475...

  • Page 3: Table Of Contents

    Operating..............................31 7.1 Starting the device........................... 31 7.2 Operating controls on the unit....................31 7.3 Operating via IR remote control....................35 7.4 Menu overview..........................36 7.5 Functions in 1-channel DMX mode................... 38 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 4 7.8 Functions in 6-channel DMX mode................... 40 7.9 Functions in 7-channel DMX mode................... 41 7.10 Functions in 8-channel DMX mode..................44 Technical specifications........................47 Plug and connection assignments....................50 Troubleshooting............................51 Cleaning............................... 53 Protecting the environment......................54 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 5 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 6: General Information

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 7: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 8: Notational Conventions

    Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 9 This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – suspended load. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 10 General information Warning signs Type of danger Warning – danger zone. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 11: Safety Instructions

    This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 12 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 13 Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 14 Follow the advice on the correct handling of lithium batteries in the present sec- tion. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 15 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 16 Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 17 Store the equipment at a tempera- ture between 10 °C and 32 °C in as dry an environment as possible. During extended storage periods, charge the batteries to 50 % approximately every three months. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 18: Features

    Features Special features of the device: Model BAT.PAR 6 RGBWA: six RGBWA LEDs (red, green, blue, white, amber, 8 W each) Model BAT.PAR 6 RGBUV: six RGBUV LEDs (red, green, blue, UV, 8 W each) Stand-alone, master-slave or DMX mode operation...

  • Page 19: Installation

    Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 20 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 21 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety-rope must be attached to the bracket. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 22 Installation Please note that this device must not be connected to a dimmer. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 23: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 24 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 25: Connections And Operating Elements

    Connections and operating elements Connections and operating elements BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 26 Selects an option of the respective operating mode, confirms the set value. 2 Locking screws for the mounting bracket. 3 Bracket for floor placement or hanging. 4 [POWER] Connection socket for the 15 V power supply unit. 5 Battery compartment BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 27 Remaining battery capacity display. When all the LEDs are on, the battery is fully charged. If only the red LED is on, the unit must be connected to the mains again to charge as soon as possible. 8 [DMX IN] DMX input. 9 [DMX OUT] DMX output. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 28 Connections and operating elements Remote control BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 29 14 [UP], [DOWN] Buttons to switch between individual programs and to increase/decrease numeric values. 15 Buttons for colour selection. [W] for white light. [R], [G], or [B] for primary colours red, green and blue. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 30 Button to turn the strobe effect on/off. 17 Numerical buttons 0 … 9 for direct number entry. 18 [SOUND 1], [SOUND 2] Buttons to activate automatic mode 1 or 2 of the sound control. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 31: Operating

    Confirm with [ENTER]. Make sure that this number matches the configuration of your DMX controller. Sound control Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Soun’ . Confirm with [ENTER]. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 32 Use [UP] and [DOWN] to select the fixed colour for which the dimmer setting should be adjusted: BAT.PAR 6 RGBWA (item no. 385435): Red, green, blue, white, amber BAT.PAR 6 RGBUV (item no. 385457): Red, green, blue, UV, speed strobe effect Adjust the setting as desired in a range from 0 …...
  • Page 33 Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘Chnd’ . Confirm with [ENTER]. (item no. 385435) Now use [UP] or [DOWN] to select one of the following DMX operating modes: BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 34 (item no. 385457) Now use [UP] or [DOWN] to select one of the following DMX operating modes: ‘1Ch’ (one channel) ‘4Ch’ (four channels) ‘6Ch’ (six channels) ‘7Ch’ (seven channels) Confirm by pressing [ENTER]. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 35: Operating Via Ir Remote Control

    Press [MENU], [UP] or [DOWN] repeatedly until the display shows ‘reno’ . Confirm with [ENTER]. Use [UP] and [DOWN] to select the option ‘on’ to operate the unit via the IR remote control. Confirm with [ENTER]. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 36: Menu Overview

    Operating 7.4 Menu overview BAT.PAR 6 RGBWA (item no. 385435) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 37 Operating BAT.PAR 6 RGBUV (item no. 385457) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 38: Functions In 1-Channel Dmx Mode

    Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity UV light (0 % to 100 %) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 39: Functions In 5-Channel Dmx Mode

    0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 40: Functions In 6-Channel Dmx Mode

    Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity UV light (0 % to 100 %) 0…255 Stroboscope effect (0 % to 100 %) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 41: Functions In 7-Channel Dmx Mode

    0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…255 Stroboscope effect (0 % to 100 %) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 42 Intensity blue (0 % to 100 %) 0…255 Intensity UV light (0 % to 100 %) 0…15 No function 16…31 Programme 1 32…47 Programme 2 48…63 Programme 3 64…79 Programme 4 80…95 Programme 5 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 43 Sound mode 1 240…255 Sound mode 2 0…255 Stroboscope effect (0 % to 100 %), if channel 6 = 0…15 Program speed, if channel 6 = 16…223 Microphone sensitivity, if channel 6 = 224…255 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 44: Functions In 8-Channel Dmx Mode

    Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…15 No function 16…31 Programme 1 32…47 Programme 2 48…63 Programme 3 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 45 Programme 10 176…191 Programme 11 192…207 Programme 12 208…223 Programme 13 224…239 Sound mode 1 240…255 Sound mode 2 0…255 Stroboscope effect (0 % to 100 %), if channel 6 = 0…15 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 46 Operating Channel Value Function Program speed, if channel 6 = 16…223 Microphone sensitivity, if channel 6 = 224…255 BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 47: Technical Specifications

    Technical specifications Technical specifications BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 48 Replaceable battery pack, item no. 385488 (lithium-ion battery, 10.8 V, 1500 mAh) Fuse 5 mm × 20 mm, 5 A, fast blow Operating time after a max. 5 h battery charging Power consumption 48 W BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 49 Technical specifications BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV (Item no. 385435) (Item no. 385457) Dimensions (W × H 250 mm × 254 mm × 130 mm × D) Weight 2 kg BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 50: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 51: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 52 Do not attempt to replace the built-in battery yourself. be recharged Please contact our service centre. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 53: Cleaning

    The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...

  • Page 54: Protecting The Environment

    They should be returned to the manufacturer for disposal or recycled elsewhere in accordance with your local regulations. Remove lithium batteries from the device before disposal. Protect used lithium batteries against short circuit, for example by taping the poles. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 55 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 56 Notes BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 57 Notes BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 58 Notes BAT.PAR 6 RGBWA BAT.PAR 6 RGBUV LED spotlight...
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...

This manual is also suitable for:

Bat.par 6 rgbuv
