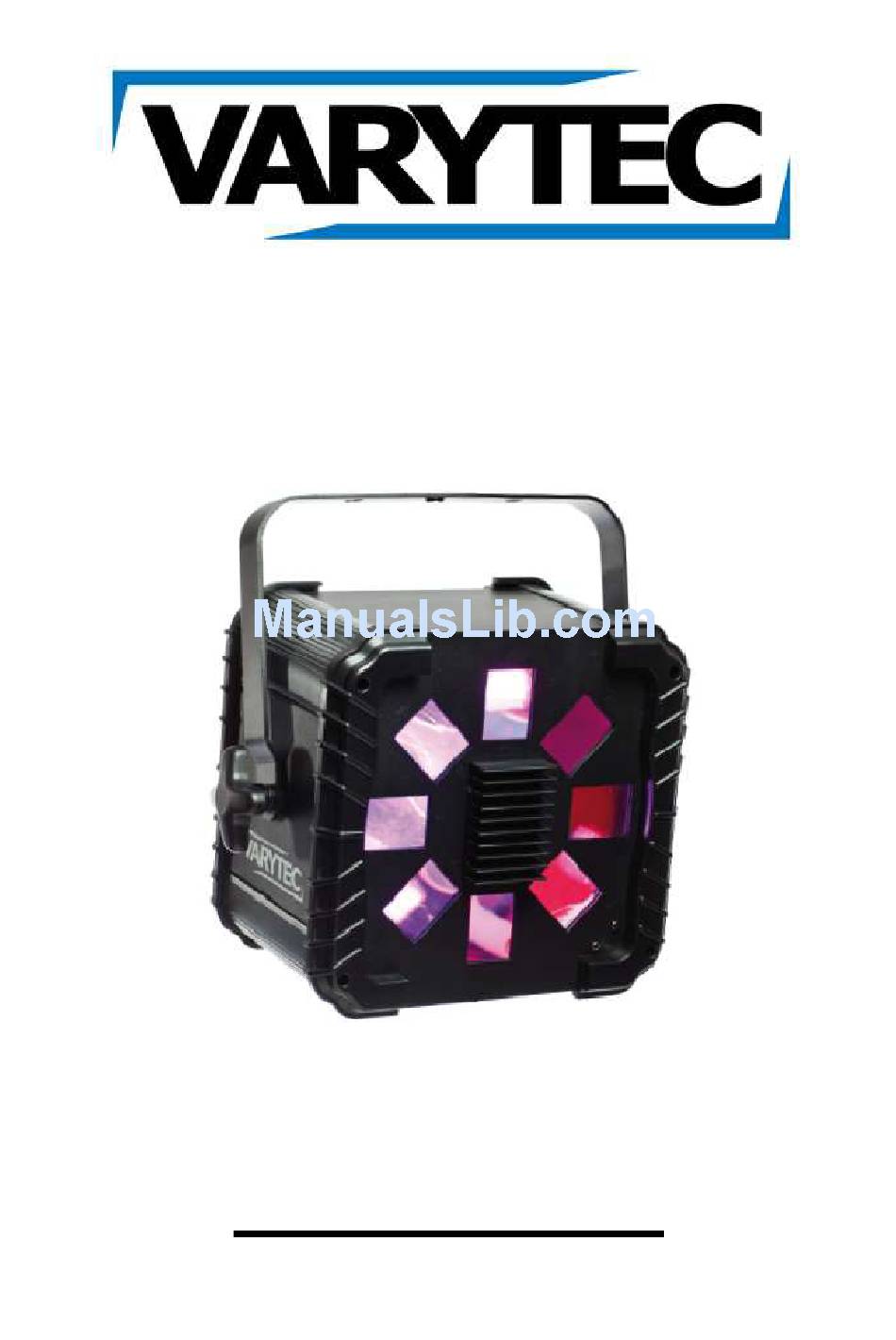

- Page 1 User manual Progression II...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Technical Information ........................4 DMX Mode ............................4 3.1. DMX chart ..........................4 Control of the Menu .......................... 6 4.1. Menu structure ......................... 6 4.2. Description of the Menu ...................... -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Technical Information
Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. All electrical and mechanical connections have to be carried out according to the European safety standards. -
Page 5: Color:
Strobe off 1 – 255 Strobe slow to fast 0 – 15 Shutter closed 16 – 255 Shutter open If you use cables longer then 100m you should put in a terminator at the last item in your daisy chain! Use DMX cables with a 120Ohms shield only! All Plugs should use XLR connectors! The connectors configuration is as follows: If you want to produce a DMX terminator on your own, you have to insert a Terminator at the plug. -
Page 6: Control Of The Menu
4. Control of the Menu 4.1. Menu structure Addr DMX 512 address setting SLNd NaSt Master Mode SL 1 Slave Mode Normal 5L 2 Slave Mode Lightshow Soun Sound To Light On Sound To Light Off SenS Sound to Light sensitivity bLNd Blackout Modus ON Blackout Modus OFF... -
Page 7: Description Of The Menu
4.2. Description of the Menu Addr DMX address setting 1. Push the UP/DOWN buttons until the display shows Addr. 2. Push ENTER 3. 1 appears in the display blinking. With the UP/DOWN buttons you can no adjust the DMX address from 1 to 512 4. -
Page 8: Master Slave Configuration
dISP inversion of the Display 1. Push the UP/DOWN buttons until the display shows dISP. 2. Push ENTER 3. Use the UP/DOWN buttons to choose from dISP and dSIP, in this case dSIP means the display is inverted and turned 180° 4. -
Page 9: Technical Data
7. Technical Data Voltage: 100V ~ 240V 50/60Hz Power consumption: 22,5W max. Fuse: 1A (120 & 230V) Lightsource: 1 x LED 10 Watt RGBW Beam angle: 65° Weight: 3,8kg Measures: 200 x 297 x 320mm Modes: DMX (4Ch) Automatic Mode Sound To Light Mode Master Slave Mode 7.1. -
Page 10: Color
Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 10 / 10...
