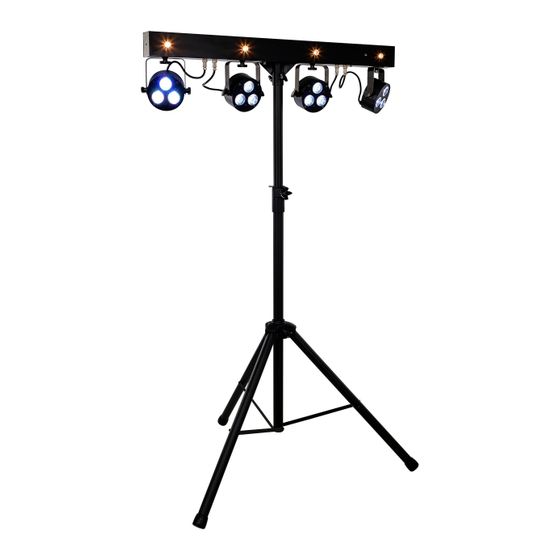

BAT.PARset 4 RGBW
LED lighting set

Advertisement

Table of Contents
loading

Related Manuals for Varytec BAT.PARset 4 RGBW

Summary of Contents for Varytec BAT.PARset 4 RGBW

  • Page 1 BAT.PARset 4 RGBW LED lighting set...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.10.2017, ID: 385484...

  • Page 3: Table Of Contents

    Connections and controls........................24 Operating..............................29 7.1 Operating on the unit........................29 7.2 System settings..........................33 7.3 Menu overview..........................38 7.4 Functions in 6-channel DMX mode................... 40 7.5 Functions in 8-channel DMX mode................... 41 BAT.PARset 4 RGBW LED lighting set...
  • Page 4 7.8 Functions in 14-channel DMX mode..................48 7.9 Functions in 20-channel DMX mode..................50 7.10 Functions in 24-channel DMX mode..................52 Technical specifications........................54 Plug and connection assignments....................55 Troubleshooting............................56 Cleaning............................... 58 Protecting the environment......................59 BAT.PARset 4 RGBW LED lighting set...
  • Page 5 BAT.PARset 4 RGBW LED lighting set...

  • Page 6: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. BAT.PARset 4 RGBW LED lighting set...

  • Page 7: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. BAT.PARset 4 RGBW LED lighting set...

  • Page 8: Notational Conventions

    Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. BAT.PARset 4 RGBW LED lighting set...
  • Page 9 This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. BAT.PARset 4 RGBW LED lighting set...

  • Page 10: Safety Instructions

    This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. BAT.PARset 4 RGBW LED lighting set...
  • Page 11 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. BAT.PARset 4 RGBW LED lighting set...
  • Page 12 Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. BAT.PARset 4 RGBW LED lighting set...
  • Page 13 Follow the advice on the correct handling of lithium batteries in the present sec- tion. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. BAT.PARset 4 RGBW LED lighting set...
  • Page 14 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. BAT.PARset 4 RGBW LED lighting set...

  • Page 15: Features

    Automatic mode Sound control Master / Slave mode Suitable for mains and battery operation Doubled battery compartment to replace the lithium batteries during operation Precise charge indication Easy transport, easy mounting Gig bag included BAT.PARset 4 RGBW LED lighting set...

  • Page 16: Installation

    Clean the ground and hands with cold water. Never attempt to recharge lithium batteries that are not intended to be recharged. Only suitable chargers may be used for charging. BAT.PARset 4 RGBW LED lighting set...
  • Page 17 The lithium batteries can be charged either during mains operation or with a separate charger. In mains operation, charging takes about three hours. NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). BAT.PARset 4 RGBW LED lighting set...
  • Page 18 Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. BAT.PARset 4 RGBW LED lighting set...
  • Page 19 Installation Please note that this device must not be connected to a dimmer. BAT.PARset 4 RGBW LED lighting set...
  • Page 20 Pre-mounted spots The four spots are pre-mounted on the T-bar and factory-wired. Locking screw for fixing the inclination angle. Locking screws for fixing the spots on the T-bar and the horizontal orientation (dispersion direction). BAT.PARset 4 RGBW LED lighting set...

  • Page 21: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. BAT.PARset 4 RGBW LED lighting set...
  • Page 22 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). BAT.PARset 4 RGBW LED lighting set...
  • Page 23 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. BAT.PARset 4 RGBW LED lighting set...

  • Page 24: Connections And Controls

    Connections and controls Connections and controls BAT.PARset 4 RGBW LED lighting set...
  • Page 25 3 [SWITCH] Main switch to turn the device on and off. 4 [ANTENNA] Antenna for receiving the foot switch signals. 5 [DMX IN] DMX input. 6 [DMX OUT] DMX output. 7 Display with function buttons. BAT.PARset 4 RGBW LED lighting set...
  • Page 26 Selects an option of the respective operating mode, confirms the set value. 8 Battery holder To unlock, press the two side push buttons and remove the insert. Always ensure that the insert snaps in correctly during assembly. BAT.PARset 4 RGBW LED lighting set...
  • Page 27 Press this button to activate the ‘Automatic’ mode. [SOUND ] Press this button to activate the ‘Sound control’ mode. [COLOR] Press this button several times repeatedly to call up the various colour settings. [BLACKOUT] Press this switch to blackout all LEDs. BAT.PARset 4 RGBW LED lighting set...
  • Page 28 The charge level indicator can be accessed on the device display for each of the four batteries inserted. The bar length and the colour coding symbolically show the remaining load capacity. This display appears when the unit is powered with the mains switch turned off. BAT.PARset 4 RGBW LED lighting set...

  • Page 29: Operating

    Press [MENU] to open the main menu. Use [UP] and [DOWN] to change the respectively indi- cated value. When the display shows the desired value press [ENTER]. BAT.PARset 4 RGBW LED lighting set...
  • Page 30 Confirm with [ENTER]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [UP] or [DOWN] to select a value between 1 and 512. BAT.PARset 4 RGBW LED lighting set...
  • Page 31 Then use [UP] or [DOWN] to select the option ‘AUTO MODE’ and confirm with [ENTER]. Use [UP] or [DOWN] to set the desired auto mode in a range from ‘01’ to ‘15’ . Confirm again with [ENTER] to apply the setting. BAT.PARset 4 RGBW LED lighting set...
  • Page 32 Press [MENU] repeatedly until the display shows ‘STAT COLO’ . Confirm with [ENTER] and use [UP] or [DOWN] to select the option ‘SELECT COLOR’ . Confirm again with ENTER and select the desired colour macro in a range from ‘01’ to ‘51’ . BAT.PARset 4 RGBW LED lighting set...

  • Page 33: System Settings

    Dimmer preset red, 0 % to 100 % Dimmer GREEN 0 … 255 Dimmer preset green, 0 % to 100 % Dimmer BLUE 0 … 255 Dimmer preset blue, 0 % to 100 % BAT.PARset 4 RGBW LED lighting set...
  • Page 34 100 %. In normal mode, the power is reduced to 80 %. This allows for a longer battery opera‐ tion. Wireless sta ON, OFF Foot switch operation on / off Confirm the selection each time with [ENTER] to accept the changes. BAT.PARset 4 RGBW LED lighting set...
  • Page 35 ‘STAT WARM1’ … ‘STAT WARM4’ (warm white front spot 1 … 4) Confirm the selection each time with [ENTER]. Use [UP] or [DOWN] to set the colour intensity in a range from ‘000’ to ‘255’ . Confirm again with [ENTER] to apply the setting. BAT.PARset 4 RGBW LED lighting set...
  • Page 36 Then use [UP] or [DOWN] to select the option ‘HARDWARE’ to read out the version number of the hardware. Then use [UP] or [DOWN] to select the option ‘FIX TIMES’ to retrieve the current turn-on time of the spots. BAT.PARset 4 RGBW LED lighting set...
  • Page 37 Operating Reset to factory defaults Proceed as follows to reset the device to factory defaults: Press [MENU] repeatedly until the display shows ‘RESET’ and confirm with [ENTER]. BAT.PARset 4 RGBW LED lighting set...

  • Page 38: Menu Overview

    Operating 7.3 Menu overview BAT.PARset 4 RGBW LED lighting set...
  • Page 39 Operating BAT.PARset 4 RGBW LED lighting set...

  • Page 40: Functions In 6-Channel Dmx Mode

    Intensity white (0 % to 100 %) 0 … 255 Intensity warm white front spot 1 … 4 (0 % to 100 %) 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4 BAT.PARset 4 RGBW LED lighting set...

  • Page 41: Functions In 8-Channel Dmx Mode

    Intensity warm white front spot 3 (0 % to 100 %) 0 … 255 Intensity warm white front spot 4 (0 % to 100 %) 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4 BAT.PARset 4 RGBW LED lighting set...

  • Page 42: Functions In 10-Channel Dmx Mode

    Intensity warm white front spot 3 (0 % to 100 %) 0 … 255 Intensity warm white front spot 4 (0 % to 100 %) 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4 BAT.PARset 4 RGBW LED lighting set...

  • Page 43: Functions In 13-Channel Dmx Mode

    Intensity warm white front spot 3 (0 % to 100 %) 0 … 255 Intensity warm white front spot 4 (0 % to 100 %) 0 … 255 Dimmer (0 % to 100 %) front spot 1 to 4 0 … 6 No function BAT.PARset 4 RGBW LED lighting set...
  • Page 44 Green 28 … 31 Blue 32 … 35 Yellow 36 … 39 Cyan 40 … 43 Magenta 44 … 47 Cold white 48 … 51 Orange 52 … 55 Pink 56 … 59 Purple BAT.PARset 4 RGBW LED lighting set...
  • Page 45 84 … 87 White 2500 88 … 91 Yellow 2 92 … 95 Straw yellow 96 … 99 Orange 2 100 … 103 Bright pink 104 … 107 Dark purple 108 … 111 Magenta 2 BAT.PARset 4 RGBW LED lighting set...
  • Page 46 132 … 135 Amber 136 … 139 Gold amber 140 … 143 Pale lavender 144 … 147 Apricot 148 … 151 Dark lavender 152 … 155 Chocolate 156 … 159 Blue 160 … 163 Surprise pink BAT.PARset 4 RGBW LED lighting set...
  • Page 47 188 … 191 Alice blue 192 … 195 Indigo rose 196 … 199 Urban blue 200 … 203 Ice blue 204 … 207 Salmon-coloured 208 … 211 Maya sun 212 … 215 Strawberry rose BAT.PARset 4 RGBW LED lighting set...

  • Page 48: Functions In 14-Channel Dmx Mode

    Master dimmer (0 % to 100 %) 0 … 255 Intensity red (0 % to 100 %) 0 … 255 Intensity green (0 % to 100 %) 0 … 255 Intensity blue (0 % to 100 %) BAT.PARset 4 RGBW LED lighting set...
  • Page 49 Dimmer (0 % to 100 %) front spot 1 to 4 0 … 255 Strobe effect 0 … 255 Auto mode, Sound mode 0 … 255 Programme speed Auto mode, microphone sensitivity Sound mode 0 … 255 Device ID BAT.PARset 4 RGBW LED lighting set...

  • Page 50: Functions In 20-Channel Dmx Mode

    All LEDs spot 2 blue 0 … 255 All LEDs spot 2 cold white 0 … 255 All LEDs spot 3 red 0 … 255 All LEDs spot 3 green 0 … 255 All LEDs spot 3 blue BAT.PARset 4 RGBW LED lighting set...
  • Page 51 Intensity warm white front spot 2 (0 % to 100 %) 0 … 255 Intensity warm white front spot 3 (0 % to 100 %) 0 … 255 Intensity warm white front spot 4 (0 % to 100 %) BAT.PARset 4 RGBW LED lighting set...

  • Page 52: Functions In 24-Channel Dmx Mode

    All LEDs spot 2 green 0 … 255 All LEDs spot 2 blue 0 … 255 All LEDs spot 2 cold white 0 … 255 All LEDs spot 3 red 0 … 255 All LEDs spot 3 green BAT.PARset 4 RGBW LED lighting set...
  • Page 53 Intensity warm white front spot 4 (0 % to 100 %) 0 … 255 Strobe effect 0 … 255 Auto mode, Sound mode 0 … 255 Programme speed Auto mode, Microphone sensitivity Sound mode BAT.PARset 4 RGBW LED lighting set...

  • Page 54: Technical Specifications

    5 mm × 20 mm, 2 A, 250 V, fast-acting Battery capacity High mode: approx. 5 h Normal mode: approx. 8 h Dimensions (W × H × D) 950 mm × 90 mm × 240 mm Weight 7 kg BAT.PARset 4 RGBW LED lighting set...

  • Page 55: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) BAT.PARset 4 RGBW LED lighting set...

  • Page 56: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: BAT.PARset 4 RGBW LED lighting set...
  • Page 57 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. BAT.PARset 4 RGBW LED lighting set...

  • Page 58: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. BAT.PARset 4 RGBW LED lighting set...

  • Page 59: Protecting The Environment

    They should be returned to the manufacturer for disposal or recycled elsewhere in accordance with your local regulations. Remove lithium batteries from the device before disposal. Protect used lithium batteries against short circuit, for example by taping the poles. BAT.PARset 4 RGBW LED lighting set...
  • Page 60 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. BAT.PARset 4 RGBW LED lighting set...
  • Page 61 Notes BAT.PARset 4 RGBW LED lighting set...
  • Page 62 Notes BAT.PARset 4 RGBW LED lighting set...
  • Page 64 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
