Voltage applied across the pins of Ext_GPIN_P and Ext_GPIN_N
should be in the range from 3.3 Vdc to 10 Vdc.
Recommended Operating Current: 5 mA
Absolute Maximum Rating: 23 mA
Using GPIO Control
Momentary "ON" pulse enables you to control projector. To enable "ON" pulse, hold it for at least 300 ms. Hold "OFF"
for at least 300 ms before "ON". (→ page 143)
Here is function list to control projector by using GPIO port.
Photo-coupler ON/OFF
8-27
7-26
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
ON
ON
ON
ON
ON
ON
Example for setting the shutter to CLOSE: Input ON to 6-25 and 5-24 while 8-27 and 7-26 are OFF.
NOTE:
• The operation command coming from GPI/O port will be canceled when the projector is processing other tasks.
• Set all other pins than those in use to "OFF".
• The operation command is executed upon continuous input of the "ON" pulse for approximately 300 ms.
Ext_GPIN_P
Pin No.:
5
6
7
Ext_GPIN_N
Pin No.: 24 25 26 27
6-25
5-24
The following functions apply depending on the combination of input
terminals.
OFF
ON
Power ON
ON
OFF
Power OFF
ON
ON
Shutter CLOSE
OFF
OFF
Shutter OPEN
OFF
ON
Select HDMI1
ON
OFF
Select DisplayPort1
ON
ON
Select SDI1
OFF
OFF
Select SDI2
OFF
ON
Select SDI3
ON
OFF
Select SDI4
ON
ON
Select HDBaseT
OFF
OFF
Select SLOT
OFF
ON
Select HDMI2
ON
OFF
Select DisplayPort2
ON
ON
reserved

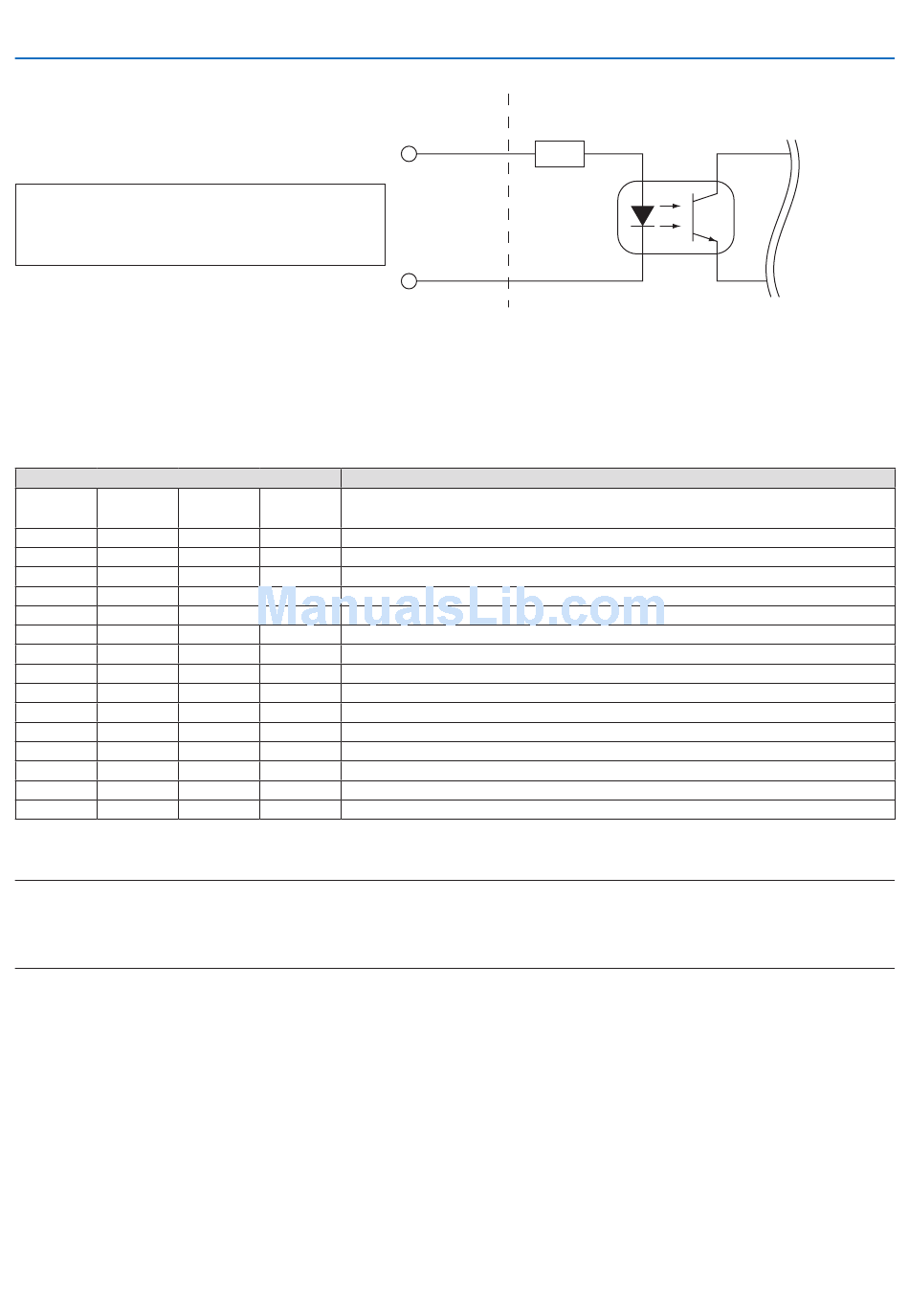

GP I/O Connector
Inside Projector
Resist = 360 Ω
8
142
Photo-coupler
Forward direction voltage: 1.1 V (@5 mA)
