- Page 1 USER MANUAL Maxi Monitor Art. 6813W with Android...
-
Page 2: Table Of Contents
Do not insert objects or pour liquids into the device. Clean using a damp cloth. Do not use alcohol or other aggressive products. Comelit Group S.p.A. reserves the right to change the information provided in this manual at any time and without prior notice. -
Page 3: Description Of The Monitor

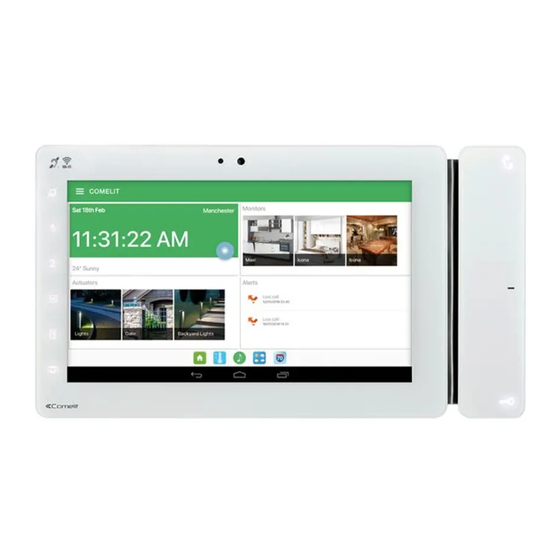

Description of the monitor 1. Soft-touch keys 2. Touch screen 3. Microphone 4. Camera 5. Micro SD port Function keys Activating function keys f Touch to activate the function keys AUDIO: allows you answer incoming calls. √ Incoming call: f Press to start the conversation f Press again to interrupt the conversation »... -
Page 4: Configuration Wizard
Deutsche English Configuration Wizard Español 1. Select the desired language, confirm by pressing and continue with guided configuration by pressing continue > Welcome Deutsche CONTINUE > English Español < CONTINUE > 2. Select the Wi-Fi network to which you wish to connect, enter the password, confirm and continue with guided configuration by pressing continue >... -
Page 5: Using The Interface
Using the interface Switching on the monitor f Press the screen to switch it on Comelit Door entry system 3:56 PM Monday 23 April Entrance Lock release and actuators Alerts 000000002 Monday 23 April, 03:10 Opening the menu f To open the navigation menu: press the corresponding icon (A) or drag the left side of the screen towards the right (B). -
Page 6: Home [ ]
Press to return to the previous screen COMELIT APP While third-party Apps are open, press to return to the Comelit App RECENT APPLICATIONS Press to view all recently used applications HOME [ The home page provides quick access to the most common commands and to view the notifications in memory. -
Page 7: Door Entry System / Cameras
DOOR ENTRY SYSTEM / CAMERAS [ In the door entry system/cameras section, the following functions are available: self-ignition of an external unit, intercom call, call to a switchboard, camera switch on. Perform an action on an entry in the directory f Touch an entry in the directory to control the desired action (see table) OUTGOING CALL DOOR ENTRY SYSTEM... -
Page 8: Scrolling Through The Directories
"Edit" to access the editing screen. 2. Press the “image” icon. 3A. Select "Gallery" to search for an image stored in the memory of your Comelit device 3B. Select "Camera" to take a photo using the camera on the device. -
Page 9: Messages [ ]
MESSAGES [ In the Messages section, you can view and delete the recordings made (from external unit and remote camera) and the messages in the video memory. Viewing a video message Answering service Entrance MESSAGES 00:00:30 Monday 23 Apir, 03:43 Entrance 00:00:30 Monday 26 Apir, 10:30... -
Page 10: Actuators / Lock Release [ / ]
ACTUATORS / LOCK RELEASE [ This section provides a list of actuators/lock-release controls f Touch the entry to activate it ACTUATOR Entrance Actuator... -
Page 11: Settings [ ]
SETTINGS [ Device Language Used to set the device language. Used to set the date and time shown on the device: Activate “Automatically set Date & Time” and select your time zone for automatic Date and Time updating of the date and time via internet. Deactivate “Automatically set Date &... - Page 12 System Used to record an audio message for playback on the external unit on receipt of a call. f press to begin recording f press to pause the recording Audio message f press to listen to the message f press followed by to overwrite the message To enable playback of the audio message used for the external unit on receipt of a call,...
-
Page 13: Managing Directories
Managing directories Adding an entry to the Directory f Press , select DOOR ENTRY SYSTEM / CAMERAS / LOCK RELEASE / ACTUATORS and access the desired directory 1. Press to add an entry to the directory. 2. Complete the mandatory fields (see table). 3. -
Page 14: Deleting An Entry In The Directory
Name: enter the description. ViP address: enter the ViP address. Relay: enter the number of the output you want to control. Image: see "Customising a directory image" Name: enter the description. ViP address: enter the ViP address. Actuator/Expansion: select the actuator or the expansion device number (from 1 to 10). Actuator/Relay 1 Expansion: enter the number of the relay (1 or 2) or the number of the expansion device (from 1 to 10) you want to control. -
Page 15: Advanced Settings [ ]
Advanced settings [ default password = 0000 ViP Directories Activate actuator Enable directory editing Priority call ¼ Enable direct calls Call from Internal unit Call from External unit Buttons Call from switchboard Key button Floor call Button 1 Alarms Button 2 Self ignition button Priority call 1 / 4 Privacy button... - Page 16 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
