4
BASIC OPERATION

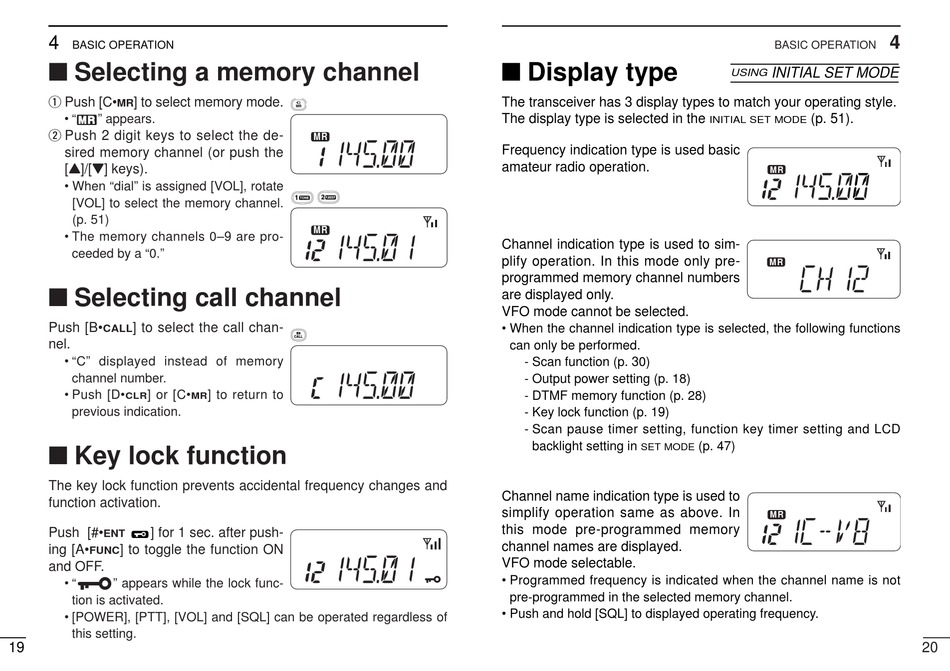

Selecting a memory channel
q
Push [C•
] to select memory mode.
MR
• " X " appears.
w
Push 2 digit keys to select the de-
sired memory channel (or push the
[Y]/[Z] keys).
• When "dial" is assigned [VOL], rotate
[VOL] to select the memory channel.
(p. 51)
• The memory channels 0–9 are pro-
ceeded by a "0."
Selecting call channel
Push [B•
] to select the call chan-
CALL
nel.
• "C" displayed instead of memory
channel number.
• Push [D•
] or [C•
CLR
previous indication.
Key lock function
The key lock function prevents accidental frequency changes and
function activation.
Push [#•
] for 1 sec. after push-
ENT
ing [A•
] to toggle the function ON
FUNC
and OFF.
• "é" appears while the lock func-
tion is activated.
• [POWER], [PTT], [VOL] and [SQL] can be operated regardless of
this setting.
19
MR
MR
MR
] to return to
MR
F
SKIP
AO
MR
Display type
The transceiver has 3 display types to match your operating style.
The display type is selected in the
Frequency indication type is used basic
amateur radio operation.
Channel indication type is used to sim-
plify operation. In this mode only pre-
programmed memory channel numbers
are displayed only.
VFO mode cannot be selected.
• When the channel indication type is selected, the following functions
can only be performed.
- Scan function (p. 30)
- Output power setting (p. 18)
- DTMF memory function (p. 28)
- Key lock function (p. 19)
- Scan pause timer setting, function key timer setting and LCD
backlight setting in
Channel name indication type is used to
simplify operation same as above. In
this mode pre-programmed memory
D
TX
channel names are displayed.
75
VFO mode selectable.
50
L
25
• Programmed frequency is indicated when the channel name is not
pre-programmed in the selected memory channel.
• Push and hold [SQL] to displayed operating frequency.
BASIC OPERATION
INITIAL SET MODE
USING
(p. 51).
INITIAL SET MODE
MR
MR
(p. 47)
SET MODE
MR
4
20
