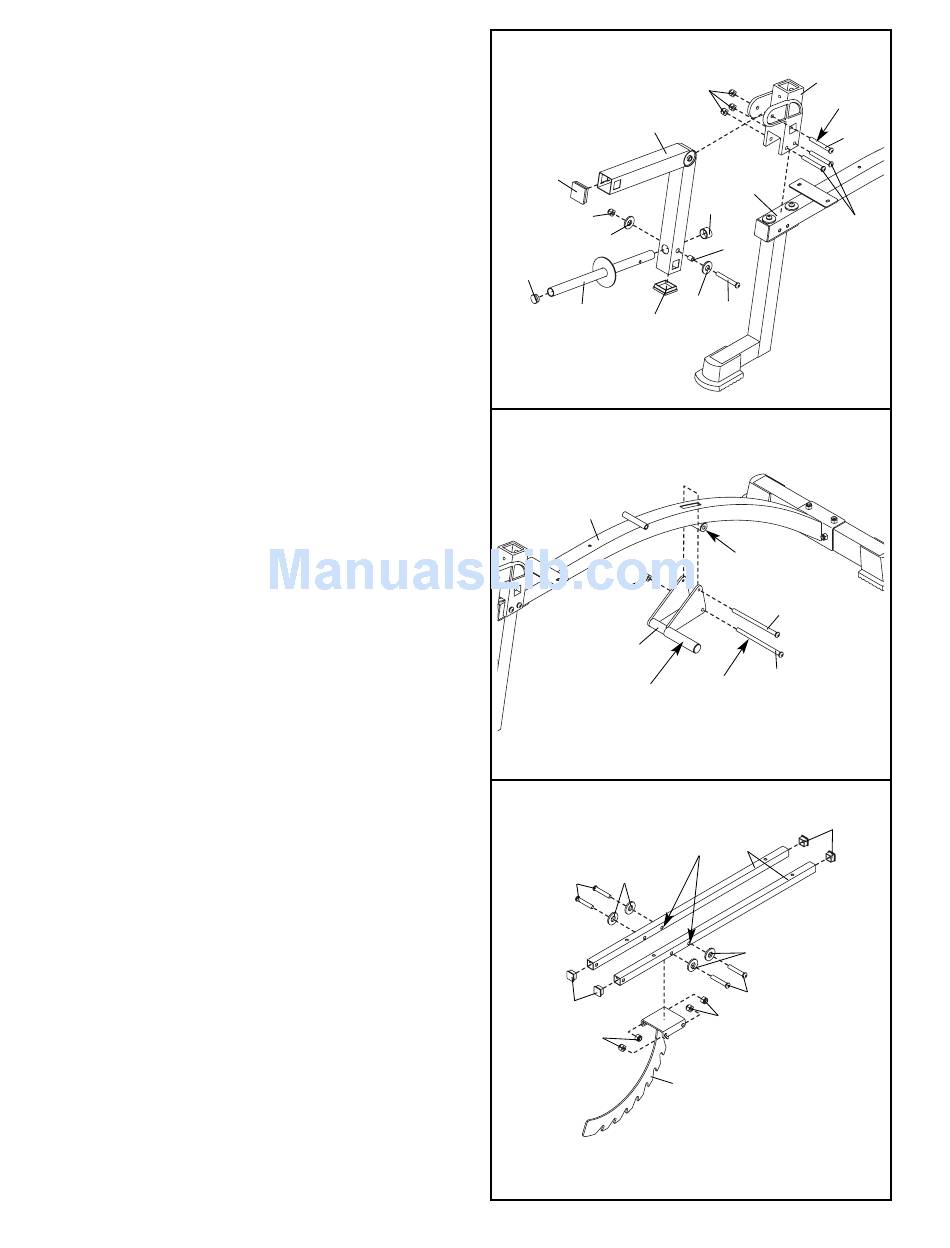

3. Attach the Leg Lever Bracket (5) to the Bench
Frame (1) with two M10 x 81mm Bolts (122) and
two M10 Nylon Locknuts (97).
Press two 50mm Square Inner Caps (22) into the
Leg Lever (4). Press a 25mm Round Inner Cap
(26) into the indicated end of the Weight Tube (25).
Attach the Weight Tube (25) to the Leg Lever (4)
with an M8 x 63mm Bolt (106), two M8 Washers
(100), a 13mm Spacer (30), and an M8 Nylon
Locknut (96). Press a 25mm Round Angled Cap
(62) onto the Weight Tube.
Lubricate the M10 x 73mm Bolt (115) with grease.
Attach the Leg Lever (4) to the Leg Lever Bracket
(5) with the Bolt and an M10 Nylon Locknut (97).
Do not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
4. Lubricate an M10 x 81mm Bolt (122) with grease.
Attach the lower hole in the Adjustment Lever (11)
to the tube on the bottom of the Bench Frame (1)
with the Bolt and an M10 Nylon Locknut (97). Do
not overtighten the Locknut; the Adjustment
Lever must be able to pivot easily.
Hold the handle on the Adjustment Lever (11) so
that the upper hole is above the Bench Frame (1).
Slide the M10 x 65mm Flat Head Screw (27)
through the indicated side of the Lever, over the
Bench Frame, and tighten it into the other side of
the Adjustment Lever. Make sure that the threads
of the Screw show through the Adjustment
Lever. Do not overtighten the Screw.
5. Press four 25mm Square Inner Caps (31) into the
ends of the Backrest Tubes (8).
Attach the Backrest Bracket (7) to the Backrest
Tubes (8) with four M10 x 45mm Bolts (112), four
M10 Washers (99), and four M10 Nylon Locknuts
(97). Make sure the Backrest Tubes are orient-
ed so that the indicated holes are closer to
the bottom. Do not tighten the Locknuts yet.
3
4
22
96
100
26
25
22
4
1
97
11
Handle
5
99
112
31
97
6
5
97
Lubricate
115
1
62
122
30
100
106
Tube
27
122
Lubricate
31
8
Holes
99
112
97
7
