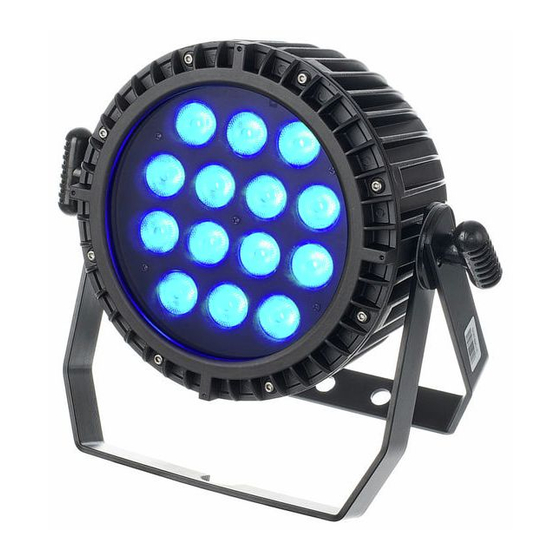

Varytec Event Par IP65 4in1 14x8W User Manual

Led par
Hide thumbs Also See for Event Par IP65 4in1 14x8W:
Table of Contents

Advertisement

Quick Links

Event Par IP65 4in1 14x8W,
Event Par IP65 4in1 14x8W WDMX
LED PAR

Advertisement

Table of Contents
loading

Related Manuals for Varytec Event Par IP65 4in1 14x8W

Summary of Contents for Varytec Event Par IP65 4in1 14x8W

  • Page 1 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 25.02.2019, ID: 452127_435626...

  • Page 3: Table Of Contents

    7.1 Starting the device........................... 32 7.2 Main menu............................32 7.3 Menu overview..........................36 7.4 Functions in 4-channel DMX mode................... 38 7.5 Functions in 7-channel DMX mode................... 38 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 4 7.6 Functions in 9-channel DMX mode................... 40 7.7 Remote control..........................42 Technical specifications........................45 Plug and connection assignments....................48 Troubleshooting............................49 Cleaning............................... 51 Protecting the environment......................52 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 6: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 7: Notational Conventions

    The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 8: Symbols And Signal Words

    1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 9 Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 10 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 11: Safety

    Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 12 Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 13 Do not use the device if covers, protectors or optical components are missing or damaged. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 14 NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 15 Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 16: Features

    Rugged die-cast aluminium housing Varytec Event Par IP65 4in1 14x8W WDMX also: Built-in wireless solution receiver module (G5) for wireless control W-DMX transmitter optionally available (item number 366876) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 17 You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 18: Installation

    Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 19 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 20 Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 21 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. Please note that this device must not be connected to a dimmer. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 22: Starting Up

    Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 23 Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 24 DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 25 When shipping, the battery is already installed in the remote and protected against discharge by a transparent plastic foil. Remove the plastic foil prior to first use. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 26: Connections And Controls

    Connections and controls Connections and controls Varytec Event Par IP65 4in1 14x8W (item number 435626) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 27 Opens a submenu or confirms a value. 2 Pressure compensation element 3 Locking screws for the brackets. 4 [DMX IN] DMX input, designed as 3-pin XLR chassis-mounted plug (IP65) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 28 Lockable output socket (Power Twist TR1 IP65) for the power supply of further devices 8 [POWER IN] Lockable input socket (Power Twist TR1 IP65) for powering the device Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 29 Connections and controls Varytec Event Par IP65 4in1 14x8W WDMX (item number 452127) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 30 Opens a submenu or confirms a value. 2 Pressure compensation element 3 Locking screws for the brackets. 4 [DMX IN] DMX input, designed as 3-pin XLR chassis-mounted plug (IP65) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 31 Lockable output socket (Power Twist TR1 IP65) for the power supply of further devices 8 [POWER IN] Lockable input socket (Power Twist TR1 IP65) for powering the device 9 [ANT] Antenna for wireless control via W-DMX Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 32: Operating

    To close the main menu, press [MENU]. All previously made settings are retained even when you disconnect the device from the power grid. The following table shows the setting options. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 33 Display: ‘red’ , ‘Gree’ , ‘bLUe’ , ‘Whte’ ‘CoLo’ Defines a default colour. Display: ‘Co1’ … ‘CO15’ ‘Auto’ Adjusts an effect. Display: ‘SH-1’ … ‘SH-5’ Adjusts the effect speed. Display: ‘SP01’ … ‘SP05’ Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 34 Enables / disables the slave mode. In slave mode, the device auto‐ matically follows the settings of the master device. Slave mode enabled: ‘SL n’ Slave mode disabled: SL u Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 35 Enables wireless control via WDMX (available only for Varytec Event Par IP65 4in1 14x8W WDMX). WDMX enabled: ‘on’ WDMX disabled: oFF ‘Ir’ Enables or disables the remote control. Remote control enabled: ‘on’ Remote control disabled: oFF Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 36: Menu Overview

    Operating 7.3 Menu overview Varytec Event Par IP65 4in1 14x8W (item number 435626) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 37 Operating Varytec Event Par IP65 4in1 14x8W WDMX (item number 452127) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 38: Functions In 4-Channel Dmx Mode

    Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 39 Master dimmer (0 % bis 100 %) 0…10 open 11…255 Strobe effect, increasing speed 0…10 Without function 11…100 Colour change, increasing speed 101…200 Colour change with cross-fade, increasing speed 201…255 Sound control Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 40: Functions In 9-Channel Dmx Mode

    0…10 open 11…255 Strobe effect, increasing speed 0…10 Without function 11…32 Colour change with 7 colours 33…50 Colour change red orange 51…68 Colour change with 15 colours Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 41 Colour change with cross-fade, increasing speed 201…255 Sound control 0…255 Colour change or fade programme speed if channel 7 = 11…200 0…14 No function 15…255 Sound control, increasing sensitivity Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 42: Remote Control

    Operating 7.7 Remote control Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 43 Activates the default colour schemes red/green, red/blue, red/white, amber/blue. 12 [BLACKOUT] Activates the blackout function and deactivates it again. [FULLON] Activates all colours. [AUTO] Starts / stops "Automatic" mode. [FADE] Activates the fader. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 44 Starts or stops the flashing light function (strobe effect) with the last colour selected. 13 [Red], [Green], [Blue], [White], [Amber], [Purple] Activates the colours red, green, blue, white, amber, purple. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 45: Technical Specifications

    Voltage supply Lockable Power Twist input socket TR1 IP65 DMX control XLR chassis-mounted socket (IP65), 3- Output connections Voltage supply Lockable Power Twist output socket TR1 IP65 Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 46 Dimensions (W × H × D) 293 mm × 298 mm × 155 mm Weight 4.8 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 47 452127 Design Outdoor housing Outdoor housing Colour mixture RGBW RGBW LED type x-in-1 x-in-1 Base housing Fanless Remote control Included Included Wireless DMX Housing colour Black Black Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 48: Plug And Connection Assignments

    XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 49: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 50 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 51: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...

  • Page 52: Protecting The Environment

    To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 53 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 54 Notes Event Par IP65 4in1 14x8W, Event Par IP65 4in1 14x8W WDMX LED PAR...
  • Page 56 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
