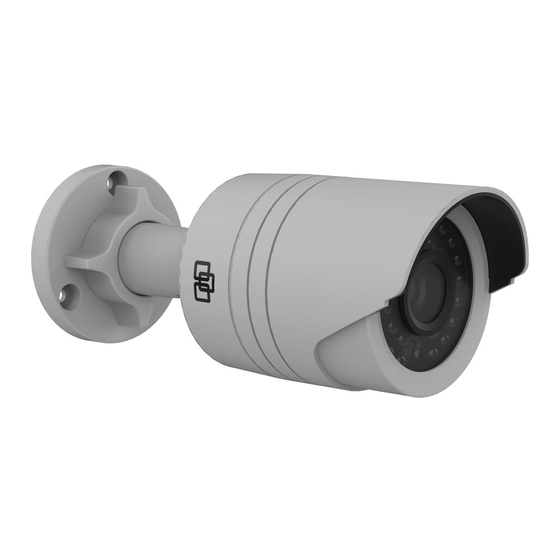

Interlogix TVB-5302 Configuration Manual

Truvision series 3 fw3.1
Hide thumbs Also See for TVB-5302:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
TruVision Series 3 IP
Camera FW3.1
Configuration Manual
P/N 1073187-EN • REV D • ISS 29SEP17

Advertisement

Table of Contents
loading

Related Manuals for Interlogix TVB-5302

Summary of Contents for Interlogix TVB-5302

  • Page 1 TruVision Series 3 IP Camera FW3.1 Configuration Manual P/N 1073187-EN • REV D • ISS 29SEP17...
  • Page 2 Copyright © 2017 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and Trade names used in this document may be trademarks or patents registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    Content Introduction 3 Network access 5 Checking your web browser security level 5 Activating the camera 7 Overview of the camera web browser 9 Camera configuration 11 Configuration menu overview 11 Local configuration 12 System time 13 Network settings 15 Recording parameters 26 Video image 29 OSD (On Screen Display) 33...
  • Page 4 Operating PTZ control 67 Index 70 TruVision Series 3 IP Camera FW3.1 Configuration Manual...

  • Page 5: Introduction

    This is the user manual for TruVision Series 3 IP camera models: IP fixed lens bullet camera:  TVB-5301 (2MPX Bullet, 4 mm lens)  TVB-5302 (4MPX Bullet, 4 mm lens) IP VF lens bullet camera:  TVB-5303 (2MPX Bullet, 2.8 to 12 mm VF lens) ...
  • Page 6  TVT-5305 (4MPX Turret, 2.8 mm lens, White)  TVT-5306 (4MPX Turret, 2.8 mm lens, Black)  TVT-5307 (4MPX Turret, 4.0 mm lens, White) TruVision Series 3 IP Camera FW3.1 Configuration Manual...

  • Page 7: Network Access

    Network access This manual explains how to configure the camera over the network with a web browser. TruVision IP cameras can be configured and controlled using Microsoft Internet Explorer (IE) and other browsers. The procedures described use Microsoft Internet Explorer (IE) web browser. Checking your web browser security level When using the web browser interface, you can install ActiveX controls to connect and view video using Internet Explorer.
  • Page 8 Under Reset Custom Settings, click the security level for the whole zone in the Reset To box, and select Medium. Click Reset. Then click to the Internet Options Security tab window. 5. Click Apply in the Internet Options Security tab window. Windows users Internet Explorer for Windows operating systems have increased security measures to protect your PC from any malicious software being installed.

  • Page 9: Activating The Camera

    Activating the camera When you first start up the camera, the Activation window appears. You must define a high-security admin password before you can access the camera. There is no default password provided. You can activate a password via a web browser and via TruVision Device Manager (included on the CD to find the IP address of the camera).
  • Page 10 3. Enter the password in the password field, and confirm it. Note: A valid password range must be between 8 and 16 characters. You can use a combination of numbers, lower and upper case letters, and special characters : _ - , . * & @ / $ ? Space. The password must contain characters from at least two of these groups.

  • Page 11: Overview Of The Camera Web Browser

    Overview of the camera web browser The camera web browser lets you view, record, and play back recorded videos as well as manage the camera from any PC with Internet access. The browser’s easy-to-use controls give you quick access to all camera functions. See Figure 1 below.
  • Page 12 Name Description Aspect ratio Select the aspect. Streaming Switch between main stream and substream. Viewer View live video. Time, date and camera name are displayed here. Start/stop live view Click to start/stop live view. Audio Adjust volume. Manual Alarm Click to trigger the alarm output. Bidirectional audio Turn on/off microphone.

  • Page 13: Camera Configuration

    Camera configuration This chapter explains how to configure the cameras through a web browser. Once the camera hardware has been installed, configure the camera’s settings through the web browser. You must have administrator rights in order to configure the cameras over the internet. The camera web browser lets you configure the camera remotely using your PC.

  • Page 14: Local Configuration

    Configuration folders Description 2. Network Defines the network parameters required to access the camera over the internet. See “Network settings” on page 15 for more information. 3. Video/Audio Defines recording parameters. See “Recording parameters” on page 26 for more information. 4.

  • Page 15: System Time

    Table 3: Overview of the Local configuration window Parameters Description Live View Parameters 1. Protocol Specifies the network protocol used. Options include: TCP, UDP, MULTICAST and HTTP. 2. Live View Performance Specifies the transmission speed. Options include: Shortest Delay or Auto. It refers to the rules on your local browser.
  • Page 16 2. From the Time Zone drop-down menu select the time zone that is the closest to the camera’s location. 3. Under Time Sync, check one of the options for setting the time and date: Synchronize with an NTP server: Check the enable box and enter the server NTP address.

  • Page 17: Network Settings

    Network settings Accessing the camera through a network requires that you define certain network settings. Use the “Network” folder to define the network settings. See Figure 4 and Table 4 below for further information. Figure 4: Network window (TCP/IP tab shown) Table 4: Network parameters Parameters Description...
  • Page 18 Parameters Description network storm. Enable Multicast Discovery: Enables the automatic detection of the online network camera via private multicast protocol in the LAN. DNS server: Specifies the preferred and alternate DNS server for your network. Port HTTP Port: The HTTP port is used for remote internet browser access. Enter the port used for the Internet Explorer (IE) browser.
  • Page 19 Parameters Description The UPnP (Universal Plug and Play) protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments. With the function enabled, you do not need to configure the port mapping for each port, and the camera is connected to the Wide Area Network (WAN) via the router.
  • Page 20 2. Set the HTTP port, RTSP port, HTTPS port, and server port of the camera. HTTP Port: The default port number is 80. It can be changed to any port number that is not occupied. RTSP Port: The default port number is 554. It can be changed to any port number in the range from 1 to 65535.
  • Page 21 • DynDNS: Enter the DNSS server address, members.ddns.org, which is used to notify DDNS about changes to your IP address, the host name for your camera, the port number (443 (HTTPS)), and your user name and password used to log into your DDNS account. The domain name displayed under “Host Name”...
  • Page 22 To define the SNMP parameters: 1. Click Configuration > Network > SNMP. 2. Select the corresponding version of SNMP: v1, v2c, v3, or “Other Settings”. 3. Configure the SNMP settings. The configuration of the SNMP software should be the same as the settings you configure here. 4.
  • Page 23 To define the 802.1X parameters: 1. Click Configuration > Network > 802.1X. Check Enable IEEE 802.1X to enable the feature. Configure the 802.1X settings, including EAPOL version, user name, and password. The EAPOL version must be identical with that of the router or the switch.
  • Page 24 To define the FTP parameters: 1. Click Configuration > Network > FTP. 2. Configure the FTP settings, including server address, port, user name, password, directory, and upload type. Anonymous: Check the check box to enable the anonymous access to the FTP server.
  • Page 25 2. Check the check box to enable the UPnP function. You can edit the name of the device when detected online. 3. Click Save to save changes. To set up the Email parameters: 1. Click Configuration > Network > Email. 2.
  • Page 26 User Name: The user name to log in to the server where the images are uploaded. Password: Enter the password. Confirm: Confirm the password. Receiver1: The name of the first user to be notified. Receiver’s Address1: The email address of user to be notified. Receiver2: The name of the second user to be notified.
  • Page 27 2. To create a self-signed certificate: Click the Create button beside “Create Self-signed Certificate”. Enter the country, host name/IP, validity and the other information requested. Click to save the settings. -Or- To create a certificate request: Click the Create button beside “Create Certificate Request”. Enter the country, host name/IP and the other information requested.

  • Page 28: Recording Parameters

    3. Click to save the settings. Download the certificate request and submit it to the trusted certificate authority for signature, such as Symantec or RSA. After receiving the signed valid certificate, upload the certificate to the device. Recording parameters You can adjust the video and audio recording parameters to obtain the picture quality and file size best suited to your needs.
  • Page 29 Description Resolution: Specifies the recording resolution. A higher image resolution provides a higher image quality but also requires a higher bit rate. The resolution options listed depend on the type of camera and on whether main or substream is being used. Note: Resolutions can vary depending on the camera model.
  • Page 30 (metadata) to an NVR or other platforms to generate a VCA alarm. For example, with an Interlogix NVR (please check the Interlogix website for the latest NVR models supporting this feature) you can draw a virtual line in the NVR playback window and search the objects or people crossing this virtual line.

  • Page 31: Video Image

    3. Click Save to save changes. Video image You may need to adjust the camera image depending on the camera model or location background in order to get the best image quality. You can adjust the brightness, contrast, saturation, hue, and sharpness of the video image. Use this menu to also adjust camera behavior parameters such as exposure time, iris mode, video standard, day/night mode, image flip, WDR, digital noise reduction, and white balance.
  • Page 32 Parameter Description sharpness), Exposure (Exposure Time and gain), Backlight, White Balance and Image Enhancement settings for day mode only. Night: Configure the Image Adjustment (Brightness, Contrast and sharpness), Exposure (Exposure Time and gain), Backlight, White Balance and Image Enhancement settings only. Custom 24h settings This is used when the camera is in an outdoor situation where the day/night change is defined by the amount of daylight or a trigger via...
  • Page 33 Parameter Description 3. Exposure Settings Iris Mode Only “Manual” is available. Exposure Time The exposure time controls the length of time that the aperture is open to let light into the camera through the lens. Select a higher value if the image is dark and a lower value to see a fast moving object.
  • Page 34 Parameter Description IR Light Select On/OFF to enable/disable IR. Enable: The IR illuminators are On when the camera turns into night mode. Disable: The IR illuminators are Off when the camera turns into night mode. Note: The IR illuminators always are Off in daytime mode. 4.

  • Page 35: Osd (On Screen Display)

    Parameter Description Hallway View In a vertical-shaped scene, such as a hallway or corridor, the image is shown with a vertical (tall) rather than horizontal (wide) format. The video image is at a 9:16 aspect ratio. During installing, turn the camera to 90 degrees or rotate the 3-axis lens to 90 degrees, and then set the rotate mode as On.

  • Page 36: Overlay Text

    4. Check the Display Week box (3) to include the day of the week in the on- screen display. 5. In the Camera Name box (4), enter the camera name. 6. Select the time and date formats from the Time format Date format list boxes (5).

  • Page 37: Privacy Masks

    Figure 7: Text overlay menu To add on-screen text: 1. Click Configuration > Image > Text Overlay. 2. Check the text box for the text. 3. Enter the text in the text box. 4. Use the mouse to click and drag the red text in the live view window to adjust the text overlay position.

  • Page 38: Motion Detection Alarms

    Figure 8: Privacy mask menu To add privacy mask area: 1. Click Configuration > Image > Privacy Mask. 2. Check Enable Privacy Mask. 3. Click Draw Area. 4. Click and drag the mouse in the live video window to draw the mask area. Note: You are allowed to draw up to four areas on the same image.
  • Page 39 Figure 9: Motion detection menu Defining a motion detection alarm requires the following tasks: 1. Area settings: Define the on-screen area that can trigger a motion detection alarm and the detection sensitivity level. 2. Arming schedule: Define the schedule during which the system detects motion.
  • Page 40 6. Move the Sensitivity slider to set the sensitivity of the detection. All areas will have the same sensitivity level. 7. Click Edit to edit the arming schedule. See the picture below for the editing interface of the arming schedule. 8.
  • Page 41 To set up motion detection in advanced mode: 1. Click Configuration > Basic Event > Motion Detection. 2. Check the Enable Motion Detection box. Check Enable Dynamic Analysis for Motion if you want to see where has motion real-time. Note: Select Disable for rules in local configuration menu if you don’t want the detected objected displayed with the rectangles.

  • Page 42: Tamper-Proof Alarms

    Trigger Alarm Output Trigger external alarm outputs when an event occurs. Note: This option is only supported by cameras that support an alarm output. 12. Click Save to save changes. Tamper-proof alarms You can configure the camera to trigger an alarm when the lens is covered and to take an alarm response action.
  • Page 43 • Network Disconnected: Disconnected network cable. • IP Address Conflicted: Conflict in the IP address setting. • Invalid Login: Wrong user ID or password used to log in to the cameras. Figure 10: Exception menu To define exception alarms: 1. Click Configuration >...

  • Page 44: Alarm Inputs And Outputs

    Alarm inputs and outputs To define the external alarm input: 1. Click Configuration > Basic Event > Alarm Input. 2. Choose the Alarm Input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). Enter a name for the alarm input. 3.
  • Page 45 To define the alarm output: 1. Click Configuration > Basic Event > Alarm Output. 2. Select an alarm output channel from the Alarm Output drop-down list. You can also set a name for the alarm output. 3. The delay time can be set to 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min. The delay time refers to the time duration that the alarm output remains in effect after the alarm occurs.

  • Page 46: Cross Line Detection

    Cross line detection This function can be used to detect people, vehicles and objects crossing a pre- defined line or an area. The line crossing direction can be set as bi-directional, for example, from left to right or from right to left. A series of linkage methods can also be triggered if an object crossing the line is detected.
  • Page 47 6. Click Edit to set the arming schedule for the alarm input. See “Motion detection alarms” on page 36 for more information. 7. Configure the linkage action. 8. Click Save to save changes. TruVision Series 3 IP Camera FW3.1 Configuration Manual...

  • Page 48: Intrusion Detection

    Intrusion detection Intrusion detection allows you to set up an area in the surveillance scene. If someone enters the area, a set of alarm actions can be triggered. Figure 12: Intrusion Detection menu To define intrusion detection: 1. Click Configuration >...

  • Page 49: Snapshot Parameters

    5. Click Edit to set the arming schedule for the alarm input. See “Motion detection alarms” on page 36 for more information. 6. Configure the linkage action. 7. Click Save to save changes. Snapshot parameters You can configure scheduled snapshots and event-triggered snapshots. The captured snapshots can be stored in the SD card (if supported) or the NAS.
  • Page 50 Figure 13: Snapshot menu To set up scheduled snapshots: 1. Click Configuration > Storage > Snapshot. 2. Check Enable Timing Snapshot to enable continuous snapshots. 3. Select the desired format of the snapshot, such as JPEG. 4. Select the desired resolution of the snapshot. 5.

  • Page 51: Nas Settings

    To set up event-triggered snapshots: 1. Click Configuration > Storage > Snapshot. 2. Check Enable Timing Snapshot to enable continuous snapshots. 3. Select the desired resolution and quality of the snapshot. 4. Enter the time interval between two snapshots. Select the unit of time from the dropdown list: milliseconds, seconds, minutes, hour, or day.

  • Page 52: Storage Devices

    To set up a NAS system: 1. Click Configuration > Storage > NAS. 2. Enter the IP address of the network disk, and the NAS file path. 3. Click Save to save changes. Storage devices Use the storage management window to display the capacity, free space available and the working status of the HDD of the NAS and the SD card in the camera.
  • Page 53 Pre-record time The pre-record time is set to start recording before the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the camera starts to record the event at 9:59:55. The pre-record time can be configured as “No Pre-record”, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s, or “Not limited”.
  • Page 54 4. Select whether the recording will be for the whole week (All Day recording) or for specific days of the week (Customize recording). All Day recording: Select one of the record types to record from the drop- down list box: •...
  • Page 55 Set the customized recording periods for the other days of the week, if required. Click Copy to copy the recording periods to another day of the week. 5. Click Save to save changes. Note: If you set the record type to “Motion detection”, “Alarm”, “Cross Line” or “Intrusion Detection”...

  • Page 56: Camera Management

    Camera management This chapter describes how to use the camera once it is installed and configured. The camera is accessed through a web browser. User management This section describes how to manage users. You can:  Add or delete users ...
  • Page 57  Admin: This is the system administrator. The administrator can configure all settings. Only the administrator can create and delete user accounts. Admin cannot be deleted.  Operator: This user can only change the configuration of his/her own account. An operator cannot create or delete other users. ...

  • Page 58: Rtsp Authentication

    Basic Permission Camera Configuration Remote: Parameters Settings Remote: Live View Remote: Log Search/Interrogate Working Remote: PTZ Control Status Remote: Manual Record Remote: Upgrade/Format Remote: Playback Remote: Bidirectional Audio Remote: Shutdown / Reboot Remote: Notify Alarm Recipient / Trigger Alarm Output Remote: Video Output Control Remote: Serial Port Control 7.

  • Page 59: Ip Address Filter

    To define RTSP authentication: 1. Click Configuration > Storage > RTSP Authentication. 2. Under “RTSP Authentication”, select Enable Disable in the drop-down list to enable or disable the RTSP authentication. 3. Click Save to save the changes. Note: If "RTSP Authentication" is disabled, the user can still see the live view images although there is has no permission for “Remote: Live View".

  • Page 60: Restore Default Settings

    2. Select the IP Address Filter tab. 3. Check the Enable IP Address Filter check box. 4. Select the type of IP Address Filter in the drop-down list, Forbidden Allowed. 5. Click to add an IP address. 6. Click Modify Delete to modify or delete the selected IP address.

  • Page 61: Import/Export A Configuration File

    To restore default settings: 1. Click Configuration > System > Maintenance. 2. Click either Restore or Default. A window showing user authentication appears. 3. Enter the admin password and click OK. 4. Click in the pop-up message box to confirm restoring operation. Import/export a configuration file The administrator can export and import configuration settings from the camera.

  • Page 62: Reboot Camera

    To upgrade firmware version: 1. Download on to your computer the latest firmware from our web site at: www.interlogix.com/video/product/truvision-ip-open-standards-outdoor- cameras/ - Or - www.utcfssecurityproductspages.eu/videoupgrades/ 2. When the firmware file is downloaded to your computer, extract the file to the desired destination.

  • Page 63: Camera Operation

    Camera operation This chapter describes how to use the camera once it is installed and configured. Logging on and off You can easily log out of the camera browser window by clicking the Logout button on the menu toolbar. You will be asked each time to enter your user name and password when logging in.

  • Page 64: Live View Mode

    Live view mode Once logged in, click “Live View” on the menu toolbar to access live view mode. See Figure 1 on page 9 for the description of the interface. Start/stop live view: You can stop and start live view by clicking the Start/stop live view button on the bottom of the window.
  • Page 65 Figure 18: Playback window Name Description Playback button Click to open the Playback window. Search calendar Click the day required to search. Search Start search. Set playback time Input the time and click to locate the playback point. Control playback Click to control how the selected file is played back: play, stop, slow and fast forward playback.
  • Page 66 Name Description Recording type The color code displays the recording type. Recording types are schedule recording, alarms recording and manual recording. The recording type name is also displayed in the current status window. Archive functions Click these buttons for the following archive actions: Capture a snapshot image of the playback video.

  • Page 67: Searching Event Logs

    To archive recorded snapshots: 1. Click to open the snapshots search window. 2. Select the snapshot type as well as the start and end time. 3. Click Search to search for the snapshots. 4. Select the desired snapshots, and click Download to download them.
  • Page 68 Figure 19: Log window 1. Major Type 4. Start search 2. Minor Type 5. Save searched logs 3. Start and end search time You can search for recorded logs by the following criteria: Major type: There are three types of logs: Alarm, Exception, and Operation. You can also search “All”.

  • Page 69: Operating Ptz Control

    Log type Description of events included Operation Power On, Unexpected Shutdown, Remote Reboot, Remote Login, Remote Logout, Remote Configure parameters, Remote Upgrade, Remote Start Record, Remote Stop Record, Remote PTZ control, Remote Initialize HDD, Remote Playback by File, Remote Playback by Time, Remote Export Config file, Remote import config file, Remote Get Parameters, Remote Get Working Status, Start Bidirectional Audio, Stop Bidirectional Audio, Remote Alarm Arming, Remote Alarm Disarming...
  • Page 70 Description Initializes the lens Note: 1. To do pan/tilt movement using the direction buttons, the camera connected to the network must support RS-485 and a pan/tilt unit must be installed in the camera. Please properly set the PTZ parameters on the RS-485 Settings page referring to Defining RS-485 settings 2.
  • Page 71 To set a preset tour: 1. In the PTZ control panel, click to enter the tour settings interface. 2. Select a preset tour number from the drop-down list. 3. Click to enter the adding interface of preset. 4. Configure the preset number, preset tour time and preset tour speed. Preset Tour Duration: The dwell time.
  • Page 72 Index Activate the camera, 7 Alarm inputs capacity, 50 set up, 42 formatting, 50 Alarm outputs HDD error alarm, 40 set up, 42 HDD full alarm, 40 Alarm types motion detection, 36 Archived files Illegal login alarm, 40 play back, 64 IP address Archiving files find IP address of camera, 7...
  • Page 73 Pre-recording times modify computer ID, 56 description, 51 types of users, 54 Privacy masks, 35 PTZ control, 67 Video parameters, 26 Video quality, 29 QoS parameters set up, 21 Web browser overview of the interface, 9 Reboot camera, 60 Web browser security level Record file settings, 12 checking, 5 Recording...
