Clarke CROS1 Operating & Maintenance Instructions

Rotary orbital sander

Advertisement

Quick Links

VARIABLE SPEED

JIG SAW
MODEL No. CJS350

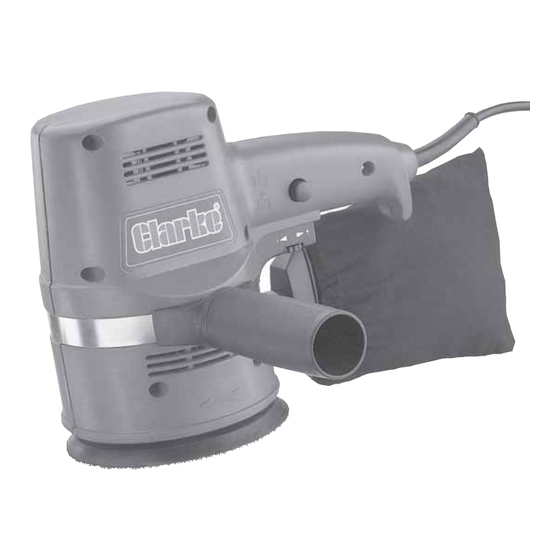

ROTARY ORBITAL SANDER
ROTARY ORBITAL SANDER
Part No. 6460200
MODEL No. CROS1
Part No. 6462010
OPERATING & MAINTENANCE
INSTRUCTIONS
0606

Advertisement

Table of Contents
loading

Summary of Contents for Clarke CROS1

  • Page 1: Variable Speed

    VARIABLE SPEED JIG SAW MODEL No. CJS350 ROTARY ORBITAL SANDER ROTARY ORBITAL SANDER Part No. 6460200 MODEL No. CROS1 Part No. 6462010 OPERATING & MAINTENANCE INSTRUCTIONS 0606...
  • Page 2: Specifications

    Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.
  • Page 3: Safety Precautions

    Safety Precautions WARNING: As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result. 1.
  • Page 4: Dust Extraction

    14. ALWAYS wear proper apparel. loose clothing or jewellery may get caught in moving parts. wear protective hair covering to contain long hair. 15. ALWAYS use recommended accessories. the use of improper accessories could be hazardous. 16. ALWAYS remove plug from electrical outlet when adjusting, changing parts, or working on the machine.
  • Page 5: Electrical Connections

    (as indicated by marking or colour code). 4. Replacement fuse covers can be obtained from your local Clarke dealer or most electrical stockists. FUSE RATING The fuse in the plug must be replaced with one of the same rating (5 amps) and this replacement must be ASTA approved to BS1362.
  • Page 6: Operation

    Operation Fitting Sanding Disk. a) Select disk to be used. (MUST be correct disks with velcro fitting ability). b) Ensure sander is switched OFF and plug is removed from socket. c) Line up holes in disk with those on machine pad. (This is necessary for dust extraction), press disk firmly onto pad to secure it.
  • Page 7: Troubleshooting

    Accessories A wide range of accessories is available from your nearest CLARKE dealer, for further information, contact your nearest dealer, or telephone CLARKE International Sales department on 01992 565300. Trouble Shooting Sander is overheating This indicates the machine is dirty. Clean the ventilation holes, and blow out with compressed air or clean with a dry cloth.
  • Page 8: Parts List

    6002 Bearing GRCROS1027 Screw GRCROS1013 Stator GRCROS1028 Data plate GRCROS1014 Rotor GRCROS1029 Dust Bag GRCROS1015 Bearing Holder Replacement sanding discs are available from your CLARKE dealer. PARTS & SERVICE TEL: 020 8988 7400 e-mail as follows: PARTS: Parts@clarkeinternational.com SERVICE: Service@clarkeinternational.com...
  • Page 9: Parts Diagram

    Parts Diagram Parts & Service For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com...
  • Page 10: Vibration Emissions

    ‘K’, which represents the uncertainty factor, i.e. a value in excess of ‘a’, to which the tool could vibrate under normal conditions. These values appear in the specification panel below. MODEL No: CROS1 DESCRIPTION: ORBITAL SANDER Declared vibration emmission value in accordance...
  • Page 11 You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
