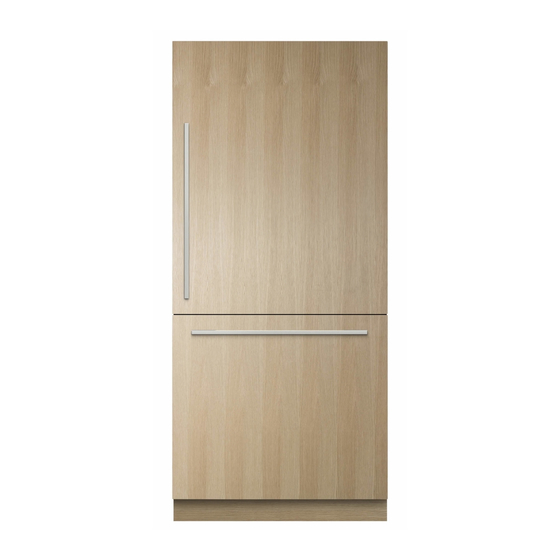

Fisher & Paykel ACTIVESMART Dual Installation Manual
Hide thumbs
Also See for ACTIVESMART:
- User manual (248 pages) ,
- Installation instructions and user manual (48 pages) ,
- User manual (68 pages)
Related Manuals for Fisher & Paykel ACTIVESMART
Summary of Contents for Fisher & Paykel ACTIVESMART
- Page 1 ACTIVESMART™ INTEGRATED REFRIGERATOR FRAMED AND FRAMELESS CABINETRY RS36W and RS91W Models DUAL INSTALLATION GUIDE NZ AU GB IE HK SG IN US CA...
-
Page 3: Table Of Contents
FOLLOW THE INSTALLATION SEQUENCE Safety and warnings Dual Installation Components list Alcove dimensions Attaching foam pads Removing hinge bracket and fitting alcove bracket Attaching top joiner bracket and alcove fixing bracket to alcove Location of products into alcove — Right product Location of products into alcove — Left product Preparing for centre trim Attaching the centre trim and toe kick... -
Page 5: Safety And Warnings
SAFETY AND WARNINGS DUAL INSTALLATION Dual installation refers to the joining of 1 x RS91WR model with 1 x RS91WL model or WARNING! 1 x RS36WR model with 1 x RS36WL model. This appliance is top-heavy and must RS91WR MODELS RS91WL MODELS be secured to prevent the possibility of RS91WRJ FP... -
Page 6: Components List
COMPONENTS LIST Included with the Dual Install kit. Joiner bracket Alcove fixing bracket Right hinge refrigerator Left hinge refrigerator Foam pads Spring clips (provided with alcove bracket alcove bracket the appliance) M8 Screw Set Centre trim Toe kick Bottom joiner bracket M8 nut M8 set screw M5 x 12 Socket head cap screw... -
Page 7: Alcove Dimensions
ALCOVE DIMENSIONS ATTACHING FOAM PADS Measure and attach foam pads to three locations down the right side of the left hinge refrigerator. (Align the top of the foam pad to your measurement mark. Align the side of the foam pad with the front edge of the cabinet). 2”... -
Page 8: Removing Hinge Bracket And Fitting Alcove Bracket
REMOVING HINGE BRACKET AND FITTING ALCOVE BRACKET Start with the left hinge refrigerator and repeat the process on the right hinge refrigerator. Fitting alcove bracket Screw the front two M5 x 8 countersunk Phillips screws (refer to C). Check that the top face Removing hinge bracket of the front trim is parallel to the refrigerator. -
Page 9: Attaching Top Joiner Bracket And Alcove Fixing Bracket To Alcove
ATTACHING TOP JOINER BRACKET AND ALCOVE FIXING BRACKET TO ALCOVE Use M5 x 12 Socket head cap screws to connect the top joiner bracket to the alcove For flush installation measure 1 1/4” (108mm) back from the front face of the adjacent cabinetry doors (refer to C). fixing bracket. -
Page 10: Location Of Products Into Alcove - Right Product
LOCATION OF PRODUCTS INTO ALCOVE — RIGHT PRODUCT Roll the right hinge refrigerator into the right hand side of the alcove until the refrigerator makes contact with the joiner bracket. IMPORTANT! For flush installation: check for flushness of the refrigerator with the surrounding cabinetry (refer to separate ‘Installation guide’... -
Page 11: Location Of Products Into Alcove - Left Product
LOCATION OF PRODUCTS INTO ALCOVE — LEFT PRODUCT IMPORTANT! Open the left hinge refrigerator door to access the brackets (refer to B). Open the door of the right hinge refrigerator. Adjust the refrigerator height (as per the separate ‘Installation guide’ booklet supplied with your refrigerator), so holes in the top trim are in line with the holes in the joiner bracket Roll the left hinge refrigerator into the left hand side of the alcove until the refrigerator (refer to C). -
Page 12: Preparing For Centre Trim
PREPARING FOR CENTRE TRIM Remove the centre* M10 x 65 Socket head cap screws from the base of the refrigerators Insert right hand spring clip into the centre trim channel (refer to C). (refer to A) IMPORTANT! *Remove the right screw from the left hinge refrigerator. Ensure the bottom of the right hand spring clip is located on the right hand side of the *Remove the left screw from the right hinge refrigerator. -
Page 13: Attaching The Centre Trim And Toe Kick
ATTACHING THE CENTRE TRIM AND TOE KICK IMPORTANT! Installing toe kick Unscrew the toe kick bracket screws mid-way, and bring forward (refer to D and E). Open both refrigerator doors. Repeat this process for both refrigerators. Bring the centre trim in front of the gap between the two refrigerators (refer to A). - Page 16 FISHERPAYKEL.COM DCSAPPLIANCES.COM © Fisher & Paykel Appliances 2017. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
