  • Page 1 FortiFone QuickStart Guide ™ for FON-870i...
  • Page 2 Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet's General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain...

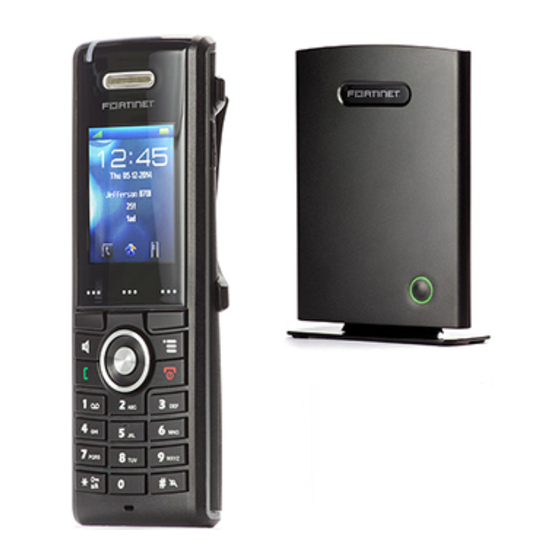

  • Page 3 Introduction This guide describes how to set up your new FON-870i telephone. For more information, please see the FON-870i User Guide at docs.fortinet.com. Introduction FortiFone QuickStart Guide...

  • Page 4: Installing The Base Station

    Installing the base station Ensure you have an available PoE port on your network switch before continuing with this installation. Connect the RJ45 cable from the network port on the base station to the PoE switch. Installing the base station FortiFone QuickStart Guide...

  • Page 5: Installing The Handset Charger

    Installing the handset charger 1. Place the handset charger within 150 feet (50 meters) of the base. Concrete and metal objects might affect the signal range. 2. Connect the power adapter from the power outlet to the handset charger. Installing the handset charger FortiFone QuickStart Guide...
  • Page 6 3. Remove the battery cover from the phone and insert the battery as shown in the illustration. Replace the battery cover. 4. Place the handset in the charger. The blue light on the battery charger will turn on. Ensure the phone is fully charged before using for the first time.

  • Page 7: Registering The Handsets

    15 registered handsets with up to 10 concurrent calls. Configure an extension for each handset in the phone system. For further details, see the FortiVoice admin/user guide at docs.fortinet.com. For use as an internal extension 1. Press and use the navigation button to select Connectivity.
  • Page 8 2. Select Register and select an empty slot. 3. Enter as the access code. Press OK. 0000 4. After completing steps 1–3 for all handsets, reboot the base by pressing the Reset button. Once the base has finished rebooting, the phone will automatically register and display the name and extension number.

  • Page 9: For Use As An External Extension

    For use as an external extension and enter _FJ_. This will display the 1. Press IP address of the base. 2. Using a browser, enter the IP address of the base. 3. Enter admin as the User Name and 23646 the Password.
  • Page 10 7. Press and use the navigation button to select Connectivity. 8. Select Register and select an empty slot. 9. Enter 0000 as the access code. Press OK. 10. After completing steps 7–9 for all handsets, reboot the base by pressing the Reset button. Once the base has finished rebooting, the phone will automatically register and display the name and extension number.

  • Page 11: Important Safety Information

    Handset safety and certifications Important safety information Use only power adapter listed in the user instructions. Charge the battery or handset only in combination with 870i DECT Handset Desktop Charger and the Ten Pao S008CM0550060 or Phihong PSAC05R-055(RT)-R adapter that comes with the product. Plug the Ten Pao S008CM0550060 or Phihong PSAC05R-055(RT)-R AC/DC adapter in a wall outlet socket near the equipment for easy access/removal of the AC/DC adapter.
  • Page 12 Hereby, “Fortinet”, declares that this “870i” is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente “Fortinet” declara que el “870i” cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική...
  • Page 13 Par la présente “Fortinet” déclare que l’appareil “870i” est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Íslenska Hér með lýsir “Fortinet” yfir því að “870i” er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Italiano Con la presente “Fortinet”...
  • Page 14 Intended use These phones are designed for use with a Fortinet IP DECT phone network. Any other use is considered unintended use. Fortinet, Inc. 899 Kifer Road Sunnyvale, CA 94086 Regulatory information — United States Interference information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 Regulatory information — Canada Interference information Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this equipment. Exposure to Radio Frequency (RF) signals This base station is a radio transmitter and receiver.
  • Page 16 Regulatory information — Europe Declaration of conformity Česky “Fortinet” tímto prohlašuje, že tento “870i” je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk Undertegnede “Fortinet” erklærer herved, at følgende udstyr “870i” overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
  • Page 17 Par la présente “Fortinet” déclare que l’appareil “870i” est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Íslenska Hér með lýsir “Fortinet” yfir því að “870i” er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Italiano Con la presente “Fortinet”...
  • Page 18 Härmed intygar “Fortinet” att denna “870i” står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Intended use These base stations are designed for use with a Fortinet IP DECT phone network. Any other use is considered unintended use. Fortinet, Inc.
  • Page 19 This product has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE 1528-2003. To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safety absorbed by a user or bystander according to the intended usage of the product.

  • Page 20: Warranty

    Warranty This phone is covered by a one-year hardware warranty against manufacturing defects as set forth in the EULA. www.fortivoice.com/support For warranty service: • In North America, please call 1-866-648-4638 for further information. • Outside North America, contact your sales representative for return instructions.
