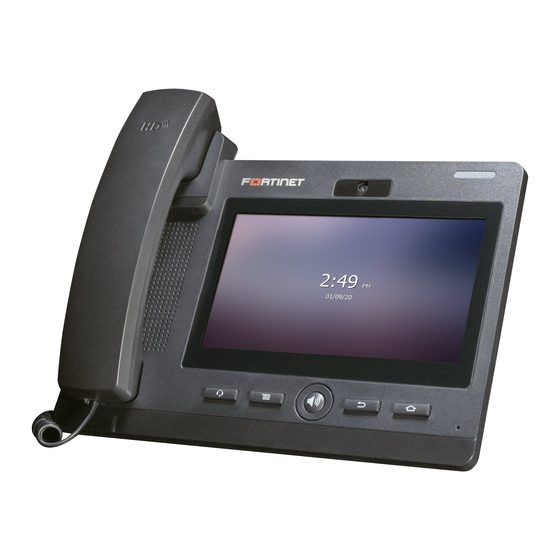

- Page 1 FortiFone QuickStart Guide ™ for FON-670i and FON-675i...
- Page 2 FortiGuard , and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Introduction..............1 Box includes ................ 1 Installation............... 2 Attaching the stand.............. 2 For desktop use ............. 2 For wall mounting ............2 Connecting the phone ............3 Setting up the phone ............4 For use as an internal extension ........4 For use as an external extension ........ -
Page 4: Introduction
Start by configuring an extension in the phone system. Refer to the FortiVoice Administration Guide for information about configuring an extension. For further details about your phone, please see the FON-670i and FON-675i User Guide. Box includes The following items are included in the box: Phone... -
Page 5: Installation
Installation Attaching the stand For desktop use 1. Line the 4 posts on the top of the base up with the 4 holes on the back of the phone. 2. Slide up into place until secure. For wall mounting 1. Remove center screw from the base and separate the two parts. 2. -
Page 6: Connecting The Phone
Connecting the phone 1. Connect the handset cord to the handset and the jack on the phone. 2. Optionally connect an amplified headset to the jack. 3. Connect the WAN port to the network with the provided Ethernet cable. 4. Optionally connect your desktop PC to the PC port with an Ethernet cable (not supplied). -
Page 7: Setting Up The Phone
Setting up the phone For use as an internal extension The phone supports plug and play installation and will automatically download its configuration from the FortiVoice system. The phone will display the extension number and name when it has registered. Once configured within the FortiVoice system, reboot the phone to download its configuration and register to the system. -
Page 8: Using The Phone
Using the Phone Button Function Headset — toggles the headset on and off. Menu — interacts with various apps on the phone. Speakerphone — toggles the speaker on and off. Return — press to return to previous screen. Home — returns user to the home screen of the phone. Using the Phone FortiFone™... - Page 9 Button Function Dial pad— accesses dial pad on the screen of the phone. DND— toggles do not disturb on and off. Voicemail — accesses voicemail and voicemail greetings. Contacts — accesses contacts saved on the phone. Call list— accesses a list of all calls incoming, outgoing and missed.
-
Page 10: Troubleshooting
1. On the Extension page of the FortiVoice interface, is displayed ensure the MAC address is correctly entered and the Phone Type is FON-670i or FON-675i. Save your configuration and reboot the phone. 2. On the phone, ensure the TFTP IP address is correct. -
Page 11: Cautions And Warnings
Cautions and Warnings Environmental specifications Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude). Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Caution: This equipment is to be used in a Network Environment 0 per IECTR 62101. -
Page 12: Privacy
Privacy This phone implements security and encryption technologies. However, privacy of communications may not be ensured when using this telephone. Cautions and Warnings FortiFone™ QuickStart Guide... -
Page 13: Regulatory Notices
Regulatory Notices Federal Communication Commission (FCC) — USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received; including interference that may cause undesired operation. -
Page 14: European Conformity (Ce) - Eu
European Conformity (CE) — EU This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Industry Canada Equipment Standard for Digital Equipment (ICES) — Canada This Class B digital apparatus complies with Canadian ICES-003. -
Page 15: Warranty
Warranty This phone is covered by a one-year hardware warranty against manufacturing defects as set forth in the EULA. www.fortivoice.com/support For warranty service: • In North America, please call 1-866-648-4638 for further information. • Outside North America, contact your sales representative for return instructions.
