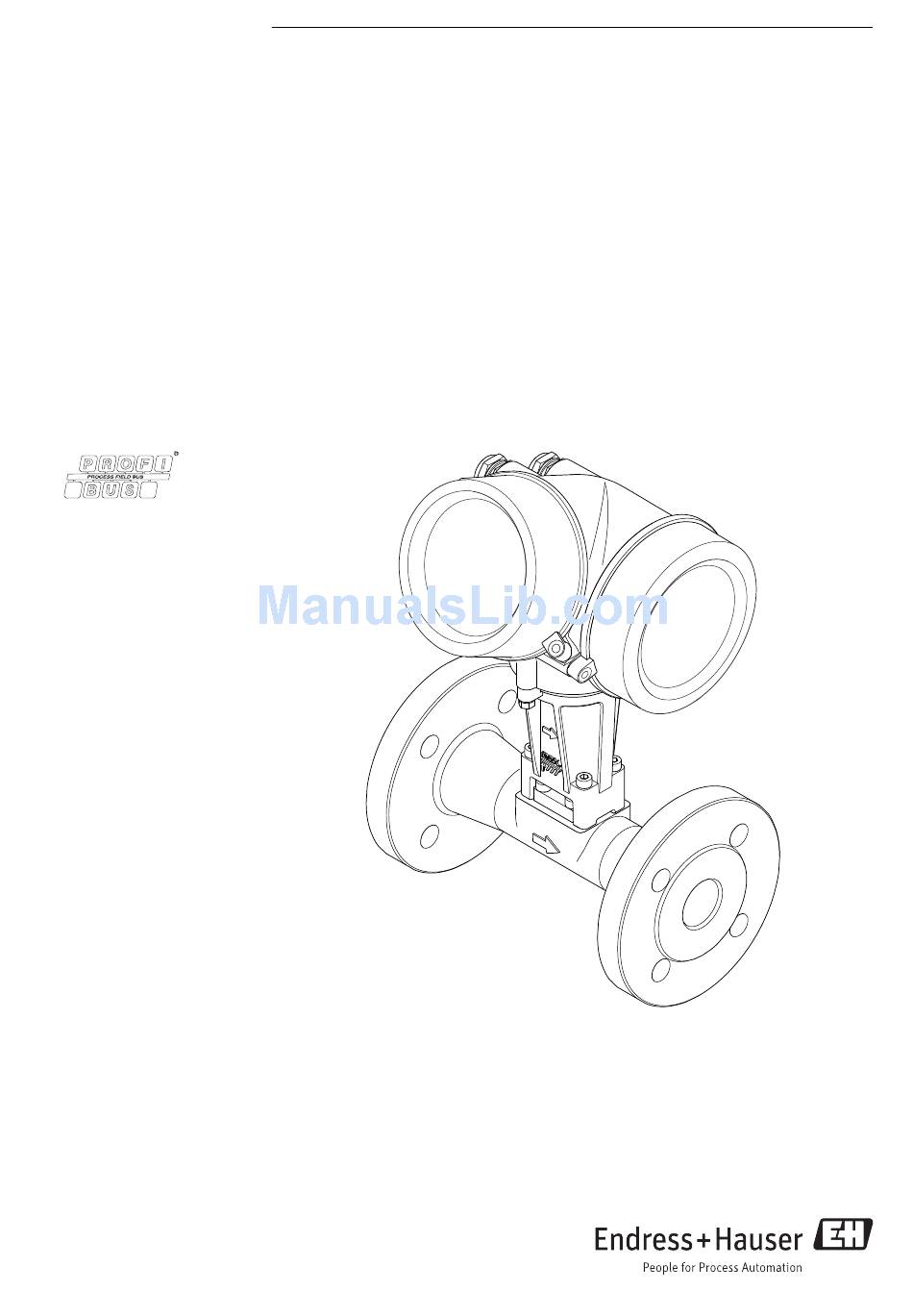

Page 1 Products Solutions Services BA01222D/06/EN/03.15 71299421 Valid as of version 01.01.zz (Device firmware) Operating Instructions Proline Prowirl F 200 PROFIBUS PA Vortex flowmeter...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...
Page 3: Table Of Contents
Proline Prowirl F 200 PROFIBUS PA Table of contents Table of contents 6.2.2 Preparing the measuring device ..25 Document information ....6 6.2.3...
Page 4 13.2 Measuring and test equipment ... 177 10.7.1 Function scope of the "Configuration 13.3 Endress+Hauser services ....177 management" parameter ..121 10.8 Simulation .
Page 5 Proline Prowirl F 200 PROFIBUS PA Table of contents 15.2 Service-specific accessories ....182 15.3 System components ....183 Technical data .
Page 6: Document Information
Document information Proline Prowirl F 200 PROFIBUS PA Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7: Information 7
• The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. For a detailed list of the individual documents along with the documentation code...
Page 8: Standard Documentation
Registered trademarks of DuPont Performance Elastomers L.L.C., Wilmington, DE USA GYLON ® Registered trademark of Garlock Sealing Technologies, Palmyar, NY, USA Applicator ® , FieldCare ® , DeviceCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
Page 9: Basic Safety Instructions
Keep within the specified pressure and temperature range. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any Endress+Hauser...
Page 10: Workplace Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device.
Page 11: Product Description

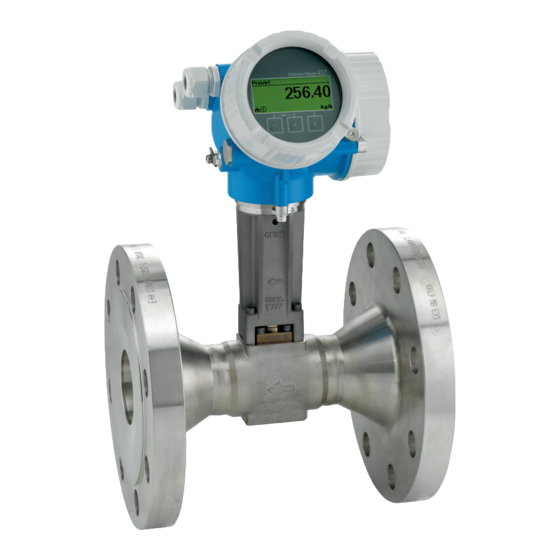

Proline Prowirl F 200 PROFIBUS PA Product description Product description The device consists of a transmitter and a sensor. Two device versions are available: • Compact version – transmitter and sensor form a mechanical unit. • Remote version - transmitter and sensor are mounted in separate locations.
Page 12: Identification
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"...
Page 13: Transmitter Nameplate
"Supplementary device-dependent documentation" →  8 • The W@M Device Viewer: Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1...
Page 14: Sensor Nameplate
Incoming acceptance and product identification Proline Prowirl F 200 PROFIBUS PA 4.2.2 Sensor nameplate Order code for "Housing" option B "GT18 two-chamber, 316L" and option K "GT18 two-chamber, remote, 316L" Ser. no.: Size: Qmax(G): Ptest: Materials: Gasket: A0020760  3...
Page 15 Proline Prowirl F 200 PROFIBUS PA Incoming acceptance and product identification Order code for "Housing" option C "GT20 two-chamber, aluminum coated" Ser. no.: Size: Qmax(G): Ptest: Materials: Gasket: A0020758  4 Example of a sensor nameplate Nominal diameter of the sensor...
Page 16: Symbols On Measuring Device
Incoming acceptance and product identification Proline Prowirl F 200 PROFIBUS PA Order code for "Housing" option J "GT20 two-chamber, remote, aluminum coated" Order code: Ser. no.: Ext. ord. cd.: Size: Qmax(G): Ptest: Materials: Gasket: A0020759  5 Example of a sensor nameplate...
Page 17: Storage And Transport
Proline Prowirl F 200 PROFIBUS PA Storage and transport Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Do not remove protective covers or protective caps installed on process connections.
Page 18: Measuring Devices With Lifting Lugs
Storage and transport Proline Prowirl F 200 PROFIBUS PA 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device.
Page 19: Installation
Proline Prowirl F 200 PROFIBUS PA Installation Installation Installation conditions 6.1.1 Mounting position Mounting location A0015543 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).
Page 20 Installation Proline Prowirl F 200 PROFIBUS PA Minimum spacing and cable length A0019211 Minimum spacing in all directions Required cable length The following dimensions must be observed to guarantee problem-free access to the device for service purposes: • A =100 mm (3.94 in) •...
Page 21 It is not possible to use a flow conditioner for wet steam. Flow conditioner If the required inlet runs cannot be observed, it is possible to install a specially designed flow conditioner which can be ordered from Endress+Hauser. The flow conditioner is fitted Endress+Hauser...
Page 22 Installation Proline Prowirl F 200 PROFIBUS PA between two pipe flanges and centered by the mounting bolts. Generally this reduces the inlet run needed to 10 × DN with full accuracy. 8 x DN 5 x DN 2 x DN...
Page 23: Process
Proline Prowirl F 200 PROFIBUS PA Installation 6.1.2 Requirements from environment and process Ambient temperature range Compact version Measuring device Non-Ex: –40 to +80 °C (–40 to +176 °F) Ex i: –40 to +70 °C (–40 to +158 °F) EEx d/XP version: –40 to +60 °C (–40 to +140 °F)
Page 24: Special Mounting Instructions
Installation Proline Prowirl F 200 PROFIBUS PA ‣ When insulating, ensure that a sufficiently large area of the housing support remains exposed. The uncovered part serves as a radiator and protects the electronics from overheating and excessive cooling. NOTICE Electronics overheating on account of thermal insulation! ‣...
Page 25: Mounting The Measuring Device
Proline Prowirl F 200 PROFIBUS PA Installation Weather protection cover Observe the following minimum head clearance: 222 mm (8.74 in) For information on the weather protection cover, see →  181 Mounting the measuring device 6.2.1 Required tools For transmitter •...
Page 26: Remote Version
Installation Proline Prowirl F 200 PROFIBUS PA 6.2.4 Mounting the transmitter of the remote version CAUTION Ambient temperature too high! Danger of electronics overheating and housing deformation. ‣ Do not exceed the permitted maximum ambient temperature . ‣ If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in warm climatic regions.
Page 27: Turning The Transmitter Housing
Proline Prowirl F 200 PROFIBUS PA Installation Post mounting 20…70 ( 0.79 to 2.75) SW 13 A0019862  9 Engineering unit mm (in) Post retainer kit for post mounting 6.2.5 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned.
Page 28: Post-Installation Check
Installation Proline Prowirl F 200 PROFIBUS PA 3 mm A0013905 1. Loosen the securing clamp of the electronics compartment cover using an Allen key. 2. Unscrew cover of the electronics compartment from the transmitter housing. 3. Optional: pull out the display module with a gentle rotational movement.
Page 29: Electrical Connection
Proline Prowirl F 200 PROFIBUS PA Electrical connection Electrical connection The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
Page 30 Electrical connection Proline Prowirl F 200 PROFIBUS PA Connecting cable (reinforced) Cable, reinforced 2 × 2 × 0.34 mm (22 AWG) PVC cable with common shield (2 pairs, pair- stranded) and additional steel-wire braided sheath Flame resistance According to DIN EN 60332-1-2...
Page 31 Proline Prowirl F 200 PROFIBUS PA Electrical connection Maximum overall cable length The maximum network expansion depends on the type of protection and the cable specifications. The overall cable length combines the length of the main cable and the length of all spurs >1 m (3.28 ft).
Page 32: Terminal Assignment
Electrical connection Proline Prowirl F 200 PROFIBUS PA 7.1.3 Terminal assignment Transmitter Connection version for PROFIBUS PA, pulse/frequency/switch output A0013570 A0018161 Maximum number of terminals Maximum number of terminals for order code for "Accessory mounted", option NA "Overvoltage protection" Output 1: PROFIBUS PA...
Page 33: Pin Assignment, Device Plug
Proline Prowirl F 200 PROFIBUS PA Electrical connection A0019335  10 Terminals for connection compartment in the transmitter wall holder and the sensor connection housing Terminals for connecting cable Grounding via the cable strain relief Terminal number Assignment Cable color...
Page 34: Requirements For The Supply Unit
Electrical connection Proline Prowirl F 200 PROFIBUS PA taken into account for this device. Operation in the event of disturbance variables as per NAMUR NE21 is thus guaranteed. Where applicable, national installation regulations and guidelines must be observed during the installation! Where there are large differences in potential between the individual grounding points, only one point of the shielding is connected directly with the reference ground.
Page 35: Preparing The Measuring Device
Proline Prowirl F 200 PROFIBUS PA Electrical connection Supply voltage for a compact version without a local display Order code for "Output" Minimum Maximum terminal voltage terminal voltage Option G: PROFIBUS PA, pulse/frequency/ ≥ DC 9 V DC 32 V...
Page 36 Electrical connection Proline Prowirl F 200 PROFIBUS PA 1. Mount the transmitter and sensor. 2. Connect the connecting cable. 3. Connect the transmitter. The way the transmitter wall holder is connected depends on the measuring device approval and the version of the connecting cable used.
Page 37 Proline Prowirl F 200 PROFIBUS PA Electrical connection NOTICE Terminals tightened with an incorrect tightening torque. Incorrect connection or damaged terminal. ‣ Tighten the terminals with a tightening torque in the 1.2 to 1.7 Nm range. Wire the connecting cable: ...
Page 38 Electrical connection Proline Prowirl F 200 PROFIBUS PA TX 10 8 mm A0020405 ~15° A0020406 A0020407 Endress+Hauser...
Page 39: Connecting The Transmitter
Proline Prowirl F 200 PROFIBUS PA Electrical connection A0020409 1. Loosen the securing clamp of the transmitter housing. 2. Loosen the securing clamp of the electronics compartment cover. 3. Unscrew the electronics compartment cover. 4. Pull out the display module with a gentle rotational movement. To make it easier to access the lock switch, attach the display module to the edge of the electronics compartment.
Page 40 Electrical connection Proline Prowirl F 200 PROFIBUS PA Connection via terminals 3 mm 20 mm 10 (0.4) mm (in) A0013836 1. Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
Page 41: Ensuring Potential Equalization
Proline Prowirl F 200 PROFIBUS PA Electrical connection Removing a cable 3 (0.12) mm (in) A0013835 ‣ To remove a cable from the terminal, use a flat-blade screwdriver to push the slot between the two terminal holes while simultaneously pulling the cable end out of the terminal.
Page 42: Hardware Settings
Electrical connection Proline Prowirl F 200 PROFIBUS PA PROFIBUS-PA A0019004  12 Connection example for PROFIBUS-PA Control system (e.g. PLC) Segment coupler PROFIBUS DP/PA Cable shield T-box Measuring device Local grounding Bus terminator Potential matching line Hardware settings 7.4.1 Setting the device address PROFIBUS PA The address must always be configured for a PROFIBUS DP/PA device.
Page 43: Ensuring The Degree Of Protection
Proline Prowirl F 200 PROFIBUS PA Electrical connection Hardware addressing 1. Set switch 8 to the "OFF" position. 2. Using switches 1 to 7, set the address as indicated in the table below. The change of address takes effect after 10 seconds. The device is restarted.
Page 44: Post-Connection Check
Electrical connection Proline Prowirl F 200 PROFIBUS PA 4. To ensure that moisture does not enter the cable entry, route the cable so that it loops down before the cable entry ("water trap").  A0013960 5. Insert dummy plugs into unused cable entries.
Page 45: Operation Options
Proline Prowirl F 200 PROFIBUS PA Operation options Operation options Overview of operating options A0019091 Local operation via display module Computer with operating tool (e.g. FieldCare, SIMATIC PDM) Automation system (e.g. PLC) Endress+Hauser...
Page 46: Menu
Operation options Proline Prowirl F 200 PROFIBUS PA Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu with menus and parameters Operating menu for operators and maintenances Language Operatation...
Page 47: Operating Philosophy
Proline Prowirl F 200 PROFIBUS PA Operation options 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. Menu/parameter User role and tasks...
Page 48: Display
Operation options Proline Prowirl F 200 PROFIBUS PA Access to the operating menu via the local display 8.3.1 Operational display X X X X X X X 1120.50 A0016502 Operational display Device tag Status area Display area for measured values (4-line) Operating elements →...
Page 49: Navigation View
Proline Prowirl F 200 PROFIBUS PA Operation options Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g. totalizer 1-3).
Page 50 Operation options Proline Prowirl F 200 PROFIBUS PA Status area The following appears in the status area of the navigation view in the top right corner: • Of the submenu – The direct access code for the parameter you are navigating to (e.g. 0022-1) –...
Page 51: Editing View
Proline Prowirl F 200 PROFIBUS PA Operation options 8.3.3 Editing view Numeric editor Text editor A0013941 A0013999 Editing view Display area of the entered values Input mask Operating elements →  52 Input mask The following input symbols are available in the input mask of the numeric and text editor:...
Page 52: Operating Elements
Operation options Proline Prowirl F 200 PROFIBUS PA Selection of letters from a to z. abc _ … Selection of special characters. "'^ _ … ~& Confirms selection. Switches to the selection of the correction tools. Exits the input without applying the changes.
Page 53: Opening The Context Menu
Proline Prowirl F 200 PROFIBUS PA Operation options Meaning Enter key For operational display • Pressing the key briefly opens the operating menu. • Pressing the key for 2 s opens the context menu. In a menu, submenu • Pressing the key briefly: –...
Page 54 Operation options Proline Prowirl F 200 PROFIBUS PA 2. Press  +  simultaneously.  The context menu is closed and the operational display appears. Calling up the menu via the context menu 1. Open the context menu. 2. Press  to navigate to the desired menu.
Page 55: Navigating And Selecting From List
Proline Prowirl F 200 PROFIBUS PA Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 56: Calling Up Help Text
Operation options Proline Prowirl F 200 PROFIBUS PA The direct access code consists of a 4-digit number and the channel number, which identifies the channel of a process variable: e.g. 0914-1. In the navigation view, this appears on the right-hand side in the header of the selected parameter.
Page 57: Changing The Parameters
Proline Prowirl F 200 PROFIBUS PA Operation options 8.3.9 Changing the parameters For a description of the editing display - consisting of text editor and numeric editor - with symbols →  51, for a description of the operating elements →  52 Example: Changing the tag name in the "Tag description"...
Page 58: Authorization
Operation options Proline Prowirl F 200 PROFIBUS PA 8.3.10 User roles and related access authorization The two user roles "Operator" and "Maintenance" have different write access to the parameters if the customer defines a user-specific access code. This protects the device configuration via the local display from unauthorized access .
Page 59: Operating Tool
Proline Prowirl F 200 PROFIBUS PA Operation options Switching off the keypad lock ‣ The keypad lock is switched on. Press the  +  +  keys simultaneously.  The message Keylock off appears on the display: The keypad lock is switched off.
Page 60 PROFIBUS DP network PROFIBUS PA network Measuring device T-box Via service interface (CDI) A0020545 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" Endress+Hauser...
Page 61 FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 62: Simatic Pdm
Operation options Proline Prowirl F 200 PROFIBUS PA User interface Xxxxxx/…/…/ Device name: Xxxxxxx kg/h Mass flow: 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status: Good Xxxxxx Mass flow unit: kg/h Access status tooling Maintenance Volume flow unit: m /h ³...
Page 63: System Integration
Proline Prowirl F 200 PROFIBUS PA System integration System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.01.00 • On the title page of the Operating instructions • On transmitter nameplate • Firmware version parameter "Diagnostics"...
Page 64: Hauser Measuring Devices
System integration Proline Prowirl F 200 PROFIBUS PA 9.2.1 Manufacturer-specific GSD This GSD guarantees the unrestricted functionality of the measuring device. Device-specific process parameters and functions are therefore available. Manufacturer-specific GSD ID number File name PROFIBUS PA 0x1564 EH3x1564.gsd The fact that the manufacturer-specific GSD should be used is specified in the Ident number selector parameter by selecting the Manufacturer option.
Page 65: Cyclic Data Transmission
Proline Prowirl F 200 PROFIBUS PA System integration Manual setting The manual setting is made in the Ident number selector parameter using the Prowirl 72 (0x153B) or Prowirl 73 (0x153C) option. Afterwards, the Prowirl 200 PROFIBUS PA makes the same input and output data and measured status information available for cyclic data exchange.
Page 66: 9.3.2 Description Of The Modules
System integration Proline Prowirl F 200 PROFIBUS PA Configuration MODETOT ← Analog Output block 1 →  69 Input values AO ← Discrete Input block 1 to 2 →  70 Output values DI → Discrete Output block 1 to →...
Page 67 Proline Prowirl F 200 PROFIBUS PA System integration CHANNEL Input variable Flow velocity 33101 Temperature Calculated saturated steam pressure Steam quality Total mass flow Energy flow Heat flow difference Reynolds number 32850 Density 1159 Pressure 2006 Specific volume 1305 Degree of overheating...
Page 68 System integration Proline Prowirl F 200 PROFIBUS PA CHANNEL Input variable Energy flow Heat flow difference Factory setting Function block Factory setting: TOTAL Totalizer 1, 2 and 3 Volume flow Data structure Input data of TOTAL Byte 1 Byte 2...
Page 69 Proline Prowirl F 200 PROFIBUS PA System integration SETTOT_MODETOT_TOTAL module The module combination consists of the SETTOT, MODETOT and TOTAL functions: • SETTOT: Control the totalizers via the PROFIBUS master. • MODETOT: Configure the totalizers via the PROFIBUS master. • TOTAL: Transmit totalizer value, along with the status, to the PROFIBUS master.
Page 70 System integration Proline Prowirl F 200 PROFIBUS PA Data structure Output data of Analog Output Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Measured value: floating point number (IEEE 754) Status DI module (Discrete Input) Transmit discrete input values from the measuring device to the PROFIBUS master (Class 1).
Page 71 Proline Prowirl F 200 PROFIBUS PA System integration Assigned device functions A device function is permanently assigned to the individual Discrete Output blocks. CHANNEL Function block Device function Values: control (meaning) DO 1 Flow override • 0 (disable device function) •...
Page 72: Commissioning
Commissioning Proline Prowirl F 200 PROFIBUS PA Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist →  28 • "Post-connection check" checklist →  44 10.2...
Page 73 Proline Prowirl F 200 PROFIBUS PA Commissioning X X X X X X X 20.50 Main menu 0104-1 Language English Operation Setup Language 0104-1 English Ã Deutsch Español Français Language 0104-1 Ã English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch...
Page 74: Configuring The Measuring Device
Commissioning Proline Prowirl F 200 PROFIBUS PA 10.5 Configuring the measuring device • The Setup menuwith its guided wizards contains all the parameters needed for standard operation. • Navigation to the Setup menu X X X X X X X 20.50...
Page 75 Proline Prowirl F 200 PROFIBUS PA Commissioning XXXXXXXXX A0013375  21 Header of the operational display with tag name Device tag • The number of characters displayed depends on the characters used. • Enter the tag name in the "FieldCare" operating tool →  62 Navigation "Setup"...
Page 76: 10.5.2 Selecting And Setting The Medium
Commissioning Proline Prowirl F 200 PROFIBUS PA 10.5.2 Selecting and setting the medium The Medium selection wizard guides you systematically through all the parameters that have to be configured for selecting and setting the medium. Navigation "Setup" menu → Medium selection...
Page 77 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Select liquid type The following conditions are Select measured liquid type. • Water Water met: • LPG ((liquefied • Order code for "Sensor petroleum gas)) version", option "Mass flow"...
Page 78 Commissioning Proline Prowirl F 200 PROFIBUS PA 10.5.3 Setting the system units In the System units submenu the units of all the measured values can be set. Navigation "Setup" menu → System units ‣ System units Volume flow unit Volume unit...
Page 79 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection Factory setting Volume flow unit – Select volume flow unit. Unit choose list Country-specific: • m³/h Effect • ft³/min The selected unit applies for: •...
Page 80 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection Factory setting Energy flow unit For the following order code: Select energy flow unit. Unit choose list Country-specific: "Sensor version", option "Mass • kW Result flow" • Btu/h The selected unit applies for: •...
Page 81 Proline Prowirl F 200 PROFIBUS PA Commissioning 10.5.4 Configuring the analog inputs The Analog inputs submenu guides you systematically to the individual Analog input 1 to 4 submenu. From here you get to the parameters of the individual analog input.
Page 82: Configuring The Local Display
Commissioning Proline Prowirl F 200 PROFIBUS PA 10.5.5 Configuring the local display The Display wizard guides you systematically through all the parameters that can configured for configuring the local display. Navigation "Setup" menu → Display Structure of the wizard Format display...
Page 83: Interface
Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 84: Configuring The Low Flow Cut Off
Commissioning Proline Prowirl F 200 PROFIBUS PA Navigation "Setup" menu → Communication ‣ Communication Device address Parameter overview with brief description Parameter Description User entry Factory setting Device address Enter device address. 0 to 126 10.5.7 Configuring the low flow cut off The Low flow cut off wizard guides you systematically through all the parameters that have to be set for configuring the low flow cut off.
Page 85 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Assign process variable – Select process variable for low • Off flow cut off. • Volume flow • Corrected volume flow •...
Page 86: Advanced Settings
Commissioning Proline Prowirl F 200 PROFIBUS PA 10.6 Advanced settings The Advanced setup submenu together with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu...
Page 87: Setting The Medium Properties
Proline Prowirl F 200 PROFIBUS PA Commissioning ‣ Pulse/frequency/switch output →  108 ‣ Totalizer 1 to 3 →  116 ‣ Display →  118 ‣ Heartbeat setup ‣ Configuration backup display →  120 ‣ Administration →  173 10.6.1...
Page 88 Commissioning Proline Prowirl F 200 PROFIBUS PA Dynamic viscosity ‣ Gas composition Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Enthalpy type The following conditions are Define which kind of enthalpy • Heat Heat met: is used.
Page 89 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Reference pressure The following conditions are Enter reference pressure for 0 to 250 bar 1.01325 bar met: the calulation of the reference • Order code for "Sensor density.
Page 90 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Calorific value The following conditions are Enter gross calorific value to Positive floating- 50 000 kJ/kg met: calculate the energy flow. point number • Selected medium: –...
Page 91 Proline Prowirl F 200 PROFIBUS PA Commissioning Navigation "Setup" menu → Advanced setup → Medium properties → Gas composition ‣ Gas composition Gas type Gas mixture Mol% Ar Mol% C2H3Cl Mol% C2H4 Mol% C2H6 Mol% C3H8 Mol% CH4 Mol% Cl2...
Page 92 Commissioning Proline Prowirl F 200 PROFIBUS PA Mol% n-C5H12 Mol% n-C6H14 Mol% n-C7H16 Mol% n-C8H18 Mol% n-C9H20 Mol% Ne Mol% NH3 Mol% O2 Mol% SO2 Mol% Xe Mol% other gas Relative humidity Endress+Hauser...
Page 93 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Gas type The following conditions are Select measured gas type. • Hydrogen H2 Methane CH4 met: • Helium He • In the Select medium •...
Page 94 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Mol% Ar The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. In the Select medium parameter, the Gas option is selected.
Page 95 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Mol% C3H8 The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. In the Select medium parameter, the Gas option is selected.
Page 96 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Mol% CO2 The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. In the Select medium parameter, the Gas option is selected.
Page 97 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Mol% HCl The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. • In the Select medium parameter, the Gas option is selected.
Page 98 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Mol% N2 The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. In the Select medium parameter, the Gas option is selected.
Page 99 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Mol% n-C5H12 The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. • In the Select medium parameter, the Gas option is selected.
Page 100 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Mol% Ne The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. • In the Select medium parameter, the Gas option is selected.
Page 101: Performing External Compensation
Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Mol% other gas The following conditions are Enter amount of substance for 0 to 100 % met: the gas mixture. • In the Select medium parameter, the Gas option is selected.
Page 102 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry External value For the following order code: Assign variable from external • Off "Sensor version", option "Mass device to process variable.
Page 103: Carrying Out A Sensor Adjustment
Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Fixed process pressure The following conditions are Enter fixed value for process 0 to 250 bar abs. 0 bar abs. met: pressure. • Order code for "Sensor Dependency version", option "Mass flow...
Page 104: Switch Output
Commissioning Proline Prowirl F 200 PROFIBUS PA Inlet run Mating pipe diameter Installation factor Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Inlet configuration The inlet run correction Select inlet configuration. • Off feature: • Single elbow •...
Page 105 Proline Prowirl F 200 PROFIBUS PA Commissioning Configuring the pulse output Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output Structure of the wizard for the pulse output Operating mode Pulse Assign pulse output Corrected Heat flow Total mass flow...
Page 106 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Operating mode – Define the output as a pulse, • Pulse Pulse frequency or switch output. • Frequency • Switch Assign pulse output...
Page 107 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Failure mode In the Operating mode Define output behavior in • Actual value No pulses parameter, the Pulse option is alarm condition. • No pulses selected and one of the...
Page 108 Commissioning Proline Prowirl F 200 PROFIBUS PA Configuring the frequency output Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output Structure of the wizard for the frequency output Operating mode Frequency Assign frequency output Temperature Steam quality Energy flow Volume flow...
Page 109 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Operating mode – Define the output as a pulse, • Pulse Pulse frequency or switch output. • Frequency • Switch Assign frequency output...
Page 110 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Temperature unit – Select temperature unit. Unit choose list Country-specific: • °C Effect • °F The selected unit applies for: • Temperature • Maximum value • Minimum value •...
Page 111 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Measuring value at minimum The Frequency option is Enter measured value for Signed floating-point Depends on country frequency selected in the Operating minmum frequency. number and nominal...
Page 112 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Failure frequency The Frequency option is Enter frequency output value 0.0 to 1 250.0 Hz 0.0 Hz selected in the Operating in alarm condition. mode parameter (→  106),...
Page 113 Proline Prowirl F 200 PROFIBUS PA Commissioning Operating mode Switch Switch output function Limit Status Assign status Assign limit Steam Volume Energy Reynolds Low flow cut Temp. Mass flow quality flow flow number Flow Corrected Calc. sat. Total mass Heat flow...
Page 114 Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Assign diagnostic behavior • The Switch option is Select diagnostic behavior for • Alarm Alarm selected in the Operating switch output. • Alarm or warning mode parameter.
Page 115 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Pressure unit For the following order code: Select process pressure unit. Unit choose list Country-specific: "Sensor version", option "Mass • bar Effect flow" • psi The unit is taken from the: •...
Page 116: Configuring The Totalizer
Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Switch-off delay • The Switch option is Define delay for the switch-off 0.0 to 100.0 s 0.0 s selected in the Operating of status output. mode parameter.
Page 117 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection Factory setting Assign process variable – Select process variable for • Volume flow • Totalizer 1: totalizer. • Mass flow Volume flow • Corrected volume •...
Page 118: Configurations
Commissioning Proline Prowirl F 200 PROFIBUS PA 10.6.6 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣...
Page 119 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 120: Configuration Management
Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Decimal places 3 A measured value is specified Select the number of decimal • x x.xx in the Value 3 display places for the display value.
Page 121: Function Scope Of The "Configuration Management" Parameter
Proline Prowirl F 200 PROFIBUS PA Commissioning You can do so using the Configuration management parameter and the related options found in the Configuration backup display submenu. Navigation "Setup" menu → Advanced setup → Configuration backup display ‣ Configuration backup display...
Page 122: Simulation
Commissioning Proline Prowirl F 200 PROFIBUS PA Options Description Compare The device configuration saved in the display module is compared with the current device configuration of the integrated HistoROM. Clear backup data The backup copy of the device configuration is deleted from the display module of the device.
Page 123 Proline Prowirl F 200 PROFIBUS PA Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Assign simulation process variable – Select a process variable for • Off the simulation process that is • Volume flow activated.
Page 124: Access
Commissioning Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description Selection / User Factory setting entry Diagnostic event category – Select a diagnostic event • Sensor Process category. • Electronics • Configuration • Process Simulation diagnostic event – Select a diagnostic event for •...
Page 125: Switch
Proline Prowirl F 200 PROFIBUS PA Commissioning Parameters which can always be modified via the local display Certain parameters that do not affect the measurement are excepted from write protection via the local display. Despite the defined access code, these parameters can always be modified even if the other parameters are locked.
Page 126 Commissioning Proline Prowirl F 200 PROFIBUS PA 3. Pull out the display module with a gentle rotational movement. To make it easier to access the write protection switch, attach the display module to the edge of the electronics compartment.  Display module is attached to the edge of the electronics compartment.
Page 127: Operation
Proline Prowirl F 200 PROFIBUS PA Operation Operation 11.1 Reading the device locking status Device active write protection: Locking status parameter Navigation "Operation" menu → Locking status Function scope of the "Locking status" parameter Options Description None The access status displayed in "Access status display" parameter applies →  58.
Page 128 Operation Proline Prowirl F 200 PROFIBUS PA Flow velocity Temperature Calculated saturated steam pressure Steam quality Total mass flow Condensate mass flow Energy flow Heat flow difference Reynolds number Density Specific volume Pressure Compressibility factor Degrees of superheat Parameter overview with brief description...
Page 129 Proline Prowirl F 200 PROFIBUS PA Operation Parameter Prerequisite Description User interface Temperature – Displays the temperature currently Signed floating-point measured. number Dependency The unit is taken from the Temperature unit parameter Calculated saturated steam pressure The following conditions are met:...
Page 130: Totalizer
Operation Proline Prowirl F 200 PROFIBUS PA Parameter Prerequisite Description User interface Compressibility factor The following conditions are met: Displays the compressibility factor 0 to 2 Order code for "Sensor version", option currently calculated. "Mass flow" In the Select medium parameter, the Gas option or Steam option is selected.
Page 131: Output Values
Proline Prowirl F 200 PROFIBUS PA Operation Parameter Prerequisite Description Selection / User Factory setting entry / User interface Totalizer status 1 to 3 – Displays the current totalizer • Good – status. • Uncertain • Bad Totalizer status (Hex) 1 to 3 In Target mode parameter,...
Page 132: 11.7 Showing Data Logging
Operation Proline Prowirl F 200 PROFIBUS PA Function scope of the "Control Totalizer " parameter Options Description Totalize The totalizer is started. Reset + hold The totaling process is stopped and the totalizer is reset to 0. Preset + hold The totaling process is stopped and the totalizer is set to its defined start value from the Preset value 1 to 3 parameter.
Page 133 Proline Prowirl F 200 PROFIBUS PA Operation Function scope • A total of 1000 measured values can be stored • 4 logging channels • Adjustable logging interval for data logging • Display of the measured value trend for each logging channel in the form of a chart A0016222 ...
Page 134 Operation Proline Prowirl F 200 PROFIBUS PA Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Assign channel 1 to 4 The Extended HistoROM Assign process variable to • Off application package is logging channel. • Volume flow available.
Page 135: Diagnostics And Troubleshooting
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For local display Problem Possible causes Remedy Local display dark and no output Supply voltage does not match the Apply the correct supply voltage .
Page 136 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA For access Problem Possible causes Remedy No write access to parameters Hardware write protection enabled Set the write protection switch on the main electronics module to the OFF position . No write access to parameters Current user role has limited access 1.
Page 137: Diagnostic Information On Local Display
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display.
Page 138 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. A0013961 • For local display with touch control: the background lighting changes to red.
Page 139: Calling Up Remedial Measures
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting 12.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage...
Page 140: 12.3.2 Calling Up Remedy Information
Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status signal: Function check (C) Xxxxxx Diagnostics 1: C485 Simu... Remedy information: Deactivate... Failure (F)
Page 141: Device Status
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting 1. Call up the desired parameter. 2. On the right in the working area, mouse over the parameter.  A tool tip with remedy information for the diagnostic event appears. 12.4 Adapting the diagnostic information 12.4.1...
Page 142 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Mnemonic Octet Maintenance required Maintenance alarm Maintenance demanded Function check Invalid process conditions 12.4.2 Adapting the diagnostic behavior Each item of diagnostic information is assigned a specific diagnostic behavior at the factory.
Page 143 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Coding Measuring value (hex) Byte 5 Quality Quality Substatus Limits A0021271-EN  32 Structure of the coding byte The content of the coding byte depends on the configured failsafe mode in the particular function block.
Page 144 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information pertaining to the electronics (diagnostic no.: 200 to 399) Measured value status (fixed assignment) Diagnostic behavior Device diagnostics Quality Coding Category (configurable) (fixed assignment) Quality Substatus (hex) (NE107) Alarm...
Page 145 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting 12.5 Overview of diagnostic information The amount of diagnostic information and the number of measured variables affected increase if the measuring device has one or more application packages. In the case of some items of diagnostic information, the diagnostic behavior can be changed.
Page 146 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 046 Sensor limit exceeded 1. Check plug connections • Calculated saturated 2. Change pre-amplifier steam pressure Measured variable status 3. Change DSC sensor •...
Page 147 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 083 Memory content 1. Restart device • Calculated saturated 2. Restore S-Dat data steam pressure Measured variable status 3. Change sensor • Density •...
Page 148 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA 12.5.2 Diagnostic of electronic Diagnostic information Remedy instructions Influenced measured variables Short text 242 Software incompatible 1. Check software • Calculated saturated 2. Flash or change main electronics steam pressure Measured variable status module •...
Page 149 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 261 Electronic modules 1. Restart device • Calculated saturated 2. Check electronic modules steam pressure Measured variable status 3. Change I/O Modul or main electronics •...
Page 150 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 271 Main electronic failure 1. Restart device • Calculated saturated 2. Change main electronic module steam pressure Measured variable status • Density •...
Page 151 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 275 I/O module failure Change I/O module • Calculated saturated steam pressure Measured variable status • Density • Energy flow Quality • Flow velocity...
Page 152 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 282 Data storage 1. Restart device • Calculated saturated 2. Contact service steam pressure Measured variable status • Density • Energy flow Quality •...
Page 153 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 311 Electronic failure 1. Transfer data or reset device • Calculated saturated 2. Contact service steam pressure Measured variable status • Density •...
Page 154 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 350 Pre-amplifier defective Change pre-amplifier • Calculated saturated steam pressure Measured variable status [from the factory] • Density • Energy flow Quality •...
Page 155: Diagnostic Of Configuration
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 371 Temperature sensor defective 1. Check plug connections • Calculated saturated 2. Change pre-amplifier steam pressure Measured variable status [from the factory] 3.
Page 156 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 412 Processing Download Download active, please wait • Calculated saturated steam pressure Measured variable status • Density • Energy flow Quality Uncertain •...
Page 157 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 442 Frequency output 1. Check process – 2. Check frequency output settings Measured variable status [from the factory] Quality Good Quality substatus...
Page 158 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 453 Flow override Deactivate flow override • Calculated saturated steam pressure Measured variable status • Density • Energy flow Quality Good • Flow velocity...
Page 159 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 485 Simulation measured variable Deactivate simulation • Calculated saturated steam pressure Measured variable status • Density • Energy flow Quality Good • Flow velocity...
Page 160 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 494 Switch output simulation Deactivate simulation switch output • Calculated saturated steam pressure Measured variable status • Energy flow • Flow velocity...
Page 161 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 539 Flow computer configuration incorrect 1. Check input value (pressure, • Calculated saturated temperature) steam pressure Measured variable status 2. Check allowed values of the medium •...
Page 162: Diagnostic Of Process
Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA 12.5.4 Diagnostic of process Diagnostic information Remedy instructions Influenced measured variables Short text 801 Supply voltage too low Increase supply voltage • Calculated saturated steam pressure Measured variable status • Density •...
Page 163 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 829 Ambient temperature too high Reduce ambient temperature of pre- • Calculated saturated amplifier steam pressure Measured variable status [from the factory] •...
Page 164 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 833 Electronic temperature too low Increase ambient temperature • Calculated saturated steam pressure Measured variable status [from the factory] • Density • Energy flow...
Page 165 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 835 Process temperature too low Increase process temperature • Calculated saturated steam pressure Measured variable status [from the factory] • Density • Energy flow...
Page 166 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 842 Process limit Low flow cut off active! • Calculated saturated 1. Check low flow cut off configuration steam pressure Measured variable status •...
Page 167 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 870 Measuring inaccuracy increased 1. Check process • Calculated saturated 2. Increase flow volume steam pressure Measured variable status [from the factory] •...
Page 168 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 873 Water detected Check process (water in piping) • Calculated saturated steam pressure Measured variable status [from the factory] • Density • Energy flow...
Page 169 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Diagnostic information Remedy instructions Influenced measured variables Short text 945 Sensor range exceeded Check immediately process conditions • Calculated saturated (pressure-temperature rating) steam pressure Measured variable status [from the factory] • Density •...
Page 170: Pending Diagnostic Events
Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Diagnostic information Remedy instructions Influenced measured variables Short text 972 Degrees of superheat limit excceeded 1. Controll process conditions • Calculated saturated 2. Install pressure transmitter or enter steam pressure Measured variable status [from the factory] correct fixed pressure value •...
Page 171: Diagnostic List
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Parameter Prerequisite Description User interface Operating time from restart – Shows the time the device has been in Days (d), hours (h), operation since the last device restart. minutes (m) and seconds Operating time –...
Page 172: Overview Of Information Events
Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Filter categories • All • Failure (F) • Function check (C) • Out of specification (S) • Maintenance required (M) • Information (I) 12.8.3 Overview of information events Unlike a diagnostic event, an information event is displayed in the event logbook only and not in the diagnostic list.
Page 173: Resetting The Measuring Device
Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Info number Info name I1552 Failed: Main electronic verification I1553 Failed: Pre-amplifier verification 12.9 Resetting the measuring device Using the Device reset parameter it is possible to reset the entire device configuration or some of the configuration to a defined state.
Page 174 Diagnostics and troubleshooting Proline Prowirl F 200 PROFIBUS PA Navigation "Diagnostics" menu → Device information ‣ Device information Device tag Serial number Firmware version Device name Order code Extended order code 1 Extended order code 2 Extended order code 3...
Page 175 Proline Prowirl F 200 PROFIBUS PA Diagnostics and troubleshooting Parameter Description User interface Factory setting Extended order code 2 Shows the 2nd part of the extended order Character string – code.  The extended order code can also be found on the nameplate of the sensor and transmitter in the "Ext.
Page 176 "Manufacturer' s information" document. The manufacturer' s information is available: • In the Downloads area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: –...
Page 177: Maintenance
Endress+Hauser housing seals. 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. For a list of some of the measuring and test equipment, refer to the "Accessories"...
Page 178: Repair
• Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by correspondingly trained customers. • Certified devices can be converted into other certified devices by Endress+Hauser Service or at the factory only. Notes for repair and conversion For repair and modification of a measuring device, observe the following notes: •...
Page 179: Endress+Hauser Services
14.3 Endress+Hauser services Endress+Hauser offers a wide range of services. Your Endress+Hauser Sales Center can provide detailed information on the services. 14.4 Return The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered.
Page 180: Disposing Of The Measuring Device
Repair Proline Prowirl F 200 PROFIBUS PA 14.5.2 Disposing of the measuring device WARNING Danger to personnel and environment from fluids that are hazardous to health. ‣ Ensure that the measuring device and all cavities are free of fluid residues that are hazardous to health or the environment, e.g.
Page 181: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 182: For The Sensor
The application already contains the data of your Endress+Hauser device. Endress +Hauser also takes care of maintaining and updating the data records.
Page 183: System Components
Proline Prowirl F 200 PROFIBUS PA Accessories 15.3 System components Accessories Description Memograph M graphic The Memograph M graphic display recorder provides information on all relevant display recorder measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.
Page 184: Technical Data
Technical data Proline Prowirl F 200 PROFIBUS PA Technical data 16.1 Application Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media. To ensure that the device remains in proper operating condition for its service life, use the measuring device only for media against which the process-wetted materials are adequately resistant.
Page 185 Proline Prowirl F 200 PROFIBUS PA Technical data – Heat flow difference – Specific volume – Degrees of superheat Order code for "Sensor version", option "Mass flow (integrated temperature measurement)" combined with order code "Application package", EU "Wet steam measurement": •...
Page 186 Technical data Proline Prowirl F 200 PROFIBUS PA Corrected volume flow calculation (Volume flow × operating density)/reference density • Operating density for water and other liquids: depends on the temperature • Operating density for all other gases: depends on the temperature and process pressure...
Page 187 Proline Prowirl F 200 PROFIBUS PA Technical data Steam is calculated based on the following factors: • The measuring device calculates the density with full compensation using the pressure and temperature measured variables. • Assuming superheated steam conditions the measuring device calculates until the saturation point is reached.
Page 188 Technical data Proline Prowirl F 200 PROFIBUS PA Energy flow calculation Volume flow × operating density × specific enthalpy • Operating density for saturated steam and water: depends on the temperature • Operating density for superheated steam, natural gas ISO 6976 (contains GPA 2172),...
Page 189 Proline Prowirl F 200 PROFIBUS PA Technical data Flow velocity v = v A0027507 DN diameter Velocity in process pipe Bluff body approaching flow velocity (Re is based on this) Maximum velocity (applies only to oxygen) v Velocity when leaving the measuring device...
Page 190: Output
• Operating pressure to increase accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) • Medium temperature to increase accuracy (e.g. iTEMP) •...
Page 191 Proline Prowirl F 200 PROFIBUS PA Technical data Voltage drop • For ≤ 2 mA: 2 V • For 10 mA: 8 V Residual current ≤ 0.05 mA Pulse output Pulse width Adjustable: 5 to 2 000 ms Maximum pulse rate...
Page 192 Technical data Proline Prowirl F 200 PROFIBUS PA Pulse/frequency/switch output Pulse output Failure mode No pulses Frequency output Failure mode Choose from: • Actual value • 0 Hz • Defined value: 0 to 1 250 Hz Switch output Failure mode Choose from: •...
Page 193: Power Supply
Proline Prowirl F 200 PROFIBUS PA Technical data Output values Analog input 1 to 4 (from measuring device to • Volume flow automation system) • Mass flow • Corrected volume flow • Flow velocity • Temperature • Calculated saturated steam pressure •...
Page 194 Technical data Proline Prowirl F 200 PROFIBUS PA Supply voltage Transmitter An external power supply is required for each output. The following supply voltage values apply for the outputs available: Supply voltage for a compact version without a local display Order code for "Output"...
Page 195: Performance Characteristics
Proline Prowirl F 200 PROFIBUS PA Technical data Cable specification →  29 Overvoltage protection The device can be ordered with integrated overvoltage protection for diverse approvals: Order code for "Accessory mounted", option NA "Overvoltage protection" Input voltage range Values correspond to supply voltage specifications Resistance per channel 2 ⋅...
Page 196 Technical data Proline Prowirl F 200 PROFIBUS PA A0019703 Deviation of volume flow value (absolute) from the reading Medium type Incompressible Compressible Re range Measured value deviation Standard Standard R1 to R2 < 10 % < 10 % R2 to Re <...
Page 197 • Re between 5 000 to 20 000: < 10 % o.r. Mass flow (user-defined liquids) To specify the system accuracy, Endress+Hauser requires information about the type of liquid and its operating temperature or information in table form about the dependency between the liquid density and the temperature.
Page 198: Installation
Technical data Proline Prowirl F 200 PROFIBUS PA Pulse/frequency output o.r. = of reading Accuracy Max. ±100 ppm o.r. Repeatability o.r. = of reading ±0.2 % o.r. Response time If all the configurable functions for filter times (flow damping, display damping, current...
Page 199: Process
Proline Prowirl F 200 PROFIBUS PA Technical data Device plugs IP67, only in screwed situation Vibration resistance • For compact/remote version made of coated aluminum and remote version made of stainless steel: Acceleration up to 2 g (if gain set to factory setting), 10 to 500 Hz, following IEC 60068-2-6 •...
Page 200: Mechanical Construction
Technical data Proline Prowirl F 200 PROFIBUS PA Pressure loss For a precise calculation, use the Applicator→  182. 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section...
Page 201 Proline Prowirl F 200 PROFIBUS PA Technical data Weight [lbs] [in] Order code for "Housing", option C Order code for "Housing", option B Aluminum, AlSi10Mg, coated Stainless steel, 1.4404 (316L) 167.9 173.8 240.6 246.6 357.5 363.4 For high-temperature/low-temperature version: values + 0.4 lbs...
Page 202 Technical data Proline Prowirl F 200 PROFIBUS PA Weight in US units All values (weight) refer to devices with ASME B16.5, Class 300/Sch. 40 flanges. Weight information in [lbs]. Weight [lbs] [in] Connection housing Connection housing Aluminum, AlSi10Mg, coated Stainless cast steel, 1.4408 (CF3M) ½...
Page 203 Proline Prowirl F 200 PROFIBUS PA Technical data Pressure rating Weight [mm] [kg] Class 150 Class 300 Class 150 Class 300 Class 150 Class 300 Class 150 Class 300 Class 150 Class 300 Class 150 12.3 Class 300 15.8 Class 150 25.7...
Page 204 Technical data Proline Prowirl F 200 PROFIBUS PA Pressure rating Weight [in] [lbs] Class 150 Class 300 Class 150 Class 300 Class 150 Class 300 Class 150 14.0 Class 300 16.0 Class 150 27.0 Class 300 35.0 Class 150 57.0 Class 300 61.0...
Page 205 Proline Prowirl F 200 PROFIBUS PA Technical data Order code for "Housing", option B "Compact, stainless", option K "Remote, stainless" Cable entry/cable gland Type of protection Material Cable gland M20 × 1.5 • Non-Ex Stainless steel ,1.4404 • Ex ia •...
Page 206 Technical data Proline Prowirl F 200 PROFIBUS PA Parts in contact with medium (marked as "wet" on the DSC sensor flange): • Stainless steel, 1.4435 (316, 316L), in compliance with NACE MR0175-2003 and MR0103-2003 • Order code for "Sensor option", option CE "Harsh process , wetted parts, Alloy C22, (including option CD)":...
Page 207: Operability
Proline Prowirl F 200 PROFIBUS PA Technical data Process connections • EN 1092-1 (DIN 2501) • ASME B16.5 • JIS B2220 For information on the different materials used in the process connections →  206 16.11 Operability Local operation Via display module Order code for "Display;...
Page 208 Technical data Proline Prowirl F 200 PROFIBUS PA Via remote display and operating module FHX50 A0013137  37 Operating options via FHX50 Housing of remote display and operating module FHX50 SD02 display and operating module, push buttons: cover must be opened for operation...
Page 209: Certificates And Approvals
EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".
Page 210: Application Packages
Technical data Proline Prowirl F 200 PROFIBUS PA Pressure Equipment • With the PED/G1/x (x = category) marking on the sensor nameplate, Endress+Hauser Directive confirms compliance with the "Essential Safety Requirements" specified in Annex I of the Pressure Equipment Directive 97/23/EC.
Page 211: Accessories
• The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...
Page 212 Technical data Proline Prowirl F 200 PROFIBUS PA Special Documentation Contents Documentation code Information on the Pressure Equipment Directive SD01163D Heartbeat Technology SD01204D Natural gas SD01194D Air + Industrial Gases (Single Gas + Gas Mixtures) SD01195D Wet steam detection SD01193D...
Page 213: Index
Proline Prowirl F 200 PROFIBUS PA Index Index Define access code ......124 Degree of protection ..... 43, 198 Access authorization to parameters Designated use .
Page 214 Index Proline Prowirl F 200 PROFIBUS PA Endress+Hauser services Inspection Maintenance ......177 Received goods ......12 Repair .
Page 215 Proline Prowirl F 200 PROFIBUS PA Index Menu Device information (Submenu) ....173 Diagnostics ......170 Diagnostics (Menu) .
Page 216 Index Proline Prowirl F 200 PROFIBUS PA Return ........179 Display .
Page 217 Proline Prowirl F 200 PROFIBUS PA Index Turning the electronics housing see Turning the transmitter housing Turning the transmitter housing ....27 Use of the measuring device Borderline cases .
Page 218 www.addresses.endress.com...

Endress+Hauser Proline Prowirl F 200 Operating Instructions Manual

1 Document Information

2 Basic Safety Instructions

3 Product Description

4 Incoming Acceptance and Product

Identification

5 Storage and Transport

7 Electrical Connection

8 Operation Options

9 System Integration

10 Commissioning

11 Operation

12 Diagnostics and Troubleshooting

13 Maintenance

14 Repair

15 Accessories

16 Technical Data

6 Installation

Index

Quick Links

Related Manuals for Endress+Hauser Proline Prowirl F 200

Summary of Contents for Endress+Hauser Proline Prowirl F 200

Table of Contents
