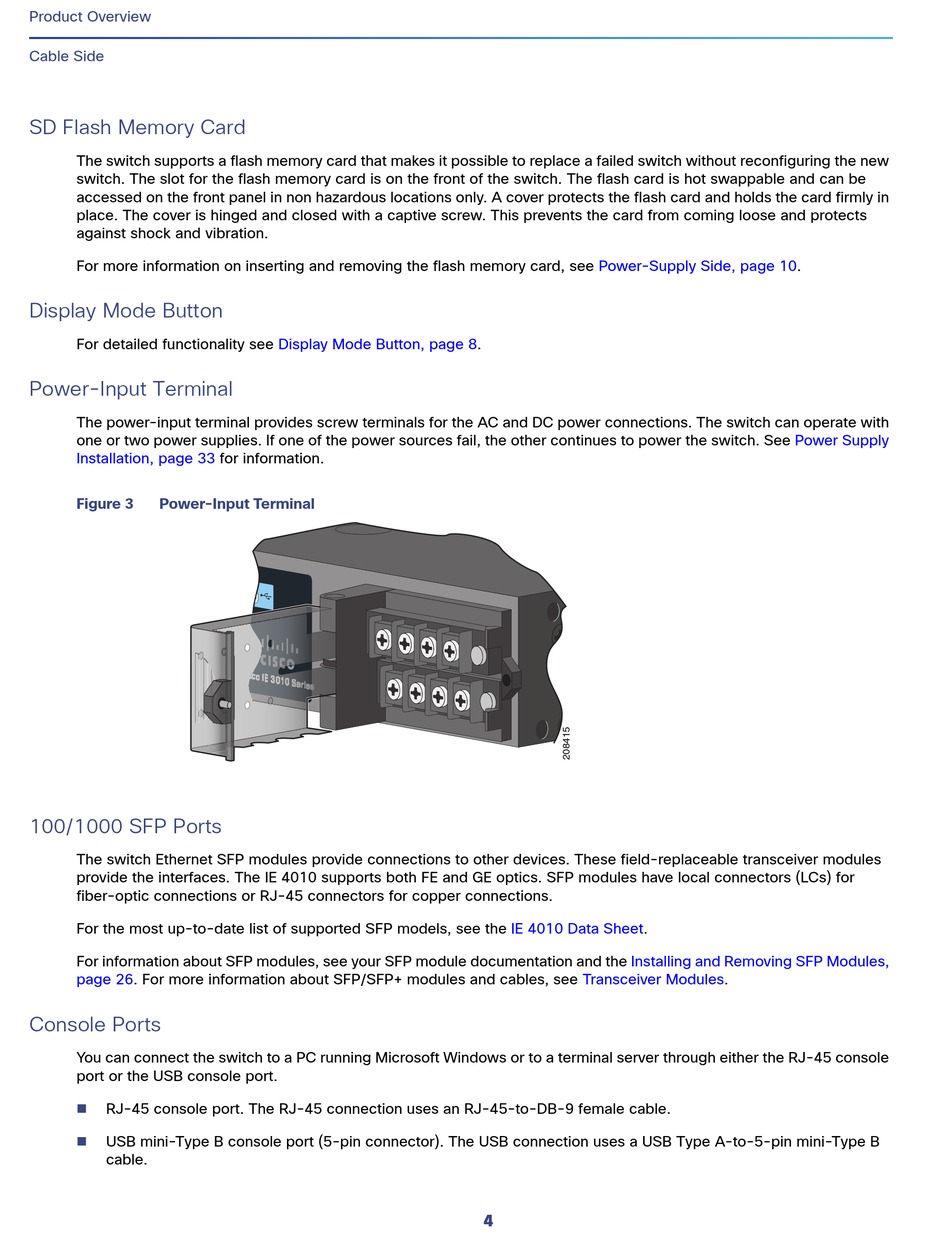

Product Overview
Cable Side

SD Flash Memory Card

The switch supports a flash memory card that makes it possible to replace a failed switch without reconfiguring the new
switch. The slot for the flash memory card is on the front of the switch. The flash card is hot swappable and can be
accessed on the front panel in non hazardous locations only. A cover protects the flash card and holds the card firmly in
place. The cover is hinged and closed with a captive screw. This prevents the card from coming loose and protects
against shock and vibration.
For more information on inserting and removing the flash memory card, see
Display Mode Button
For detailed functionality see
Power-Input Terminal
The power-input terminal provides screw terminals for the AC and DC power connections. The switch can operate with
one or two power supplies. If one of the power sources fail, the other continues to power the switch. See
Installation, page 33
Figure 3 Power-Input Terminal
100/1000 SFP Ports
The switch Ethernet SFP modules provide connections to other devices. These field-replaceable transceiver modules
provide the interfaces. The IE 4010 supports both FE and GE optics. SFP modules have local connectors (LCs) for
fiber-optic connections or RJ-45 connectors for copper connections.
For the most up-to-date list of supported SFP models, see the
For information about SFP modules, see your SFP module documentation and the
page 26. For more information about SFP/SFP+ modules and cables, see

Console Ports

You can connect the switch to a PC running Microsoft Windows or to a terminal server through either the RJ-45 console
port or the USB console port.

RJ-45 console port. The RJ-45 connection uses an RJ-45-to-DB-9 female cable.

USB mini-Type B console port (5-pin connector). The USB connection uses a USB Type A-to-5-pin mini-Type B
cable.
Display Mode Button, page
for information.
Power-Supply Side, page
8.
IE 4010 Data Sheet.
Installing and Removing SFP Modules,
Transceiver
4
10.
Power Supply
Modules.
