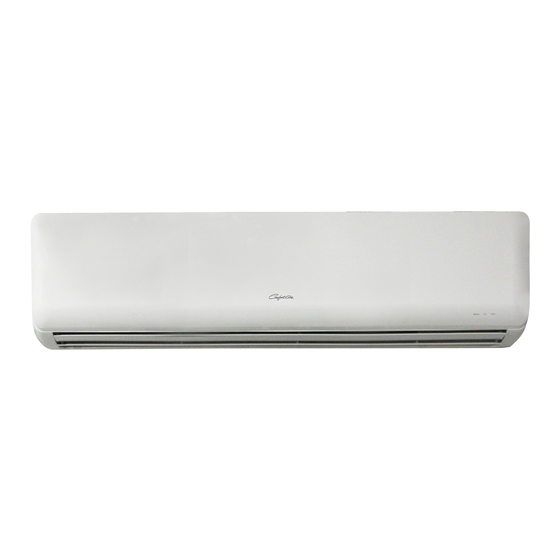

- Page 1 Owner’s Manual VMH 30/36 SD Series Inverter Single Zone Ductless Mini-Split 517.787.2100 • www.marsdelivers.com • www.heatcontroller.com...
-
Page 2: Table Of Contents
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series CONTENTS SAFETY PRECAUTIONS Warning .............................1 Caution ............................2 NAMES OF PARTS Indoor unit ..........................3 outdoor unit ..........................3 Indication lamp...........................3 OPERATING INSTRUCTIONS Special functions ........................4 Operating temperature........................5 Manual operation ........................5 Airflow direction control ......................6 How the air conditioner works ....................7... -
Page 3: Safety Precautions
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. -
Page 4: Caution
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series SAFETY PRECAUTIONS CAUTION Never actuate any switches with a wet If the air conditioner is to be used in hand. It may cause an electric shock. conjunction with other heaters, the air Never use the device for any other should be refreshed periodically, otherwise... -
Page 5: Names Of Parts Indoor Unit
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series NAMES OF PARTS Indoor unit Names of parts Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal air flow grille 6. -
Page 6: Operating Instructions
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series OPERATING INSTRUCTIONS Displays the special functions in the following ways(for some models only): Displays for three seconds when Timer ON, Fresh, Swing, Turbo or Silence feature is activated. Displays for three seconds when Timer OFF is set. -
Page 7: Operating Temperature
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details. Operating temperature Mode Cooling operation Heating operation Drying operation Temperature Room temperature... -
Page 8: Airflow Direction Control
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series OPERATING INSTRUCTIONS Airflow direction control Adjusting the air flow direction improperly can cause discomfort or cause uneven room temperatures Adjust the horizontal/vertical louver using the remote controller. -
Page 9: How The Air Conditioner Works
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series OPERATING INSTRUCTIONS How the air conditioner works SLEEP operation AUTO operation 7 hours timer off When you set the air conditioner in AUTO mode, it will automatically select cooling, heating(cooling/heating models only), or fan only operation depending on set temperature and the room temperature. -
Page 10: Care And Maintenance
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series CARE AND MAINTENANCE Care and Maintenance Before mainatenance Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. NOTE: Power supply must be disconnectd before cleaning the indoor unit. -
Page 11: Replacement Of The Air Filter And Air Freshening Filter
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series CARE AND MAINTENANCE 4. Remove the Air Freshening Filters from supporting frame (The solution to disassemble may vary with different filters. Refer Clean the air to 1 and 2. freshening filter at least once a month, and replace it every 4-5 months. -
Page 12: Troubleshooting Tips
Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series TROUBLESHOOTING TIPS Normal function of the air conditioner The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3-4 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. - Page 13 Owner’s Manual - VMH 30/36 SD Series USER'S MANUAL - VMH 30/36 SD Series TROUBLESHOOTING TIPS 7. The air conditioner runs Anti-mildew function after turning off the unit. When turning off the unit under COOL(AUTO COOL, FORCED COOL) and DRY mode, the air conditioner will run function for 7-10 minutes, if turns off on HEAT mode, the unit will...
-
Page 14: Troubleshooting Guide
USER'S MANUAL - VMH 30/36 SD Series Owner’s Manual - VMH 30/36 SD Series TROUBLESHOOTING TIPS Troubleshooting guide The unit may stop operation or OPERATION(RUN) indicator or other continue to run in a safety condition indicators continue flashing. (depending on models). Waiting for about 10 minutes, the fault may be recovered automatically, if not, If one of the following code appears on the... - Page 15 Owner’s Manual - VMH 30/36 SD Series...
- Page 16 1900 Wellworth Ave., Jackson, MI 49203 • Ph. 517-787-2100 • www.comfort-aire.com • www.century-hvac.com www.marsdelivers.com • www.heatcontroller.com 1/2016...
