- Page 1 Wall Mounted Inverter Mini-Split System VMH09SB-1 / VMC09SB-1 / VMH12SB-1 / VMC12SB-1 VMH18SB-1 / VMC18SB-1 / VMH24SB-1 / VMC24SB-1...
-
Page 2: Table Of Contents
Room Air Conditioner Installation Manual TABLE OF CONTENTS Installation Required Parts Required Tools Requirements ❏ Four type "A" screws & plastic ❏ Level gauge Safety Precautions......3 anchors ❏ Screw driver ❏ Connecting cable ❏ Electric drill Introduction ........6 Symbols used in this manual..6 ❏... -

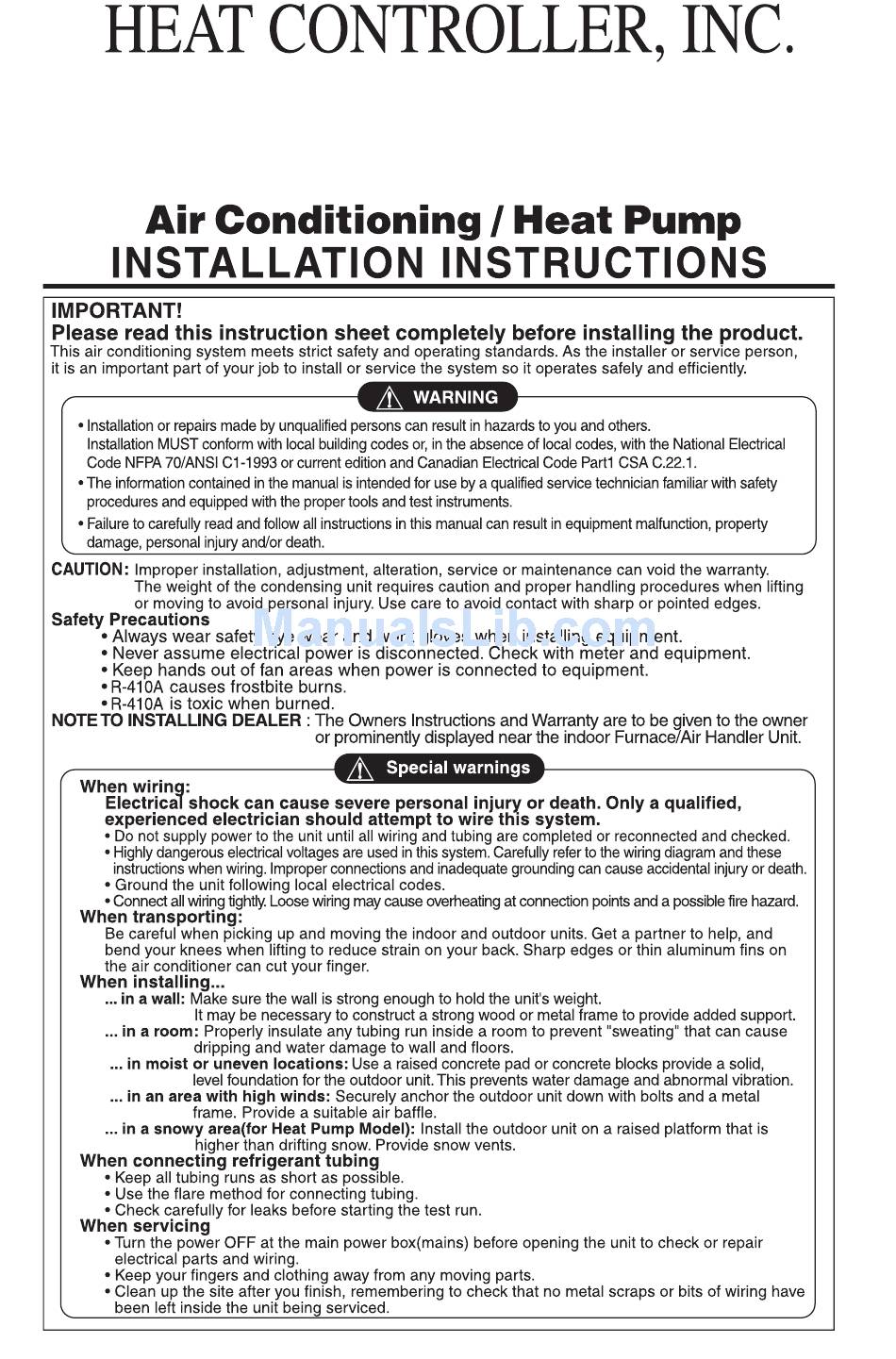

Page 3: Safety Precautions
Safety Precautions Safety Precautions To prevent the injury of the user or other people and property damage, the following instructions must be followed. I Be sure to read before installing the air conditioner. I Be sure to observe the cautions specified here as they include important items related to safety. I Incorrect operation due to ignoring instructions will cause harm or damage. - Page 4 Safety Precautions Do not install the product at a place that there Use caution when unpacking and installing. is concern of falling down. • Otherwise, it may result in personal injury. • Sharp edges may cause injury. I Operation Do not share the outlet with Do not use the damaged Do not modify or extend the other appliances.
- Page 5 Safety Precautions I Installation Install the drain hose to ensure that drain Install the product so that the noise or hot can be securely done. wind from the outdoor unit may not cause any damage to the neighbors. • Otherwise, it may cause water leakage. •...
-
Page 6: Introduction
Introduction Introduction Symbols used in this Manual This symbol alerts you to the risk of electric shock. This symbol alerts you to hazards that may cause harm to the air conditioner. NOTICE This symbol indicates special notes. Features Air Inlet Front Panel Air Filter Signal Receptor... -
Page 7: Installation
Installation Installation Read carefully, and then follow step by step. Installation Parts Type 1 Type 2 Installation plate Installation plate Type "B" screw Type "B" screw Type "A" screw (6 EA) Type "A" screw (8 EA) Remote control holder Remote control holder Installation Tools Figure Name... -
Page 8: Installation Map
Installation Installation Map NOTICE Installation parts you should purchase. Installation plate Sleeve Bushing-Sleeve Putty(Gum Type Sealer) Bend the pipe as closely on the wall as possible, but be careful that it doesn't break. Air Discarge Operation Indication Lamps/ Vinyl tape (Wide) Signal Receptor •... -
Page 9: Select The Best Location
Installation Select the best Location Indoor unit 1. Do not have any heat or steam near the unit. More than More than 2. Select a place where there are no obstacles 10cm(3.9in) 20cm(7.9in) in front of the unit. 3. Make sure that condensation drainage can be More than 10cm(3.9in) conveniently routed away. -
Page 10: Piping Length And Elevation
Installation Piping Length and Elevation Pipe Siz e Capacity Standard Additional Refrigerant Max. Elevation Max. Length (Btu/h) Length [m(ft)] B [m(ft)] [g/m(oz/ft)] A [m(ft)] LIQUID 9k, 12k 9.52(3/8") 6.35(1/4") 7.5(25) 7(23) 15(49) 20(0.22) 12.7(1/2") 6.35(1/4") 7.5(25) 7(23) 15(49) 20(0.22) 15.88(5/8") 9.52(3/8") 7.5(25) 15(49) -
Page 11: Fixing Installation Plate
Installation Fixing Installation Plate The wall you select should be strong and solid Installation Plate enough to prevent vibration 1. Mount the installation plate on the wall with type "A" screws. If mounting the unit on a Chassis concrete wall, use anchor bolts. Hook •... -
Page 12: Flaring Work
Installation Flaring Work Main cause for gas leakage is due to defect in flaring work. Carry out correct flaring work in the following procedure. Cutting Tubes 1. Use the piping kit accessory or the pipes purchased locally. Copper Slanted Uneven Rough 2. -
Page 13: Connecting The Piping
Installation Check 1. Compare the flared work with the figure by. Smooth all round Inside is shiny without scratches 2. If a flared section is defective, cut it off and do flaring work again. = Improper flaring = Inclined Surface Cracked Uneven damaged thickness... - Page 14 Installation 4. Indoor unit installation Hook the indoor unit onto the upper portion of the installation plate.(Engage the two hooks Connecting cable of the rear top of the indoor unit with the upper edge of the installation plate.) Ensure Drain hose that the hooks are properly seated on the installation plate by moving it left and right.
- Page 15 Installation For left rear piping 1. Route the indoor tubing and the drain hose to the required piping hole position. Connecting 2. Insert the piping, drain hose, and the cable connecting cable into the piping hole. 3. Insert the connecting cable into the indoor unit. Drain pipe •...
- Page 16 Installation Wrap the insulation material around the Plastic bands Insulation material connecting portion. 1. Overlap the connection pipe heat insulation and the indoor unit pipe heat insulation material. Bind them together with vinyl tape so that there may be no gap. 2.
- Page 17 Installation Installation Information. For left piping. Follow the instruction below. Best Practice • Press on the upper side of clamp and unfold the tubing to downward slowly. Worst Practice • Following bending type from right to left may cause damage to the tubing. Installation Manual 17...
- Page 18 Installation Outdoor Align the center of the pipings and sufficiently tighten the flare nut by hand. Finally, tighten the flare nut with torque wrench until the wrench clicks. Outdoor unit Liquid side piping • When tightening the flare nut with torque (Smaller diameter) wrench, ensure the direction for tightening follows the arrow on the wrench.
-
Page 19: Connecting The Cables
Installation Connecting the Cables Indoor Connect the cable to the indoor unit by connecting the wires to the terminals on the control board individually according to the outdoor unit connection. (Ensure that the color of the wires of the outdoor unit and the terminal No. are the same as those of the indoor unit.) The ground wire should be longer than the common wires. - Page 20 Installation Outdoor 1. Remove the cover control from the unit by loosening the screw. Outdoor unit Connect the wires to the terminals on the Terminal block control board individually as the following. 2. Secure the cable onto the control board with the holder (clamper).
- Page 21 Installation Power supply cable How to connect wiring to the terminals For strand wiring Strand wire (1) Cut the wire end with a wire cutter or wire- cutting pliers, then strip the insulation to expose the strand wiring about 10mm(3/8"). Round (2) Using a screwdriver, remove the terminal terminal...
-
Page 22: Checking The Drainage
Installation Checking the Drainage To check the drainage. 1. Pour a glass of water on the evaporator. Connecting area 2. Ensure the water flows through the drain drain hose hose of the indoor unit without any leakage and goes out the drain exit. Leakage checking Drain pan... -
Page 23: Forming The Piping
Installation Forming the Piping Form the piping by wrapping the Seal small openings connecting portion of the indoor unit around pipings with a with insulation material and secure it gum type sealant. with two kinds of vinyl tapes. • If you want to connect an additional drain Taping Taping hose, the end of the drain outlet should be... -
Page 24: Air Purging
Installation Air Purging Air purging The air and moisture remaining in the refrigerant system have undesirable effects as indicated below. 1. Pressure in the system rises. 2. Operating current rises. 3. Cooling(or heating) efficiency drops. 4. Moisture in the refrigerant circuit may freeze and block capillary tubing. 5. -
Page 25: Finishing The Job
Installation Soap water method 1. Remove the caps from the 2-way and 3-way valves. Liquid side 2. Remove the service-port cap from the 3-way valve. 3. To open the 2-way valve turn the valve stem counterclockwise approximately 90°, wait for about 2~3 sec, and close it. -
Page 26: Test Running
Installation Test Running 1. Check that all tubing and wiring are properly connected. 2. Check that the gas and liquid side service valves are fully open. Prepare remote controller 1. Remove the battery cover by pulling it according to the arrow direction. 2. -
Page 27: Pump Down
Installation NOTICE If the actual pressure is higher than shown, the system is most likely over-charged, and charge should be removed. If the actual pressure are lower than shown, the system is most likely undercharged, and charge should be added. PUMP DOWN This is performed when the unit is relocated or the refrigerant circuit is serviced. -
Page 28: Installation Guide At The Seaside
Installation Installation guide at the seaside 1. Air conditioners should not be installed in areas where corrosive gases, such as acid or alkaline gas, are produced. 2. Do not install the product where it could be exposed to sea wind (salty wind) directly. It can result corrosion on the product. - Page 29 Specifications and performance data subject to change without notice. HEAT CONTROLLER, INC. 1900 WELLWORTH AVENUE • JACKSON, MICHIGAN 49203 THE QUALITY LEADER IN CONDITIONING AIR Jan. 2008 P/No.: MFL39817304...
