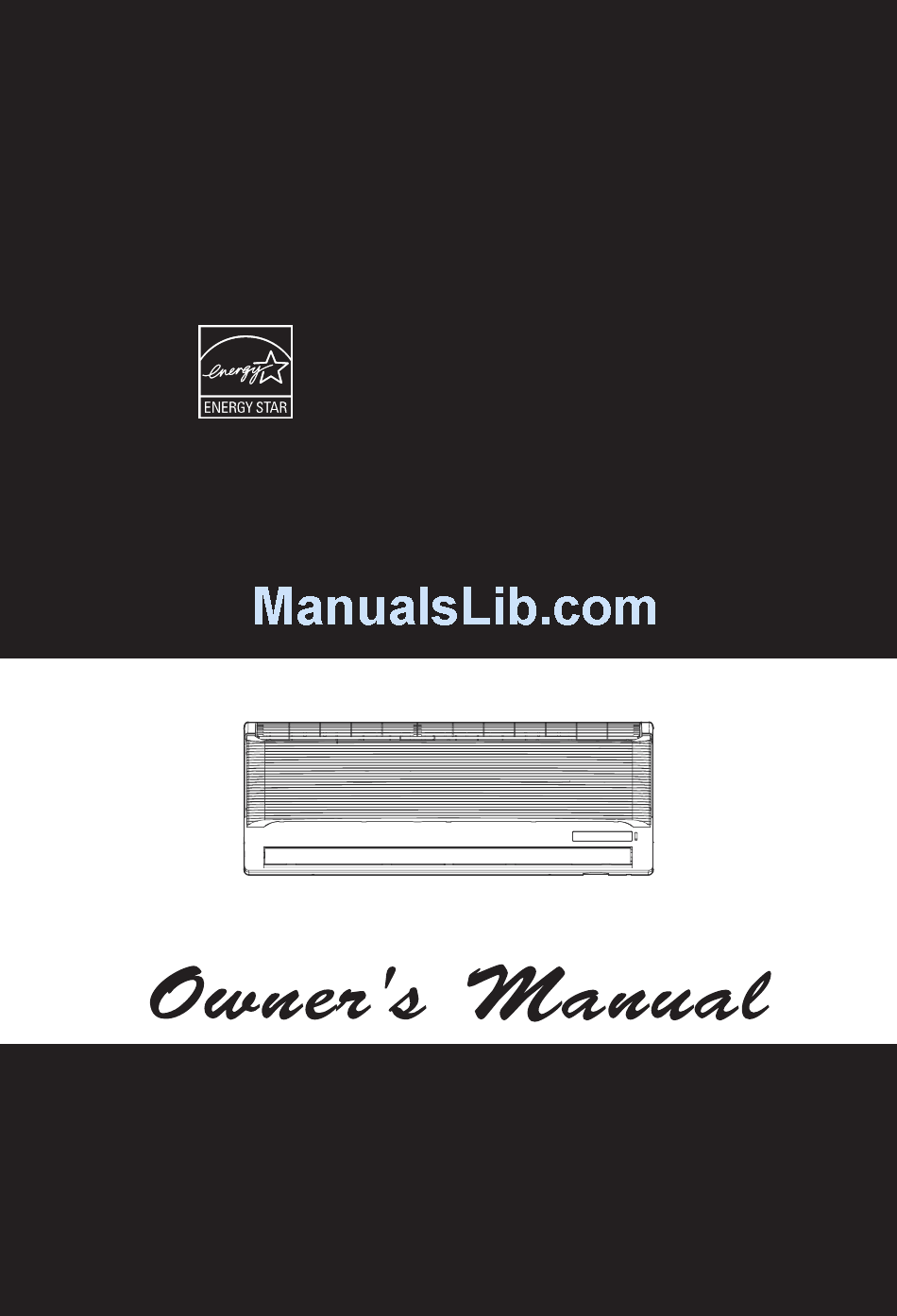

Heat Controller VMC09SB-1 Owner's Manual
Wall mounted mini-split system inverter single-zone air conditioning
Hide thumbs
Also See for VMC09SB-1:
- Service manual (66 pages) ,
- Installation instructions manual (29 pages) ,
- Service manual (103 pages)
Table of Contents
Advertisement
HEAT CONTROLLER, INC.
Mini - Split System
This Product meets ENERGY STAR
requirements when appropriate coil
components are used. Ask your
contractor for details
Important Information
• Please read carefully and thoroughly this manual before operating this unit.
• Contact a qualified sevice technician for installation, repair and maintenance of this unit.
• The appliance is not intended for use by young children or those who require supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
Wall Mounted
VMC09SB-1
Inverter Single-Zone
Air Conditioning
VMC12SB-1
VMC18SB-1
VMC24SB-1
Advertisement
Table of Contents
Related Manuals for Heat Controller VMC09SB-1
Summary of Contents for Heat Controller VMC09SB-1
-
Page 1: Air Conditioning
HEAT CONTROLLER, INC. Wall Mounted Mini - Split System VMC09SB-1 VMC12SB-1 VMC18SB-1 VMC24SB-1 This Product meets ENERGY STAR requirements when appropriate coil components are used. Ask your contractor for details Inverter Single-Zone Air Conditioning Important Information • Please read carefully and thoroughly this manual before operating this unit. -
Page 2: Table Of Contents
Room Air Conditioner Owner’s Manual TABLE OF CONTENTS FOR YOUR RECORDS A. Safety Precautions ......3 B. Electrical Safety........6 Write the model and serial numbers here: Temporary Use of an Adapter ....6 Model # Symbols used in this Manual....6 Serial # C. -
Page 3: Safety Precautions
Safety Precautions Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. I Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 Safety Precautions Indoor/outdoor wiring connections must Safely dispose of packing materials, Make sure to check that the power cable be secured tightly and the cable should sharp objects (nails), plastic bags, plug is not dirty, loose or broken and be routed properly so that there is no batteries, etc.
- Page 5 Safety Precautions Do not use the product for special purposes, Do not block the inlet or outlet of air flow. Use a soft cloth to clean. Do not use such as preserving foods, works of art, etc. It harsh detergents, solvents or splashing is a consumer air conditioner, not a precision water etc .
-
Page 6: Electrical Safety
Electrical Safety Electrical Safety • This appliance must be properly grounded. To minimize the risk of electric shock, you must alway plug into a grounded oulet. • Do not cut or remove the grounding prong from the power plug. • Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring. -
Page 7: Product Introduction
Product Introduction Product Introduction Here is a brief introduction of the indoor and outdoor units. Please see the information specific to your indoor unit type. Indoor Units Air inlet Grille tab Deodorizer Front grille filter ON/OFF button Air filter Signal receiver Flap Air outlet... -
Page 8: Operating Instructions
Operating Instructions Operating Instructions How to insert the Batteries 1. Remove the battery cover by pulling it according to the arrow direction. 2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly. 3. Reattach the cover by sliding it back into position. NOTE 1. -
Page 9: Wireless Remote Controller
Operating Instructions Wireless Remote Controller 1. START/STOP BUTTON The controls will look like the following. Used to turn off/on the unit. 2. OPERATION MODE SELECTION BUTTON Signal transmitter Used to select the operation mode. 3. ROOM TEMPERATURE SETTING BUTTONS Used to select the room temperature. 4. -
Page 10: Operation Mode
Operating Instructions Operation Mode Press the START/STOP BUTTON to turn the unit on. The unit will respond with a beep. Open the door of the remote controller and press the operation mode button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow. -
Page 11: Healthy Dehumidification Operation
Operating Instructions Healthy Dehumidification Operation During Healthy Dehumidification Operation ❏ If you select the dehumidification mode on the OPERATION MODE SELECTION BUTTON, the product starts to run the dehumidification function. It automatically sets the room temperature and airflow volume to the best condition for dehumidification, based on the sensed current room Healthy temperature. -
Page 12: Energy-Saving Cooling Mode
Operating Instructions Energy-Saving Cooling Mode Energy-saving cooling mode can save energy in cooling and healthy dehumidification operation, because it can operate efficiently by setting body-adaptation time according to the change of time and temperature and adjusting automatically desired temperature. 1. Press the START/STOP BUTTON to start the unit. 2. -
Page 13: Sleep Mode
Operating Instructions Sleep Mode 1. Press the SLEEP MODE AUTO BUTTON to set the time when you want the unit to stop automatically. 2. The timer is programmed in one-hour increments by pressing the SLEEP MODE AUTO BUTTON 1 to 7 times. The sleep mode is available for 1 to 7 times. -
Page 14: Vertical / Horizontal Airflow Direction Control (Optional)
Operating Instructions Vertical / Horizontal Airflow Direction Control (Optional) The up/down airflow (Vertical airflow) can be The left/right(Horizontal airflow) can be adjusted adjusted by using the remote controller. by using the remote control. 1. Press the START/STOP BUTTON to start the 1. -
Page 15: Maintenance And Service
Maintenance and Service Maintenance and Service Before performing any maintenance, turn off the main power to the system, disconnect the circuit breaker and unplug the power cord. Indoor Unit Clean the unit with a soft dry cloth. Do not use bleach or abrasives. Never use any of these •... -
Page 16: Outdoor Unit
Maintenance and Service Outdoor Unit The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned. NOTE Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs. Operation Tips! Do not overcool the room. -
Page 17: Troubleshooting Tips! Save Time And Money
Maintenance and Service Troubleshooting Tips! Save time and money! The air conditioner may be operating abnormally when: Problem Possible Causes What To Do I The air conditioner is • Make sure the air conditioner plug is unplugged. pushed completely into the outlet. I The fuse is blown/circuit •... - Page 18 Memo 18 Room Air Conditioner...
- Page 19 Specifications and performance data subject to change without notice. HEAT CONTROLLER, INC. 1900 WELLWORTH AVENUE • JACKSON, MICHIGAN 49203 THE QUALITY LEADER IN CONDITIONING AIR Jan. 2008 P/No.: MFL39817405...
