Summary of Contents for Regency GCI60

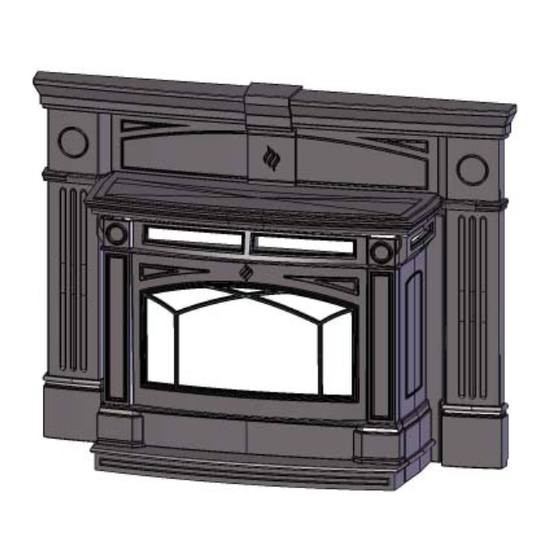

- Page 1 GCI60 Hampton Cast Iron Pellet Insert 26 7⁄8 24 ¾ 16 3⁄8 43 3⁄16 33 9⁄16 41 7⁄8 11 ¾ 22 15⁄16 12 ¾...
- Page 2 GFI60 Wood Pellet Insert INSTALLED AS A FIREPLACE INSERT STOVE MODEL (FPI) / A INSTALLE COMME UN MODELE SUR PIED DE POELE. Minimum clearances to combustible materials./ Les dégagements minimums aux matériels combustibles: Sidewall to center of unit (De la paroi au centre de l'unité) 24”...
- Page 3 GFI60 Wood Pellet Insert VENT TERMINATION REQUIREMENTS: IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened.
-
Page 4: Outside Fresh Air Connection
GFI60 Wood Pellet Insert RECOMMENDED - THROUGH WALL WITH OUTSIDE FRESH AIR CONNECTION VERTICAL RISE AND HORIZONTAL TERMINATION INSTALLATION Outside fresh air is mandatory when installing this unit in airtight homes and mobile homes. NOTE - This venting configuration is only for use with the Built-In installation. -
Page 5: Outside Vertical Installations
GFI60 Wood Pellet Insert INSIDE VERTICAL INSTALLATIONS OUTSIDE VERTICAL INSTALLATIONS Rain cap Rain cap 24" (61 cm) Flashing 24" (61 cm) Flashing 3" (7.5 cm) Clearance 3" (7.5 cm) Clearance Support bracket Support bracket Tee with cleanout Type "L" vent Tee or 90°...
