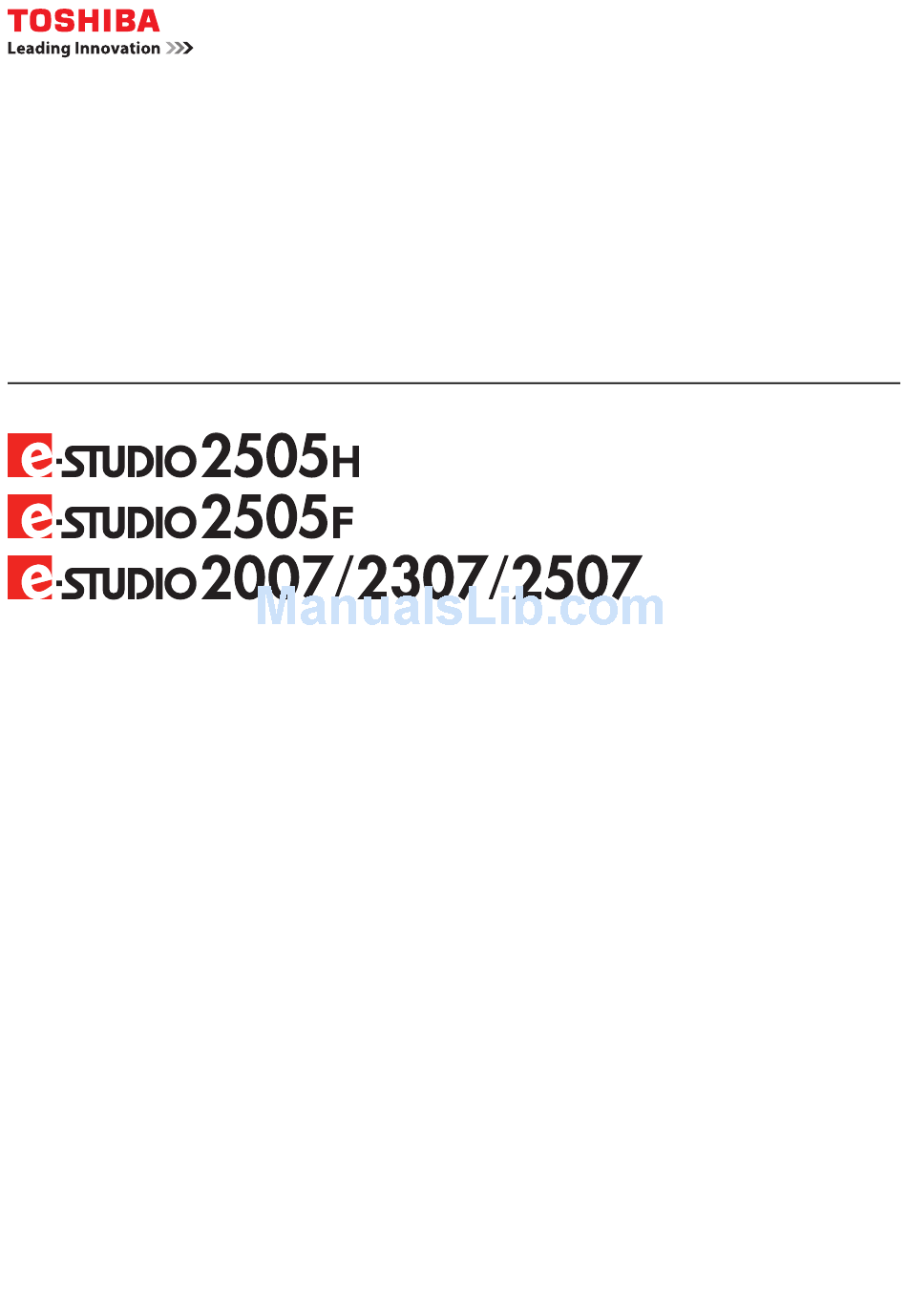

- Page 1 MULTIFUNCTIONAL DIGITAL SYSTEMS Software Installation Guide...
- Page 2 ©2013 TOSHIBA TEC CORPORATION All rights reserved Under the copyright laws, this manual cannot be reproduced in any form without prior written permission of TTEC.
-
Page 3: Preface
Preface Thank you for purchasing TOSHIBA Multifunctional Digital Systems. This manual explains how to install client software. Read this manual before use. Keep this manual within easy reach, and use it to configure an environment that makes best use of the e-STUDIO’s functions. -
Page 4: End User Software License Agreement
SOFTWARE TO THE LOCATION WHERE YOU OBTAINED IT. GRANT OF LICENSE: This is a legal agreement between you, the end-user ("You"), and TOSHIBA TEC Corporation ("TTEC") and its suppliers. This software, fonts (including their typefaces) and related documentation ("Software") is licensed for use with the system CPU on which it was installed ("System") in accordance with the terms contained in this Agreement. -
Page 5: Table Of Contents
CONTENTS Preface............................1 END USER SOFTWARE LICENSE AGREEMENT ..............2 Chapter 1 BEFORE INSTALLATION Before Installation ........................6 Software on the Client Utilities/User Documentation DVD ............ 6 System requirements......................6 Chapter 2 INSTALLING DRIVERS Installing Drivers ........................8 Connection environment......................8 Installing the drivers...................... - Page 6 CONTENTS...
-
Page 7: Before Installation
BEFORE INSTALLATION... -
Page 8: Software On The Client Utilities/User Documentation Dvd
1 BEFORE INSTALLATION Before Installation This section helps you to plan an installation suited to your environment. Software on the Client Utilities/User Documentation DVD Printer driver Allows you to use this equipment as a printer when it is connected to a Windows computer. Scanner driver Allows you to scan the originals set in this equipment remotely from your Windows computer and send the image to a TWAIN-compliant application. -
Page 9: Installing Drivers
INSTALLING DRIVERS... -
Page 10: Connection Environment
2 INSTALLING DRIVERS Installing Drivers This section describes how to install the printer, scanner, and N/W Fax drivers. Installing the drivers requires the administrator authority. Connection environment A USB connection or network connection is available. USB connection Before installing the drivers, connect the equipment and the computer with a USB cable. Do not turn the power ON at this stage. -
Page 11: Network Connection
2 INSTALLING DRIVERS 2.INSTALLING DRIVERS Network connection Before installing the drivers, connect the equipment to the network, and then turn on the equipment. Installing Drivers... -
Page 12: Installing The Drivers
Insert the Client Utilities/User Documentation DVD into your computer. The installer automatically starts and opens the installation dialog box. If the installer does not automatically start, double-click “Setup.exe” in the DVD. Select the model. This dialog is displayed when e-STUDIO2505H or e-STUDIO2505F is used. Installing Drivers... - Page 13 2 INSTALLING DRIVERS 2.INSTALLING DRIVERS Click “Install/Uninstall All Drivers” and click [Next]. Although you can select “Install/Uninstall Scanner Driver”, “Install/Uninstall Printer Driver” or “Install/Uninstall N/W- Fax Driver” to install the drivers respectively, select “Install/Uninstall All Drivers” at this step to install them in one N/W-Fax driver is not available for the e-STUDIO2505H.
- Page 14 2 INSTALLING DRIVERS Read the message and click [Install]. The installer begins to install the scanner driver. Wait until the next message appears. If a message prompting you to confirm the devise software installation appears, select the option of trusting the publisher such as [Install] or [Continue Anyway] to proceed with the installation.
- Page 15 2 INSTALLING DRIVERS 2.INSTALLING DRIVERS When you select [Create a new port] in step 7, the [Add Standard TCP/IP Printer Port Wizard] dialog box appears. Click [Next]. Enter the IP address of this equipment in the [Printer Name or IP Address] box and click [Next].
- Page 16 2 INSTALLING DRIVERS Click [Finish]. After installing the printer driver, repeat steps 7 through 10 to install the N/W-Fax driver. When you select [USB] in step 7: Make sure of the connection between the equipment and the computer, turn on the equipment, and then click [Finish]. When you select [TCP/IP] in step 7: Click [Finish].
- Page 17 2 INSTALLING DRIVERS 2.INSTALLING DRIVERS Make sure that “No, not this time” is selected and click [Next]. Windows automatically detects the equipment and starts the wizard for the succeeding installation. Make sure that “Install the software automatically (Recommended)” is selected and click [Next].
- Page 18 2 INSTALLING DRIVERS The installation is complete. After installing the drivers, remove the DVD from the computer. You are ready to print and scan documents. The Installer may ask you to restart your computer. If it does, select “Yes, I want to restart my computer now.” to restart your computer.
- Page 19 2 INSTALLING DRIVERS 2.INSTALLING DRIVERS Installing the drivers using Plug and Play Before installing the drivers, connect the equipment and your Windows computer with a USB cable. When using Plug and Play, first the scanner driver is installed, and then the printer driver. An additional printer wizard can also be used to install the printer driver.
- Page 20 2 INSTALLING DRIVERS Click “I don't have the disc. Show me other options”. Insert the Client Utilities/User Documentation DVD into the computer. Click “Browse my computer for driver software (advanced)”. Installing Drivers...
- Page 21 2 INSTALLING DRIVERS 2.INSTALLING DRIVERS Select the folder on the DVD that contains the drivers, and then click [OK]. Select the folder according to the language and operating system you are using. For example, for a 32-bit English OS, select “..\Driver\English\i386”. Click [Next].
- Page 22 2 INSTALLING DRIVERS Installing the drivers on Windows XP / Windows Server 2003 / Windows Server 2003 R2 Connect this equipment to the computer using a USB cable, and then start the computer. Do not connect or disconnect the USB cable when starting up the computer. Insert the driver Client Utilities/User Documentation DVD into the computer.
- Page 23 2 INSTALLING DRIVERS 2.INSTALLING DRIVERS Click “Search for the best driver in these locations.”, select “Include this location in the search:”, and then click [Browse]. Select the folder on the DVD that contains the drivers, and click [OK]. Select the folder according to the language and operating system you are using. For example, for 32-bit English OS, select “..\Driver\English\i386”.
- Page 24 2 INSTALLING DRIVERS When the installation completes, Click [Finish]. The Found New Hardware Wizard dialog box appears again and the installation of the printer driver begins. Repeat steps 4 through 9 to install the printer driver. After installation, make sure the printer driver icon appears in the Printers and Faxes window.
-
Page 25: Uninstalling Drivers
UNINSTALLING DRIVERS... - Page 26 If the installer does not automatically start, double-click “Setup.exe” in the DVD. Select the model. This dialog is displayed when e-STUDIO2505H or e-STUDIO2505F is used. Click “Install/Uninstall All Drivers” and click [Next]. Although you can select “Install/Uninstall Scanner Driver”, “Install/Uninstall Printer Driver” or “Install/Uninstall N/W- Fax Driver”...
- Page 27 3 UNINSTALLING DRIVERS 3.UNINSTALLING DRIVERS Select “I agree the terms of the License Agreement.” and click [Next]. Confirm the uninstallation message and click [Execute]. Wait until the completion message appears. Click [Exit] several times to quit the operation. Click [Finish]. Repeat steps 5 and 6 to uninstall all drivers.
-
Page 29: Index
INDEX ......6 Client Utilities/User Documentation DVD ..............10 Installer ............6 N/W Fax driver ............9 Network connection ...............6 Printer Driver ............6 Scanner Driver ..........6 System Requirements ..............12 TCP/IP ...............24 Uninstalling .................12 ............8 USB connection INDEX... - Page 30 INDEX...
- Page 31 DP-2505H DP-2505F DP-2007/2307/2507 OME12021800...
- Page 32 MULTIFUNCTIONAL DIGITAL SYSTEMS Software Installation Guide 1-11-1, OSAKI, SHINAGAWA-KU, TOKYO, 141-8562, JAPAN R120620L8800-TTEC ©2013 TOSHIBA TEC CORPORATION All rights reserved Ver00 F 2013-05...
