- Page 1 Quick Installation Guide TV-IP311PI (V1)
-
Page 2: Table Of Content
Table of Content 1 English 1. Before You Start 2. Hardware Installation and Configuration... -
Page 3: Before You Start
Ÿ Wired network Ÿ Network cable Ÿ Note: The TV-IP311PI only works with Power over Ethernet (PoE) devices that follow the IEEE 802.3af standard. Free Mobile App: TRENDnet IPView Requirements Supported Operating Systems Android (version 2.3.3 or above) iOS (version 5.1.1 or above) -
Page 4: Hardware Installation And Configuration
2. Hardware Installation and Configuration Note: You can also download the utility at http://www.trendnet.com/support/TV-IP311PI. 1. Do not install or mount the IP camera until after you complete the installation steps below. Temporarily place the IP camera next to your computer. - Page 5 4 Run the utility and you will see your camera is set to Inactive under security. 5. After the utility is done scanning. Click on the IP address section of the camera you would like to access. 6. Once you get to the login page you will be prompted to change the password. Please follow the password requirements and enter your new password.
- Page 6 9. Scan the QR code below to download a free mobile app to view the camera from your IOS or Android device. Please refer to the quick install guide for instructions on how to setup your camera in the app from your cameras download page at www.TRENDnet.com. Android...
- Page 7 Using the TV-IP311PI with a PoE switch (TPE-S50) TV-IP311PI Power Internet Switch Connect the provided network cable from the Power over Ethernet switch (e.g. TPE-S50) to Ÿ the network port on the IP Camera. Connect the switch to your network.
- Page 8 Mounting the camera Note: For tips on capturing appropriate camera viewing angle, please refer to the user's guide. 1. Loosen the adjustable nut and manually position the camera as desire. 2. Place the provided template label on the wall or ceiling. 3.
- Page 9 6. Align the mounting bracket with the screw anchors, and then use the provided screws to secure the camera to the mounting surface. 7. Manually adjust the zoom and focus. Using the free app, confirm the zoom and focus matches installation requirements.

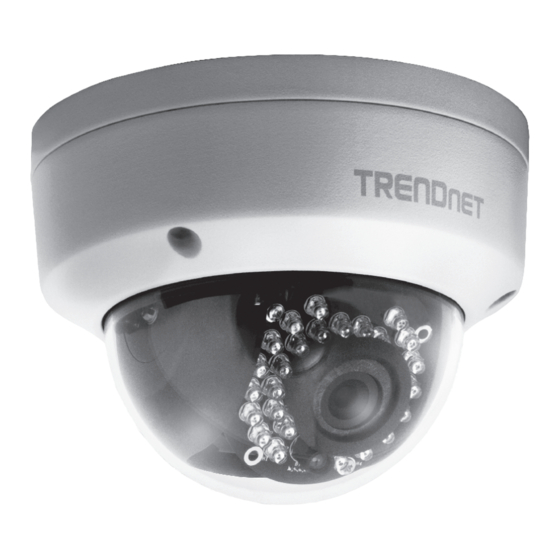

- Page 10 Indoor / Outdoor 3MP Full HD PoE Dome Day / Night Network Camera Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. EN 55022: 2010 + AC: 2011 Class A...
- Page 11 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: www.trendnet.com/register Toll free US/Canada: 1-866-845-3673 Regional phone numbers available at www.trendnet.com/support...
