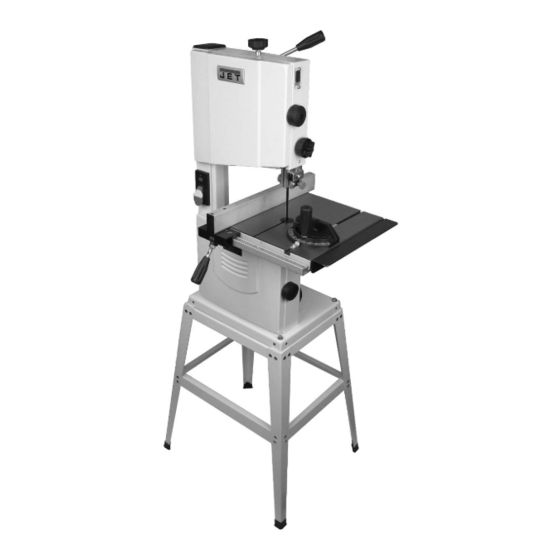

- Page 1 Operating Instructions and Parts Manual 10-inch Band Saw Model JWB-10 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-714000 Ph.: 800-274-6848 Edition 1 12/2015 www.jettools.com Copyright © 2015 JET...
-
Page 2: Important Safety Instructions
5. Do not use this band saw for other than its machine, a guard or other part that is damaged intended use. If used for other purposes, JET should be carefully checked to determine that it disclaims any real or implied warranty and holds... -
Page 3: About This Manual
Your machine has been designed and constructed to provide consistent, long-term operation if used in accordance with the instructions set forth in this document. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
14.1.1 JWB-10 Band Saw – Exploded View ....................15 14.1.2 JWB-10 Stand Assembly – Exploded View ..................16 14.1.3 JWB-10 Band Saw and Stand – Parts List ..................17 15.0 Electrical Connections for JWB-10 Band Saw ................... 20 ... -
Page 5: Features
Shipping Weight (approx.) ........................92 lb. (40 kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Unpacking
6.0 Unpacking Read understand assembly instructions before attempting assembly. Failure to comply may cause serious injury. Remove all contents from shipping carton. Do not discard carton or packing material until band saw is assembled and running satisfactorily. Compare contents of carton against list of parts below. -
Page 7: Assembly
Figure 4 3. Orient table as shown, then maneuver to allow 7.0 Assembly saw blade (A ) to pass through slot (C ) to the center. 7.1 Stand assembly 4. Line four threaded mounting holes 1. Refer to Figure 4 to assemble stand. Use underneath table with the four mounting carriage bolts (HP3) and flange nuts (HP9) through-holes on trunnion. -
Page 8: Guide Rail And Fence
5. Lock the fence handle, securing it to the guide comply may result in serious injury. rail (E), and verify that fence is still parallel to The JWB-10 is rated at 115-volt power. The band miter slot. saw comes with a plug designed for use on a circuit 6. -
Page 9: Extension Cords
installed and grounded in accordance with all local ampere rating. If in doubt, use the next heavier codes and ordinances. gauge. Remember, the smaller the gauge number, the heavier the cord. Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified Power Extension Cord... -
Page 10: Changing Blades
NOTE: Lock handle (A, Figure 9) is adjustable – pull Note: The JWB-10 Band Saw comes equipped with down on handle and rotate on pin. Release handle, a factory-installed 67.5" x 0.375" x 0.014", 6TPI making sure it settles back onto pin. -
Page 11: Adjusting Blade Tension
9.4 Adjusting blade tension The blade must be slightly tensioned (see sect. 9.4) before adjusting blade tracking. Make sure blade Refer to Figure 12: guides and bearings (M,N, Figure 11) do not interfere with blade. If blade tracking is required, The blade tension knob (P) is used to adjust blade blade guide adjustment is described in sect. - Page 12 There are two blade guide assemblies – an upper The thrust bearing (D) is mounted on a concentric assembly (Figure 14) and lower assembly (Figure shaft (C). When the shaft is rotated, the relative 15). position of the bearing to the back of the blade can be changed.
-
Page 13: Operating Controls
Place miter gauge into table slot and use a square 3. Remove saw blade as described in sect. 9.3. to verify that 90-degree setting on scale is 90- Refer to Figure 17: degrees to slot. Adjust pointer (K) if necessary. 4. -
Page 14: Optional Accessories
67.5 in. 0.5 in. 0.025 in. 707204 General purpose 67.5 in. 0.25 in. 0.025 in. 13.0 Troubleshooting JWB-10 Band Saw Symptom Possible Cause Correction Saw unplugged Check plug connections Saw stops or will not Fuse blown, or circuit breaker tripped... -
Page 15: Jwb-10 Band Saw - Exploded View
14.1.1 JWB-10 Band Saw – Exploded View... -
Page 16: Jwb-10 Stand Assembly - Exploded View
14.1.2 JWB-10 Stand Assembly – Exploded View... -
Page 17: Jwb-10 Band Saw And Stand - Parts List
14.1.3 JWB-10 Band Saw and Stand – Parts List Index No Part No Description Size 1 ....TS-1503041 ....Socket Head Cap Screw.......... M6x16 ......2 2 ....JWB10-002 ....Spacer ......................2 3 ....TS-1541021 ....Nylon Insert Lock Nut ..........M6 ......... 5 4 .... - Page 18 Index No Part No Description Size 60 ....JWB10-060 ....Blade Guard Cover ..................1 61 ....JWB10-061 ....Rack....................... 1 62 ....JWB10-062 ....Upper Blade Guard ..................1 63 ....JWB10-063 ....Lower Blade Guard ..................1 64 ....
- Page 19 167 .... TS-2361081 ....Hex Cap Screw * ............. M8x55 ......3 168 .... JWB10-168 ....Warning Label....................1 169 .... JET-92....... Jet Logo with Adhesive ..........92x38mm ...... 1 170 .... JWB10-170 ....ID Label ......................1 171 ....
-
Page 20: Electrical Connections For Jwb-10 Band Saw
15.0 Electrical Connections for JWB-10 Band Saw 1/2HP, 1PH, 115V... -
Page 21: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 22 This page intentionally left blank.
- Page 23 This page intentionally left blank.
- Page 24 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
