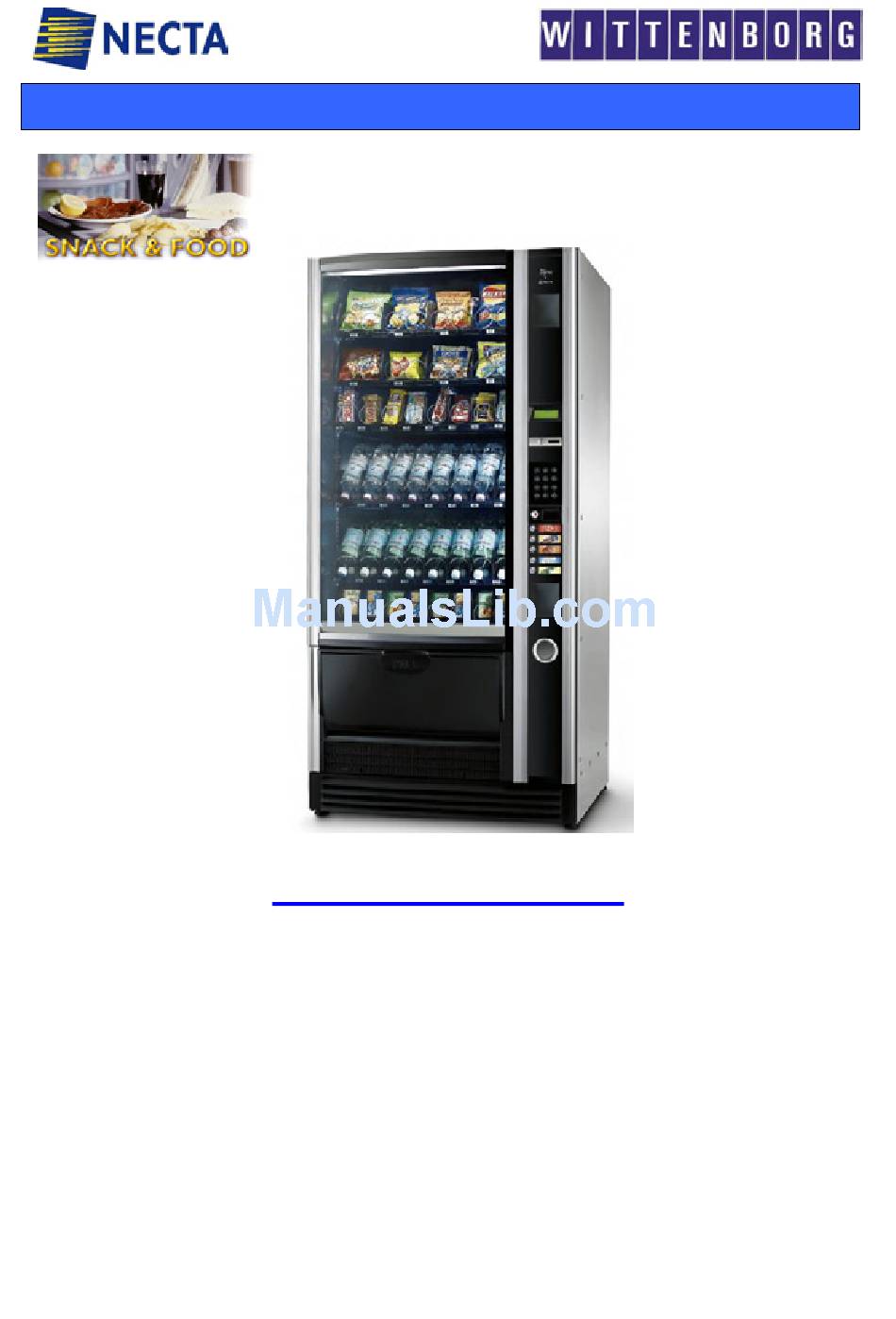

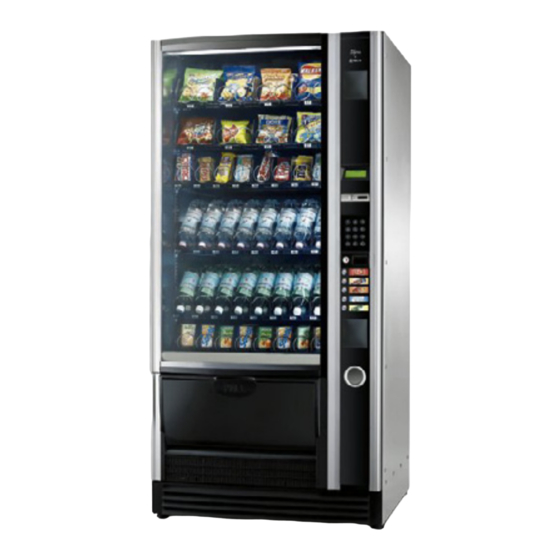

- Page 1 AFTER SALES SERVICE Snack & Food SERVICE MANUAL “ SFERA ” BASIC TECHNICAL MANUAL THE CONTENTS OF THIS DOCUMENT ARE INTENDED FOR NECTA’S AFTER SALES PERSONNEL. “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 1 / 19...
-
Page 2: Table Of Contents
Double keypad with direct and numeric selection Coin return compartment Power supply unit / fuses / door safety switch Removable grille for cleaning the condenser’s filter Product dispensing compartment Key lock “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 2 / 19... -
Page 3: Layout - Models
Version - Model with double keypad (Numeric and direct for five advertised selections) NB2: without such code, the machine is supplied with only the 12-button numeric keypad “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 3 / 19... - Page 4 Sfera 6 – 36 R/F Sfera 6 – 40 R/F Versions provided for the Italian market Sfera 6 – 36 R/I Sfera 6 – 40 R/I LX “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 4 / 19...
- Page 5 Sfera 6 – 32R / E Sfera 6 – 36R/UK Version provided for Belgium Version provided for Germany Sfera 6 – 36R / B Sfera 6 – 36R / D “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 5 / 19...
- Page 6 ACTUATION BOARD AND CONNECTIONS new selection. (Electrical compartment open) “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 6 / 19...
- Page 7 LUORESCENT LAMP CONTROL RS232 PORT ONTROL OF RINTER SLIDER LOCK KIT ROGRAMMER Transmitter photodiode card OOLING UNIT CONTROL CARD Phototransistor card Receiver OWER SUPPLY 230 V 50 H “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 7 / 19...
- Page 8 Selection push-button panel connector Input/output connector Expansion board connector for MDB Connector not used Coin mechanism setting minidips Programmer device connector Expansion board connector for BDV / EXE “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 8 / 19...
- Page 9 Detail of spiral control ratiomotor CONNECTOR To connector J 12 CPU board TRAY CONNECTION WIRING DIAGRAM “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 9 / 19...
- Page 10 Connector J14 - 24 V DC CPU board power supply 5-6-7-8 Connector J3 IN / OUT to CPU Wiring diagram of dispensing compartment slider lock device kit “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 10 / 19...
-
Page 11: Vending Systems
Useful pitch: 20, 26, 30, 36, 42, 50, 60, 76 right and left rotation 20 Right-hand 180° rotation with central partition for dispensing sticks “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 11 / 19... -
Page 12: Power Supply And Wiring
4 - POWER SUPPLY AND WIRING Like all other NECTA products, the “SFERA” vending machine is type-approved (or awaiting approval) by IMQ, therefore all components and electric units are certified as Vending trays conforming to European directives, and all cables are fully connectors sheathed and provided with double insulation. - Page 13 Liquid waste container perishable food products. FIG. 1 Evaporator Removable Compressor external grille Condenser FIG. 2 Condensation dust removing filter FIG. 3 Perspective view of cooling unit “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 13 / 19...
-
Page 14: Cabinet And Door
Porta vetrata Detail of polystyrene foam insulation and assembly with rivets Detail of anti-vandalism closing mechanism (Kit on request) “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 14 / 19... -
Page 15: Troubleshooting
INDICATE THE TEMPERATURE +32° C) software function. See programming NB: AFTER THE SENSOR FAILURE HAS BEEN manual DISPLAYED FOR TWO HOURS, A COMPRESSOR FAILURE WILL ALSO BE INDICATED. “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 15 / 19... - Page 16 Replace the microswitches and/or the “Programming” cables In this situation it is not possible to have correct operation. If the warning is with the door closed, check the microswitch. “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 16 / 19...
-
Page 17: Haccp Directive (Use Instructions)
When the display indicates an error message immediately check the trouble-shooting sheet. Use only recommended cleaning products approved for foodstuff, preferably liquid; do not use powder and abrasive products that could scratch plastic surfaces. “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 17 / 19... - Page 18 Slide out the trays without removing them (FIG. 2-3) and clean the inside of the cabinet with a cloth dampened with a chlorine based detergent. Check that there are no small insects. FIG. 2 FIG. 3 “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 18 / 19...
- Page 19 Pull-Down: technical term that defines the length of time required for bringing the temperature inside the cabinet to the correct level FIG. 2 FIG. 3 FIG. 4 “ “ NECTA SPA TECHNICAL MANUAL SFERA Manual “ SFERA” 19 / 19...
