- Page 1 TECHNICAL MANUAL Door-entry phone Art. 2738W Passion.Technology. Design.
- Page 2 Table of contents Warning Description ..................3 Technical specifications ..............4 Installation ..................5 Connections ..................6 Connection to the video entry system riser...........6 Branched connection to the video entry system riser from the internal video unit ..................6 Programming ................... 7 System performance and layouts ..........
-
Page 3: Description

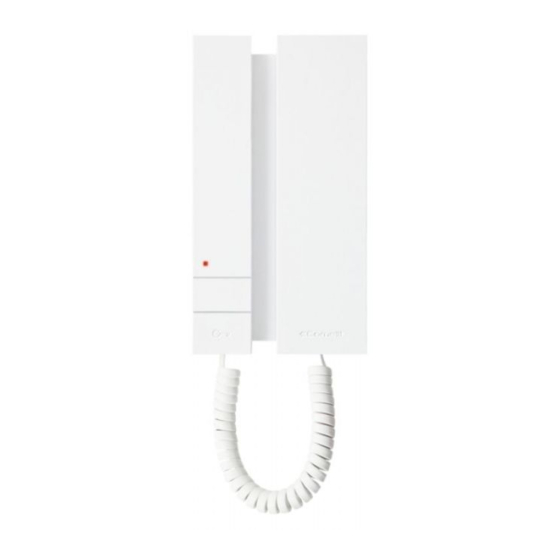

Description Article 2738W is a door-entry phone complete with 1 key button, 1 P1 button and a 3-position ringtone / Privacy service selector. Can be used in “Building Kit” systems (exclusively 2-wire). 1. Loudspeaker 7. Terminal block M1: CFP CFP floor door call input 2. -
Page 4: Technical Specifications
Technical specifications MAIN SPECIFICATIONS Audio system Audio/video system Wall-mounted Desk base-mounted Product colour White Total buttons LED signaling FUNCTIONS Actuator control function Switchboard call function Privacy function Floor door call function Electronic bell SETTINGS Loudspeaker volume control Microphone volume control Ringtone volume control GENERAL INFOI Product height (mm) -
Page 5: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 6: Connections
Connection to the video entry system riser VIDEO ENTRY SYSTEM RISER 1214/2C 2738W FLOOR DOOR CALL VIDEO ENTRY SYSTEM RISER 20 m MAX - Use shielded cable for the connection and do not route the cables in the vicinity of heavy inductive loads or power supply cables (230V/400V). -
Page 7: Programming
Programming • Each door-entry phone in the system is identified by means of its own code. This code must be set using the Dip switch on the phone card. • The user code must be set according to the corresponding information provided in the programming table. •... - Page 8 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
