- Page 1 TECHNICAL MANUAL Door-entry phone art. 2738W...
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the manuals / instruction sheets supplied with those products. -
Page 3: Description

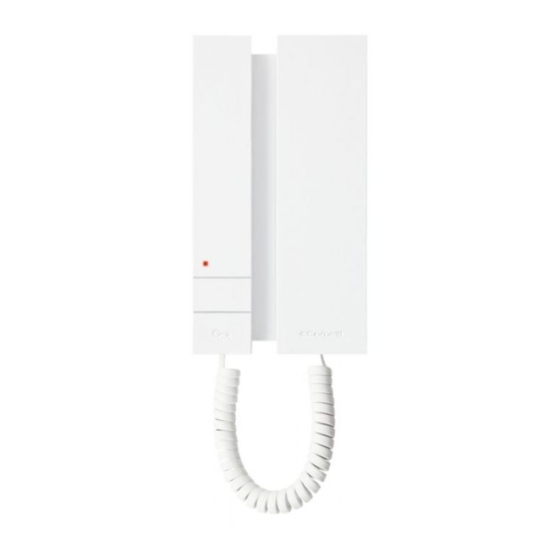

Description MINI series door-entry phone complete with key button, P1 button and a 3-position ringtone / Privacy selector, suitable for use in audio systems with power supply unit 1210 and audio-video systems with power supply units 1209, 1210, 4888C. Dimensions: 105 x 190 x 28 mm 1. -
Page 4: Technical Characteristics
Technical characteristics MAIN FEATURES System SimplebusTop (S1 e S2) Audio system Yes Audio/video system Yes Wall-mounted Yes Desk base-mounted Yes Hands-free function - Induction loop function - Product color White Total buttons 2 LED signaling No FUNCTIONS Actuator control function Yes Switchboard call function Yes Panic call - General intercom call -... -
Page 5: Installation
Installation mm 105 max 7cm CLACK! CLACK! -
Page 6: Connections
Connections Connection to the video entry riser and the floor door call button 2738W 1214/2C 1209 / 1210 /4888C Branched connection to the video entry riser from the internal video unit 6721W 2738W 2738W 6721W 6700W 6701W 6701B 1 2 3 4 5 6... -
Page 7: Programming
Programming • Each door-entry phone in the system is identified by means of its own code. This code must be set using the Dip switch on the phone card. • The user code must be set according to the corresponding information provided in the programming table. •... - Page 8 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
