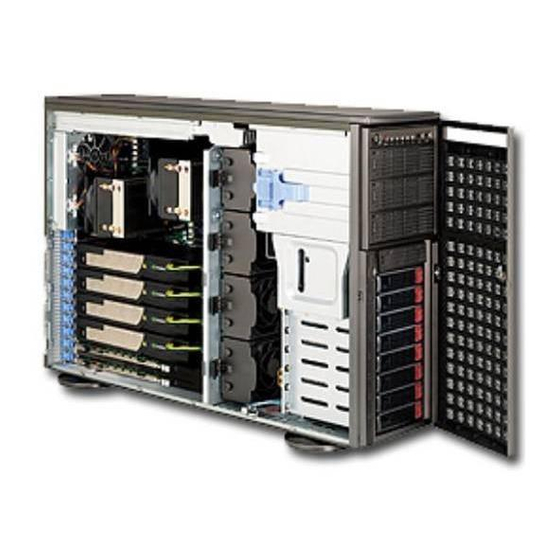

Supero SC747TQ-R1400B User Manual

Sc747 chassis series
Hide thumbs Also See for SC747TQ-R1400B:
Table of Contents

Advertisement

Quick Links

Download this manual

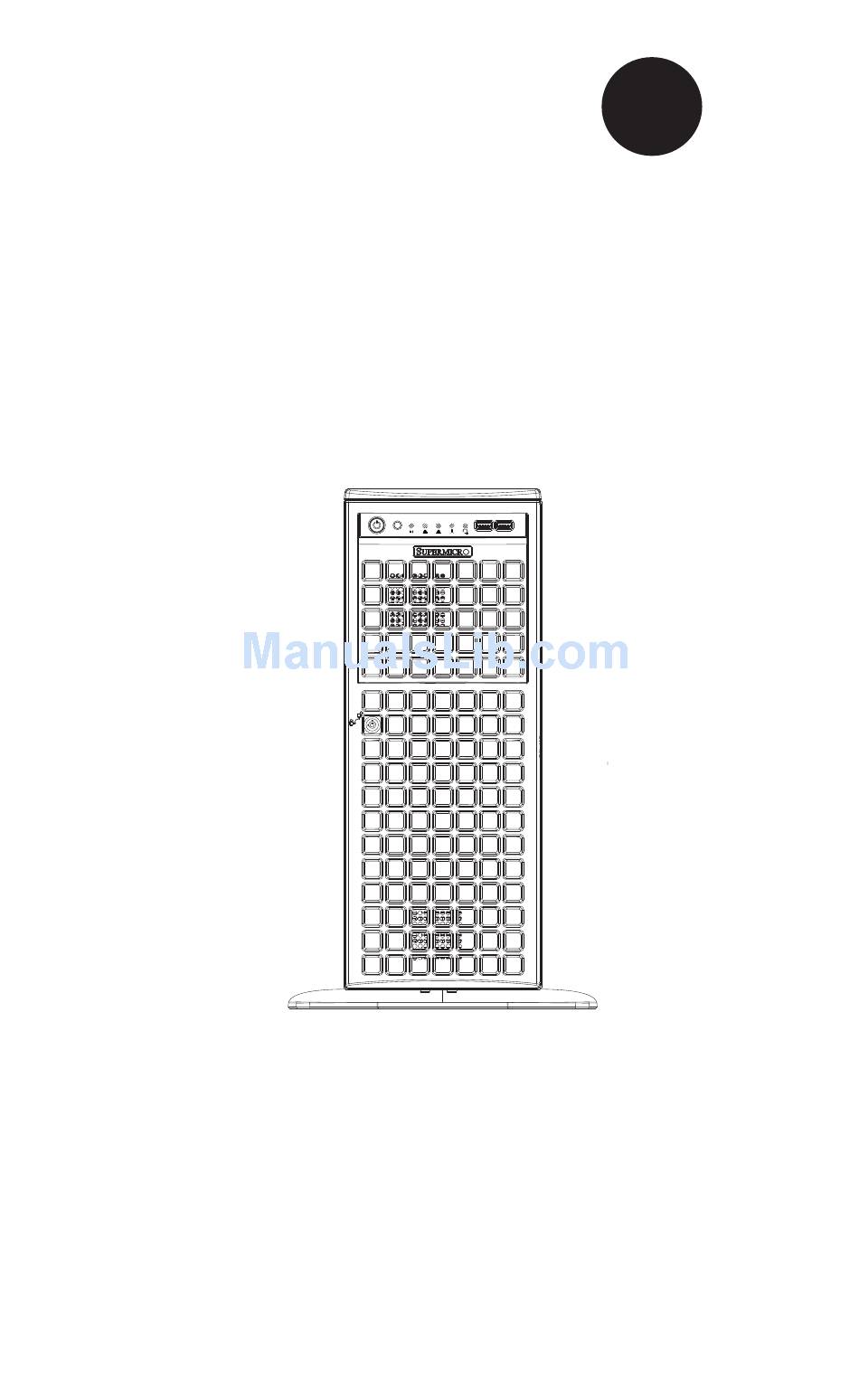

S
UPER
®
SC747 CHASSIS
Series
SC747TQ-R1400B
SC747TQ-R1620B
SC747BTQ-R1K62B
USER'S MANUAL
1.0b

Advertisement

Table of Contents
loading

Related Manuals for Supero SC747TQ-R1400B

Summary of Contents for Supero SC747TQ-R1400B

  • Page 1 UPER ® SC747 CHASSIS Series SC747TQ-R1400B SC747TQ-R1620B SC747BTQ-R1K62B USER’S MANUAL 1.0b...
  • Page 2 SC747 Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and configuration of the SC747 4U chas- sis. Installation and maintenance should be performed by experienced technicians only. Supermicro's SC747 server/workstation chassis is truly industry's most powerful high-performance server chassis.

  • Page 4: Manual Organization

    SC747 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides an overview of the main components included with this chassis and describes the main features of the SC747 chassis. This chapter also includes contact information. Chapter 2 Standardized Warning Statements for AC Systems This chapter lists warnings, cautions, and system safety.

  • Page 5: Appendices

    Preface Appendices This section lists compatible cables, power supply specifications, and compatible backplanes. Not all compatible backplanes are listed. Refer to our Web site for the latest compatible backplane information. Appendix A Chassis Cables Appendix B Power Supply Specifications Appendix C SAS-747TQ Backplane Manual Appendix D M35S and M35T1 Mobile Rack Specifications Appendix E M35TQ Mobile Rack Specifications...

  • Page 6: Table Of Contents

    SC747 Chassis Manual Table of Contents Preface ......................iii About This Manual ..................... iii Manual Organization ..................iv Appendices ......................v Chapter 1 Introduction ................1-1 Overview ......................1-1 Shipping List ....................1-1 Chassis Features .................... 1-2 CPU ......................... 1-2 I/O Expansion Slots ..................1-2 Peripheral Drives .....................
  • Page 7 Preface Power Supply ....................3-2 Where to get Replacement Components ............3-2 Chapter 4 System Interface ..............4-1 Overview ......................4-1 Control Panel Buttons ..................4-2 Control Panel LEDs ..................4-2 Drive Carrier LEDs ..................4-4 SAS/SATA Drives .................... 4-4 Chapter 5 Chassis Setup and Maintenance ........... 5-1 Overview ......................
  • Page 8 SC747 Chassis Manual Rack Precautions .................... 6-2 Rack Mounting Considerations ............... 6-2 Removing the Chassis Cover and Feet ............6-4 Installing the Chassis Handles and Inner Rails ..........6-7 Installing the Outer Rails to the Rack ............. 6-8 Installing the Chassis into a Rack..............6-9 Installing the Chassis Cover .................

  • Page 9: Chapter 1 Introduction

    Please visit the following link for the latest shipping lists and part numbers for your particular chassis model http://www.supermicro.com/products/chassis/4U/?chs=747. SC747 Chassis Power Model I/O Slots Supply 1400W Redundant DP/UP 8x SAS/SATA 11x FF SC747TQ-R1400B (Gold Level) 1620W Redundant DP/UP 8x SAS/SATA 11x FF SC747TQ-R1620B (Gold Level) 1620W Redundant DP/UP 8x SAS/SATA...

  • Page 10: Chassis Features

    SC747 Chassis Manual Chassis Features The SC747 4U high-performance chassis includes the following features: The SC747 chassis supports single or dual processors. Hard Drives The SC747 chassis features eight slots for SAS/SATA drives. These drives are hot -swappable. Once set up correctly, these drives can be removed without powering down the server.

  • Page 11: Contacting Supermicro

    Chapter 1 Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 12 SC747 Chassis Manual Notes...

  • Page 13: Chapter 2 Standardized Warning Statements For Ac Systems

    Chapter 2: Warning Statements for AC Systems Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 14 SC216 Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 15 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 16: Installation Instructions

    SC216 Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 17: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 18: Power Disconnection Warning

    SC216 Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 19 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 20: Equipment Installation

    SC216 Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 21: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 22: Battery Handling

    SC216 Chassis Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬ ‫محظورة‬...
  • Page 23 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 24: Redundant Power Supplies

    SC216 Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 25: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 26: Comply With Local And National Electrical Codes

    SC216 Chassis Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 27: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 28: Hot Swap Fan Warning

    SC216 Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 29 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 30: Power Cable And Ac Adapter

    SC216 Chassis Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 31 Chapter 2: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 32 SC216 Chassis Manual Notes 2-20...

  • Page 33: Chapter 3 Chassis Components

    Chapter 3 Chassis Components Chapter 3 Chassis Components Overview This chapter describes the most common components included with your chassis. Some components listed may not be included or compatible with your particular chassis model. For more information, see the installation instructions detailed later in this manual.

  • Page 34: Power Supply

    SC747 Chassis Manual Power Supply SC747 chassis model includes (93%+) Gold Level 1400W redundant (1+1) power supplies rated at 1400 Watts or redundant 94% Platinum Level power supplies rated at 1620 Watts. In the unlikely event your power supply fails, replacement is simple and can be done without tools.

  • Page 35: Chapter 4 System Interface

    Chapter 4 System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 36: Control Panel Buttons

    SC747 Chassis Manual Control Panel Buttons There are two push-buttons located on the front of the chassis, a power on/off button and a reset button. • Power: The main power switch is used to apply or remove power from the power supply to the server system.
  • Page 37 Chapter 4 System Interface • NIC2: Indicates network activity on GLAN2 when flashing. • Overheat/Fan Fail: When this LED flashes it indicates a fan failure. When continuously on (not flashing) it indicates an overheat condition, which may be caused by cables obstructing the airflow in the system or the ambient room temperature being too warm.

  • Page 38: Drive Carrier Leds

    SC747 Chassis Manual Drive Carrier LEDs Your chassis uses SAS/SATA drives. SAS/SATA Drives Each SAS/SATA drive carrier has two LEDs. • Green: Each Serial ATA drive carrier has a green LED. When illuminated, this green LED (on the front of the SATA drive carrier) indicates drive activity. A con- nection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed.

  • Page 39: Chapter 5 Chassis Setup And Maintenance

    Chapter 5 Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver.

  • Page 40: Chassis Covers

    SC747 Chassis Manual Chassis Covers The SC747 chassis has three covers, the main cover, the top cover and the front cover. This section of the manual is describes removing the main cover, and opening the front cover. Removing the top cover is described in Chapter 6, in the section titled Installing a Chassis onto a Rack.

  • Page 41: Removing The Main Cover

    Chapter 5 Chassis Setup and Maintenance Removing the Main Cover Removing the Chassis Main Cover 1. Power down the system and remove the power cords from the rear of the power supplies. 2. Lift up and back on the main cover handle, which secures the cover to the chassis.

  • Page 42: Opening The Front Cover

    SC747 Chassis Manual Front Cover Lock Figure 5-3: Opening the Front Cover Opening the Front Cover The front cover houses up to eight hot-swappable hard drives. The cover can be locked to prevent unauthorized access. The key to this lock is shipped with the system.

  • Page 43: Configuring The The Storage Module

    Chapter 5 Chassis Setup and Maintenance Configuring the the Storage Module Storage Module Figure 5-4: Chassis in Tower Mode Storage Module Figure 5-5: Chassis in Rack Mount Mode Tower or Rack Configuration The SC747 chassis is shipped in tower mode and can be immediately used as desktop server.
  • Page 44 SC747 Chassis Manual Storage Module Release Lever Storage Module Figure 5-6: Remove the Storage Module Rotating the Storage Module for Rack Mounting 1. Power down the system, remove the power cords from the rear of the power supplies and open the chassis cover. 2.

  • Page 45: Installing Drives In The Storage Module

    Chapter 5 Chassis Setup and Maintenance Figure 5-7: Chassis Storage Module Installing Drives in the Storage Module The storage module includes three full-sized drive bays and the front LED panel. This module can be configured in one of three ways: 1.
  • Page 46 SC747 Chassis Manual Drive Carrier Release Tabs Figure 5-8: Removing a Drive Carrier Use the following instructions to add up to three peripheral drives (DVD-ROM, CD- ROM, etc.) to the drive trays: Adding Peripheral Drives 1. Power down the system, remove the power cords from the back of the power supplies and open the chassis cover.
  • Page 47 Chapter 5 Chassis Setup and Maintenance Hard Drive Carrier Hard Drive Rails Figure 5-9: Adding Hard Drive Rails to the DVD-ROM Drive 4. Remove the drive carrier rails from the drive carrier. To do this, you must remove two screws from each side. 5.
  • Page 48 SC747 Chassis Manual Drive Carrier Release Tabs Figure 5-10: Removing a Drive Carrier Adding Hard Drives to the Drive Carriers 1. Power down the server, unplug the power cords from the rear of the power supplies and open the chassis cover. 2.
  • Page 49 Chapter 5 Chassis Setup and Maintenance Hard Drive Drive Carrier Figure 5-11: Adding a Hard Drive to the Drive Carrier 3. Push the drive carrier toward the front of the chassis. 4. Place the hard drive into the drive carrier. Make sure The hard drive can be SAS or SATA depending on your motherboard.

  • Page 50: Adding Five Hard Drives Using A Supermicro Mobile Rack

    SC747 Chassis Manual Drive Carrier Release Tabs Figure 5-12: Removing a Drive Carrier Adding Five Hard Drives Using a Supermicro Mobile Rack The SC747 chassis supports a CSE-M35T-1/CSE-M35TQ mobile rack to install extra hot-swappable hard drives. The mobile rack goes into the storage module which goes into the chassis.
  • Page 51 Chapter 5 Chassis Setup and Maintenance Hard Drive Rails Hard Drive Carrier Figure 5-13: Removing the Hard Drive Rails 3. Pull the first drive release tab and push the drive carrier toward the front of the chassis. Repeat this for all three tabs. Mobile Rack Hard Drive Rails...

  • Page 52: Installing Hard Drives

    SC747 Chassis Manual Installing Hard Drives Release Button Drive Carrier Handle Figure 5-15: Installing Hard Drives Installing Hard Drives into the Chassis The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays. Only enterprise level hard drives are recommended for use in Supermicro chassis.
  • Page 53 Chapter 5 Chassis Setup and Maintenance 4. Remove the screws holding the dummy drive to the drive carrier. 5. Place a hard drive in the drive carrier. Figure 5-16: Installing a Hard Drive 6. Secure the hard drive to the carrier using four screws. 7.

  • Page 54: Installing The Motherboard

    SC747 Chassis Manual Installing the Motherboard I/O Slot Shield Installation The I/O shield holds the motherboard ports in place. Install the I/O shield before installing the motherboard. I/O Shield Figure 5-17: SC747 Chassis I/O Shield Installing the I/O Shield 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions.

  • Page 55: Permanent And Optional Standoffs

    Chapter 5 Chassis Setup and Maintenance Permanent and Optional Standoffs Standoffs prevent short circuits by creating space between the motherboard and the chassis surface. The SC747 chassis packaging includes optional standoffs (hexagon shaped posts). These standoffs accept the rounded Phillips head screws included in the SC747 accessories packaging.

  • Page 56: Installing The Motherboard

    SC747 Chassis Manual Installing the Motherboard Installing the Motherboard into the Chassis 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions. 2. Power down the system, disconnect the power cords from the power supplies, lay the chassis on a flat surface and open the chassis cover.

  • Page 57: Installing The Active Heatsink

    Chapter 5 Chassis Setup and Maintenance Installing the Active Heatsink Figure 5-20: Installing the Active Heatsink Installation of the active heatsink will vary, depending upon the type of motherboard used in the chassis. See the information which was supplied with the motherboard for details on how to properly install the active heatsink on your specific mother- board.

  • Page 58: Power Supply Connections

    SC747 Chassis Manual Power Supply Connections Connect each of the following cables, as required, by your motherboard manufac- turer. In some instances, some cables may not need to be connected. Some cables may not be available with your model. Power Supply Cable Connects Name Description...

  • Page 59: Configuring The Expansion Slots

    Chapter 5 Chassis Setup and Maintenance Press the Middle of Lift the the Release Tab Release Tab Figure 5-21: Expansion Card Port Configuring the Expansion Slots After the motherboard installation, install expansion cards in the chassis. Installing Expansion Cards 1. Power down the system, unplug the power cords from the power supplies and open the chassis cover.
  • Page 60 SC747 Chassis Manual Figure 5-22: Removing the PCI Card Slot Guard 4. Pull the release tab upward. 5. Remove the screw holding the bracket in place and pull the bracket from the chassis. 6. Install your expansion card into the PCI slot bracket and motherboard. To do this, slide the expansion card (with "L"...

  • Page 61: Installing Double-Width Graphics Cards

    Chapter 5 Chassis Setup and Maintenance Figure 5-23: Installing Graphics Cards Installing Double-Width Graphics Cards The SC747 chassis is designed to support up to four double-width, high-end graph- ics cards. An eleven slot GPU card holder (MCP-290-74702-0N) is recommended for this application and may be purchased by visiting the Supermicro Web site at http://www.supermicro.com and clicking on the Where to Buy link.
  • Page 62 SC747 Chassis Manual Figure 5-24: Closing the Graphics Card Holder 3. Place the tabs of the MCP-290-74702-0N graphics card holder into the slots on the wall of the chassis as illustrated. 4. Lower the graphics card holder down onto the card 5.

  • Page 63: System Fans

    Chapter 5 Chassis Setup and Maintenance System Fans Six heavy-duty fans provide cooling for the chassis. Four system fans are located in the mid-section of the chassis with two exhaust fans in the rear. These fans circulate air through the system as a means of lowering the system's internal temperature. The fans come pre-installed to the chassis.

  • Page 64: Replacing Rear Exhaust Fans

    SC747 Chassis Manual Rear Fan Release Tab Figure 5-26: Rear Exhaust Fans Replacing Rear Exhaust Fans Replacing the Rear Exhaust Fan 1. Determine which fan is not operational. 2. Press the rear fan release tab. 3. Pull the fan away from the chassis by pulling back the top first. 4.

  • Page 65: Adding Optional External Rear Fans (Btq Model Only)

    Chapter 5 Chassis Setup and Maintenance Adding Optional External Rear Fans (BTQ Model Only) SC747BTQ chassis models support up to two optional external rear fans for ad- ditional cooling. These are mounted over the PCI slots in the rear of the chassis. These optional fans may be ordered separately (MCP-320-00046-0N-KIT).
  • Page 66 SC747 Chassis Manual Align with Mounting Holes and Place Screw Here Run Fan Wiring Here Align with Mounting Holes and Place Screw Here Place Bracket Mounting Pins Here Insert Fan Feet into Mounting Holes Here Figure 5-28: External Rear Fan Bracket Mounting Pin Placement 4.
  • Page 67 Chapter 5 Chassis Setup and Maintenance Phillips Head Mounting Screws Figure 5-29: Placing the External Rear Fan and Bracket on the Chassis 10. Route the wiring through the open latch slot and into the chassis. 11. For cosmetic purposes the plastic latch clip may be reinstalled in the latch slot if desired.

  • Page 68: Power Supply

    SC747 Chassis Manual Power Supply Release Tab Figure 31: Power Supply Release Button The SC747 chassis is equipped with 1400W or 1620W (redundant) power supplies. The power supply is auto-switching capable. This enables it to automatically sense and operate at a 100V to 240V input voltage. An amber light will be illuminated on the power supply when the power is off.

  • Page 69: Unpacking The System

    Chapter 6 Rack Installation Chapter 6 Rack Installation Overview This chapter provides instuctions for installing your system into a rack environment. Following the instructions in the order given should enable you to install the system within a minimal amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way.

  • Page 70: Rack Precautions

    SC747 Chassis Manual Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. •...

  • Page 71: Reduced Airflow

    Chapter 6 Rack Installation environment compatible with the manufacturer’s maximum rated ambient tempera- ture (TMRA). Reduced Airflow Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised. Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

  • Page 72: Removing The Chassis Cover And Feet

    SC747 Chassis Manual Installing the Chassis onto a Rack This section provides information on installing the SC747 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.
  • Page 73 Chapter 6 Rack Installation Removing the Chassis Top Cover 1. Locate the chassis cover lock (blue lever) at the rear of the chassis cover. 2. Slide the chassis cover lock to the right and push chassis cover forward. 3. Lift the chassis top cover off the chassis. Removing the Chassis Feet 1.

  • Page 74: Identifying The Sections Of The Rack Rails

    SC747 Chassis Manual Identifying the Sections of the Rack Rails The chassis package includes two rack rail assemblies in the rack mounting kit. Each assembly consists of two sections: An inner fixed chassis rail that secures directly to the server chassis and an outer fixed rack rail that secures directly to the rack itself.

  • Page 75: Installing The Chassis Handles And Inner Rails

    Chapter 6 Rack Installation Figure 6-3: Installing the Inner Rack Rails Installing the Chassis Handles and Inner Rails Installing the Inner Rails 1. Locate the chassis handles and handle screws. 2. Align the chassis handle with the front of the chassis and secure with the three chassis handle screws.

  • Page 76: Installing The Outer Rails To The Rack

    SC747 Chassis Manual Rear Rail Middle Rail Secure to the Rear of the Rack Attach to Middle Rail Slide into the Inner Rail Figure 6-4: Assembling the Outer Rails Installing the Outer Rails to the Rack Installing the Outer Rails 1.

  • Page 77: Installing The Chassis Into A Rack

    Chapter 6 Rack Installation Figure 6-5: Installing the Rack Rails Note: figures are for illustrative purposes only. Always install servers into racks from the bottom up. Installing the Chassis into a Rack Installing the Chassis 1. Confirm that chassis includes the inner rails and the outer rails. 2.

  • Page 78: Tower Mounting Instructions

    SC747 Chassis Manual Tower Mounting Instructions The SC747 chassis is shipped with the chassis cover and feet pre-installed. To use the chassis as a desktop server, no other installation is required. Use the instructions in this section if you have converted the chassis for rack use and need to return the chassis to tower mounting.

  • Page 79: Installing Feet On The Chassis

    Chapter 6 Rack Installation Chassis Foot Receptacle Chassis Foot Chassis Screws Figure 6-7: Placing Chassis Feet Installing Feet on the Chassis Installing the Chassis Feet 1. Place the chassis foot in the foot receptacle and slide the foot toward the front of the chassis.
  • Page 80 SC747 Chassis Manual Notes 6-12...

  • Page 81: Appendix A Sc747 Chassis Cables

    Appendix A Chassis Cables Appendix A SC747 Chassis Cables A-1 Overview This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our web site at: www.supermicro.com.
  • Page 82 SC747 Chassis Manual A-4 Compatible Cables These cables are compatible with the SC747 chassis. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables.

  • Page 83: Extending Power Cables

    Appendix A Chassis Cables Extending Power Cables Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards.
  • Page 84 SC747 Chassis Manual Notes...

  • Page 85: Appendix B Sc747 Power Supply Specifications

    Appendix B: Power Supply Specifications Appendix B SC747 Power Supply Specifications This appendix lists power supply specifications for your chassis system. Gold Level 1400W (Redundant) MFR Part # PWS-1K41P-1R 1100W: 100 - 140V, 50 - 60Hz, 9.5 - 13.5 Amps AC Input 1400W: 180 - 240V, 50 - 60Hz, 7.0 - 9.5 Amps DC Output...
  • Page 86 SC747 Chassis Manual Notes...

  • Page 87: Appendix C Sas-747Tq Backplane Specifications

    Appendix C SAS-747TQ Backplane Specitications Appendix C SAS-747TQ Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 88 SC747 Chassis Manual C-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual.

  • Page 89: Front Connectors

    Appendix C SAS-747TQ Backplane Specitications C-5 Front Connectors UPGRADE JP69 JP18:BUZZER RESET JP18 JP68 JP35 JP25 SIDEBAND#2 SIDEBAND#1 JP35:9072 RST JP25:OH TEMP. JP97 1-2: RST OPEN:45 JP98 JP84:MODE 2-3: NO RST 1-2:50 I2C#2 JP95 I2C#1 JP99 1-2:SGPIO 2-3:55 2-3:I2C SAS747TQ REV: 1.00 DESIGNED IN USA...
  • Page 90 SC747 Chassis Manual C-6 Front Connector and Pin Definitions 1. Upgrade Connector The upgrade connector, designated JP69, is used for manufacturer's diagnostic purposes only. 2. I C Connectors C Connector Pin Definitions The I C connectors, designated JP37 and Pin# Definition JP95, are used to monitor HDD activity and Data...
  • Page 91 Appendix C SAS-747TQ Backplane Specitications 5. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated JP66 and 4-Pin Connector JP68 provide power to the backplane. See Pin# Definition the table on the right for pin definitions. +12V 2 and 3 Ground 6.
  • Page 92 SC747 Chassis Manual C-7 Front Jumper Locations and Pin Definitions JP69 JP18 JP84 JP98 UPGRADE JP69 JP18:BUZZER RESET JP18 JP35 JP99 JP35 JP25 JP68 SIDEBAND#2 SIDEBAND#1 JP35:9072 RST JP25:OH TEMP. JP97 JP97 1-2: RST OPEN:45 JP84:MODE JP98 2-3: NO RST 1-2:50 I2C#2 JP95...
  • Page 93 Appendix C SAS-747TQ Backplane Specitications Socket Settings Socket Socket Setting Note Buzzer reset* Connected to the front JP18 Press once to disable the buzzer panel Press twice to enable the buzzer *The buzzer sound indicates that a condition requiring immediate attention has occurred.
  • Page 94 SC747 Chassis Manual C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumpers. The following information details which jumpers must be configured to use I C mode or restore your backplane to SGPIO mode.
  • Page 95 Appendix C SAS-747TQ Backplane Specitications UPGRADE C-8 Front LED Indicators JP69 +5V LED FAN FAIL #1 #2 #3 LEDs +12V LED ALARM (Red, on) JP97 JP84:MODE 1-2:SGPIO 2-3:I2C UPGRADE JP69 JP18:BUZZER RESET JP18 JP68 JP35 JP25 SIDEBAND#2 JP68 JP35 JP25 SIDEBAND#2 SIDEBAND#1 JP35:9072 RST...
  • Page 96 SC747 Chassis Manual C-9 Rear Connectors and LED Indicators FAIL#7 ACT#7 FAIL#0 ACT#0 FAIL#1 ACT#1 FAIL#2 ACT#2 FAIL#3 ACT#3 FAIL#4 ACT#4 FAIL#5 ACT#5 FAIL#6 ACT#6 R149 R165 R178 R173 R150 R164 Figure C-4: Rear Connectors Rear SAS/SATA Connectors Rear SAS Drive Connector Number SAS/SATA HDD #0...

  • Page 97: Appendix D M35T1 Mobile Rack Specifications

    Appendix D: M35T1 Mobile Rack Specifications- Appendix D M35T1 Mobile Rack Specifications D-1 Overview This manual is written for system integrators, PC technicians and knowledgeable PC users who intend to integrate Supermicro's intelligent, highly expandable and cost- effective mobile rack solutions into their systems. It provides the user with detailed information for the installation and use of the M35T1 mobile rack.
  • Page 98 SC747 Chassis Manual System Monitoring • Fan failure LED • Overheat LED indicatior • Drive activity indicatior D-3 An Important Note to the User The pictures or graphics shown in this user's guide were based upon the latest PCB revision available at the time of the publishing of this manual. The M35T1 mobile rack you have received may or may not look exactly the same as the graphics shown in this manual.
  • Page 99 Appendix D: M35T1 Mobile Rack Specifications- D-4 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number.
  • Page 100 Appendix D: M35T1 Mobile Rack Specifications- D-5 SATA-M35 Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. D-6 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 101 SC747 Chassis Manual D-8 Introduction to SATA-M35 The M35T1 mobile rack includes a SATA-M35 Serial ATA (SATA) backplane. This backplane is designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. This manual reflects models SATA-M35 Revision 1.01, the most current release available at the time of publication.
  • Page 102 Appendix D: M35T1 Mobile Rack Specifications- D-9 SATA-M35 Front Connectors Figure D-1: SATA-M35 Front Connectors Front Connectors 1. 4-pin Power Connectors: JP10 5. SATA Port #2 (Channel 2): J6 and JP13 6. SATA Port #3 (Channel 3): J7 2. ACT IN: JP26 7.
  • Page 103 SC747 Chassis Manual D-10 Front Connectors and Pin Definitions 1. Backplane Main Power Connectors Main Power 4-Pin Connector The 4-pin power connectors provide power to Pin# Definition the mobile rack. See the table on the right for +12V pin definitions. 2 and 3 Ground 2.
  • Page 104 Appendix D: M35T1 Mobile Rack Specifications- D-11 SATA-M35 Front Jumpers and Pin Definitions JP25 JP18 JP28 Figure D-2: SATA-M35 Front Jumpers Jumper Settings Jumper Jumper Settings Note Open (jumper off): Buzzer enabled Buzzer reset* JP18 Closed (jumper on): Buzzer disabled Pins 1-2: Fan enabled Fan jumper JP28...
  • Page 105 SC747 Chassis Manual Explanation of Jumpers Connector Pins To modify the operation of the mobile rack, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Jumper of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.
  • Page 106 Appendix D: M35T1 Mobile Rack Specifications- D-12 Rear Connectors and LED Indicators The rear of the mobile rack backplane has SATA connectors and LEDs which dis- play activity or failure status for each of the drives, as well as overheat and drive failure status.
  • Page 107 SC747 Chassis Manual Rear SAS/SATA Connectors Rear SAS/SATA Reference Connector Drive Number S-ATA #1 SATA HDD #0 S-ATA #2 SATA HDD #1 S-ATA #3 SATA HDD #2 S-ATA #4 SATA HDD #3 S-ATA #5 SATA HDD #4 Rear LED Indicators Rear LED Hard Drive Activity Failure LED...
  • Page 108 SC747 Chassis Manual D-12 Preparation for Installation Tools Required The following tools are required to install the mobile rack into the chassis: • Phillips head screwdriver • Antistatic strap (recommended) Important Safety Guidelines This product should be assembled and/or serviced by qualified and experienced technicians.
  • Page 109 Appendix D: M35T1 Mobile Rack Specifications- D-13 Installation Procedures Use the following installation procedures to set up the mobile rack. WARNING! SAS IDs are assigned automatically by the backplane. Do not set ID's manually on the drives. SAS termination is enabled by default on the SAS backplane.
  • Page 110 SC747 Chassis Manual Figure D-4: Removing Hard Drives From the Mobile Rack 2. Use the drive handle to carefully pull the drive from the mobile rack. D-16...
  • Page 111 Appendix D: M35T1 Mobile Rack Specifications- Installing Hard Drives into the Hard Drive Carriers Dummy Drive Hard Drive Carrier Figure D-5: The Hard Drive Carrier and Dummy Drive Warning: Except for short periods of time while swapping hard drives, do not oper- ate the server with the mobile rack hard drive bays empty.
  • Page 112 SC747 Chassis Manual SATA Hard Drive Drive Carrier Figure D-7: Installing the Hard Drive into the Hard Drive Carrier 3. Install a new hard drive into the hard drive carrier with the printed circuit board side facing downward so that the mounting holes in the hard drive align with those in the hard drive carrier.
  • Page 113 Appendix D: M35T1 Mobile Rack Specifications- Connecting Cables to the Mobile Rack Before connecting cables the mobile rack, the exhaust fan must be removed. In some circumstances, the backplane may need to be removed. Figure D-8: Removing Mobile Rack Fan Removing the Exhaust Fan and Connecting Cables 1.
  • Page 114 SC747 Chassis Manual Figure D-9: Removing Mobile Rack Fan 2. Pull the exhaust fan off the rear of the mobile rack. Figure D-10: Removing the Bracket Screw 3. Remove the bracket screw from the side of the mobile rack. D-20...
  • Page 115 Appendix D: M35T1 Mobile Rack Specifications- Figure D-11: Removing Mobile Rack Bracket 4. Pull the bracket from the rear of the mobile rack. 5. Connect the SATA cables and power cables to the backplane of the mobile rack. 6. Replace the bracket, bracket screw, and fan on the mobile rack and recon- nect power to the chassis.
  • Page 116 SC747 Chassis Manual Backplane Screw Locations Figure D-12: Removing the Mobile Rack Backplane (Optional) Additional Optional Installation Information If necessary, before reassembling the mobile rack, the backplane may be removed. To remove the mobile rack backplane, remove the six screws securing the backplane to the mobile rack.

  • Page 117: Appendix E M35Tq Mobile Rack Specificaitons

    Appendix E: M35TQ Mobile Rack Specifications Appendix E M35TQ Mobile Rack Specificaitons Overview This manual is written for system integrators, PC technicians and knowledgeable PC users who intend to integrate Supermicro's intelligent, highly expandable and cost- effective mobile rack solutions into their systems. It provides the user with detailed information for the installation and use of the M35TQ mobile rack.
  • Page 118 SC747 Chassis Manual System Monitoring • Fan failure LED. • Overheat LED indicatior. • Drive activity indicatior. An Important Note to the User The pictures or graphics shown in this User's Guide were based upon the latest PCB revision available at the time of the publishing of this manual. The M35TQ mobile rack you've received may or may not look exactly the same as the graphics shown in this manual.
  • Page 119 Appendix E: M35TQ Mobile Rack Specifications Introduction to the SAS-M35TQ Backplane The M35TQ mobile rack contains a SAS-M35TQ backplane. The SAS-M35TQ backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. This manual reflects SAS-M35T Revision 1.01, the most current release available at the time of publication.
  • Page 120 SC747 Chassis Manual Front Connectors Figure E-1: Front Connectors Front Connectors 1. 4-pin Power Connectors: JP10 8. Upgrade: JP46 and JP13 9. ACT IN: JP26 2. MG9072 Chip 10. Fan Connector: JP22 3. JTAG Connector: JP47 11. SAS Port #0: J5 4.
  • Page 121 Appendix E: M35TQ Mobile Rack Specifications Front Connectors and Pin Definitions 1. Mobile Rack Main Power Connectors Mobile rack Main Power The 4-pin power connectors, designated JP10 4-Pin Connector and JP13, provide power to the mobile rack. Pin# Definition See the table on the right for pin definitions. +12V 2 and 3 Ground...
  • Page 122 SC747 Chassis Manual 6. and 7. Sideband Headers Sideband Headers The sideband headers are designated JP51 Pin # Definition Pin # Definition and JP52. For SES-2 to work properly, an Mobile rack Controller 8-pin sideband cable must be connected. Addressing ID (SB6) (SB5) See the table to the right for pin defini-...
  • Page 123 Appendix E: M35TQ Mobile Rack Specifications Front Jumper Locations and Pin Definitions JP62 JP38 JP29 JP50 JP36 JP37 JP40 JP41 JP33 JP43 JP61 JP34 JP42 JP18 Figure E-2: Front Jumpers Explanation of Jumpers Connector Pins To modify the operation of the mobile rack, jumpers can be used to choose between optional settings.
  • Page 124 SC747 Chassis Manual JP29 JP18 Figure E-3: Buzzer and Chip Reset Jumpers Buzzer and Chip Reset Jumper Settings Jumper Settings Jumper Jumper Settings Note Open: Enabled Buzzer reset* JP18 Closed: Disabled Open: Default MG9072 chip reset JP29 Closed: Reset *The buzzer sound indicates that a condition requiring immediate attention has occurred.
  • Page 125 Appendix E: M35TQ Mobile Rack Specifications JP62 JP61 Figure E-4: Fan Jumpers Fan Jumper Settings This mobile rack can utilize up to four fans. To use each fan, you must configure both jumpers as instructed below. Fan Jumper Settings Jumper Jumper Settings Note Closed: With fan...
  • Page 126 SC747 Chassis Manual JP38 JP50 JP37 JP36 JP40 JP41 JP33 JP43 JP34 JP42 Figure E-5: I C and SGPIO Jumpers C and SGPIO Modes and Jumper Settings This mobile rack can utilize I C or SGPIO. I C is the default mode and can be used without making changes to your jumpers.
  • Page 127 Appendix E: M35TQ Mobile Rack Specifications Rear Connectors and LED Indicators The rear of the mobile rack backplane has SAS/SATA connectors and LEDs which display activity or failure status for each of the drives, as well as overheat and drive failure status. SAS #0 FAIL #0 ACT #0...
  • Page 128 SC747 Chassis Manual Rear SAS/SATA Connectors Rear SAS/SATA Connector Drive Number SAS #0 SAS/SATA HHD #0 SAS #1 SAS/SATA HHD #1 SAS #2 SAS/SATA HHD #2 SAS #3 SAS/SATA HHD #3 SAS #4 SAS/SATA HHD #4 Rear LED Indicators Rear LED Hard Drive Activity Failure LED SAS #0...
  • Page 129 Appendix E: M35TQ Mobile Rack Specifications E-10 Preparing for Installation Tools Required The following tools are required to install the mobile rack into the chassis: • Phillips head screwdriver. • Antistatic strap (recommended). Important Safety Guidelines This product should be assembled and/or serviced by qualified and experienced technicians.
  • Page 130 SC747 Chassis Manual E-11 Installation Procedures Use the following installation procedures to set up the mobile rack. WARNING! SAS IDs are assigned automatically by the backplane. Do not set ID's manually on the drives. SAS termination is enabled by default on the SAS backplane. Installing Hard Drives into the Mobile Rack The hard drives of the M35TQ mobile rack are mounted in drive carriers to simplify their installation and removal from the chassis.
  • Page 131 Appendix E: M35TQ Mobile Rack Specifications Dummy Drive Drive Carrier Figure E-8: Chassis Drive Carrier Warning: Except for short periods of time while swapping hard drives, do not oper- ate the server with the mobile rack hard drive bays empty. The hard drive carrier must have a hard drive or dummy drive installed.
  • Page 132 SC747 Chassis Manual SAS/SATA Hard Drive Drive Carrier Figure E-10: Installing a Hard Drive 3. Install a new drive into the carrier with the printed circuit board side facing downward so that the mounting holes in the drive align with those in the car- rier.
  • Page 133 Appendix E: M35TQ Mobile Rack Specifications Connecting Cables to the Mobile Rack Before connecting cables the mobile rack, the exhaust fan must be removed. In some circumstances, the backplane may need to be removed. Figure E-11: Removing Mobile Rack Fan Removing the Exhaust Fan and Connecting SAS/SATA Cables 1.
  • Page 134 SC747 Chassis Manual Figure E-12: Removing Mobile Rack Fan 2. Pull the exhaust fan off the rear of the mobile rack. E-18...
  • Page 135 Appendix E: M35TQ Mobile Rack Specifications Figure E-13: Removing Mobile Rack Fan 3. Remove the bracket screw from the side of the mobile rack. 4. Pull the bracket from the rear of the mobile rack. 5. Connect the SAS/SATA cables and power cables to the backplane of the mobile rack.
  • Page 136 SC747 Chassis Manual Backplane Screw Locations Figure E-14: Removing Mobile Rack Backplane (Optional) Additional Optional Installation Information If necessary, before reassembling the mobile rack, the backplane may be removed. To remove the mobile rack backplane, remove the six screws securing the back- plane, and carefully pull the backplane from the rear of the mobile rack.
  • Page 137 Appendix E: M35TQ Mobile Rack Specifications Notes E-21...
  • Page 138 SC747 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

This manual is also suitable for:

Sc747tq-r1620bSc747btq-r1k62b

Table of Contents
