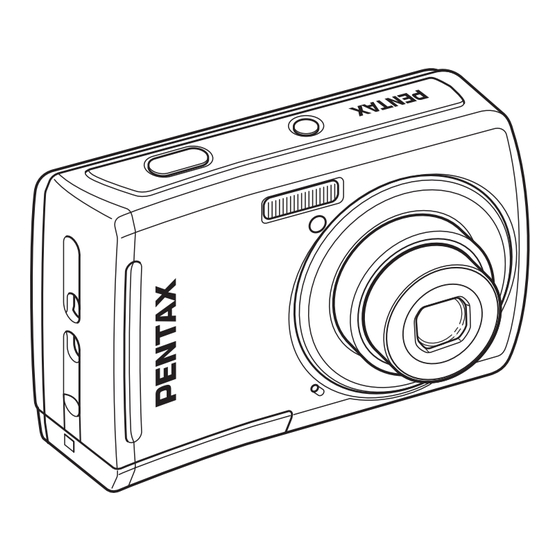

Pentax Optio E60 Operating Manual

Pentax digital camera user manual
Hide thumbs Also See for Optio E60:
Table of Contents

Advertisement

Quick Links

Digital Camera
Operating Manual
To ensure the best performance
from your camera, please read
the Operating Manual before
using the camera.

Advertisement

Table of Contents
loading

Related Manuals for Pentax Optio E60

Summary of Contents for Pentax Optio E60

  • Page 1 Digital Camera Operating Manual To ensure the best performance from your camera, please read the Operating Manual before using the camera.
  • Page 2 Regarding Product Registration In order to better serve you, we request that you complete the product registration, which can be found on the CD-ROM (S-SW81) supplied with the camera or on the PENTAX website. Thank you for your cooperation. Refer to the “PC Connection Manual” (bottom right on page 1) for more information.

  • Page 3: Using Your Camera Safely

    • If the camera emits smoke or a strange smell, or in the event of any other irregularity, stop using the camera immediately, remove the batteries or unplug the AC adapter, and contact your nearest PENTAX Service Center. Continued use of the camera may result in fire or electric shock.
  • Page 4 Caution • Never try to disassemble or short the batteries. Also, do not dispose of the batteries in a fire, as they may explode. • Do not charge any batteries other than rechargeable Ni-MH batteries. The batteries could explode or catch fire. Batteries for use with this camera other than Ni-MH batteries cannot be charged.

  • Page 5: Care To Be Taken During Handling

    AC plug cord to become damaged due to excessive bending. If the AC plug cord becomes damaged, consult a PENTAX Service Center. • Do not short or touch the output terminals of the product while it is still plugged in.
  • Page 6 If the camera is subjected to substantial vibrations, shocks or pressure, take your camera to your nearest PENTAX Service Center and have it checked.

  • Page 7: Table Of Contents

    Contents USING YOUR CAMERA SAFELY...1 Care to be Taken During Handling ...3 Contents ...5 Composition of the Operating Manual ...9 Camera Features...10 Names of Parts...12 Names of Operating Parts ...13 Monitor Indications ...14 Getting Started Checking the Contents of the Package ...17 Attaching the Strap...18 Powering the Camera ...19 Installing the Batteries ...19...
  • Page 8 Using the Mode Palettes ...49 How to Select the Modes...49 Mode Palette List...49 Setting the Face Recognition function...51 Taking Pictures Taking Pictures in a Selected Mode...54 Taking Pictures in the Basic Mode (Green Mode) ...54 Letting the Camera Choose the Optimal Shooting Mode (Auto Picture Mode)...56 Letting the Camera Choose the Optimal Settings (Program Mode) ...57...
  • Page 9 Reviewing Shooting Information...97 Nine-Image Display, Folder Display and Calendar Display ...98 Zoom Playback...100 Zoom In On the Subject’s Face Automatically (Face close-up playback) ...101 Slideshow ...103 Playing Back Movies ...105 Playing Back a Movie ...105 Playing Back Images on a TV ...107 Deleting Images and Sound Files...108 Deleting a Single Image/Sound File ...108 Deleting Selected Images and Sound Files...
  • Page 10 Formatting an SD Memory Card...140 Changing the Sound Settings...141 Changing the Date and Time...143 Setting the World Time ...145 Changing the Display Language ...147 Changing the Image Folder Name ...148 Changing the USB Connection Mode...150 Changing the Video Output Format...151 Adjusting the Brightness of the Display ...152 Using the Power Saving Function ...153 Setting Auto Power Off ...154...

  • Page 11: Composition Of The Operating Manual

    Composition of the Operating Manual This Operating Manual contains the following chapters. 1 Getting Started –––––––––––––––––––––––––––––––––––––––––––––––– This chapter explains what you need to do after purchasing the camera before you start taking pictures. Be sure to read it and follow the instructions. 2 Quick Start –––––––––––––––––––––––––––––––––––––––––––––––––––...

  • Page 12: Camera Features

    Camera Features The Optio E60 features a variety of shooting modes to suit different situations. Here we briefly describe how to make the most of the key features of your camera. Together with the explanations of camera operations, it will enable you to enjoy your camera to the full.
  • Page 13 Display Images and Sound Files in Calendar Format! The Optio E60 lets you display recorded images by date in calendar format. You can easily find the image you wish to play back as you look back at your album. (p.99)

  • Page 14: Names Of Parts

    Names of Parts Front Power switch Shutter release button Strap lug DC coupler cable cover Back Display Speaker USB/AV terminal Tripod socket Flash Self-timer lamp Lens Microphone Power lamp Battery/card cover...

  • Page 15: Names Of Operating Parts

    Names of Operating Parts Refer to “Understanding the Button Functions” (p.39 - p.42) for an explanation of the function of each button. Power switch Shutter release button Zoom/w/x/f/y button Q button I button Four-way controller 4/W button Green/i button 3 button...

  • Page 16: Monitor Indications

    Monitor Indications Normal Display in Still Picture Capture Mode The display shows information such as the shooting conditions. 1 Shooting mode (p.49) 2 Face Priority icon (p.51) 3 Flash mode (p.79) 4 Camera shake icon (p.84) (appears only when the shutter release button is pressed halfway) 5 Date Imprint setting (p.88) 6 Drive mode (p.85 –...
  • Page 17 Full Display in Still Picture Capture Mode (All of the indications are displayed here for explanatory purposes.) 1/250 1/250 1/250 F2.9 F2.9 F2.9 1 Shutter speed (appears only when the shutter release button is pressed halfway) 2 Aperture (appears only when the shutter release button is pressed halfway) * Some indications may not appear depending on the shooting mode.
  • Page 18 Full Display in Still Picture Playback Mode (All of the indications are displayed here for explanatory purposes.) The display shows information such as the shooting conditions. A1 to A10 appear when “Normal Display” or “Detailed Display” is selected. B1 to B5 appear only when “Detailed Display”...

  • Page 19: Getting Started

    Getting Started Checking the Contents of the Package Check that your camera comes complete with the items listed below. Camera Optio E60 USB/AV cable I-UAV77 (*) Quick Guide Items marked with an asterisk (*) are also available as optional accessories.

  • Page 20: Attaching The Strap

    Attaching the Strap Attach the strap (O-ST62) supplied with the camera. Pass the narrow end of the strap through the strap lug. Pass the other end of the strap through the loop and pull tight.

  • Page 21: Powering The Camera

    Powering the Camera Installing the Batteries Install the batteries into the camera. Use two AA alkaline, AA lithium, AA Ni-MH, or AA nickel manganese batteries. Open the battery/card cover. Slide the battery/card cover in the direction 1. The cover will automatically open in the direction 2 when you release your fingers from it.
  • Page 22 • Use the AC adapter kit K-AC62 (optional) if you intend to use the camera for a long time. (p.21) • Image Storage Capacity and Playback Time (at 23°C with the display on and fresh AA alkaline batteries inserted) Image Storage Capacity Approx.

  • Page 23: Using The Ac Adapter With A Household Power Supply

    AC plug cord DC terminal Using the AC Adapter with a Household Power Supply Use of the AC adapter kit K-AC62 (optional) with a household power supply is recommended if you intend to use the camera for a long time or connect it to a computer.
  • Page 24 • Make sure that the camera is turned off before connecting or disconnecting the AC adapter. • Make sure that the AC plug cord and the power cord connecting the AC adapter to the camera are inserted securely. The data may become lost if either cord becomes disconnected while data is being recorded.

  • Page 25: Installing The Sd Memory Card

    Installing the SD Memory Card This camera uses either an SD Memory Card or an SDHC Memory Card. (Both cards are referred to as SD Memory Cards hereafter.) Captured images and sound files are saved on the SD Memory Card if a card is inserted in the camera.
  • Page 26 Open the battery/card cover. Slide the battery/card cover in the direction 1. The cover will automatically open in the direction 2 when you release your fingers from it. Insert the SD Memory Card into the SD Memory Card socket so that the label is facing toward the display. Push the card in until it clicks.
  • Page 27 • For information on compatible SD Memory Cards, visit the PENTAX website. • Be sure to format an SD Memory Card that is unused or has been used on another camera.

  • Page 28: Picture Storage Capacity

    Picture Storage Capacity Select [Recorded Pixels] and [Quality Level] for still images according to how the images will be used. For [Recorded Pixels], [10M], [7M], [5M], [3M], [16:9] (2.1M, 1920x1080), [1024] and [640] are selectable. For [Quality Level], you can select from [C (Best)], [D (Better)] and [E (Good)]. Make your selection on the [A Rec.

  • Page 29: Turning The Camera On And Off

    Turning the Camera On and Off Turning the Camera On in Capture Mode Press the power switch. The display turns on and the lens extends. The camera turns on in the capture mode. If [Language/ ] screen or [Date Adjust] screen appears when you turn on the camera, follow the procedures on p.29 to select the display language and/or set current date and time.

  • Page 30: Turning The Camera On In Playback Mode

    Turning the Camera On in Playback Mode You can start the Optio E60 in the playback mode with the lens retracted. This is useful when you want to play back saved images and sound straightaway without taking pictures. Press the power switch while holding down the Q button.

  • Page 31: Initial Settings

    Initial Settings Set the language, time and date before you start taking pictures for the first time. screen appears when the camera is turned on for [Language/ the first time. Follow the procedures in “Selecting the Display Language” below to set the language, and in “Setting the Date and Time” (p.31) to set the current date and time.
  • Page 32 Press the 4 button. The [Initial Setting] screen appears in the selected language. If the desired settings for [Hometown] and daylight saving time appear, press the 4 button again to display the [Date Adjust] screen. Go to “Setting the Date and Time” (p.31). Go to Step 3 in “Setting Hometown and DST”...

  • Page 33: Setting The Date And Time

    Setting Hometown and DST Press the four-way controller (3). The frame moves to [Hometown]. Press the four-way controller (5). The [Hometown] screen appears. Use the four-way controller (45) to choose the city. Press the four-way controller (3). The frame moves to [DST] (Daylight Saving Time). Use the four-way controller (45) to select O (On) or P (Off).
  • Page 34 Press the four-way controller (3). The frame moves to [Date]. Press the four-way controller (5). The frame moves to the month. Use the four-way controller (23) to change the month. Change the day and year in the same manner. Next, change the time. If you selected [12h] in Step 4, the setting switches between am and pm corresponding to the time.

  • Page 35: Quick Start

    Taking Still Pictures The standard procedure for taking still pictures is described below. The flash discharges automatically depending on the light conditions. Press the power switch. The camera turns on and is ready to take still pictures. In this manual, this is called the capture mode.
  • Page 36 Press the shutter release button fully. The picture is taken. The image appears on the display for 2 seconds (Instant Review) and is saved to the SD Memory Card or the built-in memory. (p.23) • When you turn on the camera, you can take pictures in b (Auto Picture), the default shooting mode.
  • Page 37 [Poor focusing conditions] The camera may not be able to focus under the following conditions. In these cases, lock the focus on an object the same distance away as the subject (by pressing and holding the shutter release button halfway), then aim the camera at your subject and press the shutter release button fully.

  • Page 38: Playing Back Still Pictures

    Playing Back Still Pictures Playing Back Images Press the Q button after taking a picture. The image appears on the display. In this manual, this is called the playback mode. Press the Q button again or press the shutter release button halfway to switch to the capture mode.

  • Page 39: Rotating The Displayed Image

    Rotating the Displayed Image You can rotate the displayed image. This is useful when you view images taken vertically. Press the Q button after taking a picture. The image appears on the display. Press the four-way controller (3). The Playback Mode Palette appears. Use the four-way controller (2345) to select s (Image Rotation) and press the 4...

  • Page 40: Switching Between Capture Mode And Playback Mode

    Deleting the Displayed Image Press the i button when playing back an image. The screen for deleting the image appears. Press the four-way controller (2) to select [Delete] and press the 4 button. The image shown on the display is deleted. Press the Q button again or press the shutter release button halfway.

  • Page 41: Common Operations

    Common Operations Understanding the Button Functions In Capture Mode Power switch Turns the camera off. (p.27) Shutter release button Focuses on the subject when pressed halfway in the capture mode. (Except the focus mode s or 3) (p.76) Takes the still picture when pressed down fully. (p.34) Starts and stops movie recording in d (Movie).
  • Page 42 Four-way controller : Changes the drive mode. (p.85, p.86) : Displays the Capture Mode Palette. (p.49) : Changes the flash mode. (p.79) : Changes the focus mode. (p.76) 4/W button Changes the information on the display. (p.84) Green button Switches to 3 button Displays the [A Rec.

  • Page 43: In Playback Mode

    In Playback Mode Power switch Turns the camera off. (p.27) Shutter release button Switches to the capture mode when pressed halfway. (p.36) Zoom/f/y button Press f during single-image display to change to nine-image display. Returns to the previous display when y is pressed. (p.98) Enlarges the image when y is pressed during single-image display.
  • Page 44 button Zooms in on the subject’s faces in the face-recognized image in the order the faces were recognized when the picture was taken. (Face close-up playback) (p.51) Four-way controller : Plays back and pauses a movie or sound file. (p.105, : Displays the Playback Mode Palette.
  • Page 45 Returns zoom display or nine-image display to single-image display. (p.98, p.100) Changes to nine-image display of the selected folder during folder display. (p.99) Changes to nine-image display of the selected date during calendar display. (p.99)

  • Page 46: Using The Menu

    Using the Menu Press the 3 button to display the menu on the display. Press the 3 button in the capture mode to show the [A Rec. Mode] menu. Press the 3 button in the playback mode to show the [W Setting] menu. How to Set the Menus You can set the menus as shown below.

  • Page 47: Capture Mode

    A guide for each available button operation appears on the display during menu operation. Ex.) To set the [Quality Level] on the [A Rec. Mode] menu Press the 3 button in the capture mode. The [A Rec. Mode] menu appears. Press the four-way controller (3).
  • Page 48 Saving the Setting and Start Taking Pictures Press the shutter release button halfway. The setting is saved and the camera returns to capture status. When the shutter release button is pressed fully, the picture is taken. Saving the Setting and Begin Playback of Images Press the Q button.

  • Page 49: Menu List

    Menu List This displays the items that can be set with the menus and provides descriptions of each item. See the list of default settings in the Appendix “Default Settings” (p.157) to decide whether you want the settings saved when the camera is turned off and whether you want the settings returned to the defaults when the camera is reset.
  • Page 50 [W Setting] Menu Item Format Sound Date Adjust World Time Language/ Folder Name USB Connection Video Out Brightness Level Power Saving Auto Power Off Reset Description For formatting the SD Memory Card For adjusting the playback volume and setting the shutter sound, key operation sound and self-timer sound For adjusting the date, time, and date and time styles...

  • Page 51: Using The Mode Palettes

    Using the Mode Palettes Press the four-way controller (3) to display the Mode Palette on the display. There are two different Mode Palettes, the “Capture Mode Palette” and the “Playback Mode Palette”. You can activate a shooting mode most appropriate for the scene or edit taken images just by selecting the icons.
  • Page 52 Item Half-length Portrait Movie Landscape < Flower Portrait Surf & Snow Sport Digital SR Kids Food Digital Panorama Frame Composite Voice Recording Depending on the shooting mode, some functions may not be available. For details, see “Functions Available for Each Shooting Mode”...

  • Page 53: Setting The Face Recognition Function

    Setting the Face Recognition function With the Optio E60, the Face Recognition function is available with all shooting modes except O (Voice Recording). In the Face Recognition function, the camera automatically recognizes the subject’s face, focuses (Face Recognition AF), and compensates the exposure (Face Recognition AE) when capturing images.
  • Page 54 • Face Priority Off cannot be selected in (Portrait), Portrait). • Face Priority On is automatically selected in b, (Movie) or of these modes, the Face Recognition setting returns to the previous setting. • Refer to p.101 on how to play back with the Face Recognition function.

  • Page 55: Playback Mode Palette

    Playback Mode Palette Slideshow Slideshow For continuously playing For continuously playing back images. Screen or back images. Screen or sound effects can be set. sound effects can be set. Cancel Cancel MENU Item Slideshow Resize Cropping Image/Sound Copy Image Rotation Digital Filter Brightness Filter Frame Composite...

  • Page 56: Taking Pictures

    Taking Pictures Taking Pictures in a Selected Mode Taking Pictures in the Basic Mode (Green Mode) You can enter (Green) just by pressing the Green button and enjoy easy picture taking. Press the Green button in the capture mode. The camera switches to Press the Green button again to return to the status before Press the shutter release button...
  • Page 57 Green) are as shown below. The settings in Flash Mode Drive Mode Focus Mode Information Display Recorded Pixels Quality Level Focusing Area Sensitivity EV Compensation Digital Zoom Date Imprint button *1 Can be set to a (Flash Off) *2 Can be set to g (10 sec. Self-timer) or Z (2 sec. Self-timer). (The self-timer mode you have selected in a shooting mode other than is available.) *3 Can be set to q (Macro) or 3 (Pan Focus)

  • Page 58: Letting The Camera Choose The Optimal Shooting Mode (Auto Picture Mode)

    Letting the Camera Choose the Optimal Shooting Mode (Auto Picture Mode) In b (Auto Picture), when you press the shutter release button, the camera selects the most appropriate mode from the following shooting modes: - (Normal), A (Night Scene), q (Landscape), (Night Scene Portrait), \(Sport) and Press the four-way controller (3) in the capture mode.

  • Page 59: Letting The Camera Choose The Optimal Settings (Program Mode)

    Letting the Camera Choose the Optimal Settings (Program Mode) In R (Program), the camera automatically sets the shutter speed and aperture for taking still pictures. You can select other functions such as the flash mode and recorded pixels. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears.

  • Page 60: Taking Pictures Of People (Half-Length Portrait/Portrait/Kids Mode)

    Taking Pictures of People (Half-length Portrait/Portrait/Kids Mode) (Half-length Portrait), taking pictures of people. Face Recognition (p.51) is automatically activated for these shooting modes, making it easier to emphasize the subject’s face when taking pictures. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears.
  • Page 61 Press the shutter release button halfway. The focus frame on the display turns green if the subject is in focus. When there are multiple faces, the focus frame with the brackets displayed in Step 3 turns green if the main subject’s face is in focus. Press the shutter release button fully.

  • Page 62: Taking Pictures Of Your Pet (Pet Mode)

    Taking Pictures of Your Pet (Pet Mode) (Pet), you can select the appropriate pet color from white, black and in between according to your pet's coat or fur color. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears. Use the four-way controller (2345) to select Press the 4 button.

  • Page 63: Taking Pictures Of Dark Scenes (Night Scene/Night Scene Portrait Mode)

    Taking Pictures of Dark Scenes (Night Scene/Night Scene Portrait Mode) (Night Scene) and settings appropriate for taking pictures of dark scenes, such as nightscapes. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears. Use the four-way controller (2345) to select Press the 4 button.

  • Page 64: Reducing Camera Shake And Blurring When Taking Pictures (Digital Sr Mode)

    Reducing Camera Shake and Blurring When Taking Pictures (Digital SR Mode) 4 (Digital SR) allows you to set the sensitivity higher than other shooting modes to reduce camera shake and blurring. Use this mode under the shooting conditions that camera shake or blurring tends to occur.
  • Page 65 • The shutter speed tends to be slower when taking pictures of dark scenes. • To prevent camera shake, use a tripod and/or the self-timer function. (p.85) • In 4, the sensitivity is automatically adjusted between ISO 100- 6400. (p.81) Shutter speed and aperture are set automatically according to the adjusted sensitivity.

  • Page 66: Taking Panoramic Pictures (Digital Panorama Mode)

    Taking Panoramic Pictures (Digital Panorama Mode) In A (Digital Panorama), you can stitch 2 or 3 frames taken in sequence into a panoramic scene. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears. Use the four-way controller (2345) to select A, and press the 4 button.
  • Page 67 Pan the camera to the right and take the second frame. Be sure to make the “overlay” cover the same position in the second frame when you compose. Pan the camera to the right and press the shutter release button fully to take the second frame.
  • Page 68 • When Face Priority On is selected (p.51), the Face Recognition function works only when taking the first frame. • Focus, exposure, drive mode and zoom position used for all images in the panorama sequence are those set for the first frame.

  • Page 69: Framing Your Pictures (Frame Composite Mode)

    Framing Your Pictures (Frame Composite Mode) In Y (Frame Composite), you can display frames stored in your camera, and take a picture with a selected frame. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears. Use the four-way controller (2345) to select Y.
  • Page 70 CD-ROM (S-SW81).) About the Optional Frames Optional frames are stored in the built-in memory of the Optio E60, within the recording area of images, movies and sounds. These optional frames can be deleted from the built-in memory by a file operation on the computer (e.g.

  • Page 71: Taking Pictures With Customized Settings

    Taking Pictures with Customized Settings Four-way controller 4 button 3 button Available in b R A Selecting the Recorded Pixels You can choose from seven recorded pixels settings for still pictures. The larger the recorded pixels, the clearer the details will appear when you print your picture.
  • Page 72 Use the four-way controller (23) to select [Recorded Pixels]. Press the four-way controller (5). A pull-down menu appears. Use the four-way controller (23) to change the number of recorded pixels. Storage capacity for the selected recorded pixels is also displayed on the upper right part of the screen.

  • Page 73: Selecting The Quality Level

    Four-way controller 4 button 3 button Available in b R A Selecting the Quality Level Select the quality (data compression ratio) for still images according to how the images will be used. The more E’s, the higher the quality of images, but the file size becomes larger.
  • Page 74 Press the 3 button. The camera returns to capture status with the current setting. In Y (Frame Composite), quality level is fixed at D. Approximate Image Storage Capacity and Recording Time (Still Picture) (p.167)

  • Page 75: Using The Zoom

    b R A Available in Using the Zoom You can zoom in and out to change the captured area. Press the Zoom button in the capture mode. x Tele : enlarges the subject w Wide : widens the area captured by the camera As you continue to press the x on the Zoom button, the camera automatically...
  • Page 76 The Intelligent Zoom range and the Digital Zoom range is displayed as an icon above the zoom bar. : Intelligent Zoom range y: Digital Zoom range Recorded pixels and the maximum zoom ratio Recorded pixels Not Available (3× optical zoom available) 16:9 Approx.
  • Page 77 Setting the Digital Zoom The digital zoom is set to O (On) in the default settings. To take pictures using only the optical zoom, set the digital zoom to P (Off). Press the 3 button in the capture mode. The [A Rec.Mode] menu appears. Use the four-way controller (23) to select [Digital Zoom].

  • Page 78: Selecting The Focus Mode

    b R A Available in Selecting the Focus Mode Select a focus mode according to the distance between the camera and the subject. Focus Mode Standard Macro Infinity Pan Focus Press the four-way controller (5) in the capture mode. The focus mode changes each time the button is pressed.
  • Page 79 • When the focus mode is set to = (Standard), the Auto-Macro function is available. When the subject is closer than approx. 50 cm (1.56 ft) from the camera, the camera automatically focuses on the subject within the focus range of q (Macro). (Green), you can only select =, q or 3.

  • Page 80: Selecting The Auto Focus Mode (Focusing Area)

    Available in R A Selecting the Auto Focus Mode (Focusing Area) You can change the auto focus area (Focusing Area). Focusing Area Multiple Spot Automatic Tracking AF Press the 3 button in the capture mode. The [A Rec. Mode] menu appears. Use the four-way controller (23) to select [Focusing Area].

  • Page 81: Selecting The Flash Mode

    b R A Available in Selecting the Flash Mode Flash Modes Auto Flash Off Flash On Auto + Red-eye Flash On + Red-eye • The flash mode is fixed at a in d (Movie), when the drive mode is set to 1 (Continuous Shooting) or when the focus mode is set to s (Infinity).
  • Page 82 Press the four-way controller (4) in the capture mode. The flash mode changes each time the button is pressed. You can also change the setting using the four-way controller (23). Press the 4 button. The camera returns to capture status with the selected flash mode.

  • Page 83: Setting The Sensitivity

    Four-way controller 4 button 3 button Available in b R A Setting the Sensitivity You can select the sensitivity to suit the brightness of the surroundings. Sensitivity Sensitivity is automatically adjusted between ISO 100-800. (In 4 (Digital SR), Auto it is automatically adjusted within the range of ISO 100-6400.) •...
  • Page 84 • When Sensitivity is set to 3200 or 6400, the number of recorded pixels is fixed at f. • When the shooting mode is set to C (Movie), only Auto is available. • In 4, the sensitivity is fixed at Auto (ISO 100-6400). •...

  • Page 85: Setting The Exposure (Ev Compensation)

    Four-way controller 3 button Available in R A Setting the Exposure (EV Compensation) You can adjust the overall brightness of the picture. Use this function to take pictures that are intentionally overexposed or underexposed. Press the 3 button in the capture mode.

  • Page 86: Doing More With Useful Functions

    Doing More with Useful Functions Displaying Shooting Information In the capture mode, you can change the display of shooting information by pressing the 4/W button. For the meanings of the indications, see p.14. Normal Display • In A (Digital Panorama), shooting information is displayed only when you take the first frame.

  • Page 87: Using The Self-Timer

    b R A Available in Using the Self-timer In Self-timer mode, the picture is taken ten seconds or two seconds after the shutter release button is pressed. Stabilize the camera with a tripod when taking a picture with the self-timer. Use this mode when you want to be included in a group picture.

  • Page 88: Taking A Series Of Pictures

    b R A Available in Taking a Series of Pictures You can take several pictures continuously. Continuous Each time a picture is taken, the image is saved in the memory Shooting before the next image is taken. 16-frame Takes 16 images per 2 seconds with one press of the shutter release button.
  • Page 89 • In Continuous Shooting and 16-frame shooting, the focus and EV Compensation are fixed with the first image. • In Continuous Shooting, you can continue shooting until the memory capacity of the SD Memory Card or built-in memory reaches full. •...

  • Page 90: Setting The Date Imprint

    Available in b R A Setting the Date Imprint You can imprint the shooting date and/or time on pictures. Press the 3 button in the capture mode. The [A Rec. Mode] menu appears. Use the four-way controller (23) to select [Date Imprint].
  • Page 91 • The date and/or time is imprinted on the picture with the date style selected in the [Date Adjust] menu. • When [Date Imprint] is set to the setting other than [Off], the icon is displayed on the screen. • When taking panoramic pictures in A, the date and/or time is imprinted on the lower right of the stitched picture.

  • Page 92: Saving Your Settings (Memory)

    Saving Your Settings (Memory) The Memory function is for saving the current camera settings even when the camera is turned off. For some camera settings, the Memory function is always set to O (On) (the settings are saved when the camera is turned off), while for others you can choose on or off (to choose whether the settings are saved or not when the camera is turned off).
  • Page 93 Four-way controller 4 button 3 button Press the 3 button in the capture mode. The [A Rec. Mode] menu appears. Press the four-way controller (23) to select [Memory]. Press the four-way controller (5). The [Memory] screen appears. Use the four-way controller (23) to choose an item.

  • Page 94: Recording Movies

    Recording Movies Recording a Movie When you record movies, sound is recorded at the same time. Press the four-way controller (3) in the capture mode. The Capture Mode Palette appears. Use the four-way controller (2345) to select d (Movie). Shutter release button Four-way controller 4 button Available in d...
  • Page 95 Press the 4 button. d is selected and the camera is ready for recording movies. The following information appears on the display. 1 Movie mode icon 2 Focus mode icon 3 Recording indicator (appears when recording begins in Step 4 and blinks during recording) 4 Remaining recordable time 5 Current date and time...

  • Page 96: Selecting The Settings For Taking Movies

    Selecting the Settings for Taking Movies You can select [Recorded Pixels] and [Frame Rate] for your movies. You can also use [Movie SR] to compensate for camera shake while you are recording movies. Press the 3 button in the capture mode. [A Rec.
  • Page 97 Press the four-way controller (5). The pull-down menu appears. Use the four-way controller (23) to change the recorded pixels. Recordable time for the selected recorded pixels is also displayed on the upper right part of the screen. Press the 4 button. Your selection is saved.
  • Page 98 Setting the Movie SR (Movie Shake Reduction) Function You can compensate for camera shake while you are recording movies with the Movie SR (Movie Shake Reduction) function. Press the 3 button in the capture mode. The [A Rec.Mode] menu appears. Use the four-way controller (23) to select [Movie].

  • Page 99: Playing Back And Deleting Images

    Playing Back and Deleting Images Playing Back Images on the Camera Playing Back Still Pictures To play back still pictures, press Q button in the capture mode to switch to the playback mode. For details, see “Playing Back Images” (p.36). For playing back movies, see “Playing Back a Movie”...

  • Page 100: Nine-Image Display, Folder Display And Calendar Display

    Nine-Image Display, Folder Display and Calendar Display Nine-Image Display You can display nine captured images on the display at a time. In the playback mode, press f on the Zoom button. A page consisting of nine thumbnail images appears. The displayed images change nine at a time page by page.

  • Page 101: Calendar Display

    Switching to Folder Display or Calendar Display In nine-image display, press f on the Zoom button to switch to folder display or calendar display. Press the Green button to switch between folder display and calendar display. In the playback mode, press f on the Zoom button. The screen changes to nine-image display.

  • Page 102: Zoom Playback

    Zoom Playback You can magnify an image up to ×10. A guide showing the center of the magnified portion of the image appears on the display during zoom playback. Enter the playback mode and use the four-way controller (45) to choose the image you want to magnify.

  • Page 103: Zoom In On The Subject's Face Automatically (Face Close-Up Playback)

    Zoom In On the Subject’s Face Automatically (Face close-up playback) You can enjoy playing back images with the subject’s faces zoomed in simply by pressing the I button (Face close-up playback) if Face Recognition operated when the images were taken. Enter the playback mode and use the four-way controller (45) to choose the image you want to magnify.
  • Page 104 • The magnification ratio for Face close-up playback may differ depending the conditions such as the size of the face recognized when shooting. • Press y on the Zoom/f/y button during Face close-up playback to center on the subject and switch between displaying the image at an equal or slightly larger magnification.

  • Page 105: Slideshow

    Q button Four-way controller 4 button Slideshow You can play back recorded images one after another. Enter the playback mode and use the four-way controller (45) to choose an image to start the slideshow with. Press the four-way controller (3). The Playback Mode Palette appears.
  • Page 106 Press the 4 button. The screen for setting the slideshow conditions appears. Use the four-way controller (23) to select [Interval]. Press the four-way controller (5). A pull-down menu appears. Use the four-way controller (23) to change the interval and press the 4 button. You can choose from 3sec, 5sec, 10sec, 20sec and 30sec.

  • Page 107: Playing Back Movies

    Playing Back Movies Playing Back a Movie You can play back the movies you have taken. Sound is played back at the same time. Enter the playback mode and use the four-way controller (45) to choose the movie you want to play back.
  • Page 108 Press the four-way controller (3). Playback stops. • You can play back images taken with the 16-frame shooting function in the same way as you play back movies. • When you save the paused frame of a series of images taken with 16-frame shooting function as a single image, the displayed still image will be saved as a new image in 640 ×...

  • Page 109: Playing Back Images On A Tv

    Playing Back Images on a TV USB/AV terminal By connecting your camera to a TV or other AV equipment using the supplied USB/AV cable, you can display images on the monitor for review or picture taking. Connect the supplied USB/AV cable to the USB/AV terminal on the camera.

  • Page 110: Deleting Images And Sound Files

    When images or sounds are inadvertently deleted Deleted images and sounds recorded with this camera can be recovered with the Optio E60. (p.113) Deleted images and sounds can be recovered unless the SD Memory Card has been removed or the camera has been turned off after deletion.
  • Page 111 Use the four-way controller (23) to select [Delete]. Press the 4 button. The image or sound file is deleted. “Recovering Deleted Images” (p.113) 100 - 0017 100 - 0017 0017 Delete Cancel All Images/Sounds All Images/Sounds All Images/Sounds...

  • Page 112: Deleting Selected Images And Sound Files (From Nine-Image Display)

    Deleting Selected Images and Sound Files (from Nine-Image Display) You can delete several images/sound files selected from the nine-image display at once. Protected images and sound files cannot be deleted. In the playback mode, press f on the Zoom button. Nine thumbnail images appear.
  • Page 113 Press the i button. A confirmation dialog appears. Use the four-way controller (23) to select [Select & Delete]. Press the 4 button. The selected images and sound files are deleted. Delete all selected Delete all selected images/sounds images/sounds Select & Delete Cancel MENU...

  • Page 114: Deleting All Images And Sound Files

    Deleting All Images and Sound Files You can delete all the images and sound files at once. Protected images and sound files cannot be deleted. (p.114) Press the i button twice in the playback mode. A confirmation dialog appears. Use the four-way controller (23) to select [Delete All].

  • Page 115: Recovering Deleted Images

    Q button Four-way controller 4 button Recovering Deleted Images You can recover images or sound files that were taken with this camera and then deleted. After deleting an image, once operations to write data (recording, protecting, DPOF setting, resizing or cropping) have been performed, the SD Memory Card has been removed, or the camera has been turned off, the message “No image to be processed”...

  • Page 116: Protecting Images And Sound Files From Deletion (Protect)

    Protecting Images and Sound Files from Deletion (Protect) You can protect stored images and sound files from being accidentally deleted. Press the four-way controller (3) in the playback mode. The Playback Mode Palette appears. Use the four-way controller (2345) to select Z (Protect).
  • Page 117 Q button Four-way controller 4 button Protecting All Images and Sound Files Press the four-way controller (3) in the playback mode. The Playback Mode Palette appears. Use the four-way controller (2345) to select Z (Protect). Press the 4 button. The screen for selecting [Select image/ sound] or [All Images/Sounds] appears.

  • Page 118: Editing And Printing Images

    Editing and Printing Images Editing Images Changing the Image Size and Quality (Resize) By changing the size and quality of a selected image, you can make the file size smaller than the original. You can use this function to continue taking pictures when the SD Memory Card or built-in memory is full, by making the images smaller and overwriting the original images to make more space available.
  • Page 119 Press the 4 button. The screen for choosing the size and quality appears. Select [Recorded Pixels] and [Quality Level]. Use the four-way controller (45) to choose the size and quality. Use the four-way controller (23) to switch between [Recorded Pixels] and [Quality Level].

  • Page 120: Cropping Images

    Cropping Images You can delete the unwanted part of a picture and save the cropped image as a new image. Enter the playback mode and use the four-way controller (45) to choose the image you want to crop. Press the four-way controller (3). The Playback Mode Palette appears.

  • Page 121: Copying Images And Sound Files

    Q button Four-way controller 4 button Copying Images and Sound Files You can copy images and sound files from the built-in memory to the SD Memory Card and vice versa. This function can only be selected when an SD Memory Card has been inserted in the camera. Make sure that the camera is turned off before inserting or removing the SD Memory Card.
  • Page 122 Copying Files from the SD Memory Card to the Built-in Memory Selected images and sound files from the SD Memory Card are copied to the built-in memory one at a time. Use the four-way controller (23) to select [{}f]. Press the 4 button. Use the four-way controller (45) to select the file you want to copy.

  • Page 123: Using The Digital Filter

    Q button Four-way controller 4 button Using the Digital Filter You can change the color tone of taken images or give them digital effect without a computer. Select a digital filter from B&W, Sepia, Red, Pink, Purple, Blue, Green and Yellow to arrange the images in your style. Enter the playback mode and use the four-way controller (45) to choose the image you want to edit.

  • Page 124: Using The Brightness Filter

    Using the Brightness Filter You can change the brightness of taken images without a computer. Enter the playback mode and use the four-way controller (45) to choose the image you want to edit. Press the four-way controller (3). The Playback Mode Palette appears. Use the four-way controller (2345) to select q (Brightness Filter).
  • Page 125 Press the 4 button. The edited image is saved with the same number of recorded pixels and quality level as the original. With the brightness filter, you can edit still pictures taken with this camera only. You cannot edit images taken in A (Digital Panorama), movies, or images taken with other cameras.

  • Page 126: Adding A Frame (Frame Composite)

    Adding a Frame (Frame Composite) You can add a frame to taken pictures. You can use the frames stored in your camera, and new frames downloaded from websites. Enter the playback mode and use the four-way controller (45) to choose the image to which you want to add a frame.

  • Page 127: Zoom Button

    Press the 4 button or y on the Zoom button. The selected frame appears in single-image display. You can choose another frame using either of the following operations. Four-way controller (45) : displays 3 button or Zoom button (f) Press the 4 button. The frame position and size adjustment screen appears.
  • Page 128 About the Optional Frames Optional frames are stored in the built-in memory of the Optio E60, within the recording area of images, movies and sounds. These optional frames can be deleted from the built-in memory by a file operation on the computer (e.g. deletion of files). If an optional frame has been deleted, it can be copied by using the supplied CD-ROM (S-SW81).
  • Page 129 Using a New Frame Frames downloaded from PENTAX website or other source can be used when taking pictures. To display available frames stored in the built-in memory or the SD Memory Card, in Step 3, select Y (Frame Composite) and press the 4 button.

  • Page 130: Red-Eye Compensation

    Red-eye Compensation You can compensate the “red-eye” in flash pictures. Enter the playback mode and use the four-way controller (45) to choose the image you want to correct. Press the four-way controller (3). The Playback Mode Palette appears. Use the four-way controller (2345) to select Z (Red- eye Compensation).

  • Page 131: Setting The Printing Service (Dpof)

    Setting the Printing Service (DPOF) DPOF (Digital Print Order Format) is the format for storing print order data on still pictures captured with a digital camera. Once the print order data has been stored, the pictures can be printed according to the DPOF settings using a DPOF-compatible printer or photo processing lab.
  • Page 132 Press the 4 button. The message [DPOF setting for this image] appears. To make DPOF settings for another image, use the four-way controller (45) to select another image. If DPOF settings have already been made for an image, the previous number of copies and date setting (O or P) will be displayed.

  • Page 133: Printing All Images

    Q button Four-way controller 4 button Green button Printing All Images When you choose the number of copies and whether or not to insert the date, the settings are applied to all the images stored in the camera. Display the screen for DPOF settings in the playback mode.

  • Page 134: Printing Using Pictbridge

    Printing Using PictBridge By connecting the camera to a printer that supports PictBridge using the supplied USB/AV cable (I-UAV77), you can print images directly from the camera without using a computer. Connect the camera to the printer and select the images you want to print and the number of copies on the camera.

  • Page 135: Printing Single Images

    Printing Single Images In the printing mode selection screen, use the four-way controller (23) to select [Single Image]. Press the 4 button. The setting screen appears. Use the four-way controller (45) to choose an image to print. Use the four-way controller (23) to choose the number of copies.
  • Page 136 Use the four-way controller (2345) to choose the paper size. You can only choose a size that is supported by your printer. Press the 4 button. The Paper Size setting is saved, and the screen returns to the print settings screen. Use the four-way controller (23) to select [Paper Type] and press the four-way controller (5).

  • Page 137: Printing All Images

    Printing All Images In the printing mode selection screen, use the four-way controller (23) to select [All Images]. Press the 4 button. The setting screen appears. Choose the number of copies and whether to insert the date or not. The number of copies and date setting that you choose apply to all the images.

  • Page 138: Printing Using The Dpof Settings

    Printing Using the DPOF Settings In the printing mode selection screen, use the four-way controller (23) to select [DPOF AUTOPRINT]. Press the 4 button. The DPOF settings you have made appear. Use the four-way controller (45) to check the number of copies for each picture, whether to insert the date or not, and the total number of copies.

  • Page 139: Recording And Playing Back Sound

    Recording and Playing Back Sound Recording Sound (Voice Recording Mode) You can record sound with the camera. The microphone is located below and to the left of the lens on the camera. When recording sound, aim the camera to obtain the best conditions. Shutter release button Four-way controller...
  • Page 140 Press the shutter release button fully. Recording starts. The power lamp blinks during recording. You can record sound continuously until the built-in memory or SD Memory Card reaches full, or for max. 24 hours. When the Green button is pressed during recording, an index can be added to the current sound file.

  • Page 141: Playing Back Sound

    Playing Back Sound You can play back the sound files you made in O (Voice Recording). Press the Q button. Use the four-way controller (45) to choose a sound file to play back. Press the four-way controller (2). The sound file is played back. 1 Total file recording time 2 Playback time The following operations can be...

  • Page 142: Settings

    Settings Camera Settings How to display the [R Setting] menu Four-way controller 4 button 3 button Formatting an SD Memory Card Formatting will delete all the data on the SD Memory Card. • Do not remove the SD Memory Card during formatting as this may damage the card and render it unusable.

  • Page 143: Changing The Sound Settings

    How to display the [R Setting] menu Four-way controller 4 button 3 button Changing the Sound Settings You can adjust the volume of operation sounds and change the type of sound. Use the four-way controller (23) to select [Sound] on the [R Setting] menu.
  • Page 144 Use the four-way controller (23) to select [1], [2], [3] or [Off] and press 4 button. The selected sound type is saved. Set [Operation Sound] in the same way as in Steps 5 to Use the four-way controller (45) to select O (On) or P (Off) for the self-timer sound.

  • Page 145: Changing The Date And Time

    How to display the [R Setting] menu Four-way controller 4 button 3 button Changing the Date and Time You can change the initial date and time settings. You can also set the style in which the date appears on the camera. Use the four-way controller (23) to select [Date Adjust] on the [R Setting] menu.
  • Page 146 Press the four-way controller (5). The frame returns to [Date Style]. Press the four-way controller (3). The frame moves to [Date]. Press the four-way controller (5). The frame moves to one of the following items depending on the date style set in Step 4.

  • Page 147: Setting The World Time

    How to display the [R Setting] menu Four-way controller 4 button 3 button Setting the World Time The date and time selected in “Setting the Date and Time” (p.31) and “Changing the Date and Time” (p.143) serve as the W (Hometown) date and time.
  • Page 148 Press the 4 button. The World Time setting is saved. Press the 3 button twice. The camera returns to capture status with the current setting. Select W (Hometown) in Step 3 of p.143 to set the city and DST setting for the Hometown city. Displaying the Time of the Destination on the display (Select Time) Use the four-way controller (23) to select [World Time]...

  • Page 149: Changing The Display Language

    How to display the [R Setting] menu Four-way controller 4 button 3 button Changing the Display Language You can change the language in which the menus, error messages, etc. are displayed. You can choose from English, French, German, Spanish, Portuguese, Italian, Dutch, Japanese, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Thai, Korean, and Chinese (traditional and simplified).

  • Page 150: Changing The Image Folder Name

    How to display the [R Setting] menu Four-way controller 4 button 3 button Changing the Image Folder Name You can change the image folder name to [Standard] or [Date]. When [Date] is selected, pictures are saved in separate folders by the date they were taken.
  • Page 151 Press the 4 button. The Folder Name setting is saved. • The maximum number of files is 900 folders. • The capacity of an image folder is 9999 files maximum. When the number of files reaches 9999, a new folder will be automatically created.

  • Page 152: Changing The Usb Connection Mode

    How to display the [R Setting] menu Four-way controller 4 button 3 button Changing the USB Connection Mode Choose the appropriate USB connection depending on whether you are going to connect the USB/AV cable to a computer or a PictBridge- compatible printer.

  • Page 153: Changing The Video Output Format

    How to display the [R Setting] menu Four-way controller 4 button 3 button Changing the Video Output Format When you connect the camera to AV equipment, choose the appropriate video output format (NTSC or PAL) for taking and playing back images. Use the four-way controller (23) to select [Video Out] on the [R Setting] menu.

  • Page 154: Adjusting The Brightness Of The Display

    How to display the [R Setting] menu Four-way controller 3 button Adjusting the Brightness of the Display You can adjust the brightness of the display for easy viewing. It is useful when you view the display outdoors or in brighter places. Use the four-way controller (23) to select [Brightness Level] on the [R Setting] menu.

  • Page 155: Using The Power Saving Function

    How to display the [R Setting] menu Four-way controller 4 button 3 button Using the Power Saving Function You can save battery power by setting the display to turn off automatically when no operation is performed for a fixed time. After the power saving function has been activated, the display returns to the ordinary brightness by pressing any of the buttons.

  • Page 156: Setting Auto Power Off

    How to display the [R Setting] menu Four-way controller 4 button 3 button Setting Auto Power Off You can set the camera to turn off automatically when no operation is performed for a fixed time. Use the four-way controller (23) to select [Auto Power Off] on the [R Setting] menu.

  • Page 157: Resetting To Default Settings (Reset)

    How to display the [R Setting] menu Four-way controller 4 button 3 button Resetting to Default Settings (Reset) You can reset the camera settings to their defaults. Refer to “Default Settings” (p.157) for the reset settings. Use the four-way controller (23) to select [Reset] on the [R Setting] menu.

  • Page 158: Appendix

    Appendix List of World Time Cities The column “City” indicates cities that can be set as either the Initial Setting (p.29) or the World Time (p.145). The column “Video Output Format” indicates the video output format of the city set as the Initial Setting.

  • Page 159: Default Settings

    Default Settings The table below lists the factory default settings. The meaning of the indications for menu items with a default setting is explained below. Last Memory Setting : The current setting (last memory) is saved when the camera is turned off. : The setting returns to the default setting when the camera is turned off.
  • Page 160 Item Face Priority Flash Mode Drive Mode Focus Mode Zoom Position Memory Sensitivity EV Compensation Digital Zoom DISPLAY File No. Green Button Date Imprint [W Setting] Menu Items Item Format Volume Shutter Sound Sound Operation Sound Self-timer Sound Date Style (date) Date Style (time) Date Adjust...

  • Page 161: Playback Mode Palette Items

    Item Video Out Brightness Level Power Saving Auto Power Off Reset Playback Mode Palette Items Item Digital SR Interval Slideshow Screen Effect Sound Effect Image/Sound Copy Image Rotation Digital Filter Frame Composite Red-eye Compensation Single Image/ Sound Protect All Images/ Sounds Single Image DPOF...

  • Page 162: Key Operation

    Key Operation Item Q button Operation Mode Zoom/w/x Zoom Position button Drive Mode Four-way Shooting Mode controller Flash Mode Focus Mode 3 button Menu Display button I button Operation Mode Function Default Setting Playback mode Wide 9 (Normal) b (Auto Picture) (Auto) = (Standard) Capture mode:...

  • Page 163: Functions Available For Each Shooting Mode

    Functions Available for Each Shooting Mode Yes : Can be set and function is available. : Fixed setting. Cannot be changed. : Can be set but function is not available. No : Cannot be set. , (Auto) Yes Yes a (Flash Off) Yes Yes Yes Yes b (Flash On) No Yes...

  • Page 164: Optional Accessories

    Optional Accessories A number of dedicated accessories are available for this camera. AC adapter kit K-AC62 This kit includes the DC coupler D-DC51, the AC adapter D-AC62 and the AC plug cord. USB/AV cable I-UAV77 (*) Strap O-ST62 (*) O-ST24 O-ST8 O-ST30, O-ST81 Camera case...

  • Page 165: Messages

    Messages Messages such as the following may appear on the display during camera operation. The batteries are exhausted. Replace with new batteries. If Battery depleted using rechargeable batteries, charge the batteries. (p.19) The built-in memory/SD Memory Card is full and no more Built-in memory full images can be saved.
  • Page 166 Data being processed No image to be processed This image/sound cannot be processed No card in the camera The card memory is not enough to copy images/ sounds The built-in memory is not enough to copy images/sounds Cannot process correctly Messages such as the following may appear on the display when using the PictBridge function.

  • Page 167: Troubleshooting

    Troubleshooting Problem The batteries are not installed The camera will The batteries are not turn on installed incorrectly The batteries are exhausted The camera is connected to a computer No image appears on the display The camera is connected to the AV equipment The brightness level of the display is set too...
  • Page 168 Problem The subject is difficult to focus on with auto focus The subject is not in focus The subject is not in the focusing area The subject is too close The focus mode is set to q The flash mode is set to a (Flash Off) The drive mode is set The flash does not...

  • Page 169: Main Specifications

    Main Specifications Type Fully automatic compact digital still camera with built-in zoom lens Number of Approx. 10.1 megapixels Effective Pixels Image Sensor Type Size Number of Still Recorded Pixels Movie Sensitivity Auto, Fixed (ISO 100-6400*) (standard output * When Digital SR (blur reduction) mode is selected sensitivity) File Format Still Picture...
  • Page 170 The image storage capacity is for reference only. The actual image storage capacity may vary depending on the SD Memory Card and the subject. Movie/Sound m 640×480 D 320×240 The recording time is for reference only. The actual recording time may vary depending on the SD Memory Card and the subject.
  • Page 171 Focus Modes Autofocus, Macro, Infinity, Pan Focus AF type Focus Range (From lens face) Focus Lock Exposure AE metering Mechanism Compensation Scene Modes Green, Auto Picture, Program, Night Scene, Night Scene Portrait, Half-length Portrait, Movie, Landscape, Flower, Portrait, Surf & Snow, Sport, Digital SR, Kids, Pet, Food, Digital Panorama, Frame Composite, Voice Recording * Face Recognition AE is available only while the camera...
  • Page 172 Battery Life Number of (When using AA Recordable alkaline batteries) Images 200 pictures Playback Time 280 min. Movie Recording Time 70 min. Sound Recording Time 420 min. Interfaces USB2.0 (Hi-Speed)/ USB/AV terminal Video Output NTSC/PAL (monaural) PictBridge Printer Print Modes Paper Size Paper Type Quality...

  • Page 173: Warranty Policy

    Shipping charges are to be borne by the owner. If your PENTAX was purchased outside of the country where you wish to have it serviced during the warranty period, regular handling and servicing fees may be charged by the manufacturer’s representatives in that country.
  • Page 174 Therefore, we recommend that you review the warranty card supplied with your product at the time of purchase, or contact the PENTAX distributor in your country for more information and to receive a copy of the warranty policy.
  • Page 175 For customers in USA STATEMENT OF FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 176: Declaration Of Conformity

    Product Name: PENTAX Digital Still Camera Model Number: Optio E60 Contact person: Customer Service Manager Date and Place: August, 2008, Colorado Declaration of Conformity PENTAX Imaging Company A Division of PENTAX of America, Inc. Street, Suite 300 Golden, Colorado 80401 U.S.A. Phone: 303-799-8000 FAX: 303-790-1131...
  • Page 177 Information on disposal for users 1. In the European Union If your product is marked with this symbol, it means that used electrical/electronic products should not be mixed with general household waste. There exists a separate collection system for these products. Used electric/electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of these products.

  • Page 178: Index

    Index Symbols [A Rec. Mode] menu Q button ...39, 41 [W Setting] menu button ...39, 42 Green Mode | Green Button i Delete ...38, 108 x Tele ...73 w Wide ...73 y Magnify ...100 f Nine-image display g Self-timer ...85 f 16-frame shooting b Auto Picture R Program...
  • Page 179 DPOF printing ...136 DPOF settings ...129 Face close-up playback Face Recognition AF&AE File No..90 Flash ...79 Flash Off a ...79 Flash On b ...79 Focus lock ...77 Focus Mode ...76 Focusing Area ...78 Folder display ...99 Folder Name ...148 Format ...140 Four-way controller...
  • Page 180 Recording sounds Recovering images Red-eye Compensation Red-eye reduction cd Reset ...155 Resize ...116 Rotating ...37 Saving settings SD Memory Card Select time ...146 Self-timer g ...85 Sensitivity ...81 Setting the exposure Shooting information Shutter release button ...34, 39, 41 Slideshow ...103 Sound settings Sound types...
  • Page 181 PENTAX Italia S.r.l. PENTAX (Schweiz) AG PENTAX Europe GmbH (Tyskland) Filial Sverige PENTAX Imaging Company A Division of PENTAX of America, Inc. PENTAX Canada Inc. PENTAX Trading (SHANGHAI) Limited • Specifications and external dimensions are subject to change without notice.

This manual is also suitable for:

17296 - optio e60 digital camera

Table of Contents
