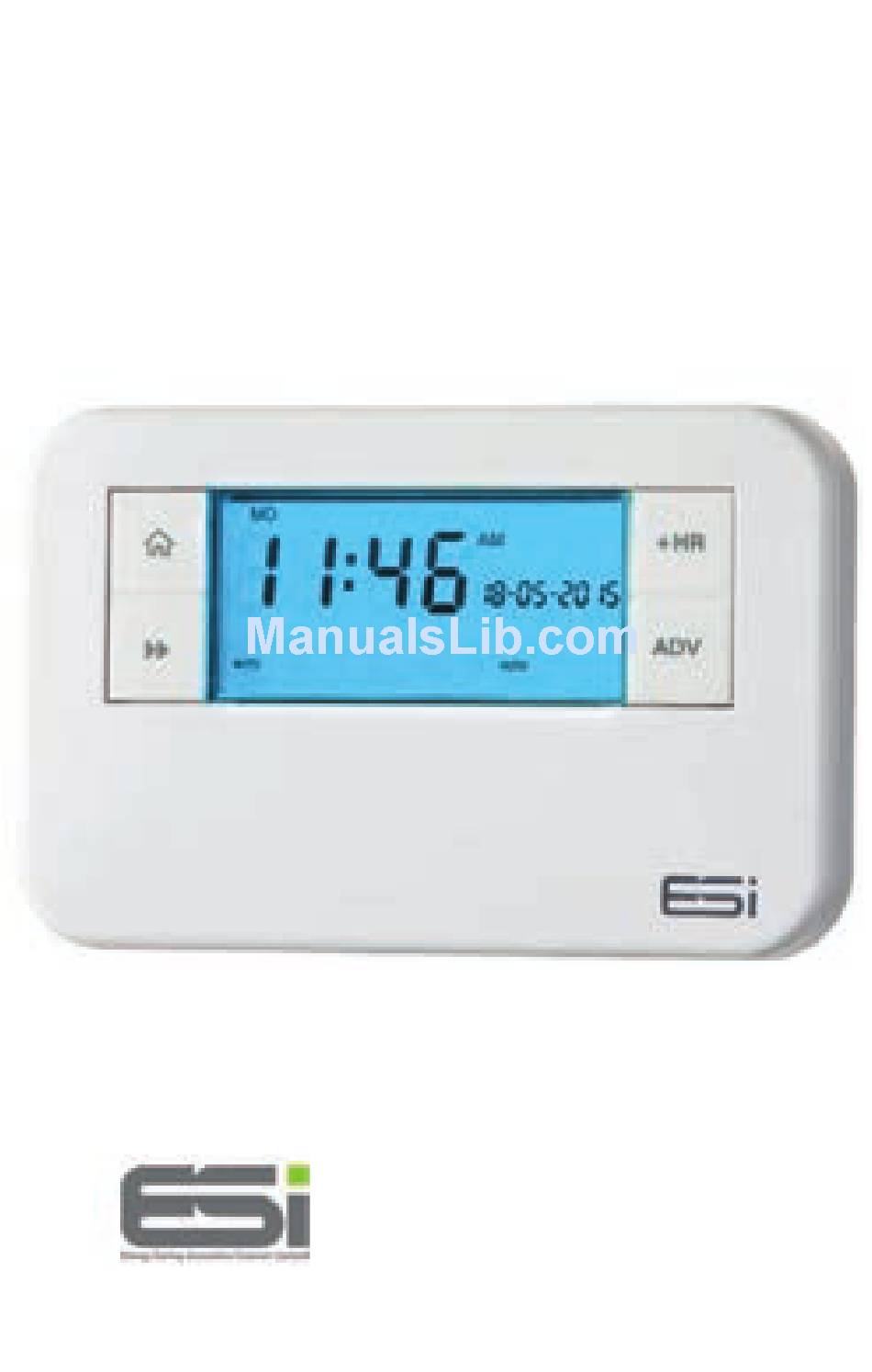

- Page 1 ES2247B 2 Channel Programmer User and Installation Instructions...
-
Page 3: Table Of Contents
INDEX User Instructions What is a Channel Programmer? Introduction to the 2 Channel Programmer Quick Operating Guide Programming the Unit The Factory-set Programme Setting the Programmer Option (5/2, 7 Day, 24hr) Setting the Central Heating Programme Setting the Hot Water Programme Setting the Operation (ON/OFF/AUTO/ALL DAY) Operating the Unit Temporary Overrides (Advance and +HR Boost) - Page 4 INDEX Installation Instructions Technical Data Installation Safety Instructions Maintenance Safety Notice Technical Settings Fitting the Back Plate Existing Installations Wiring Diagram Commissioning...
- Page 5 User Instructions...
-
Page 6: What Is A Channel Programmer
What is a Channel Programmer?... An explanation for householders Programmers allow you to set ‘On’ and ‘Off’ time periods. Some models switch the Central Heating and domestic Hot Water on and off at the same time, while others allow the domestic Hot Water and Central Heating to come on and go off... -
Page 7: Introduction To The 2 Channel Programmer
Introduction to the 2 Channel Programmer This programmer can automatically switch your Central Heating or Hot Water ON and OFF either 2 or 3 times a day, at whatever times you choose. Timekeeping is maintained through power interrup- tions by a replaceable internal battery (by Qualified Installer/Electri- cian only) designed to last for the lifetime of the programmer and the clock is automatically put forward 1 hour at 1:00am on the last Sunday of March and back 1 hour at 2:00am on the last Sunday of... -
Page 8: Quick Operating Guide

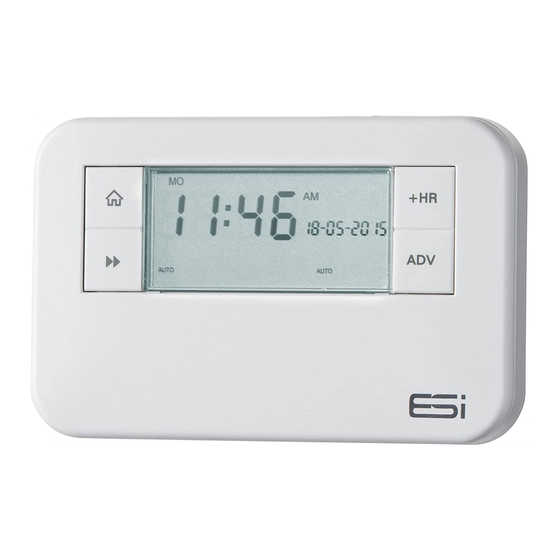

Quick Operating Guide Home (takes you back to home screen) ① ② Next (moves you to the next option within a function) ③ Advance to the next programmed ON/OFF (ADV) Add up to 3 hours of extra Central Heating/Hot Water (+HR) ④... - Page 9 Day of the week Time Display AM/PM Date Display Displays which ON/OFF period (1/2/3) is being set when programming Central Heating/Hot Water Displays whether setting the ON time or OFF time when programming Central Heating/Hot Water (ON/OFF) Operating Mode (ON/OFF/AUTO/ALL DAY) Advanced temporary override is active (ADV) Radiator/Tap symbol show that Central Heating/Hot Water is currently ON...
-
Page 10: The Factory-Set Programme
Programming the Unit The Factory Pre-Set Programme This Channel Programmer has been designed to be simple to use, requiring minimal user intervention with a pre-programmed heating profile. The pre-set heating times and temperatures will suit most people (see table below). To accept the factory pre-set settings, move the slider to RUN which will revert the programmer to Run Mode (the colon (:) in the LCD display will begin to flash). -
Page 11: Setting The Programmer Option (5/2, 7 Day, 24Hr)
Setting the Programmer Option (5/2, 7 day, 24hr) 1. Switch the slider to HEATING. Press either the +/- button to move between 7 day, 5/2 day or 24hr operation. 5/2 Day operation is shown by MO, TU, WE, TH, FR flashing (5 Day) and then SA, SU flashing (2 Day) 7 Day operation is shown by just one day flashing at a time 24 hr operation is shown by MO, TU, WE, TH, FR, SA, SU flashing... -
Page 12: Setting The Hot Water Programme
Setting the Hot Water Programme 1. Move the slider to HW. Choose between 5/2, 7 day or 24 hr programmer operation (see page 6) 2. Press the Next button. Press the Day button until the desired day/block of days you want to programme is flashing. 3. - Page 13 Wait 15 seconds to automatically confirm or press the Home button. Move the slider to RUN to return to Run Mode. Temporary Manual Overrides The Advance Function The ADVANCE function allows the user to move to the next ON/OFF programme for a “one off” event, without having to change the programme or use the ON or OFF buttons.
- Page 14 NB: The +HR function is only available when the programme is in AUTO, ALL DAY or OFF operating modes and the slider must be switched to RUN. If the programmer is in AUTO or ALL DAY mode when the +HR button is pressed and the resulting time of the boost overlaps a START/ON time, the boost will disengage.
-
Page 15: Holiday Mode
2. Press +/- buttons to select the number of days you would like the Holiday Mode to run for (between 1-99 days). 3. Press the Home button to confirm. The system will now turn OFF for the number of days chosen. The number of days will alternate with the time symbol on display and the number of days will count down. -
Page 16: Setting The Backlight
Setting the Backlight The backlight can either be set permanently ON or OFF. The programmer backlight is pre-set to be permanently OFF. When the backlight is permanently OFF, the backlight will turn ON for 15 seconds when + or – button is pressed, then turn OFF automatically. To change setting to permanently ON, move the slider to TIME/- DATE. -
Page 17: Installation Instructions
Installation Instructions... -
Page 18: Technical Data
Technical Data... -
Page 19: Installation Safety Instructions
Installation Safety Instructions The unit must be installed by a suitably qualified person in accord- ance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all instructions before proceeding. Ensure that the fixed wiring connections to the mains supply is via a fuse rated at not more than 6 amps and class ‘A’... -
Page 20: Technical Settings
Technical Settings 1. Move the slider to RUN. Hold down the Home button, the Day button and the button (under the facia) together for 3 seconds to enter the Technical Setting Mode. 2. Press +/- to choose between 2 or 3 ON/OFFs per day. 3. -
Page 21: Existing Installations
Existing Installations 1. Remove the old programmer from its back plate mounting, loosening any securing screws as dictated by its design. 2. Check compatibility of existing back plate & wiring arrangement with that of the new programmer. See online Programmer Replace- ment Guide for direction. -
Page 22: Commissioning
Commissioning Switch on mains supply. Referring to User Instructions (page 3-11):- 1. Use the buttons to ensure correct product functionality. 2. Set timing and programme details in accordance with customer requirements (page 6). 3. Normally the unit will be left with channel in ‘Auto’ mode. 4. - Page 24 ESi Controls Limited sales@esicontrols.co.uk www.esicontrols.co.uk Version 5.8...
