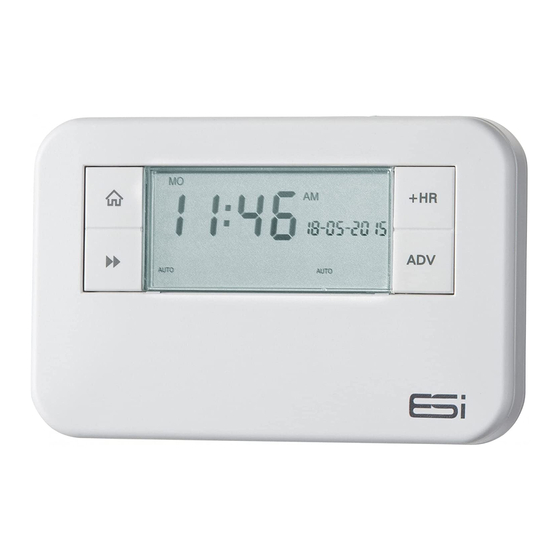

ESI ES2247B Installation Instructions Manual
2 channel multi-purpose
programmer
Hide thumbs
Also See for ES2247B:
- User and installation instructions manual (24 pages) ,
- User instructions (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for ESI ES2247B
Summary of Contents for ESI ES2247B
- Page 1 ES2247B 2 Channel Multi-Purpose Programmer Installation Instructions...
- Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...
-
Page 3: Table Of Contents
Contents Installation Instructions Technical Data Installation Instructions Safety Instructions Maintenance Safety Notice Technical Settings Setting the Landlord Service Interval Fitting the Back Plate Entering a New Installer Code Existing Installations New Installations Wiring Diagram Commissioning... -
Page 5: Installation Instructions
Installation Instructions... -
Page 6: Technical Data
Technical data Power Supply 230V AC, 50Hz Operating Temperature 0°C to 35°C Swith Rating 230V AC, 6(2) A SPDT Battery Type Lithium Cell CR2032 Enclosure Protection IP30 Plastics Thermolatic, flame retardant Insulation Class Double Wiring For fixed wiring only Back Plate Industry standard Dimensions 140mm(L) x 90mm(H) x 30mm(D) -
Page 7: Installation Instructions Safety Instructions
Installation Safety Instructions The unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all instructions before proceeding. Ensure that the fixed wiring connections to the mains supply is via a fuse rated at not more than 6 amps and class ‘A’... -
Page 8: Safety Notice
Safety Notice WARNING! Always isolate the AC mains supply before installing. this product must be fitted by a qualified person, and installation must comply with the guidance provided in the current editions of BS767 (IEE wiring regulations) and part “P” of the building regulations. Technical Settings 1. -
Page 9: Setting The Landlord Service Interval
Setting the Landlord Service Interval 1. Switch the slider to RUN. 2. Press Home, Copy and the + buttons together to enter the landlord settings. A numeric password will be required to enter these settings. 3. The LCD display will show C0dE. Press the +/– buttons to enter the first digit of the code. - Page 10 8. Press the Next button and the LCD display will show ALAr. Press the +/– buttons to set the reminder (from 1 - 31 days). This will then remind the user when the annual service is due by alternating between displaying SER and the maintenance telephone number in the LCD screen according to these settings.
-
Page 11: Fitting The Back Plate
Fitting the Back Plate 1. Position the wall-plate (terminals along top edge) with 60mm (min) clearance to its right, 25mm (min) above, 90mm (min) below. Ensure that the supporting surface will fully cover the back of the programmer. 2. Offer the back plate to the wall in the position where the programmer is to be mounted, remembering that the back plate fits to the left side of the programmer. -
Page 12: Existing Installations
See online Programmer Replacement Guide for direction. 3. Make all necessary changes to back plate & wiring arrangement to suit new programmer. Wiring Diagram ES2247B IP30 1.0-2.5mm Max Load: 1380W 6mm MAX 6(2) Amp 230 VAC... -
Page 13: Commissioning
Commissioning Switch on mains supply. Referring to User Instructions (page 3-11):- 1. Use the buttons to ensure correct product functionality. 2. Set timing and programme details in accordance with customer requirements (page 11-13). 3. Normally the unit will be left with channel in ‘Auto’ mode. - Page 14 We are continuously developing our products to bring you the very latest in energy saving technology and simplicity. However, should you have any questions setting up your controls please email us at sales@esicontrols.co.uk.
- Page 15 WARNING: Interference with sealed parts renders the guarantee void. In the interests of continuous product improvement we reserve the right to alter designs, specifications and materials without prior notice and cannot accept liability for errors.
- Page 16 Version 6.10.2 © ESi Controls Limited 2017...
