Page 1: Quick Installation Guide
EPN Series IP Speed Dome EPN4230d/4230di Quick Installation Guide Copyright © EverFocus Electronics Corp, Release Date: August, 2014... -
Page 2: Packing List

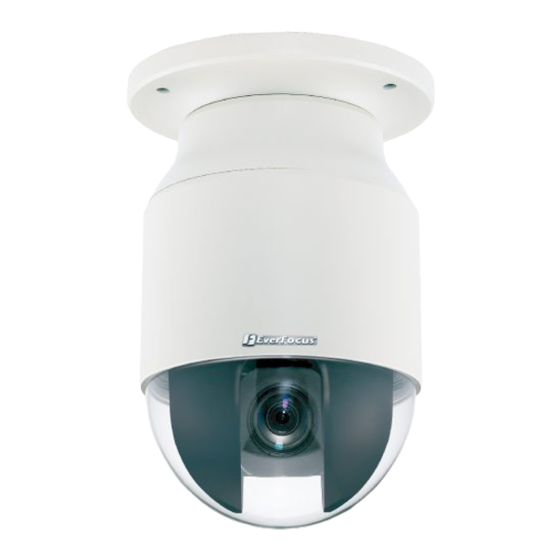

EPN4230d/4230di 1. Overview The EPN series IP Speed Dome comes in two types: Indoor (EPN4230di) and Outdoor (EPN4230d). Top Housing Top Housing Outer Housing Outer Housing Camera Main Body Camera Main Body Outdoor Indoor (EPN4230d) (EPN4230di) Packing List The main box contains 3 large boxes and a small box. Each box contains the items as listed below. Please check that there is no missing item in the package before installing. -
Page 3: Cable Descriptions
EPN4230d/4230di ... -
Page 4: Optional Accessories
EPN4230d/4230di Pin Assignment No. Functions No. Functions GND (-) GND (-) Alarm In 1 NO (+) Alarm In (+) Alarm Out B COM (-) GND (-) Alarm In 2 NC (+) Alarm In (+) NO (+) GND (-) Alarm Out A... - Page 5 EPN4230d/4230di ...
- Page 6 EPN4230d/4230di Installing Outdoor Models (EPN4230d) Two mounting types are available for the outdoor models: Wall Mount and Ceiling Mount. Wall Mount 1. Drill 4 screw-depth holes for the bracket base plate and then drill a through-wall hole for the camera cables.
- Page 7 EPN4230d/4230di ...
-
Page 8: Network Connections
EPN4230d/4230di ... -
Page 9: Direct High-Speed Connection
EPN4230d/4230di ... -
Page 10: Checking The Dynamic Ip Address
7. Checking the Dynamic IP Address You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU) software included in the software CD or from the Website of EverFocus (click here to download). - Page 11 EPN4230d/4230di Note: 1. You might be required to download ActiveX for viewing the camera feed. If asked, click Yes. 2. To enable Remove Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer, some settings have to be complete. Please refer to 5.2 Settings for Microsoft Internet Explorer in the User’s Manual.
- Page 12 EPN4230d/4230di To set up a static IP: Select Static from IP Type drop-down list and set up the desired IP Address, for example, 172.17.0.145. Please also set up the Subnet Mask and Gateway. Click the Apply Changes button to apply and save the settings.
-
Page 13: Upgrading Firmware
EPN4230d/4230di 8. Upgrading Firmware You can upgrade the Firmware using the IP Utility software included in the software CD or from the Website of Everfocus (click here to download). Install and then start the IPU program , the following IPU window appears. The IPU will automatically search the IP devices connected in the LAN. - Page 14 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, USA 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 626 844 8888 TEL: +1 631 436 5070...
