Optional Cable
Management Device
Installing the Chassis on a Table or Shelf. To install the chassis on
a table or on a shelf, follow these steps:
1 Lift and turn the chassis upright on its installed plastic feet.
2 Position the chassis on the table or shelf so that the chassis rests
upright squarely on the table or on the shelf (on all four feet).
3 Ensure that the front, sides, and the rear of the chassis are
unobstructed and easy to reach.
3Com offers a cable management device. You may have other types of
cable management devices at your site. Follow the manufacturer's
suggested installation procedures.
The Cable Management Device (C-Clamp) (Model Number 3CB9EC7)
manages module cables from the right side of the 7-slot chassis.
Figure 10 shows the cable management device for the
CoreBuilder 9000 7-slot chassis.

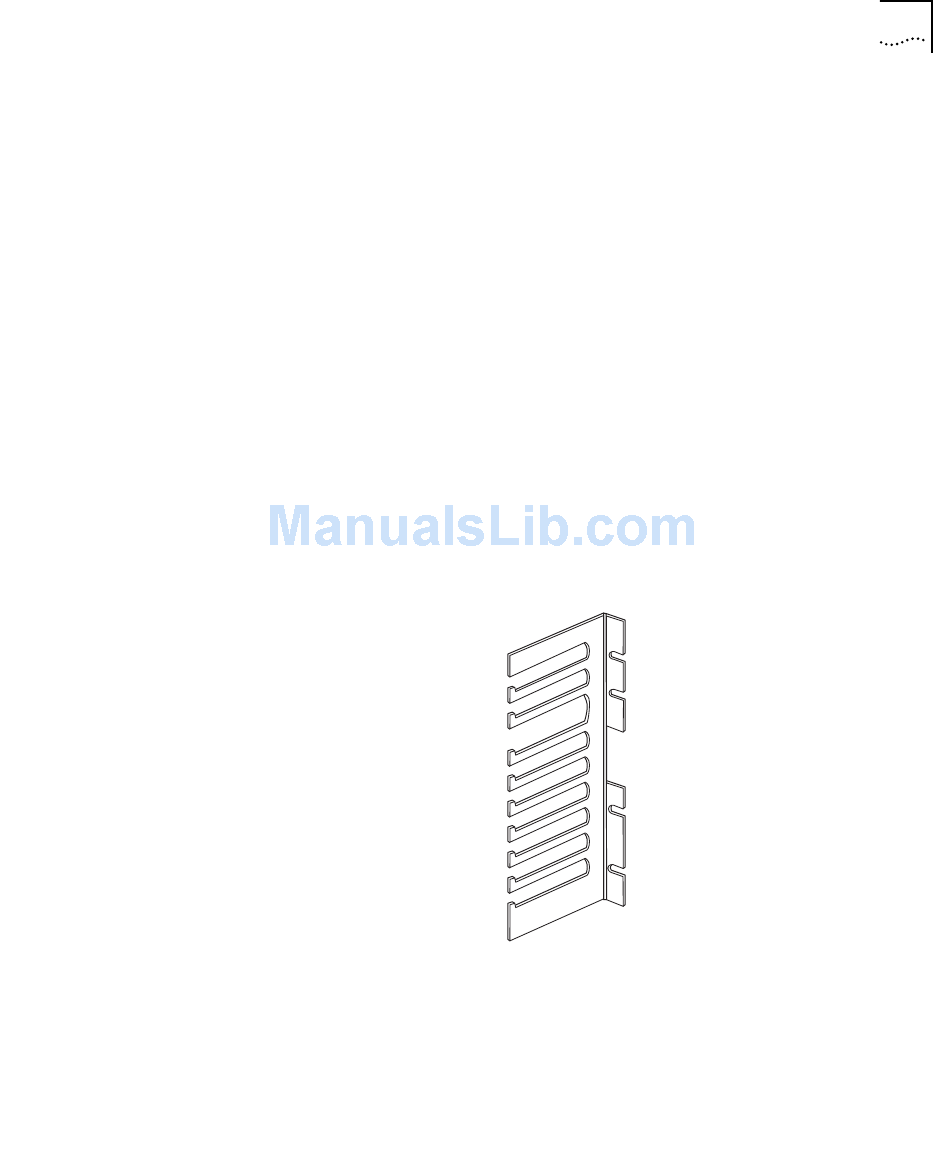

Figure 10 Cable Management Device
7-Slot Chassis Quick Installation Guide 15
