Coffee Machine
Service
General Information
Description
Housing material
Size (w x h x d)
Size EXT(w x h x d)
Weight
Power cord length
Control panel
Cup size
Water tank
Coffee bean hopper capacity
Coffee grounds drawer capacity
Milk carafe capacity
Pump pressure
Boiler
Safety devices
Energy saving mode
Nominal voltage - Power rating - Power supply
All parts of this document are the property of Philips.
All rights reserved. This document and all the information herein is provided without liability deriving from any errors or omissions. Furthermore, no part may be reproduced, used or
collected, except where express authorisation has been provided in writing or through a contractual agreement.
Published by Philips
OTC
2016
Service Manual
Value
Thermoplastic type
221 x 340 x 430 mm (data may vary depending on the model)
221 x 386 x 430 mm (data may vary depending on the model)
7,5 kg (data may vary depending on the model) 8 kg (EXT)
800 - 1200 mm
Front type
Up to 152 mm
1.8 litres - 2.5 litres (EXT) Removable type
250 g - 500 g (EXT)
15
0,5 l (OTC version)
15 bar
Stainless steel boiler
Thermal fuse
< 1 Wh
Read the data plate placed inside the service door
Subject to modification
Incanto
AMF-
CMF
2016
EXT
2016
Rev. 04 JULY 2016
EN 4219 400 00028
2015-May-30
Advertisement
Table of Contents
Related Manuals for Saeco OTC SERIES
Summary of Contents for Saeco OTC SERIES
-

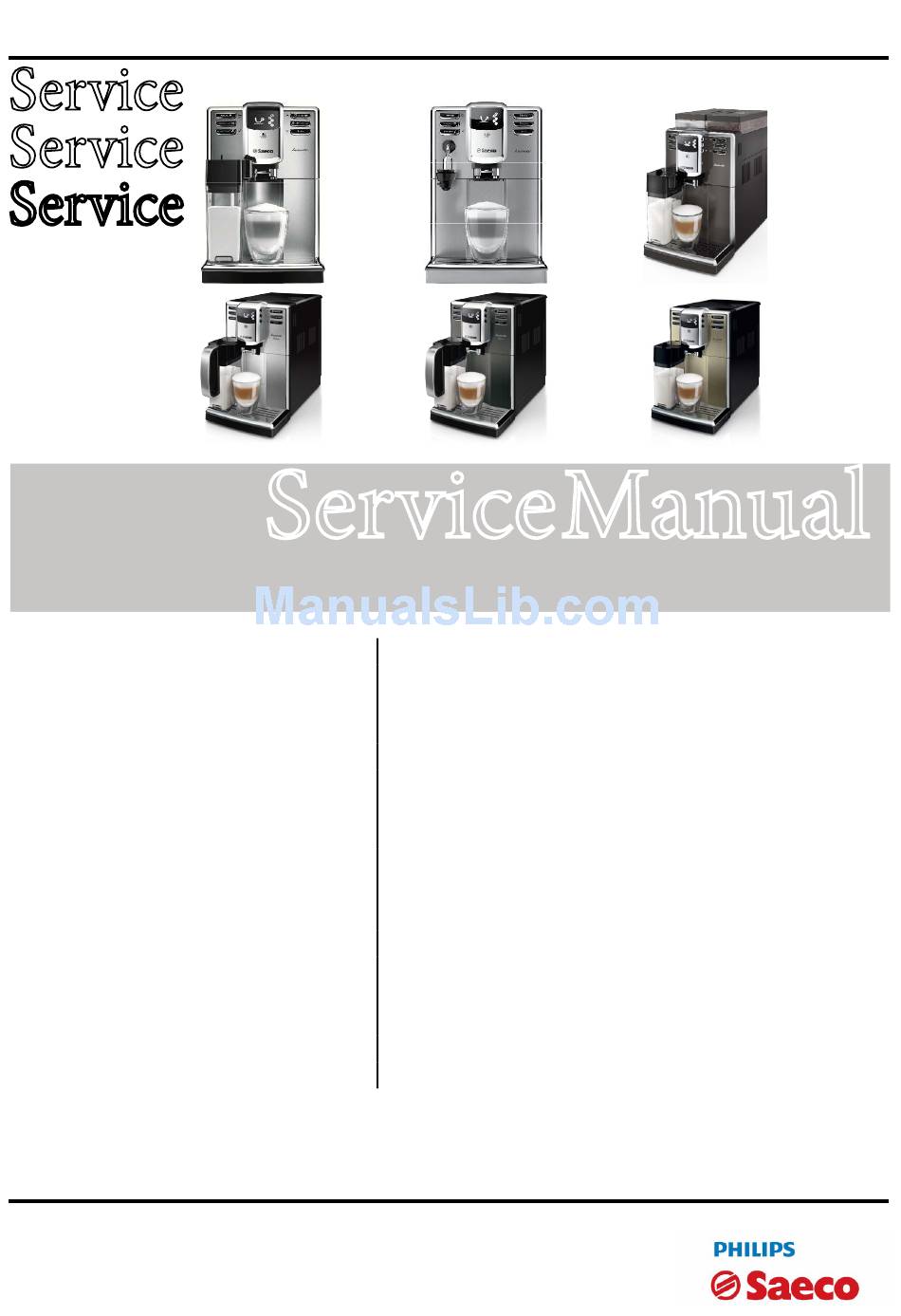

Page 1: Coffee Machine
Coffee Machine Incanto AMF- Service 2016 2016 2016 Service Manual Rev. 04 JULY 2016 General Information Description Value Housing material Thermoplastic type Size (w x h x d) 221 x 340 x 430 mm (data may vary depending on the model) Size EXT(w x h x d) 221 x 386 x 430 mm (data may vary depending on the model) Weight... -
Page 2: Table Of Contents
SteamOut 1.4. Safety warnings 5.3. Error Codes Service Policy 5.4. Saeco Service Center - Quick Start Guide 1.6.1. External machine parts Incanto OTC 1.6.1.1 External machine parts Incanto OTC EXT Standard checks 1.6.2. External machine parts Incanto AMF - CMF 6.1. -
Page 3: Introduction
INCANTO CHAPTER 1 INTRODUCTION... -
Page 4: Documentation Required
As well as the standard equipment, the following is required: Qty. Description Notes Screwdriver Pliers for Oetiker clamps CC -A - Vdc tester Digital thermometer Scale limit > 150°C SSC (Saeco Service Center) Programmer (for programming and diagnostics mode) Material Material Code and Description Thermal paste Heat resistance > 200°C Descaler 21001901 “ACC SAE DECALCIFIER 5 L 1 UNIT”... -
Page 5: Water Circulation Scheme
INCANTO 01 INTRODUCTION Disassembling the machine, the operator must pay attention to hot and under Pressure parts: boiler, pin-boiler, valves, dispensing, steam tube, brew unit, connections and pipes to avoid burns. Please refer to specific hydraulic circuit (Image1) to know the parts in detail. The machine hydraulic circuit can reach maximum pressure of 16/18 bar. To operate in safety condition is recommended to perform the Steam Out procedure in order to remove the pressure and hot water inside the hydraulic circuit. When the machine arrives at the Service Center in descaling mode interrupted, or making Descal- ing , be very careful not to come into contact with the Descaler. After the product has been repaired, it should function properly and has to meet the safety re- quirements and legal regulations as officially laid down at this moment Water Flowmeter Two-way solenoid valve Two-way solenoid valve Flowmeter Image 1 Hot water /steam From this point circuit in pressure From this point circuit High temperaure Steam and hot water Steam pipe Water tank Water tank... -
Page 6: Service Policy
INCANTO 01 INTRODUCTION Service POLICY grid as used for coffee machine For IN WARRANTY repairs is raccomanded to use when and where possible the single components,available in the exploded views of the coffee machines or of the specific components. If you find the information “SEE THE EXPLODED VIEW E..” in the assembly description field, it means that the single components of the assembly are available in the other pages of the explod- ed view. It’s possible to use the assembly only if there is a specific Symptom Cure that include this possibility or when the single components are not available for the order. List of principal assembly present in all our coffee machines Components Assembly use Single components available... -
Page 7: External Machine Parts Incanto Otc
INCANTO 01 INTRODUCTION 1.6.1. External machine parts Incanto OTC STAND-BY button Water tank seat Main components Coffee bean hopper Pre-ground coffee compartment Removable water tank Main switch I. ON 0. OFF Power cord socket Coffee grounds drawer Drip tray Drip tray grill Coffee dispensing spout Hot water dispensing spout Milk carafe Main removable parts... -
Page 8: External Machine Parts Incanto Otc Ext
INCANTO 01 INTRODUCTION 1.6.1.1. External machine parts Incanto OTC EXT STAND-BY button Main components Water tank seat Coffee bean hopper Pre-ground coffee compartment Removable water tank Main switch I. ON 0. OFF Power cord socket Coffee grounds drawer Drip tray Drip tray grill Coffee dispensing spout Hot water dispensing spout Main removable parts Milk carafe... -
Page 9: External Machine Parts Incanto Amf Cmf
INCANTO 01 INTRODUCTION 1.6.2. External machine parts Incanto AMF CMF STAND-BY button Main components Water tank seat Coffee bean hopper Pre-ground coffee compartment Removable water tank Main switch I. ON 0. OFF Power cord socket Coffee grounds drawer Drip tray Drip tray grill Coffee dispensing spout Steam/hot water dispensing spout 13A Automatic milk frother (AMF) Classic milk frother (CMF) -
Page 10: Internal Machine Parts
INCANTO 01 INTRODUCTION 1.6.3 Internal machine parts Power board Pump Thermostat Boiler Flow-meter Grinding adjustment insert Coffee grinder Safety valve 2-way solenoid valve Coffee dispenser Boiler pin... -
Page 11: Technical Specifications
INCANTO CHAPTER 2 TECHNICAL SPECIFICATIONS... -
Page 12: Specifications
INCANTO 02 TECHNICAL SPECIFICATIONS 2.1. Technical specifications Power supply and output: 240 V~ 50 Hz 1850 W - 230 V~ 50/60 Hz 1850 W 120 V~ 60 Hz 1500 W Temperature monitoring: (NTC) variable resistor sensor - transmits the value to the electronic card Safety system: 2 thermostats at 190°C one shot Coffee heat exchanger output: (230 V~) 1900 W - (120 V~) 1300 W - (100 V~) 1100 W Stainless steel for coffee, hot water and steam dispensing Gear motor: 2 rotation directions; power supply 24VC Pump: Ulka Type EP5/S GW approx. 13-15 bar with reciprocating piston and thermal switch 100°C 48 W, 230V, 50 Hz, 120V, 60Hz 100V, 50/60 Hz Overpressure valve: Opening at approx. 16-18 bar Water filter: In tank Coffee grinder:... -
Page 13: Specification For The Measurement Of The Coffee Products
INCANTO 02 TECHNICAL SPECIFICATIONS 2.2. Specification for the measurement of the coffee products temperature. The temperature is influenced by the flow from the dispenser and stratification of temperatures in the glass. In order to consider these phenomena and to introduce measures that allow comparisons in controlled conditions, below guidelines must be followed: Conditions: a) Water temperature in tank: 23°C (+/-2°C). b) It must be used a plastic cup (see picture N°1). c) It must be used a thermocouple thermometer (e.g. type K - see picture N°2). d) The coffee machine is tested without any change of parameters or calibrations, which may affect the temperature of products, so the measurement of temperature must be done with machine in default factory setting. Procedure: 1. The temperature must be measured in the cup, immediately after dispensing. Cup has to be placed on a non-metal surface using a thermocouple thermometer (Picture 1). -
Page 14: Specification For The Measurement Of The Milk Products
INCANTO 02 TECHNICAL SPECIFICATIONS 2.2.1. Specification for the measurement of the Milk products temperature. Milk evaluation To carry out the test, a partially skimmed UHT milk with a percentage of grease between 1.5-1.8% at a refrigerator temperature Trefr. (between 4 to 10°C) must be used. The milk product must be checked on a beaker of 250 ml of capability and with an inner diameter of 70mm, brewing 100gr of product. Parameters to be respected: The parameters to be respected are: milk temperature and height of the cream. Each of these pa- rameters, however, must be evaluated depending on the type of system used for the production of hot milk. Actually three types of devices are present on the appliances: • Manual system (pannarello) • Semi-Automatic system (cappuccinatore) • Automatic system (carafe, Pinless wonder system, etc.) Milk temperature in the beaker: System with Pinless Wonder: With milk at Trefr. (about 4-10 °C): ≥ 45 how does it work: 1. The milk is heated in the first chamber of the carafe thanks to the steam. - Page 15 INCANTO 02 TECHNICAL SPECIFICATIONS How to measure the milk cream. The temperature (Trefr or Tamb) of the milk doesn’t affect as much the test result on measuring the milk cream; by convection is assumed to always use milk at refrigerator temperature Trefr.. Manual systems (Pannarello) Pour 100cc. of milk at Trefr. in a beaker of 250 ml of capacity and with a inner diameter of 70 mm; with machine in steam mode: Open the steam knob to discharger water circuit for 4 sec, then close the knob. Place the beaker with the frother dipped in milk, open the steam knob to maximum and start the chronometer. After about 30 to 60 seconds, close the knob and check the result on milk. Semi-automatic systems (cappuccino) Pours milk at Trefr. in a container ; with the machine in steam mode: Open the steam knob to discharge water circuit for 4 sec. then close the knob. Insert the silicone tube in the milk container, placing a beaker of 250 ml capacity and with an inner diameter of 70 mm under the cappuccino maker and open the steam knob.
-
Page 16: Machine Parameters And Performance
INCANTO 02 TECHNICAL SPECIFICATIONS 2.3. Machine parameters and performance Programm. by PRODUCT Default quantity User Production / QUANTITY (Grams) programmable Service Espresso 40 +/- 10gr Espresso lungo 120 +/- 14% Hot water Continues until the water supply has been exhausted (capacitive sensor) Steam pannarello time-out 03 minutes. (frother) DREG DRAWER Description and values 5 sec. - Page 17 INCANTO 02 TECHNICAL SPECIFICATIONS Descaling frequency in AQUACLEAN The first activation must make before you've paid up to 5000ml products because mind thinks as if he had the filter Percentual on Percentual on display 0% the display 10% MAX Quantity icon flashes Filter num- the icon flashes water, the icon Hardness quickly. (tell slowly. (encourage turns off. (re- the consumer the consumer to place filter) to change the buy the filter)
-
Page 18: Brief Instructions
INCANTO CHAPTER 3 BRIEF INSTRUCTIONS... -
Page 19: Customer Menu In The Incanto
INCANTO 03 BRIEF INSTRUCTIONS 3.1. Customer menu in the Incanto List of default settings Display Setting Setting Value Description MAX Coffee Coffee brewing temperature set- COFFEE average TEMP temperature ting. 180° 60° Stand-by 15 minu- STANDBY Stand-by time setting. 30° time 15° DISPLAY Contrast average... - Page 20 INCANTO 03 BRIEF INSTRUCTIONS Reset to the default settings It is possible to restore the default settings through the programming menu. The machine must be turned on and ready to work. Press the MENU button and scroll through functions list to select the > RESET function. Press the OK button to select the function. >...
-
Page 21: Operation, Cleaning And Maintenance
INCANTO 03 BRIEF INSTRUCTIONS The machine is out of service Red Display If the machine error alarm signal is triggered, the error code is displayed in the bottom right corner of the display. Error Behaviour Cause Action code Coffee grinder Coffee outlet duct Clean the coffee outlet duct thoroughly. blocked clogged Close the service door. Turn the machine off The brew group is Brew group locked, and back on again. Wait for the ‘Ready for 3 - 4 incorrectly positio- cannot be taken out brewing’ signal and then remove the brew ned. -
Page 22: Operating Logic
INCANTO CHAPTER 4 OPERATING LOGIC... -
Page 23: Water Circuit Incanto
INCANTO 04 OPERATING LOGIC 4.1. Water circuit Incanto 1/10... -
Page 24: Milk Carafe
INCANTO 04 OPERATING LOGIC 4.2. Milk Carafe Incanto OTC 1) S team input 2)Bring the cappuccino maker into dispensing position 3) M ilk tank The milk is heated by the steam and taken towards the emulsion chamber Steam where it is mixed with air and transformed into foam The steam passes through the pipe creating a sucking effect that pulls the milk upwards 2/10... -
Page 25: Single Microswitch
INCANTO 04 OPERATING LOGIC 4.3. Single microswitch Switching on When the machine is switched on, the gear motor repositions itself as follows: - It acts on microswitch 1 - T he gear motor changes its rotation direction and moves upwards again by approx. 1-2 mm. - T he boiler begins to heat the water for approx. 45 sec., at full power, in order to reach the optimal temperature. The temperature will then remain at a constant level. The gear motor is powered by a direct cur- rent motor that engages with the smaller double toothed wheel using a worm screw. The unit is mounted on the axle of the large gear wheel and when a coffee is requested, it moves from the standby position to the dis- pensing position, and then back to the stand- by position again. -
Page 26: Coffee Grinder
INCANTO 04 OPERATING LOGIC 4.5. Coffee grinder only for 230V The coffee grinder is driven by a direct current motor (1) using a worm screw helicoidal wheel transmission (2). The worm screw (2) drives a plastic gear wheel (3), which turns the lower grinder (4) and the increment pin (5) 4.5.1 Autodose system description Aroma 4/5 + 200 Aroma 2/3 + 100 Aroma 1 + 55 Auto-Zero 100≤ I ≤300 = current when the BU is moving without load, i.e. without coffee. It occurs, for example, dur- ing the rinsing phase of coffee spout. Current targets: Aroma 1 55mA Aroma 2/3... -
Page 27: Coffee Lack Detection And Coffee Grinder Blocked
INCANTO 04 OPERATING LOGIC 1) When the system get the stability (i.e. the system got the current target) the coffee doses should be: A2/3 A4/5 7,5 9,0 10 ±1,5 grams with medium grinding (500±60μm) and using coffee of test. 2) the 3 grinding times are always: <T <T beside, every grinding time is, respectively: 4,0s ≤T ≤10s (10000ms) 3,5s ≤T ≤9s (9000ms) 3,0s ≤T ≤8,1s (8100ms) DOSE ADJUSTMENT Grinder Grinder Grinder Curret target 5 levels Time Time Time 8,1s 55mA Aroma1 0 + Very Light Aroma2 Light 3,5s 100mA Aroma... -
Page 28: Coffee Grinder Only For 120V
INCANTO 04 OPERATING LOGIC 4.5.3 Coffee grinder only for 120v The coffee grinder is activated by a direct current motor (1) via helicoidal wheel transmission and a worm screw (2). The worm screw (2) activates a plastic toothed wheel (3), which turns the lower grinder blade (4) and the increment pin (5). There are two magnets (6) in the toothed wheel and with every rotation they transmit two pulses to a Hall sensor, which in turn transmits them to the electronic system. 4.5.4 Detection of coffee bean absence, dose adjustment, blocked coffee grinder No coffee Without beans n=100% hen no coffee beans are present, this is detected by the Hall sensor due to variations in the pulse frequency (with or without coffee). If there are no coffee beans (operation while empty), the number of rotations and therefore the number of pulses, will be greater t1 = no coffee signal With beans n=100% If there are coffee beans, the number of rotations will be lower due to the force created during the grinding process t2 = no signal Without beans n=50%... -
Page 29: Dose Self-Learning (Sas) Only For 120V
INCANTO 04 OPERATING LOGIC 4.5.5 Dose self-learning (SAS) only for 120v The aim of this function is to automatically regulate the average dose of ground coffee (SELF- LEARNING); this takes place with an algorithm based on the following values and setting by the user: 1. N umber of coffee grinder pulses during the grinding cycle. 2. M ax. average value of the power consumed by the gear motor during the coffee brewing cycle. 3. A roma selected by the user. The algorithm compares the maximum average value of the power consumed by the gear motor with the value listed in the table for the selected aroma, in order to calculate the new grinding pulse value for the next coffee produced. If the power consumption value is less than the minimum current value, the grinding pulses will be increased by 2. If the power consumption value is greater than the maximum current value, the grinding pulses will be decreased by 4. If the power consumption value falls within the “over-torque” interval, the product will be dis- pensed and the grinding pulses will be decreased by 10. If the power consumption value falls within the “abort cycle” interval, the dreg will be expelled and the grinding pulses will be decreased by 10. If the “pre-ground” flavour is selected by the user, no modification will be made. This guarantees that, regardless of the coffee type used, the grinding level setting and the wear on the grinders, the ground coffee dose always remains constant. -
Page 30: Coffee Cycle
INCANTO 04 OPERATING LOGIC 4.6. Coffee cycle Main switch ON START STOP Time Coffee grinder Time (Dosage) Heating approx. 45 sec. Pump Pump operation (flow meter pulses) in accordance with the amount of product selected. Brewing unit gear motor Heating Ready Coffee cycle Status Notes: * Only with Pre-brewing Status Microswitch... -
Page 31: Water Level Detection (Water Tank)
The Incanto machines are the first machines that have installed the new filter AquaClean. They were created to accommodate both new and the old filter, mounting the water container code 17001363-996530073476. From S.N. TW901539488484 the Incanto machines will mount a new water container that can only accommodate the new filter (the assy code is visible on exploded view of reference). The SAECO AquaClean water filter purifies the water your machines uses for brewing coffee. This results in a greater coffee taste. Moreover it prevents mineral deposits in the water to build up, which eliminates the need of descaling your machine for 500000ml of water. We recommend installing the water filter AquaClean the first use of the machine to the maximum before using 5000 ml of water. After a period of uses the machine, the display will indicate when the filter needs to be replaced, the maxi- mum limit equivalent to 62500ml. - Page 32 INCANTO 04 OPERATING LOGIC Descaling frequency in AQUACLEAN The first activation must make before you've paid up to 5000ml products because mind thinks as if he had the filter Percentual on Percentual on display 0% the display 10% MAX Quantity icon flashes Filter num- the icon flashes water, the icon Hardness quickly. (tell slowly. (encourage turns off. (re- the consumer the consumer to place filter) to change the buy the filter)
- Page 33 INCANTO CHAPTER 5 SERVICE MODE...
-
Page 34: Test Mode Incanto
INCANTO 05 SERVICE MODE 5.1.1. Test Mode Incanto Introduction This document describes the Test Mode of the Incanto (CMF,AMF and OTC) Coffee Machine. This application is used in order to test the machine in its mechanics and electronic components. To enter Test Mode The machine enters in Test mode by holding pressed together Z1 and Z6 buttons while switching on the machine by the main switch on the backside of the CA. Once entered in Test Mode, the display shows the firmware version (Level 0). The Test Mode is organized into 6 different pages, each level the coffee machine can execute different commands: Page 0: The display shows: a) Firmware version. - Page 35 INCANTO 05 SERVICE MODE Page 5: High voltage loads test (Heater , Grinder ): a) Heater (230V AC and 120V AC) b) Grinder (320V DC and 170V DC) The user can change the page by pressing the Z7 button. Page 0 is accessible only entering Test Mode from power-off mode; at the start up all loads are turned off. TEST MODE Level0 Pressing button Z7 TEST MODE Level1 Pressing button Z7 TEST MODE Level2 Pressing button Z7 Pressing button Z7 TEST MODE Level3 Pressing button Z7 TEST MODE Level4 Pressing button Z7 TEST MODE Level5...
- Page 36 INCANTO 05 SERVICE MODE Page 1 (KEYBOARD) Start condition Press buttons from 1 to 7 Only when a button is pressed a O appears on the relative position of button pressed. In the middle of display appears the name of the button pressed and the backlight color changes from WHITE to RED. When a button is pressed, also the Stand-By led (RED) turn ON. Note: Press button Z7 as the last once, since it makes change the test page. Note: If 2 or more buttons are pressed the name that appears on display could be wrong.
- Page 37 reg Drawer INCANTO 05 SERVICE MODE Close the Door and Dreg Drawer The indication DOOR change from “N” to “Y” ERROR: The indication DOOR does not change; check the Microswitch for the door and the wiring (JP14). hout Note: without the Dreg Drawer correctly inserted the DOOR indica- nnot tion cannot change! door Close the Beans door (only for 120V) The indication BEAN-C change from “N”...
- Page 38 INCANTO 05 SERVICE MODE ERROR: (With BU) The absorbed current is more than 300mA, the display backlight changes from white to red; check the BU and the motor Press the Z3 button to move the BU to Home When the BU reaches the home position the indication HOME changes from “N” to “Y”, the number of the current is minus than 200mA (without BU) or 300mA (with BU). ERROR: The indication HOME doesn’t change and remain “N”, the display backlight changes from white to red; Check the work microswitch (is broken), the BU motor (is blocked) and the wiring (JP16 ERROR: (Without BU) The absorbed current is higher than 200mA, the display backlight changes from white to red; check the BU and the motor.
- Page 39 INCANTO 05 SERVICE MODE It is possible to hear the “click” from Electro Valve. The indication beside the EV1 changes from “OFF” to “ON”. Press and Release the Z4 button to switch on the pump (100 impulses) The water goes out from the pipe and the indication IMP shows increasing numbers. The indication L/H must be within the range 10-18.
-
Page 40: Grinder Tuning
INCANTO 05 SERVICE MODE ERROR: In the indication HEATER appears “OPEN”, the NTC temperature-sensor is detached or broken, the display backlight changes from white to red; check the wiring from the NTC temperature-sensor to the CPU/POWER board (JP13). Press the Z1 button to switch on the Heater The absorbed current ( Amperometer on the main supply) is OK, the indication HEATER changes from “OFF” to “ON” and the temperature starts increasing. -
Page 41: Steamout
INCANTO 05 SERVICE MODE ERROR: The number remains 0 or the grinder does not run, the display backlight changes from white to red; check the Grinder and the wiring from the Grinder to the CPU/POWER board (JP8) Check the temperature The number shows the heater temperature ERROR: In the indication HEATER appears “SHORT”, the NTC tempera- ture-sensor is shorted, the display backlight changes from white to red; check the wiring from the NTC temperature-sensor to the CPU/POWER board (JP13). ERROR: In the indication HEATER appears “OPEN”, the NTC temper- ature-sensor is detached or broken, the display backlight changes from white to red;... -
Page 42: Default Values
INCANTO 05 SERVICE MODE Once entered the Steam Out mode the display shows the “STEAM OUT” indi- cation. Buttons can be released. IMPORTANT NOTE: to execute the Steam-out procedure the Ntc sensor must work correctly; if some errors occurs on Ntc during the steam-out, the procedure can’t continue and an error message is shown on the display. IMPORTANT NOTE: to execute the Steam-Out procedure the DREGDRAWER must be in place and the DOOR must be closed. If these 2 conditions are not respected a warning message is shown on the display and the Steam-Out is interrupted. -
Page 43: Error Codes
The temperature sensor is in short circuit The temperature sensor is opened The temperature was up to 170° The machine doesn’t heat up The net is not stable The keyboard is not recognized 5.4. Saeco Service Center - Quick Start Guide Saeco Service Center (SSC) is a tool with which you can re-program the machine and check the diagnostic of the same. You can download the software from the following link: http://logsave.logtronics.com/SSC2/publish.htm In support of this tool it is essential to order the Saeco Programming Device: Cod. - Page 44 INCANTO CHAPTER 6 SERVICE AND MAINTENANCE...
-
Page 45: Repair Flow
Repair Flow INCANTO 06 SERVICE AND MAINTENANCE 6.1. Repair flow Proces stap Saeco no. Action Intake 1 Visual inspection (transport damage) take care for pictures 2 Check Type/serialnumber Log all available accessory Diagnosis 3 Check product for consumer complaint (NFF contact consumer) ... - Page 46 Grinder Is the grinder noise normal Steam Steam Does the steam work Hot Water Does the hot water work INCANTO 06 SERVICE AND MAINTENANCE Milk (if applicable) Cappuchino Does the cappuccinatore produce good froth Leakage Leakage 14 Did the product leak during the testing 15 Draining the circuit (in winter) ...
-
Page 47: Disassembly
INCANTO CHAPTER 7 DISASSEMBLY... -
Page 48: Outer Shell
INCANTO 07 DISASSEMBLY Incanto AMF Incanto OTC 7.1. Outer Shell Remove the water tank, coffee container cover, drip tray, dreg drawer, brewing unit. Incanto OTC EXT Unscrew the screws shown and remove the water tank increased and the bean container increased. Remove the cover as in the photo. In case of any issues Upper cover please you can try with the alternative way below de- scribed. Cover a screwdriver with adhesive paper to prevent scratching the chromed shell. Unscrew the screws shown Remove the cover as in the photo. -
Page 49: Dispenser
INCANTO 07 DISASSEMBLY Unscrew the screw Unscrew the screw shown Press the sides and remove the cover and shown and remove dispenser. Insert as before to reassemble the the cover. dispenser in the rail and then the coverage. Unscrew the screws shown Remove the insert the upper cover Remove the support KYB assy. Remove the upper cover and remove the electrical and and disconnect the flat cable. water circuit connections. remove the block support KYB assy. 7.2. Dispenser unlock where highlighted and re- Unscrew the screws shown and move the cover in the dispenser remove the dispenser... -
Page 50: Coffee Grinder
INCANTO 07 DISASSEMBLY 7.3. Coffee grinder When reassembling the coffee grinder, make sure the spring is Raise the coffee grinder and remove the connections. repositioned correctly (see photo). 7.4. Grinder blades To extract the top support of the appliance, press on the grinding adjustment spindle (A) and turn the support anticlockwise until it unhooks. Turn the grinder blades anticlockwise out of the support. Turn the grinder blades clockwise out of the support. The bayonet connections can be accessed from the rear. -
Page 51: Coffee Grinder Adjustment
INCANTO 07 DISASSEMBLY For a standard adjustment, both markings must be aligned. 7.5. Coffee grinder adjustment The grinding adjustment can be set by the user (only with the coffee grinder in operation) by pressing and turning (only by one click at a time) the insert inside the coffee bean hopper with the aid of the wrench supplied. Adjustment by a service center To adjust grinding further, the engineer can work directly on the coffee grinder by pressing and turning the ring nut (C) shown. (clockwise + to increase the particle size of the coffee and anticlockwise decrease it). If there are any remains of coffee powder between the two grinding blades it is recommended to tighten by max. two marks at a time. Lastly, move the arrow (A) on the adjustment knob to the center of the adjustment dots on the cover (B). -
Page 52: Carafe Connection And Hot/Steam Water Dispenser
INCANTO 07 DISASSEMBLY 7.6.Carafe connection and hot/steam water dispenser Slide out the fork Loosen the screws holding When reassembling the assembly to be as illustrated the carafe connection careful to correctly position the spring. hot water dispenser unscrew the screws Removes the covers shown shown 7.7. Central plate unscrew the screws shown Lift up the center plate... -
Page 53: Pin Boiler
INCANTO 07 DISASSEMBLY 7.8. Pin boiler Loosen the screws as illustrated and remove the boiler pin (A). 7.9. Gear motor Loosen the screws as illustrated and remove the gear motor cover. The following are located inside the compartment protected by the casing: - E lectric motor (A) with gears (B) and (C) for transmission and timing of the dispenser. - B rewing unit present microswitch (E). -
Page 54: Pump
INCANTO 07 DISASSEMBLY 7.10. Pump Unhook the pump Disconnect the water circuit connections (A) and from the supports. electrical connections (B), loosen the safety valve (C) and slide the pump off the brackets (D). 7.11. Flow-meter Lift the flow meter out of the casing assembly and remove the electrical and water circuit connections. 7.12. Boiler Unscrew the screw shown and remove the electrical and water circuit connections. Unscrew the screw shown at unthread the support boiler... -
Page 55: Cpu Board
07 DISASSEMBLY 7.13. CPU board Loosen the screws slide the card off the support and disconnect the electrical connections. 7.14. Programming access for SSC (Saeco Service Center) Loosen the screw for remove the cover. 7.15. KYB interface and display Remuve the cap, unscrew the screw shown and remove the steam tube. Unscrew the screw shown Press the sides and remove the cover and Remove the cover. -
Page 56: Fitting And Removing Oetiker Clamps
INCANTO 07 DISASSEMBLY Loosen the screws for remove the cover. Remove the support KYB assy. Disconnect the electrical and disconnect the flat cable. connections. 7.16. Fitting and removing Oetiker clamps 1) Boiler connection. 2) Other connections. Use a suitable pair of pliers to remove Tighten the clamp as illustrated. the clamp (as illustrated). -
Page 57: Notes
INCANTO CHAPTER 8 NOTES... - Page 58 INCANTO 08 NOTES...
-
Page 59: Water Circuit Diagram
INCANTO CHAPTER 9 WATER CIRCUIT DIAGRAM... - Page 60 INCANTO 09 WATER CIRCUIT DIAGRAM Incanto...
-
Page 61: Electrical Diagram
INCANTO CHAPTER 10 ELECTRICAL DIAGRAM... - Page 62 INCANTO 10 ELECTRICAL DIAGRAM Incanto...
