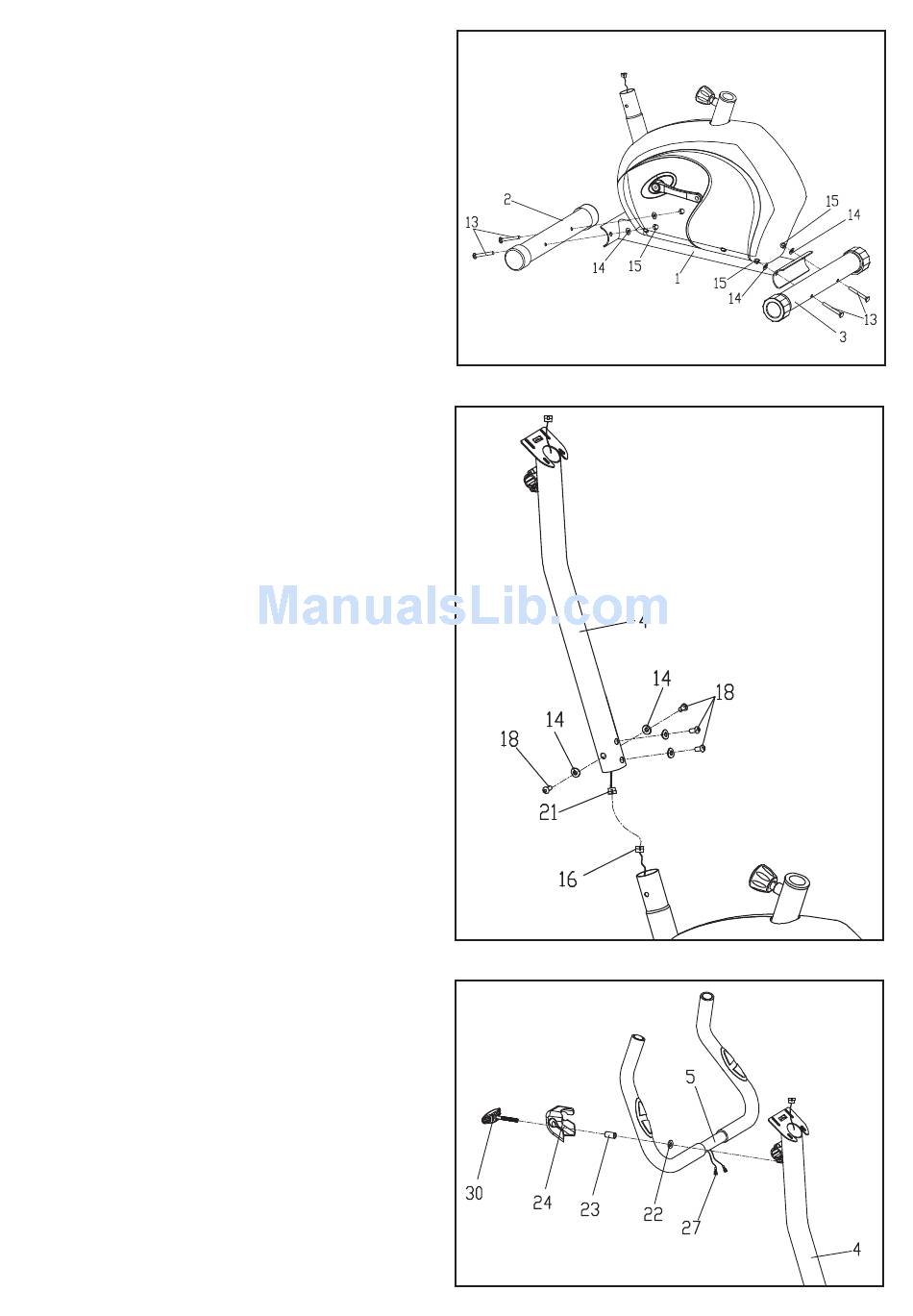

STEP 1
Install the Front stabilizer tube (2) and Rear stabi-
lizer tube (3) to the Main frame (1) fixing with the
Bolt (13), Arc washer (14) and Acorn nuts (15) .
STEP 2
First, connect the Sensor wire(16) with Sensor con-
nective wire (21),then fix the Vertical tube(4) on the
Main frame (1) with Bolt(18) and Arc washer(14) .
STEP 3
Put the Pulse wire through the top hole of the
Vertical tube (4), then adjust the Handlebar (5) to
a appropriate lacation ,then tighten the Handlebar
to the Vertical tube (4) with Bolt(30),Handle cov-
er(24), Fix Pipe (23) and Flat washer(22).
