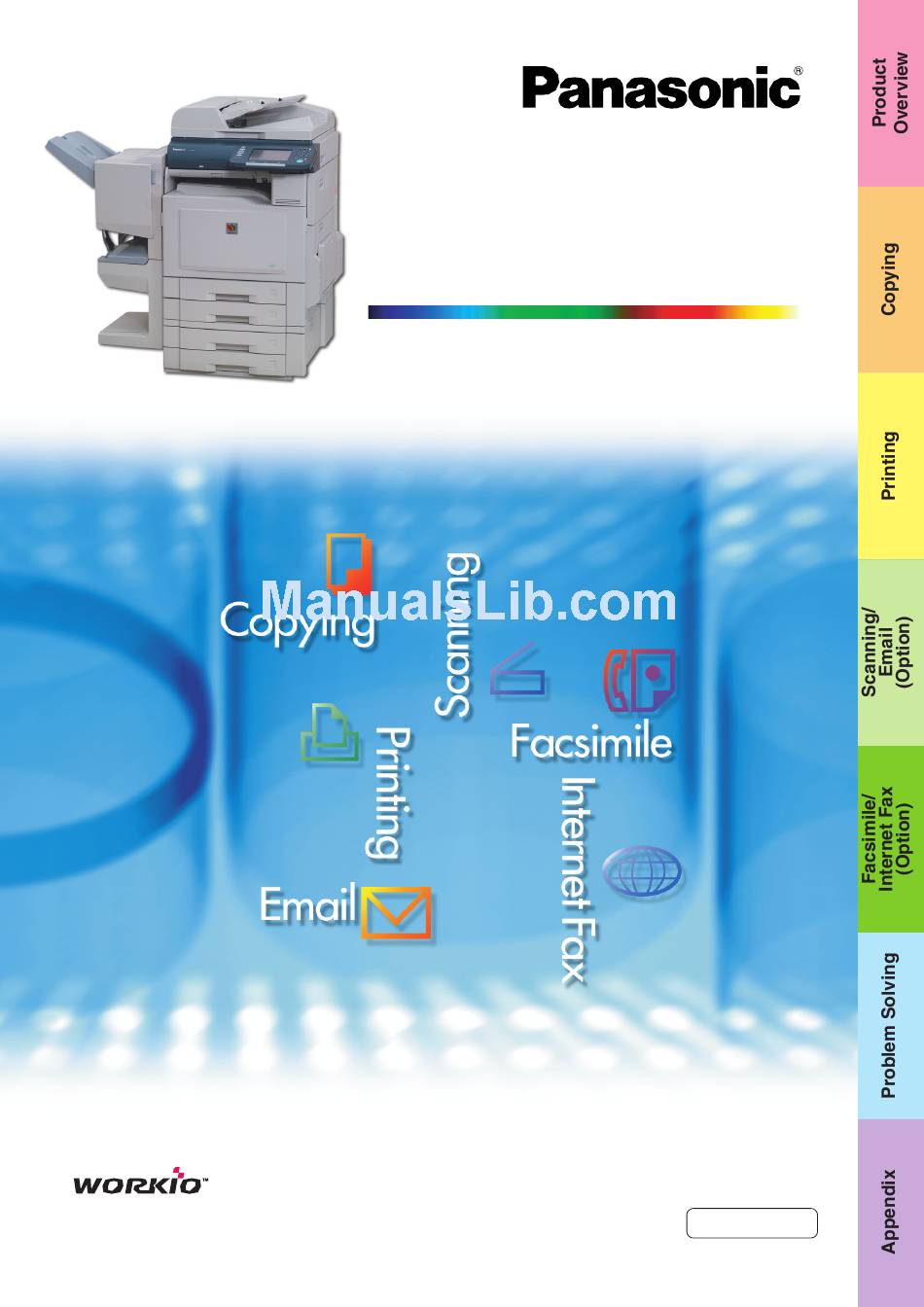

Page 1 Digital Colour Imaging Systems Operating Instructions (For Basic Operations) DP-C262/C322 Model No. Before operating this machine, please read this manual completely English and keep this manual for future reference. (Illustration shows optional accessories that may not be installed on your machine.)
Page 2: Operating Instructions
Operating Instructions The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual and keep all manuals for future reference. If you lose the manual, contact the authorized Panasonic dealer. Operating Instructions (For Setting Up) This manual contains essential information for setting up the machine.
Page 3: Useful Office Function
Useful Office Function Colour Touch Panel • Easy operation using the Colour Touch Panel Display. • Control Panel viewing angle is adjustable to 4 practical positions. SD Card Slot • The built-in SD Card Slot provides a quick and convenient way to print directly from ATTENTION the SD Memory Card.
Page 4: Table Of Contents
Table of Contents Product Overview Facsimile / Internet Fax (Option) ■ Operating Instructions ......... ■ Useful Office Function ......... ■ Safety Information ........■ Address Book (Facsimile) ■ Precautions ..........● Creating an Address Book ......■ Outer/Inner View .......... 12 ■...
Page 5 This product will automatically “power down” after a specified period of non-use. The use of this NERGY ® compliant product will reduce energy consumption and ultimately benefit the environment. The default functions can be adjusted depending on your office requirements. Please ask your authorized Panasonic dealer for more details.
Page 6: Safety Information
Safety Information For Your Safety To prevent severe injury and loss of life, read this section carefully before using the Panasonic DP-C262/C322 to ensure proper and safe operation of your machine. ■ This section explains the Warnings and Cautions used in this Operating Instructions manual.
Page 7 Keep SD Memory Card/button battery/stamp switch Off and unplug the machine immediately. out of the reach of children. If a SD Memory Contact the authorized Panasonic dealer. Card/button battery/stamp is swallowed Operating a debris-contaminated machine can accidentally get medical treatment immediately.
Page 8: For Your Safety
Safety Information For Your Safety CAUTION Consumable Safeguards Black Toner INGREDIENTS: Stylene / butylacrylate copolymer Mn-Mg-Sr ferrite powder Polyethyele Be sure to use the specified type of batteries Carbon Black (1333-86-4) Amorphous silica only. Cyan Toner INGREDIENTS: Magenta Stylene / butylacrylate copolymer Ensure that batteries are installed with correct Toner Mn-Mg-Sr ferrite powder Polyethyele Blue,...
Page 9: Precautions
Precautions Precautions ■ ■ ■ ■ ■ Laser Safety LASER SAFETY This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury. CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Page 10: Illegal Copies
As the colours of the wires in the main lead of this humidity. appliance may not correspond with thecoloured ■ Use of other than genuine Panasonic supplies can markings identifying the terminals in your plug, proceed damage the machine. This may void the warranty of the as follows: machine and supplies.
Page 11 Copy/Scanner function(s) ■ Others cannot be used. Please consult with the Key Operator Panasonic is not responsible for data loss and any regarding the Department Code(s) for the desired consequence caused by computer virus infection or function.
Page 12: Outer/Inner View
Outer/Inner View <Outer (Right Side)> <Outer> Right Side Cover ADF Cover ADF (Automatic Feed Cover 1 Document Feeder) ADU Cover Power Switch Sheet Bypass SD Card / PC Card Slot Cover Optional Control Panel Feed Cover Inner Output Tray Front Cover Feed Cover 2 Paper Tray 1, 2 Paper Tray 3, 4...
Page 13: Control Panel
Control Panel 3 4 5 Icon Contents Icon Contents Energy Saver key Machine Condition LED 10 11 Saves power while the machine is not Print Data, Status, Active (See page 14) in use. Touch Panel Display Printer On Line LED Sets desired functions.
Page 14 Lights : The machine stops and will not allow further operation. Call Service Periodical service is required. Call the authorized Panasonic dealer. Machine Condition LED Add Paper Flashes: When receiving print Add paper to the Paper Tray or data.
Page 15: Touch Panel Display
Touch Panel Display Copy Function 14 13 Contents Contents Function Indication Preset Jobs button Indicates the function mode. Stores or recalls the copy job(s). (Copy, Facsimile/Internet Fax, Scan/Email or Print) Message Area Output Queue button Indicates the message. Displays the active and reserved job(s). Status button Completion Notice button Indicates the problem status.
Page 16: Scan/Email Functions (Option)
Touch Panel Display Scan/Email Functions (Option) 10 9 Contents Contents Function Indication Destination buttons Indicates the function mode. Displays the registered destinations (PC/Email (Copy, Facsimile/Internet Fax, Scan/Email or Print) Address). Message Area SD Card / Hard Drive tab Indicates the message. Sends scanned data to SD Memory Card, PCMCIA/ PC Card Adapter or HDD directly.
Page 17: Facsimile/Internet Fax Functions (Option)
Facsimile/Internet Fax Functions (Option) 14 13 Contents Contents Function Indication Search button Indicates the function mode. Searches the destination(s) from the Address Book. (Copy, Facsimile/Internet Fax, Scan/Email or Print) Message Area Scroll buttons Indicates the message. Displays the other destination screen. Address Book button Destination buttons Displays the Address Book.
Page 18: Placing Originals (Copy)
Placing Originals (Copy) ■ ■ ■ ■ ■ How to Place Originals ● ● ● ● ● On the ADF Face Up Up to 70 sheets (80 g/m Set the originals up to the Upper Limit Indicator. Original Guides Adjust to the Upper Limit Indicator original's width Upper Guide...
Page 19 Notice for Platen For Portrait Orientation Align the original to top left corner mark ( ● Original Guides If the original is not positioned properly, a portion of the original may not be copied. ● For originals smaller than A5 size, position the original within the A5 area and select Original Orientation Ex: A5...
Page 20: Basic Copy Operation
Basic Copy Operation Full Size/Auto Colour Full Size Copy Auto Colour Copy Mode Selection Original Size and Copy Size are Colour Copy Mode is automatically selected automatically selected. when colored originals are detected. Ex: A4 Size Original Size: Copy Size: Colour Colour Monochrome...
Page 21 Select the required settings. (See pages 22-37) ● Original/Copy size is automatically selected. Enter the desired number of copies. (Up to 999) Press the Start key. NOTE ● After finishing copying, press the Reset key to return the machine to the initial screen of the current active mode.
Page 22: Basic Menu & More Menus
Basic Menu & More Menus Basic Menu ● While in Copy mode, select "Basic Menu" to configure the following copy settings. ● For other mode settings, refer to Basic Menu Features in the Operating Instructions (For Copier) on the provided CD-ROM.
Page 23: Completion Notice
A Job Completion Notice is displayed via a pop-up window on the Desktop of your PC when the Copy Job is completed. ● Before using this function, install the Panasonic Select alphabetical group. Document Management System and PCL Printer Driver, and then set up each software.
Page 24: More Menus
Basic Menu & More Menus More Menus ● While in Copy mode, select "More Menus" to configure the following copy settings. ● For other mode settings, refer to More Menus Features in the Operating Instructions (For Copier) on the provided CD-ROM.
Page 25 Sort / Finish tab When optional Finisher is not installed. (See pages 34 and 35) Sort Non Sort Rotate-Sort Rotate-Group When optional Finisher is installed. (See pages 34 and 35) Sort Non Sort Shift-Sort Shift- Staple-Sort Punch Group Zoom / Effects tab Refer to Zoom Mode, Effect Modes in the Operating Instructions (For Copier) on the provided CD-ROM.
Page 26: Reduction / Enlargement Copy
Reduction / Enlargement Copy Copying with Preset Ratios (Reduction/Enlargement) Ex: Enlargement Ex: Reduction A4-R A4-R NOTE ● When changing the paper size, select "Paper/Output Tray" and select a Paper Tray. Do not try to change paper size with Copy Size button because selected copy size will be changed. Place Original(s) in Landscape Select a Copy Size.
Page 27 The exact ratio (%) is automatically selected. Copy Size (Landscape) Original Size (Landscape) ● Paper Tray will be selected according to the copy size. ● When the suitable paper is not in the paper tray, use the sheet bypass. (See pages 64 and 65) Enter the desired number of copies.
Page 28: 2-Sided Copy
2-Sided Copy 1 -> 2 Copy : 2 -> 2 Copy : Select "2->2" copy mode when copying one 2-Sided Select "1->2" copy mode when copying two 1-Sided original onto one 2-Sided copy. (Same as the original) originals onto one 2-Sided copy. The 1st original's image is copied onto the Front side and 2nd original's image is copied onto the Back side of the copy.
Page 29 Select an Original Orientation. Enter the desired number of copies. (Ex: 1->2 screen) (Up to 999) Portrait : Press the Start key. Portrait orientation denotes a media that is taller than it is wide. Landscape : Landscape orientation denotes a media that is wider than it is tall.
Page 30: Book -> 2 Copy
2-Sided Copy Book -> 2 Copy Select "Book ->2" copy mode when copying two facing pages or a A3 size original on two separate A4 size sheets. 1st Page Imaged 1st Page Blank 1st Page 2nd Page 1st Page 1st Page 2nd Page Blank 1st Page...
Page 31 Select a Book Format and the Select "OK". Orientation. Select a Book Format. Enter the desired number of copies. 1st Page (Up to 999) with Image 1st Page Blank Select the Orientation. Portrait Landscape Press the Start key. Select the Page Order and the Copy Format.
Page 32: N In 1 Copy
N in 1 Copy N in 1 Copy Select "N in 1" copy mode when copying 2, 4 or 8 sheets of originals (printed on 1-side) onto 1 sheet of paper. Ex: "4 in 1" Copy If you copy 4 sheets of originals which are printed on 1-side. They are reduced and copied onto 1-side of a single sheet of paper.
Page 33 Select an Original Orientation. Enter the desired number of copies. (Ex: 2 in 1 screen) (Up to 999) Portrait Landscape Press the Start key. Select the desired number of pages (N in 1) for the copy layout, and then select "OK". For 2 in 1 ●...
Page 34: Sort Copy / Finishing
Sort Copy / Finishing Sort Copy/Finishing ● Sort The following Finishing modes are available when the optional Finisher and Punch Unit are installed. ● For more details, refer to Sort Mode in the Operating Instructions (For Copier) on the provided CD-ROM. Shift-Sort Shift-Group Rotate-Sort (A4 or A5 size only)
Page 35 When optional 1 Bin Finisher is installed. Enter the desired number of copies. (Up to 999) Ex: Portrait Original Press the Start key. Select the Orientation. Portrait Landscape When optional 1 Bin Saddle-Stitch Finisher is installed. ● When copying from the Platen Glass, place the next original and follow the instructions described on the touch panel display.
Page 36: Others
Others Double Exposure Select "Double Exposure" copy mode when copying a 2-Sided original that is smaller than A5 in size onto a standard size media (Ex: A4 size). One side (Front) of the original is copied at the top of the page, and the other side (Back) is copied at the bottom on the copied media as illustrated below.
Page 37 Press the Start key. Press the Start key. For Sort mode only Select "Yes" or "No" to copy the back side of the original. Select "Yes" to finish copying. ● The message is changed according to the sort mode. ● To continue copying other originals, select For Non Sort : The message "Another "No"...
Page 38: Printing From Sd Memory Card / Pc
Printing from SD Memory Card / PC Printing images directly from the SD Memory Card Thumbnail SD Memory Card Individual Index Print or PCMCIA/PC Card Adapter ● JPEG format only File List ● JPEG ● TIFF (black & white) ● PDF (when intalling optional Printer Controller Module) Printing from PC...
Page 39 When "File List" is selected, select Folder and image on the SD Memory Card, and then select "Start". are displayed automatically. Ex: Digital Camera (Panasonic LUMIX) If the desired data, and the name of the folder is not displayed, keep pressing the Folder ●...
Page 40 Printing from SD Memory Card / PC For Individual For Individual Select the size for the printed Image. Select the desired Paper Tray and/or 2- Sided print, and then select "OK". Select "OK". For Variable Size (Go to step 9) Select a Paper Tray.
Page 41 For Index Print For Individual / Index Print Select a Printing Layout. Select "Start". ● When printing from SD Memory Card, printed paper is output to the Inner Tray. (Output Tray cannot be selected.) Select the desired Paper Tray and/or 2- After printing is completed, remove the SD Memory Card or PCMCIA/PC Card Sided print, and then select "OK".
Page 42: Scanning
(For Scanner and Email) on the provided CD-ROM. ● When transferring scanned data to your PC, it is necessary first to install the Panasonic Document Management System software, and set up the scanner configuration on your PC. For more details, refer to the Operating Instructions (For Setting Up) of provided booklet.
Page 43 Select "Address Book", and then select Press the Start key. the destination for the scanned data. (PC or SD Memory Card) ● When transferring the data to a SD Memory Card, select "SD Card / Hard Drive" and select "SD Card" for your destination. ●...
Page 44 Scanning ● While in Scan/Email mode, select "Basic Menu" to configure the following scanner settings. ● For more details, refer to Scanner Settings in the Operating Instructions (For Scanner and Email) on the provided CD-ROM. Quality Adj. When " " is selected. Change the required default settings.
Page 45 2-Sided Original When " " is selected. Select the original orientation. Long Edge: Scans both sides of the original, facing them in the same direction. Short Edge: Scans both sides of the original facing them in the opposite direction. Job Build and SADF When "...
Page 46: Address Book (Email)
Address Book (Email) ■ ■ ■ ■ ■ Creating an Address Book NOTE ● For details on how to edit a registered address, refer to Adding to the Address Book in the Operating Instructions (For Scanner and Email) on the provided CD-ROM. ●...
Page 47 To enter other (PC) destination Enter the destination Station (PC) Name, addresses: and then select "OK". Repeat steps 4 to 7. To exit this setting mode: Press the Reset key. Enter the destination Name. Select "OK". (Up to 15 characters) Enter the Key Name for the Email address, and then select "OK".
Page 48: Sending Email
Sending Email Sending the scanned data via Email Attached JPEG (jpg) / PDF file Colour Scan Attached PDF / TIFF file Monochrome NOTE ● JPEG (jpg) file is not available for multiple pages. ● JPEG (jpg) file is only available in Color/Gray Scale mode. ●...
Page 49 Select "Email", and then enter the Select "Basic Menu" to select the Email Address or select an Email required setting mode. Address from the Address Book. (See page 44 and 45) Select "Email". Select "Basic Menu". Address Book The Address must be registered in advance. (See pages 46 and 47) Select To, Cc, Select an...
Page 50: Address Book (Facsimile)
Address Book (Facsimile) ■ ■ ■ ■ ■ Creating an Address Book NOTE ● For details on how to edit a registered address, refer to Address Book in the Operating Instructions (For Facsimile and Internet Fax) on the provided CD-ROM. ●...
Page 51 Enter the Fax number, and then select Enter the Key Name for the Address "OK". Book, and then select "OK". Enter the Key Name. Enter the Fax number. Select "OK". (Up to 15 characters) Select "OK". (Up to 36 digits including pauses and spaces) ●...
Page 52: Address Book (Internet Fax)
Address Book (Internet Fax) ■ ■ ■ ■ ■ Creating an Address Book NOTE ● For details on how to edit a registered address, refer to Address Book in the Operating Instructions (For Facsimile and Internet Fax) on the provided CD-ROM. ●...
Page 53 Enter the Email Address, and then Select "IFax", and then select "OK". select "OK". Enter the Email Address. Select "IFax". Select "OK". Select "OK". (Up to 60 characters) ● ● To correct a mistake, press to move When selecting "PC", the registered address the cursor to the right side of the incorrect is displayed on both Internet Fax and Email character.
Page 54: Placing Originals (Facsimile/Internet Fax)
Placing Originals (Facsimile/Internet Fax) ■ ■ ■ ■ ■ How to Place Originals ● ● ● ● ● On the ADF Set the originals up to the Upper Limit Indicator. Upper Limit Indicator Upper Guide Original Guides Adjust to the original's width ●...
Page 55 ● ● ● ● ● Original Size From the ADF Maximum Size Minimum Size 2000 mm 140 mm Scanning Scanning Direction Direction From the Platen Glass Maximum Size 432 mm...
Page 56: Sending Originals (Facsimile)
Sending Originals (Facsimile) Sending scanned data via Facsimile You can send originals via a telephone line by simply entering the Fax number using the Keypad or the Address Book. Scan Telephone Line NOTE ● When scanning Full-colour originals, select Text/Photo or Photo to add more details to the scanned data. However, the scanned data is sent in Black and White (Grayscale).
Page 57 Select "Address Book". Ex: Select "Basic Menu" and "Quality Adj.". : Settings are applied. Cancel : Settings are cancelled. Original Type Text : Use for text only originals Text/Photo : Use for text and photo originals Photo : Use for photo or illustration originals Enter the fax number.
Page 58: Sending Originals (Internet Fax)
Sending Originals (Internet Fax) Sending scanned data via Internet Fax You can send originals via LAN. Please check that the other party has Internet Fax capability before using this function. Scan LAN/Internet NOTE ● When scanning Full-colour originals, select Text/Photo or Photo to add more detail to the scanned data. However, the scanned data is sent in Black and White (Grayscale).
Page 59 Select "Address Book", and then Ex: Select "Basic Menu" and "Quality Adj.". select an Internet Fax destination. : Settings are applied. Cancel : Settings are canceled. Original Type Text : Use for text only originals Text/Photo : Use for text and photo originals Photo : Use for photo or illustration originals Density (Scanning Density)
Page 60: Troubleshooting
Does the exposure indicator display Select "Darker". "Lighter"? Does the Add Toner indicator and message Replace the Toner Cartridge. appear on the display? ( (See pages 66-67) ■ If the measures outlined above do not solve the problem, call the authorized Panasonic dealer.
Page 61: Displaying Status
Are there any streaks on the copy image? Scanning Glass (Small). (Refer to "Machine Care" below) ■ If the measures outlined above do not solve the problem, call the authorized Panasonic dealer. Displaying Status Normally, "Status" is displayed in grey on each function screen.
Page 62: User (U) / Jam (J) / Machine (E) Error Codes
Machine will stop. Replace the (Ex: Front Cover is opened.) the current job temporarily. Toner Waste Container. E Codes: Call the authorized Panasonic dealer when machine Error Code (E Codes) appear on the Touch Panel Display. Code Check Points Code Check Points Front Cover is open.
Page 63: Jam Error Codes (J Codes)
Paper Feed Section impossible to see, switch off (Paper Tray 2) Paper Tray 3 the machine and contact the Paper Feed Section authorized Panasonic Paper Tray 4 (Paper Tray 3, 4) dealer. (Option) Removing a Misfed Paper (Locations) ● When a misfed paper occurs, the location and the procedures for removing misfed paper are displayed frame by frame on the Touch Panel Display.
Page 64: Adding Paper
ATTENTION ● If you wish to change the preset paper size used in the Paper Tray, contact your authorized Panasonic dealer. ● Do not place the following types of printing media into the paper tray, use the Sheet Bypass instead.

Page 65 ATTENTION Sheet Bypass Capacity ● Weight : 55 - 220 g/m ● Size : A3 - A5 ● Suitable media: Plain Paper, Thin Paper, Glossy Paper, Recycled Paper, Thick Paper, Coated Paper, Index/Cover Paper, Coated/Cover Paper, Transparency or Labels. ● For more details about media type, see page 98. Adjust the Side Guides.
Page 66: Replacing Toner Cartridge
Replacing Toner Cartridge ATTENTION ● Be sure to use only genuine Panasonic Colour Toner designed for this machine. ● If the display indicates that the Toner is getting low, prepare the new Toner Bottle in advance. ● If the black toner runs out, all Copy/Print functions cease to operate.
Page 67 Gently peel the Tape off in the Firmly close the Front Cover. direction of the arrow. Front Cover Tape ● Do not open the Shutter, otherwise toner will ● If the Toner Cartridge is not turned to Lock spill. Mark properly, you cannot close the Front Cover.
Page 68: Replacing The Opc Drum Unit
● Replace the OPC Drum Unit of the colour shown on the touch panel display. ● Be sure to use only genuine Panasonic Colour OPC Drum Unit designed for this machine. ● Do not scratch or touch the surface of the OPC Drum Unit with bare hands.
Page 69 ATTENTION Carefully insert the new OPC Drum Unit all the way into the machine until it stops. Do not remove the Drum Protective Cover until step 8. Drum Protective Cover OPC Drum Unit Do not touch or turn around the Gear Lock the new OPC Drum Unit by turning the Drum Release Knob clockwise.
Page 70: Replacing Toner Waste Container / Cleaning The Lsu Aperture Glass
Replacing Toner Waste Container / Cleaning the LSU Aperture Glass Always clean the LSU Aperture Glass at the same time the Toner Waste Container is replaced. ATTENTION ● Do not reuse toner from the Toner Waste Container. ● Remove/Replace the cleaner on the inside of the front cover. ●...
Page 71 Replace the Cleaner back inside the Remove the Cleaner from the inside of Front Cover. the Front Cover. Cleaner Cleaner Cleaning the LSU Aperture Glass (4 Insert the new Toner Waste Container Slots). into the machine until it stops. Toner Waste Container (new) Slot Cleaner 1 Insert the Cleaner (felt side down) into the LSU...
Page 72: Replacing The Staple (Fq-Ss32)
Replacing the Staple (FQ-SS32) Replacing the Staple Add Staples indicator will light. Staple Cartridge (FQ-SS32) NOTE ● When the Staple jams, an error message will be displayed. Remove the jammed staple from the staple cartridge as illustrated. Open the Stapler Cover. Pull out the Staple Cartridge.
Page 73 Select “More Menus”. Replace the Staple Case with a new one. Staple Case Staple Case (New) (Empty) ● If the above screen is not displayed, press the Copy key. Insert the Staple Cartridge. Select “Sort/Finish”, “Staple-Sort”, Staple Cartridge and the Staple Position. (See pages 34 and 35) Close the Stapler Cover.
Page 74: Replacing The Staple (Dq-Ss35)
Replacing the Staple (DQ-SS35) Replacing the Staple Add Staples indicator will light. Staple Cartridge (DQ-SS35) NOTE ● When the Staple jams, an error message will be displayed. Remove the jammed staple from the staple cartridge as illustrated. Open the Staple Cover. Turn the Knob on the Stapler Unit clockwise.
Page 75 Set the Staple Case (new). Pull out the Stapler Unit. Staple Case (new) Stapler Unit Pull out the Staple Cartridge by pinching the green buttons. ● Slide the new staple case into the staple cartridge, and then push the cover to close. Staple Cartridge Remove the Tape.
Page 76 <Continued from previous page> To check the stapling operation, place Insert the Stapler Unit. original(s) on the ADF and select “More Menus”. Stapler Unit Face Up Until it Locks Up to 70 sheets (80 g/m Close the Staple Cover. Staple Cover ●...
Page 77 memo:...
Page 78: Removing Misfed Paper
Removing Misfed Paper ■ ■ ■ ■ ■ Paper Feed Section (Paper Tray 1) Open the Feed Cover 1. Remove the Misfed Paper. Feed Cover 1 Misfed Paper Remove the Misfed Paper. Insert the Paper Tray 1. Misfed Paper ATTENTION Close the Feed Cover 1.
Page 79: Adu Section
■ ■ ■ ■ ■ ADU Section Open the Sheet Bypass. Close the ADU Cover. Sheet Bypass ADU Cover Close the Sheet Bypass. Open the ADU Cover. Sheet Bypass ADU Cover Remove the Misfed Paper. Misfed Paper...
Page 80: Fuser/Exit Section
Removing Misfed Paper ■ ■ ■ ■ ■ Fuser/Exit Section ● Misfed paper is transported downward by Open the Feed Cover 1. turning the knob. ● Do not forcibly pull out the misfed paper Feed Cover 1 upward as toner may adhere to the transfer unit and blot the next copy with toner.
Page 81: Paper Transport Section
■ ■ ■ ■ ■ Paper Transport Section ■ ■ ■ ■ ■ Paper Feed Section (Paper Tray 2) Open the Transport Cover. Open the Feed Cover 2, and then remove the Misfed Paper. Transport Cover Feed Cover 2 ● Press the button on the Transport Cover to open.
Page 82: Paper Feed Section (Optional Paper Tray 3 Or 4)
Removing Misfed Paper ■ ■ ■ ■ ■ Paper Feed Section (Optional Paper Tray 3 or 4) Open the Option Feed Cover. Remove the Misfed Paper. Misfed Paper Option Feed Cover Remove the Misfed Paper. Insert the Paper Tray 3 or 4. Misfed Paper Pull out the Paper Tray 3 or 4.
Page 83: 1-Bin Finisher Section
■ ■ ■ ■ ■ 1-Bin Finisher Section Slide the Finisher to the left. Open the Finisher Top Cover, and then remove the Misfed Paper. Release Button Finisher Top Cover ● Push the Release Button to free the Finisher from the machine. Remove the Misfed Paper.
Page 84: 1-Bin Saddle-Stitch Finisher Section
Removing Misfed Paper ■ ■ ■ ■ ■ 1-Bin Saddle-Stitch Finisher Section Slide the Finisher to the left. Close the Finisher Top Cover. Finisher Top Cover Release Button ● Push the Release Button to free the Finisher from the machine. Open the Finisher Top Cover.
Page 85 Remove the Misfed Paper. Remove the Misfed Paper. Misfed Paper Misfed Paper Close the Staple Cover. Close the Inner Cover. Staple Cover Inner Cover Open the Inner Cover. Slide the Finisher back until it locks into place. Inner Cover...
Page 86: Adf Section
Removing Misfed Paper ■ ■ ■ ■ ■ ADF Section Open the ADF Cover, and then remove Remove the Misfed Paper. the Misfed Paper. Misfed Paper Misfed Paper Open the Inner Cover, and then remove Open the Exit Unit, and then remove the Misfed Paper.
Page 87 Remove the Misfed Paper, and then Pull down the ADF Tray, and then close close the Platen Cover. the Inner Cover. Misfed Paper ADF Tray Open the Platen Cover. Close the ADF Cover. ADF Cover Turn the Paper Transport Knob counterclockwise.
Page 88: Dispose Of The Punch Hole Residue
Dispose of the Punch Hole Residue Dispose of the Punch Hole Residue (1-Bin Saddle-Stitch Finisher) When the Container becomes full with punch hole residue, an error message will be displayed. Slide the Finisher to the left. Insert the Punch Hole Residue Container (Empty).
Page 89 memo:...
Page 90: Replacing The Battery
Replacing the Battery Replacing the Battery The machine has an internal battery (Product No. CR2032) which maintains the date and time. When the battery requires replacement, the Status button turns from grey to yellow. (See page 61) If the status indicates the replacement of the battery, replace it by the following procedures. The service life of the battery is approximately 1 year under normal use.
Page 91 Fasten it with the Screw. Turn the Battery Holder upside down. Screw Remove the old Battery. Old Battery Insert the new Battery into the holder. New Battery ● "+" side of battery should be facing upwards. ● Replace only with the same or equivalent type of battery.
Page 92: Setting The Date And Time
Select "09 Key Operator Mode". 09 Key Operator Mode Select "General Settings". Enter the identification code (4-digit), and then select "OK". Select "OK". Enter the identification code (4-digit). ● For details on how to set the identification code, consult with the authorized Panasonic dealer.
Page 93 Select "22 Date Time Setting". Select "Close". 22 Date Time Setting 20-39 Select "Input", and then enter the Press the Reset key to exit the Date and Time. Function Setting mode. Ex: 1st/May/2005 00:00 Select "Input". Enter the date and time using the Keypad. (Date/Month/Year/Time) Select "OK".
Page 94: Specifications
Specifications Main Unit Type: Semi Console Type Platen Type: Fixed Acceptable Originals: Sheets, Books (Max. A3) Copying Method: Laser Indirect Electric Static Fusing Method: Induction Heating System Imaging Method: Dry-Type Dual Component Trickle Resolution: Max. 600 dpi Operation Panel: 7.8" Full Colour Touch Panel Display Copy Size: Paper Tray : A3 - A5...
Page 95: Adf (Standard)
ADF (Standard) Tray Capacity: 70 sheets (80 g/m Original Size: A3, B4, A4, A4-R, A5, A5-R, FLS1, FLS2 Paper Weight: 1 sided : 50-105 g/m / 2 sided : 64-105 g/m Electrical Requirements: Supplied from the machine PCL Printer Unit (Standard) Printing Speed: Black and White : Up to 26 sheets/minute (DP-C262), 32 sheets/minute (DP-C322)
Page 96: G3 Facsimile (Option)
Specifications G3 Facsimile (Option) Compatibility: ITU-T Group 3 Coding Scheme: JBIG, MH, MR, MMR (Conforms to ITU-T Recommendations) Modem Type: ITU-T V.34, V.17, V.29, V.27 ter and V.21 Modem Speed: 33600-2400 bps Document Size: A5 - A3 Max : Platen Glass : A3 : A3 Min : Platen Glass : No Minimum : A5...
Page 97: 1-Bin Finisher (Option)
1-Bin Finisher (Option) Paper Size: A4, B4, A3 Paper Weight: 64-90 g/m Stacking Capacity: : 500 sheets B4, A3 : 250 sheets Staple Sort: : 30 sheets B4, A3 : 20 sheets Electrical Requirements: Supplied from the machine Dimensions (W x D x H): 182 mm x 498 mm x 257 mm Mass (Weight): 10 kg...
Page 98: Paper Type
Do not use the following type/flawed paper to avoid image quality related problems, mechanical failures or misfeeding problems. Consult with an authorized Panasonic dealer for advice regarding non-standard paper types. Tracing paper, Pressure-sensitive paper, Transparency with white border, Special paper for ink-jet printer, Thermal recording paper, Thermal transfer paper, Photo paper,...
Page 99: Option And Supplies
ADF Handle for Accessibility DA-UD321 — SD Memory Card — For Facsimile/Internet Fax Function (Please contact your local authorized Panasonic dealer for more details about purchase and installation of the SD Memory Card.) Toner Cartridge (Black) DQ-TUN28K Toner (Black) Toner Cartridge (Cyan)
Page 100: Regulatory Information
Regulatory Information Declaration of Conformity (DoC) Panasonic Communications Co., Ltd. declares that this G3 Facsimile equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. If you want to get a copy of the original Declaration of Conformity of our products which relates to Directive 1999/5/EC, please contact to our web address: http://www.doc.panasonic.de...
Page 101: For Germany Users
Different characteristics of the equipment at the other end of the call, and/or variations in line conditions, may mean that it will not always be possible to communicate at the higher speeds for which this machine has been designed. Neither Telecom or Panasonic New Zealand can accept responsibility should this situation arise. IMPORTANT NOTICE Under power failure conditions, this telephone may not operate.
Page 102: Index
Index Numerics 1 -> 2 Copy ............24, 28 2 -> 2 Copy ............24, 28 Edge ................25 2 -> 1 Copy ..............24 Email button (Scan/Email) ........... 16 2 Page Copy ..............24 Email button (Facsimile/Internet Fax) ......17 2-Sided Copy ............
Page 103 Operating Instructions ............ 2 Safety Information ............6 Option and Supplies ............ 99 Scan/Email key ............13 Original Size (Scan/Email) ........... 44 Scanning ..............42 Others (Double Exposure) ........... 36 SD Card Print ............38-41 Outer/Inner View ............12 SD Card Slot ..............3 Output Queue ..............
Page 104: Glossary
Glossary Address Book The Address Book is a convenient directory that stores contact Phone Numbers and Email Addresses for easy retrieval at a future time. Address Book Dialing A dialer that enables you to dial an entire Telephone Number/Email Address by pressing one key.
Page 105 The physical component of a PC which performs the basic operations on the hard (Hard Disk Drive) disk-including rotating the disk & reading/writing data to the disk. Install To add hardware or load a software application onto your multi-functional machine/ computer.
Page 106 Glossary Protocol A standard process, a set of rules & conditions that perform a particular function. A word which is very common in PC & Internet Terminology. Ex: FTP (File Transmission Protocol), IP Address (Internet Protocol Address), TCP/IP (Transmission Control Protocol Internet Protocol), POP (Post Office Protocol) Resolution This relates to the quality of a viewed image either on the PC Screen or printed...
Page 107 memo...
Page 108 memo...
Page 109 License/GNU Lesser General Public License and other open software. For more details and applicable license terms thereof, please refer to the relevant information in the CD attached herewith. © 2005 Panasonic Communications Co., Ltd. All Rights Reserved. Unauthorized copying and distribution is a violation of law.
Page 110 For Service, Call: For Customer Support: Panasonic Communications Co., Ltd. Fukuoka, Japan http://www.panasonic.co.jp/global/ CR0405-3075 PJQMC0280ZD July 2005 Printed in Japan...
