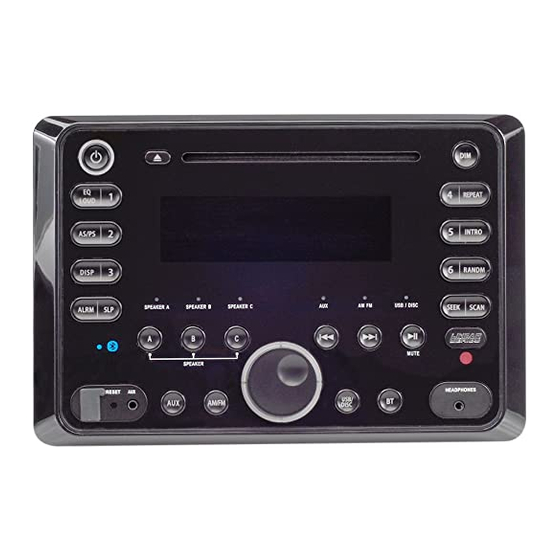

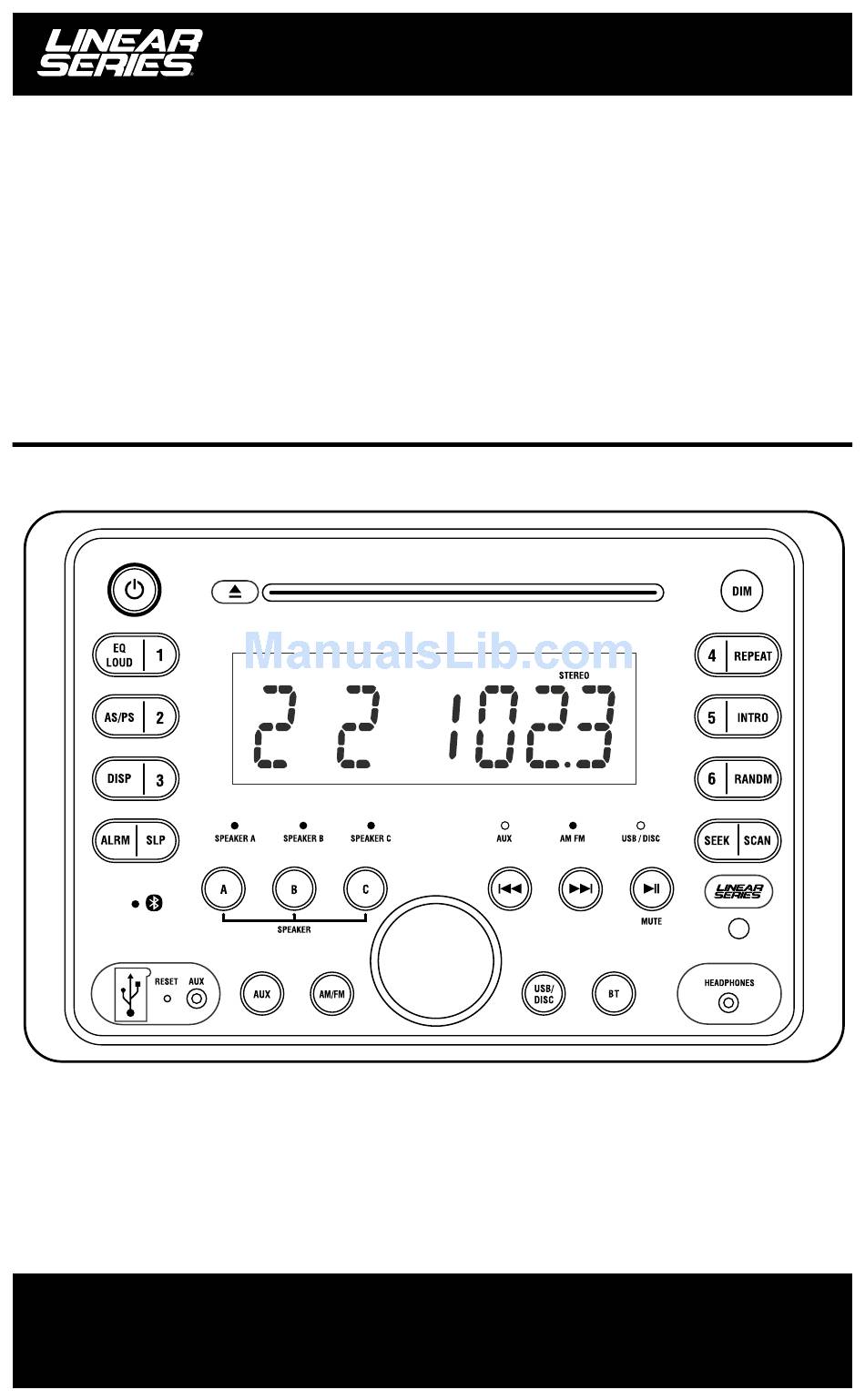

- Page 1 Operation and Installation Manual RV5090 AM / FM Stereo Multi-Media Receiver with Bluetooth For Technical Assistance, please call (800) 638-3600, or for more accessories or replacement parts visit www.magnadynestore.com.
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and instal- lation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove cover or bottom screws. -
Page 3: Button Locations And Functions
Button Locations and Functions 1. Power On/Off: Press to turn the unit on or off. 2. Radio Station Recall Buttons (1-3): Press and release when recalling preset radio stations. Press and hold until the preset number appears to memorize a radio station. ): Press to eject the disc. -
Page 4: Button Locations And Functions
23. Audio Input Jack: Press the AUX button until “AUX” appears in the display then plug in a device via the 3.5mm audio input plug. Note: The RV5090 does not control the device, it just allows the audio to be played through the system. 24. Reset Button: Press to reset the unit to it’s default settings. -
Page 5: Remote Control Button Locations And Functions
Remote Control Button Locations and Functions 11. AS/PS Elapse Button: EJECT POWER Radio: Automatic radio station memory storing MENU MODE (AS) and Preset radio station scanning (PS). (See “AM/FM Operation” for more details). SETUP TONE Disc: Press to display movie information. 12. -
Page 6: General Operation
General Operations Power On/Off: Press the button to turn the unit On/Off. Selecting a Play Source: To select a play source, press one of the following mode buttons: AUX: Audio Input Front (AUX), Audio Input Rear (AUX IN) AM/FM: AM (KHz) or FM (Mhz) Radio Band (RADIO) USB/DISC: Disc (DISC) or USB Input (USB) BT: A2DP Bluetooth Audio. - Page 7 Sound Controls Bass, Treble and Balance Control Select the desired sound mode by pressing the VOLUME knob. The modes will be displayed in the following order: Bass, Treble, Balance and Volume. Bass: Select the Bass mode by pressing the VOLUME knob.
-
Page 8: Sound Controls
Sound Controls (Continued) Mute: Press the MUTE button to mute the volume level. Press the MUTE button again to restore the volume. Speaker Selection Selecting Speaker Sets: • Press the A button to toggle speaker set A on and off. The LED above SPEAKER A lights up when speaker set A is on. -
Page 9: Setting The Clock
Setting the Clock (Continued) 4. Press the VOLUME knob and the Minute indicators will start flashing. 5. Rotate the VOLUME knob until the correct Minutes appears in the display. Wait 5 seconds and the colon between the hours and the minutes will start flashing indicating the clock is set. -
Page 10: Alarm Operation
Alarm Operation Setting the Alarm Timer: 1. Press the ALM button and the clock will appear in the display with the Hour number flashing. 2. Rotate the VOLUME knob until the correct Hour appears in the display. “ALARM” will appear in the display indicating the alarm is activated. -
Page 11: Radio Operations
Radio Operations Selecting the Play Source: Press the AM/FM button and “RADIO” appears in the display. After a brief moment either KHZ (AM) or MHZ (FM) will appear in the display. Selecting the AM or FM: Press the AM/FM button repeatedly and select from MHZ (FM) 1, 2, 3, KHZ (AM) 1 or 2. -
Page 12: Radio Operations
Radio Operation (Continued) Memorizing Radio Stations: 1. Press the AM/FM button to select either the MHz (FM) 1, 2, 3, KHz (AM) 1 or 2 radio bank. 2. Tune-in the desired radio station. 3. To memorize the station press and hold anyone of the six radio station recall buttons until the preset number appears. -
Page 13: Music Disc Operation
Music Disc Operation Label Side Up General Operations: Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. -
Page 14: Ejecting The Disc
Music Disc Operation (Continued) Stopping the Disc: EJECT POWER Press the button to stop the disc. To resume MENU MODE play, press the button. SETUP TONE Pressing the button 2 times, then pressing the button will play the disc from the beginning. ENTER Ejecting the Disc: Press the... -
Page 15: Music Disc Operation
Music Disc Operation (Continued) Elapse Times: Continue to press the AS/PS button during music disc play to display the following disc information in this order: Single Elapse, Single Remain, Total Elapse and Total Remain. MP3 Disc Operation Label Side Up General Operations: Gently insert the disc into the slot with the label side up. -
Page 16: Mp3 Disc Operation
MP3 Disc Operation (Continued) Stopping the Disc: POWER EJECT Press the button to stop the disc. To resume MENU MODE play, press the button. SETUP TONE Pressing the button 2 times, then pressing the button will play the disc from the beginning. ENTER Ejecting the Disc: Press the... -
Page 17: Menu Function
Movie Disc Operation Label Side Up General Operations: Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. “LOADING” will appear in the display and the disc will automatically start playing. Note: If a disc does not auto-load DO NOT FORCE into the slot, as you may already have a disc loaded. - Page 18 Movie Disc Operation (Continued) Fast Forward / Backwards Movie Play: POWER EJECT Press the (fast forward) or (backwards) MENU MODE button on the remote control during play. Each time the button is pressed the speed of fast SETUP TONE forward/ backwards changes in the following order: 2X, 4X, 8X, 20X ENTER To resume normal play, press the...
-
Page 19: System Setup
Movie Disc Operation (Continued) Audio Language Menu: AS/PS Press the AUDIO button during playback to review ELAPSE the current setting. Most movies have their own 10 + 10/0 AUDIO SUB.TT audio setup. Go to the on-screen menu to select appropriate audio/language setup. Setup Menu Accessing the Movie Disc Setup Menu: EJECT... -
Page 20: Usb Input
USB Input Selecting USB Audio Play Source: Press the USB/DISC button and “DISC” appears in the display. Remove the cover from the USB port. Insert the USB device and the files will automatically start playing. Note: You can insert the USB device in any mode, the unit will automatically switch modes and start playing the USB device. -
Page 21: Pairing Bluetooth Devices
Bluetooth Indicator “•” next to logo will flashes every 5 seconds. • is off = RV5090 is not in Bluetooth mode. Note 1: If the Bluetooth mobile device is already • is flashing quickly = RV5090 is trying paired with the entertainment center, select “WALL to pair with the device. -
Page 22: Audio Input
AUX Audio Input Selecting the Audio Source: Note: The RV5090 does not control the device, it just allows the audio/video to be played through the system. Front Audio Input: Insert the 3.5mm jack from the audio device into the AUX input socket on the front of the housing. -
Page 23: Reset Button
Reset Button The LCD display may fail to function normally due to the vehicle’s battery condition, and could require resetting the radio microprocessor if: • The vehicle has been “jump started” from a dead battery condition. • The vehicle battery becomes very low and is quick-charged. -
Page 24: Installation
Installation Wall Panel Chassis Opening Structural Stud Caution: Remove these 2 screws from the top of the radio before using or you will damage the unit. Caution: Do not install radio without rear cover installed: No user-serviceable parts inside. Rear cover provides protection against potential fire hazard. -
Page 25: Speaker Connections
Speaker Connections Left Right Speaker A Speaker A Gray/Black Wire Brown/Black Wire Gray Wire Brown Wire Left Right Speaker B Speaker B Blue/Black Wire Green/Black Wire Green Wire Blue Wire Right Left Speaker C Speaker C Purple Wire White Wire Purple/Black Wire White/Black Wire... -
Page 26: Wiring And Auxiliary Connections
Wiring and Auxiliary Connections External Automotive Red Wire (+) to 12 Volt DC Power Type Antenna Black Wire Ground (Optional) AUX IN VIDEO OUT 15A Fuse AUX Audio Input Connection Options Video Out Connection Options AUX IN VIDEO OUT AUX IN VIDEO OUT AUX IN VIDEO OUT... -
Page 27: Safety Instructions
Safety Instructions • Read Instructions: All the safety and operating instructions should be read before the appliance is operated. • Retain Instructions: The safety and operating instructions should be retained for future reference. • Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to. •... -
Page 28: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
