Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new AM/FM/WB Stereo Receiver with CD Player. WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove cover or bottom screws. -
Page 3: Button Locations And Functions

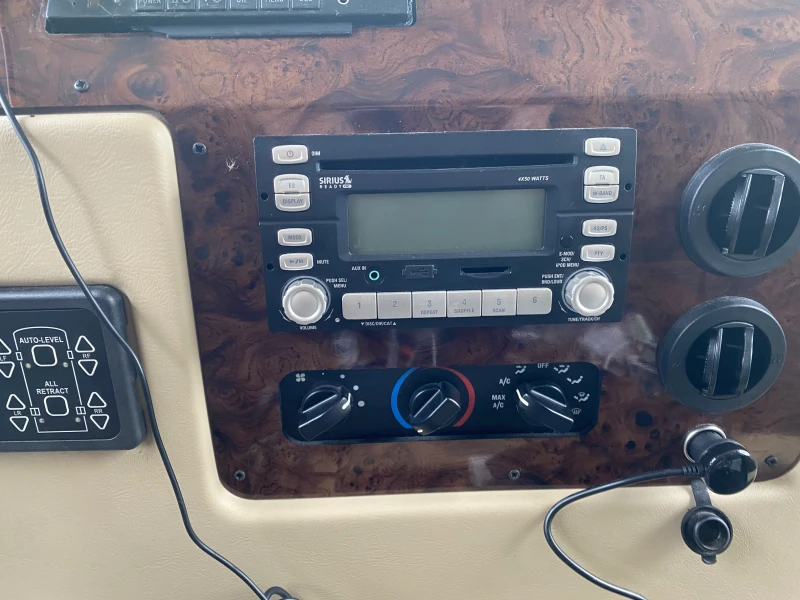

Button Locations and Functions DISPLAY MODE MUTE AUX IN PUSH SEL/ MENU VOLUM E 1. Equalizer Button (EQ): Press to choose between preset sound equalization settings. 2. Power On/Off and Display Dimmer: Press to turn the unit On or Off. Press and hold to dim the display. Press and hold again to restore display’s illumination. - Page 4 19. USB Input: Plug in your USB device. “USB” will then appears in the display. Note: This unit may not function with all MP3 players. The M1-CD will control the USB audio device. (See “USB Operation” for more details).
-
Page 5: Remote Control Button Locations And Functions
Button Locations and Functions 24. Volume and Select Knob: Rotate to increase or decrease the volume level. Press to select the sound controls: Bass, Treble, Balance and Fader. 25. CD Play/Pause and Mute Button: CD and CD Changer Mode: Press to pause disc play. Press again to resume play. Radio, Sirius Satellite Radio and AUX Input Modes: Press to mute volume level. -
Page 6: General Operations
Remote Control Button Locations and Functions 8. Multi-Function Button #5 (Continued): CD Mode: Press to preview each track on the CD for 10 seconds. Press again to cancel. CD Changer Mode: Press to preview each track on the CD for 10 seconds. Press and hold to preview the first track on every loaded CD for 10 seconds. -
Page 7: Setting The Clock
General Operations (Continued) Dimming the Display: Press and hold the button to dim the display. Press and hold it again to restore normal display brightness. Display Selection: Press the DISPLAY button at anytime to display the clock. Press again to return to previous display. Press and hold to perform clock setting functions (See Setting the Clock for more information). -
Page 8: Am/Fm Radio Operations
AM/FM Radio Operations Power On/Off: Press the button to turn the unit 0n. Selecting the Play Source: Press the MODE button until AM1, AM2, F1, F2, F3 or radio station call letters appear in the dis- play. Selecting the AM or FM Band: Press the TUNE knob repeatedly and select from AM1, AM2, F1, F2 or F3. - Page 9 AM/FM Radio Operation (Continued) Recalling Memorizing Radio Stations: 1. Press the TUNE knob to select either the AM1, AM2, F1, F2 or F3 radio band. 2. Press and release one of the six Radio Station Recall buttons to select the memorized radio station.
-
Page 10: Weather Band Radio Operations
AM/FM Radio Operation (Continued) Display: Press the DISPLAY button repeatedly to display Program Service Name _ >Clock Time _ >Program Type _ >Frequency _ >Program Service Name. Note: The AM Radio Band will only display the Frequency or Clock Time. Traffic Announcement: The Traffic Announcement feature will interrupt any mode that is playing to provide a traffic... -
Page 11: Sound Controls
Sound Controls Volume: Increase the volume by rotating the VOLUME knob clockwise. Decrease the volume by rotating the VOLUME knob counterclockwise. Bass, Treble, Balance and Fader Controls Select the desired sound mode by pressing the VOLUME knob. The modes will be displayed in the following order: Bass, Treble, Balance and Fader. - Page 12 Sound Controls (Continued) Fader: 1. Select the Fader mode (FAD) by pressing the VOLUME button. 2. To adjust the amount of sound output to the Rear speakers, rotate the VOLUME knob clock- wise. To adjust the amount of sound output to the Front speakers, rotate the VOLUME knob coun- terclockwise.
-
Page 13: Disc Warnings
Disc Warnings Disc Formats Supported by this Player: 12cm disc 12cm disc Handling and Cleaning: • Dirt, dust, scratches and warping disc will cause non operation. • Do not place stickers on disc or scratch disc. • Do not warp discs. •... -
Page 14: Cd Operation (Compact Disc)
CD Operation General Operations: 1. Press the button to turn the unit On. 2. Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. Note: If a CD does not auto-load DO NOT FORCE it into the slot, as you may already have a CD loaded indicated by the inserted disc icon. - Page 15 CD Operation (Continued) Repeating a CD Track: Select the desired track to be repeated. Then press the REPEAT button once and “S-RPT” will appear in the display. This track will play repeat- edly. To cancel this function, press the REPEAT button again and “S-RPT”...
-
Page 16: Mp3 Operation
MP3 Operation General Operations: 1. Press the button to turn the unit On. 2. Gently insert the disc into the slot with the label side up. The unit will automatically load the disc. Note: If a disc does not auto-load DO NOT FORCE it into the slot, as you may already have a disc loaded indicated by the inserted disc icon. -
Page 17: Mp3 Operation
MP3 Operation (Continued) Ejecting a MP3 Disc: Press the button to eject a disc. Repeating a MP3 Track: Select the desired track to be repeated. Then press the REPEAT button once and “MP3 RPT” will appear in the display. This track will play repeatedly. -
Page 18: Cd Changer Operation
CD Changer Operation (Option) Load CDs into Changer: Insert the loaded CD magazine into the external CD changer. Power On/Off: Press the button to turn the unit On. Selecting the Play Source: Press the MODE button until “CDC” appears in the display. -
Page 19: Sirius Satellite Radio Setup
CD Changer Operation (Option) Random CD Track or Disc Play Order: Press the SHUFFLE button and “SHF1 --01” will appear in the display. The tracks on this disc will play in random order. Press and hold the SHUFFLE button and “DSF1 --1”... -
Page 20: Sirius Satellite Radio Operation
Sirius Satellite Radio Operation Please note that satellite radio signal may be blocked by trees, buildings, tunnels or other obstacles. Information display during reception: ANTENNA ERROR: When an antenna issue exists. ACQUIRING SIGNAL: When a channel is being tuned-in (no signal is yet received). INVALID CHANNEL: A channel without a broadcast has been selected, or the receiver may not be activated. - Page 21 Sirius Satellite Radio Operation 3. Press the PTY button to select the next number of the channel. Rotate the TUNE knob to select the desired number. Repeat this procedure for the third number. 4. Press the TUNE knob and the channel will start playing.
- Page 22 Sirius Satellite Radio Operation 4. Press the TUNE knob and the channel will start playing. Switching the Display: Press the DISPLAY button to cycle through the following display modes. CH-NAME _ > SONG TITLE _ > ARTIST NAME _ > CATEGORY _ >...
-
Page 23: Sirius Satellite Radio Operation
Sirius Satellite Radio Operation Scanning Stored Sirius Channels: Press the AS/PS button and the tuner will scan the preset channels beginning with SR 1, then pause for 5 seconds at each channel. When a desired channel is reached, press the AS/PS but- ton again to stop scanning. -
Page 24: Ipod Operation
2. Connect an IPOD to the cable attached to the M1-CD. 3. The unit will automatically switch to the IPOD mode and start playing. Note: The IPOD controls will become inoperable and the M1-CD will now control the IPOD. IPOD Button Location and Functions: DISPLAY MODE MUTE... - Page 25 IPOD Operation (Continued) 3. Press the TUNE knob to select the SONGS menu. 4. Rotate the TUNE knob to select the desired song from the menu. The selected song will automatically start playing. Pausing a Track: Press the button to pause the track. Press it again to resume play.
-
Page 26: Auxiliary Audio Input (Front And Rear)
3. Refer to the audio device’s owners manual for proper operation. Note: The M1-CD will not control the auxiliary source, but can adjust the sound controls. Auxiliary Audio Input (Rear) Operation Selecting Rear Auxiliary Audio Play Source: 1. -
Page 27: Usb Operation
3. The unit will automatically switch to the USB mode and start playing. Note: The controls on the MP3 player will become inoperable, and the M1-CD will now control the MP3 player. Track Selection: Rotate the TUNE knob counterclockwise to select a lower track. -
Page 28: Sd Card Operation
SD Card Operation General Operations: 1. Press the button to turn the unit On. 2. Insert the SD Card label side up into the SD card slot on the front panel. 3. The unit will automatically switch to the SD CARD mode and start playing. -
Page 29: Setup Features
Setup Features (Continued) Area Radio Frequency Adjustment: 1. Press and hold the VOLUME knob approxi- mately 5 seconds until “BEEP ON” appears in the display. Press the VOLUME knob two more times until “AREA USA” in the display. 2. Rotate the VOLUME knob to adjust the area. Note: If operating the unit in the USA do not change the area. -
Page 30: Installation
Installation Step 1: The radio chassis is designed to be “Sleeve Mounted” through a opening in the dashboard panel. The required opening size is 182mm (7-3/16") x 84mm (3-5/16"). Cut or engage an opening in the dashboard to accommodate the mounting sleeve. Step 2: Insert the mounting sleeve into the opening in the dashboard. -
Page 31: Speaker Connections
Speaker Connections Left Front Speaker White/Black Wire White Wire Left Rear Speaker Green/Black Wire Green Wire WARNING! Any wires left unconnected must be taped-off or capped-off to prevent shorting. DO NOT connect speaker ground wires together. DO NOT connect speaker ground wires to the chassis of the vehicle. DO NOT connect front and rear speaker wires together. -
Page 32: Auxiliary Connections
Auxiliary Connections This unit for use only with a 12 Volt DC power source with a negative ground. Yellow Wire (+) to 12 Volt Constant Red Wire (+) to 12 Volt Ignition Black Wire Ground Blue Wire Amplifier Control Front Line Out Brown Cable 2-Channel... -
Page 33: Input Connections
Input Connections Sirius Antenna (Optional) Sirius Receiver (Optional) IPOD (Optional) IPOD Cable (Optional) RCA Connectors Audio Input (Rear) Audio Output Yellow Cable (Optional) -
Page 34: Input Connections
Input Connections Automotive-Type In-Wall Antenna External Antenna (Optional Model: DP36AXT) (Optional) Plug Either Type of Antenna into the Female Antenna Receptacle CD Changer (Optional) Infrared Remote Eye (Optional) Wired Remote Controller (Optional) -
Page 35: Reset Button
Reset Button The LCD display may fail to function normally due to the vehicle’s battery condition, and could require resetting the radio microprocessor if: • The vehicle has been “jump started” from a dead battery condition. • The vehicle battery becomes very low and is quick-charged. -
Page 36: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
