Installation

Note
3-1

Installation

3-1-1

Installation Environment

Note
3-1-2

Installation in the Operation Panel

1,2,3...
32
On unpacking the NT631/NT631C and peripheral devices, check their exter-
nal appearance and confirm that there is no damage. Also confirm that there
is no abnormal noise on shaking the PT lightly.
Install the NT631/NT631C in the operation panel and connect the power to
the NT631/NT631C as described below.
Observe the following points when installing the PT in an operation panel.
1. Do not install the PT at sites subject to the following conditions.
• Severe temperature variations
• Temperatures or humidities outside the ranges stated in the specifica-
tions
• High humidity, condensation
• Splashing chemical agents
• Severe oil splashing
• Corrosive or flammable gases
• Strong vibrations or shocks
• Direct exposure to wind and rain (outdoor sites)
• Strong ultra-violet irradiation
2. Take adequate measures to ensure shielding if the PT is used at a location
subject to any of the following conditions.
• Static electricity, or noise from other equipment
• Strong electromagnetic fields
• Nearby power cables
• Potential exposure to radioactivity
The NT631/NT631C is mounted in an operation panel by embedding it in the
panel.
Use the panel fittings and tool (Phillips screwdriver) included in the product
package and follow the procedure below.

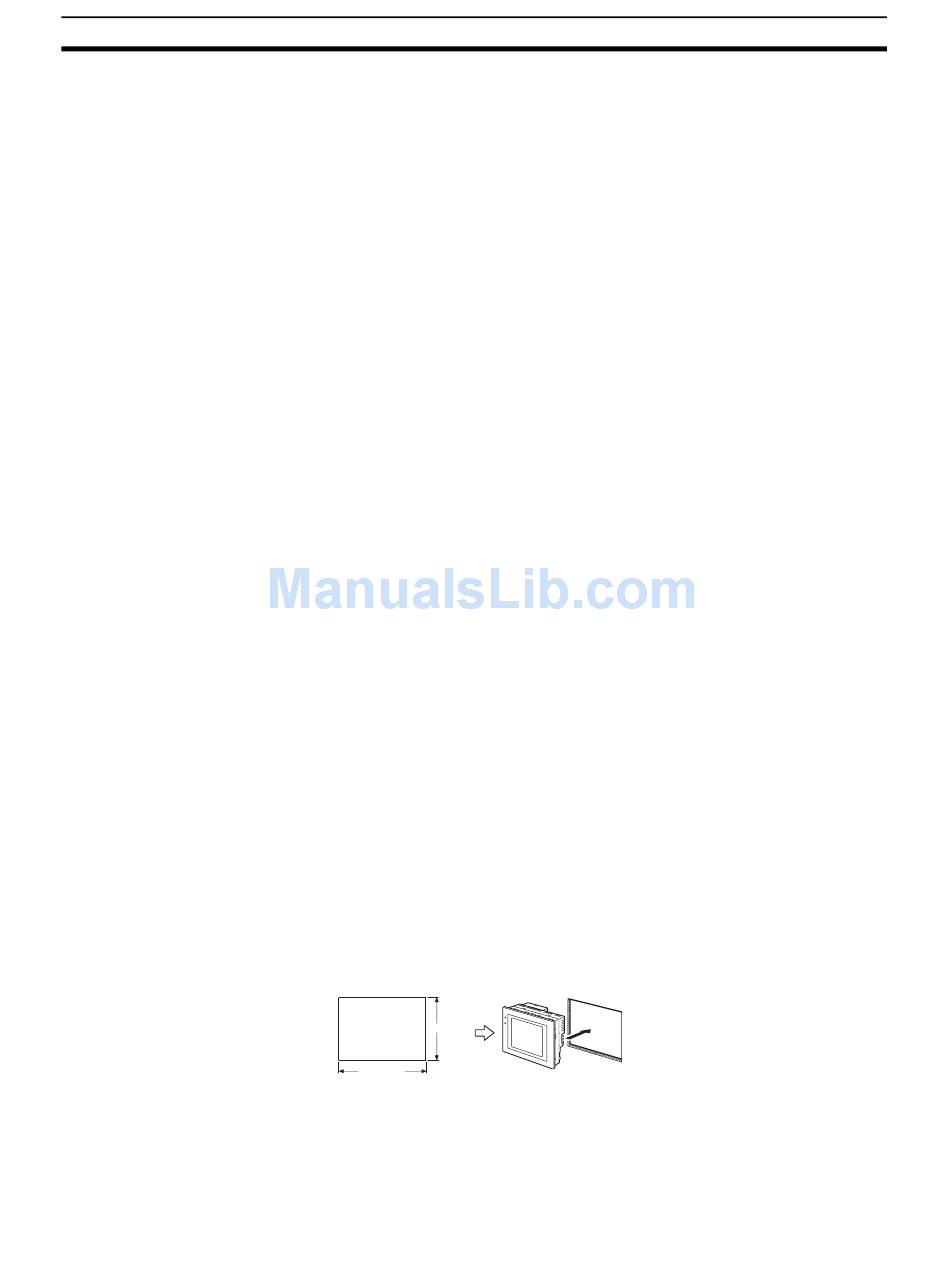

1. Open a hole of the dimensions shown below in the panel and install the
NT631/NT631C from the front side of the panel.
+ 0.5 mm
238
0 mm
+ 0.5 mm
303
0 mm
2. Attach the panel fittings at the following positions shown below, from the
rear of the NT631/NT631C.
Fit the hook of the fitting in the square hole in the body and tighten the
screw with the Phillips head screwdriver while lightly pulling the fitting.
Section 3-1
