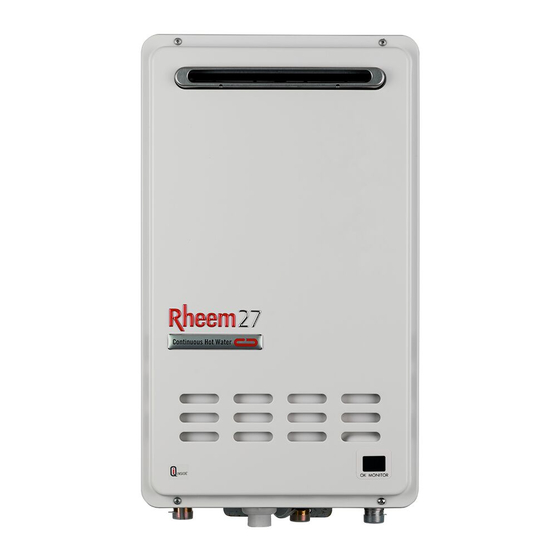

Rheem 874 Owner's Manual And Installation Instructions

Gas continuous flow water heater
Hide thumbs Also See for 874:
Table of Contents

Advertisement

Quick Links

Owner's
Guide
and

Installation Instructions

Gas Continuous Flow Water Heater
27L Gas Water Heater
— 874 & 872 Series, 627 Models
This water heater must be installed and serviced by an authorised person.
Please leave this guide with the householder.
I N S T A L L A R H E E M
T M
w w w .r h e em . c o. nz

Advertisement

Table of Contents
loading

Related Manuals for Rheem 874

Summary of Contents for Rheem 874

  • Page 1: Installation Instructions

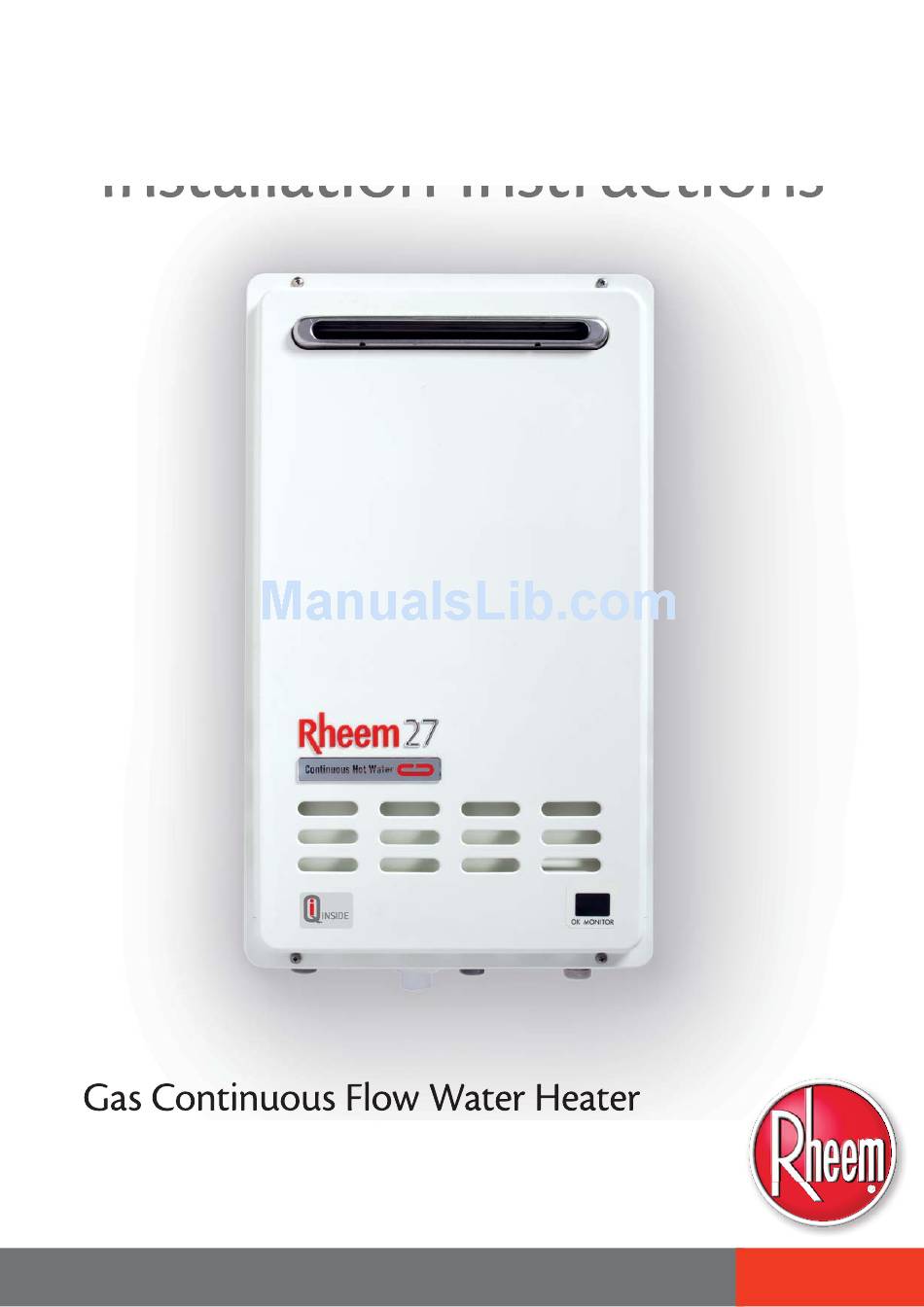

    Installation Instructions Gas Continuous Flow Water Heater 27L Gas Water Heater — 874 & 872 Series, 627 Models This water heater must be installed and serviced by an authorised person. Please leave this guide with the householder. I N S T A L L A R H E E M...
