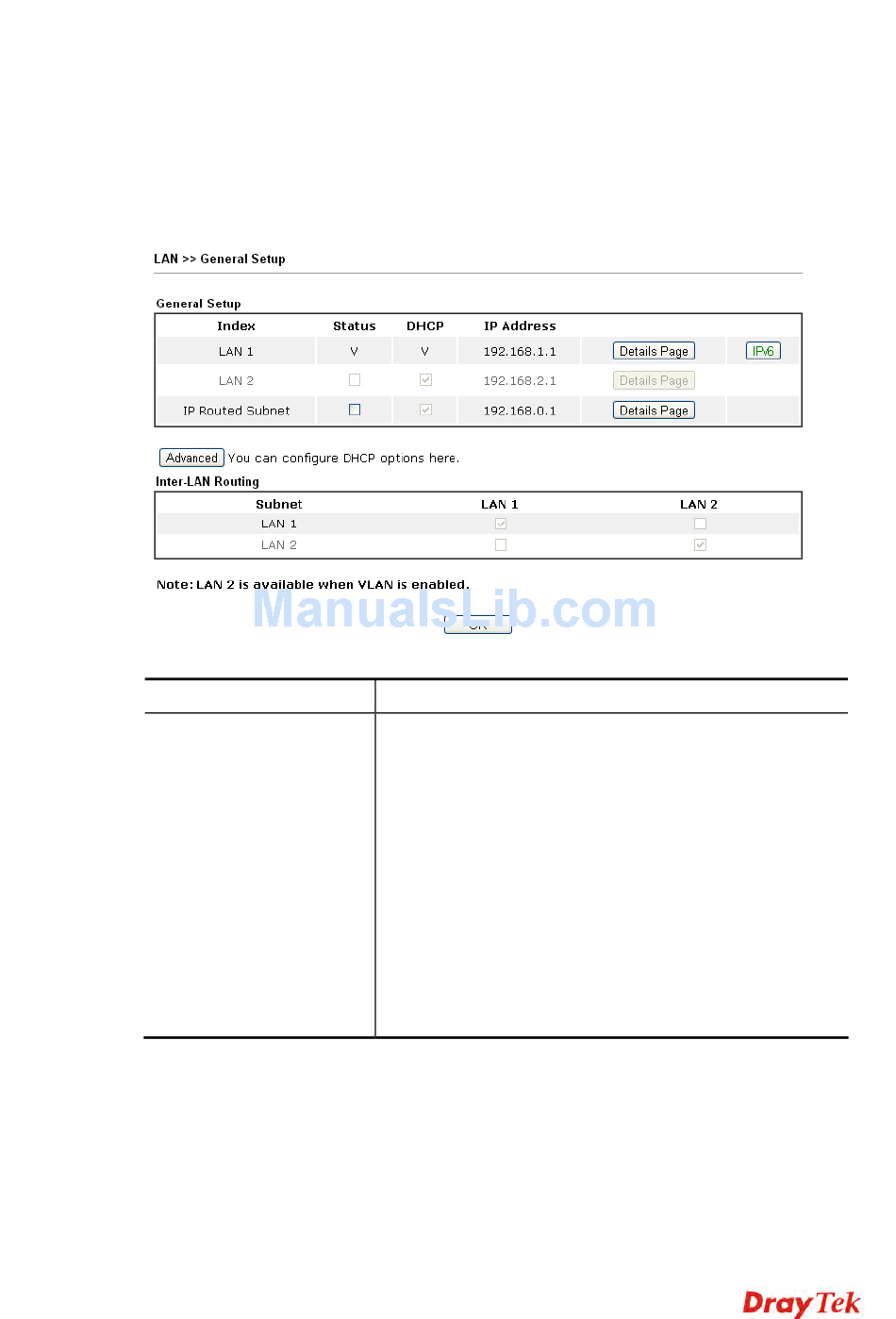

This page provides you the general settings for LAN. Click LAN to open the LAN settings
page and choose General Setup.
There are two subnets provided by the router which allow users to divide groups into different
subnets (LAN1 – LAN2). In addition, different subnets can link for each other by configuring
Inter-LAN Routing. At present, LAN1 setting is fixed with NAT mode only. LAN2 can be
operated under NAT or Route mode. IP Routed Subnet can be operated under Route mode.
Each item is explained as follows:
Item

General Setup

Vigor2120 Series User's Guide
S e t u p
S e t u p
Description
Allow to configure settings for each subnet respectively.
Index - Display all of the LAN items.
Status- Basically, LAN1 status is enabled in default.
LAN2, LAN3, LAN3 and IP Routed Subnet can be
observed by checking the box of Status.
DHCP- LAN1 is configured with DHCP in default. If
required, please check the DHCP box for each LAN.
IP Address - Display the IP address for each LAN item.
Such information is set in default and you can not modify it.
Details Page - Click it to access into the setting page. Each
LAN will have different LAN configuration page. Each
LAN must be configured in different subnet.
IPv6 – Click it to access into the settings page of IPv6.
