Page 2 Vigor2120 Series User’s Guide...

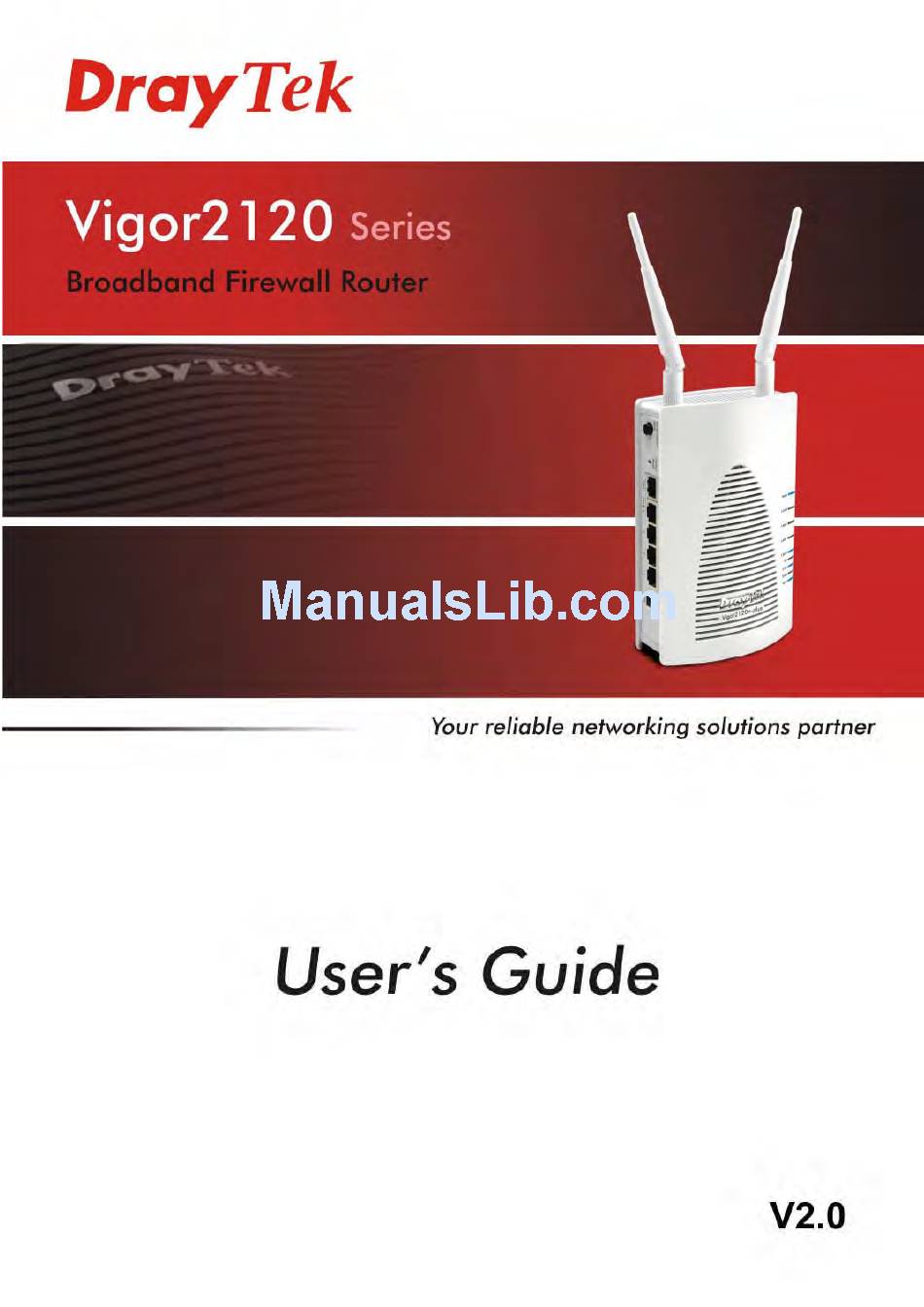

Page 3 Vigor2120 Series Broadband Firewall Router User’s Guide Version: 2.0 Firmware Version: V3.8.4 (For future update, please visit DrayTek web site) Date: June 13, 2017 Vigor2120 Series User’s Guide...
Page 4 Web registration is preferred. You can register your Vigor router via Owner http://www.DrayTek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
Page 5: Declaration Of Conformity
Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2120 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://www.draytek.com.tw/ftp/Vigor2120/Document/CE/ Manufacturer: DrayTek Corp. Address: No.
Page 6 The antenna/transmitter should be kept at least 20 cm away from human body. More update, please visit www.draytek.com. Vigor2120 Series User’s Guide...
Page 7: Table Of Contents
1.1 Web Configuration Buttons Explanation ................. 2 1.2 LED Indicators and Connectors ....................3 1.2.1 For Vigor2120 ........................3 1.2.2 For Vigor2120n-plus ......................5 1.3 Hardware Installation ......................7 1.4 Printer Installation ........................8 1.5 Accessing Web Page ......................16 1.6 Changing Password ......................
Page 8 3.3 How to Build a LAN-to-LAN VPN Between Remote Office and Headquarter via IPsec Tunnel (Main Mode) ..........................69 3.4 How to Optimize the Bandwidth through QoS Technology ........... 74 3.5 How to Create an Account for MyVigor................. 79 3.5.1 Create an Account via Vigor Router ................79 3.5.2 Create an Account via MyVigor Web Site ..............
Page 9 4.6.8 Keyword Group......................211 4.6.9 File Extension Object....................212 4.6.10 SMS/Mail Service Object .................... 214 4.6.11 Notification Object....................... 219 4.7 CSM ............................ 221 4.7.1 APP Enforcement Profile ....................222 4.7.2 URL Content Filter Profile..................... 224 4.7.3 Web Content Filter Profile..................... 228 4.7.4 DNS Filter Profile ......................
Page 10 5.4 Checking If the ISP Settings are OK or Not ................ 384 5.5 Problems for 3G Network Connection ................384 5.6 Backing to Factory Default Setting If Necessary ..............385 5.7 Contacting DrayTek......................387 Telnet Command Reference..................389 Vigor2120 Series User’s Guide...
Page 11 Accessing Telnet of Vigor2120....................389 Telnet Command: bpa ......................390 Telnet Command: csm appe prof ..................391 Telnet Command: csm appe set.................... 391 Telnet Command: csm appe show ..................392 Telnet Command: csm appe config..................393 Telnet Command: csm ucf..................... 393 Telnet Command: csm ucf obj INDEX uac ................
Page 12 Telnet Command: Log ......................439 Telnet Command: mngt ftpport ....................441 Telnet Command: mngt httpport.................... 441 Telnet Command: mngt httpsport ..................441 Telnet Command: mngt telnetport ..................442 Telnet Command: mngt sshport .................... 442 Telnet Command: mngt ftpserver ..................442 Telnet Command: mngt noping .....................
Page 13 Telnet Command: srv dhcp gateway ..................477 Telnet Command: srv dhcp ipcnt................... 478 Telnet Command: srv dhcp off....................478 Telnet Command: srv dhcp on....................478 Telnet Command: srv dhcp relay................... 478 Telnet Command: srv dhcp startip..................479 Telnet Command: srv dhcp status..................479 Telnet Command: srv dhcp leasetime ...................
Page 14 Telnet Command: vlan off...................... 508 Telnet Command: vlan on...................... 508 Telnet Command: vlan pri...................... 508 Telnet Command: vlan restart ....................509 Telnet Command: vlan status ....................509 Telnet Command: vlan subnet....................510 Telnet Command: vlan submode................... 510 Telnet Command: vlan tagged....................511 Telnet Command: vlan vid .....................
Page 15 Telnet Command: wl dual restart................... 550 Telnet Command: wl dual security ..................551 Telnet Command: wl dual stalist.................... 552 Telnet Command: wl dual wds....................552 Telnet Command: wl dual wps....................554 Telnet Command: wol......................555 Telnet Command: appqos ..................... 555 Vigor2120 Series User’s Guide...
Page 17: Introduction

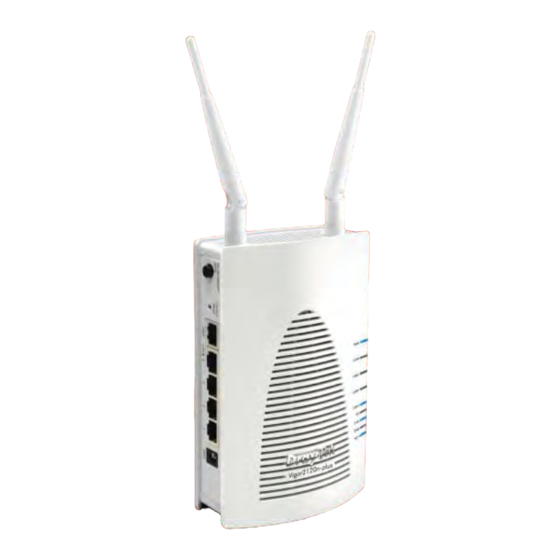

Vigor2120 Series is a broadband router which integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, the router increases the performance of VPN greatly, and offers several protocols (such as IPsec/PPTP/L2TP) with up to 2 VPN tunnels.
Page 18: Web Configuration Buttons Explanation
Several main buttons appeared on the web pages are defined as the following: Save and apply current settings. Cancel current settings and recover to the previous saved settings. Clear all the selections and parameters settings, including selection from drop-down list. All the values must be reset with factory default settings. Add new settings for specified item.
Page 19: Led Indicators And Connectors
Before you use the Vigor router, please get acquainted with the LED indicators and connectors first. Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. A USB device is connected and active. Blinking The data is transmitting.
Page 20 Interface Description Restore the default settings. Usage: Turn on the router. Press the button and keep for more than 6 seconds. Then the router will restart with the factory default configuration. Connector for accessing the Internet. LAN 1- 4 Connecters for local network devices (LAN). PWR: Connecter for a power adapter.
Page 21: For Vigor2120N-Plus
Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. A USB device is connected and active. Blinking The data is transmitting. 2.4G Wireless function is ready. Wireless function is not ready. Blinking Data is transmitting (sending/receiving).
Page 22 Interface Description WLAN WLAN On - Press the button and release it within 2 ON/OFF seconds. When the wireless function is ready, the 2.4G/5G blue LED on front panel will be on. WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.
Page 23: Hardware Installation
Before starting to configure the router, you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and the other end of the cable (RJ-45) into the Ethernet port on your computer.
Page 24: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.DrayTek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
Page 25 In this dialog, choose Create a new port. In the field of Type of port, use the drop down list to select Standard TCP/IP Port. Then, click Next. Vigor2120 Series User’s Guide...
Page 26 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Hostname or IP Address and type 192.168.1.1 as the Port name. Then, click Next. Click Standard and choose Generic Network Card. Vigor2120 Series User’s Guide...
Page 27 Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. Type a name for the chosen printer. Click Next. Vigor2120 Series User’s Guide...
Page 28 10. Choose Do not share this printer and click Next. 11. Then, in the following dialog, click Finish. Vigor2120 Series User’s Guide...
Page 29 12. The new printer has been added and displayed under Printers and Faxes. Click the new printer icon and click Printer server properties. 13. Edit the property of the new printer you have added by clicking Configure Port. Vigor2120 Series User’s Guide...
Page 30 14. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. The printer can be used for printing now. Most of the printers with different manufacturers are compatible with vigor router.
Page 31 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.
Page 32: Accessing Web Page
Make sure your PC connects to the router correctly. You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of Vigor router 192.168.1.1.
Page 33: Changing Password
Note: The home page will be different slightly in accordance with the type of the router you have. The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after 5 minutes without any operation.
Page 34: Introducing Dashboard
Note: Even the password has been changed, the Username for logging to the web user interface is still “admin”. Dashboard shows the connection status including System Information, IPv4 Internet Access, IPv6 Internet Access, Interface (physical connection), Security and Quick Access. Click Dashboard from the main menu on the left side of the main page.
Page 35: Virtual Panel
On the top of the Dashboard, a virtual panel (simulating the physical panel of the router) displays the physical interface connection. It will be refreshed every five seconds. For detailed information about the LED display, refer to 1.2 LED Indicators and Connectors.
Page 36: Quick Access For Common Used Menu
All the menu items can be accessed and arranged orderly on the left side of the main page for your request. However, some important and common used menu items which can be accessed in a quick way just for convenience. Look at the right side of the Dashboard.
Page 37: Gui Map
Host connected physically to the router via LAN port(s) will be displayed with green circles in the field of Connected. All of the hosts (including wireless clients) displayed with Host ID, IP Address and MAC address indicates that the traffic would be transmitted through LAN port(s) and then the WAN port.
Page 38: Web Console
It is not necessary to use the telnet command via DOS prompt. The changes made by using web console have the same effects as modified through web user interface. The functions/settings modified under Web Console also can be reviewed on the web user interface.
Page 39: Logout
Click Save to store the setting. Click this icon to exit the web user interface. Vigor2120 Series User’s Guide...
Page 40: Online Status
Such page displays the physical connection status such as LAN connection status, WAN connection status, ADSL information, and so on. Detailed explanation (for IPv4) is shown below: Item Description LAN Status Primary DNS-Displays the primary DNS server address for WAN interface. Secondary DNS -Displays the secondary DNS server address for WAN interface.
Page 41 Item Description LAN interface. RX Packets-Displays the total received packets at the LAN interface. Enable – Yes in red means such interface is available but not WAN1/WAN2 enabled. Yes in green means such interface is enabled. Line – Displays the physical connection (Ethernet, or USB) of this interface.
Page 42: Virtual Wan
Such page displays the virtual WAN connection information. Virtual WAN are used by TR-069 management, VoIP service and so on. The field of Application will list the purpose of such WAN connection. Each time you click OK on the web page for saving the configuration, you can find messages showing the system interaction with you.
Page 43: Quick Setup
There are several setup wizards offered for you to configure the router simply and quickly.  Quick Start Wizard – used for building network connection, Internet access.  Service Activation Wizard – used for activating the web content filter service. ...
Page 44 WAN1 and WAN2 will bring up different configuration page. Refer to the following for detailed information. Vigor2120 Series User’s Guide...
Page 45: For Wan1 (Ethernet)
WAN1 is dedicated to physical mode in Ethernet. If you choose WAN1, please specify physical type. Then, click Next. Open Wizards>>Quick Start Wizard. Finish the password settings and click Next. Choose WAN1 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type.
Page 46 Please manually enter the Username/Password provided by your ISP. Click Next for viewing summary of such connection. Available settings are explained as follows: Item Description Service Name Type the service information for identifying ISP. Username Assign a specific valid user name provided by the ISP. Password Assign a valid password provided by the ISP.
Page 47 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Now, you can enjoy surfing on the Internet. Vigor2120 Series User’s Guide...
Page 48 Open Wizards>>Quick Start Wizard. Finish the password settings and click Next. Choose WAN1 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click PPTP/L2TP as the Internet Access Type. Then click Next to continue. Please type in the IP address/mask/gateway information originally provided by your ISP.
Page 49 WAN IP Obtain an IP address automatically – the router will get Configuration an IP address automatically from DHCP server. Specify an IP address – you have to type relational settings manually. IP Address - Type the IP address. Subnet Mask –Type the subnet mask. Gateway –...
Page 50 Open Wizards>>Quick Start Wizard. Finish the password settings and click Next. Choose WAN1 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click Static IP as the Internet Access Type. Then click Next to continue. Please type in the IP address information originally provided by your ISP.
Page 51 Secondary DNS Type in secondary IP address for necessity in the future. Back Click it to return to previous setting page. Next Click it to get into the next setting page. Cancel Click it to give up the quick start wizard. A summary page will be displayed as follows.
Page 52 Open Wizards>>Quick Start Wizard. Finish the password settings and click Next. Choose WAN1 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click DHCP as the Internet Access Type. Then click Next to continue. Click DHCP as the Internet Access type.
Page 53 enter the MAC address. Back Click it to return to previous setting page. Next Click it to get into the next setting page. Cancel Click it to give up the quick start wizard. A summary page will be displayed as follows. Click Finish.
Page 54: For Wan2 (Usb)
WAN2 is dedicated to physical mode in USB. Open Wizards>>Quick Start Wizard. Finish the password settings and click Next Choose WAN2 as the WAN Interface and click the Next button. In the following page, fill in the information for 3G/4G USB Modem. Available settings are explained as follows: Item Description...
Page 55 of the string you can set is 47 characters. APN Name – APN means Access Point Name which is provided and required by some ISPs. Type the name and click Apply. 3G/4G USB Modem SIM Pin code –Type PIN code of the SIM card that will be (DHCP mode) used to access Internet.
Page 56: Service Activation Wizard
Service Activation Wizard is a tool which allows you to use trial version of WCF directly without accessing into the server (MyVigor) located on http://myvigor.draytek.com. For using Web Content Filter Profile, please refer to later section Web Content Filter Profile for detailed information.
Page 57 When you finish the selection, please click Next. Commtouch is the web content filter based on Commtouch operated in the worldwide. There is a 30-day trial period. After trial, you can purchase DrayTek's prepared Commtouch GlobalView WCF package from retailing outlets.
Page 58 Wait for a moment till the following page appears. When such page appears, you can enable or disable these services for your necessity. Then, click Finish. Note: The service will be activated and applied as the default rule configured in Firewall>>General Setup.
Page 59: Vpn Client Wizard
Such wizard is used to configure VPN settings for VPN client. Such wizard will guide to set the LAN-to-LAN profile for VPN dial out connection (from server to client) step by step. 1. Open VPN and Remote Access>>VPN Client Wizard. The following page will appear. Available settings are explained as follows: Item Description...
Page 60 2. When you finish the mode and profile selection, please click Next to open the following page. In this page, you have to select suitable VPN type for the VPN client profile. There are six types provided here. Different type will lead to different configuration page. After making the choices for the client profile, please click Next.
Page 61 Note: The following descriptions for VPN Type are based on the Route Mode specified in LAN-to-LAN Client Mode Selection.  When you choose PPTP (None Encryption) or PPTP (Encryption), you will see the following graphic:  When you choose IPsec, you will see the following graphic: Vigor2120 Series User’s Guide...
Page 62  When you choose L2TP, you will see the following graphic:  When you choose L2TP over IPsec (Nice to Have) or L2TP over IPsec (Must), you will see the following graphic: Vigor2120 Series User’s Guide...
Page 63  When you choose SSL, you will see the following graphic: Available settings are explained as follows: Item Description Profile Name Type a name for such profile. The length of the file is limited to 10 characters. Check to enable router always keep VPN connection. Always On Server IP/Host Name Type the IP address of the server or type the host name for...
Page 64 payload (data) will be encrypted and authenticated. You may select encryption algorithm from Data Encryption Standard (DES), Triple DES (3DES), and AES. User Name This field is used to authenticate for connection when you select PPTP or L2TP with or without IPsec policy above. The length of the user name is limited to 11 characters.
Page 65: Vpn Server Wizard
Such wizard is used to configure VPN settings for VPN server. Such wizard will guide to set the LAN-to-LAN profile for VPN dial in connection (from client to server) step by step. 1. Open VPN and Remote Access>>VPN Server Wizard. The following page will appear. Available settings are explained as follows: Item Description...
Page 66 Please choose a This item is available when you choose Remote Dial-in Dial-in User User (Teleworker) as VPN server mode. There are 32 VPN Accounts tunnels for users to set. Allowed Dial-in Type This item is available after you choose any one of dial-in user account profiles.
Page 67  When you check PPTP, you will see the following graphic:  When you check PPTP & IPsec & L2TP (three types) or PPTP & IPsec (two types) or L2TP with Policy (Nice to Have/Must), you will see the following graphic: Vigor2120 Series User’s Guide...
Page 68  When you check IPsec, you will see the following graphic: Available settings are explained as follows: Item Description Profile Name Type a name for such profile. The length of the file is limited to 10 characters. User Name This field is used to authenticate for connection when you select PPTP or L2TP with or without IPsec policy above.
Page 69 Remote Network IP Please type one LAN IP address (according to the real location of the remote host) for building VPN connection. Remote Network Please type the network mask (according to the real location Mask of the remote host) for building VPN connection. 3.
Page 70: Registering Vigor Router
You have finished the configuration of Quick Start Wizard and you can surf the Internet at any time. Now it is the time to register your Vigor router to MyVigor website for getting more service. Please follow the steps below to finish the router registration. Please login the web configuration interface of Vigor router by typing “admin/admin”...
Page 71 Notice: If you haven’t an accessing account, please refer to section 3.5 Creating an Account for MyVigor on this Guide to create your own one. Please read the articles on the Agreement regarding user rights carefully while creating a user account. The following page will be displayed after you logging in MyVigor.
Page 72 After clicking OK, you will see the following page. Your router has been registered to myvigor website successfully. Vigor2120 Series User’s Guide...
Page 73: Tutorials And Applications
Due to the shortage of IPv4 address, more and more countries use IPv6 to solve the problem. However, to continually use the original rich resources of IPv4, both IPv6 and IPv4 networks shall communicate for each other via intercommunication mechanism to complete the shifting job from IPv4 to IPv6 gradually.
Page 74 In the following figure, use the drop down list to choose a proper connection type. Different connection types will bring out different configuration page. Refer to the following:  PPP – Dual Stack application, IPv4 and IPv6 services can be utilized at the same time Choose PPP and type the information for PPPoE of IPv4.
Page 75 Click OK and open Online Status. If the connection is successful, you will get the IP address for IPv4 and IPv6 at the same time. Vigor2120 Series User’s Guide...
Page 76  TSPC – Tunnel application, both IPv6 hosts communicate through IPv4 network Choose TSPC and type the information for TSPC service. Note: While using such mode, you have to make sure the IPv4 network connection is normal. (In the following figure, the TSPC information is obtained from http://gogo6.com/ after applied for the service.) Click OK and open Online Status.
Page 77  AICCU – Tunnel application Choose AICCU and type the information for AICCU of IPv6. Note: While using such mode, you have to make sure the IPv4 network connection is normal. (In the following figure, the AICCU information is obtained from https://www.sixxs.net/main/ after applied for the service.) Click OK and open Online Status.
Page 78  DHCPv6 Client Choose DHCPv6 Client. Click one of the identity associations and type the IAID number. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2120 Series User’s Guide...
Page 79  Static IPv6 Choose Static IPv6. Type IPv6 address, Prefix Length and Gateway Address. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2120 Series User’s Guide...
Page 80 After finished the WAN settings for IPv6, please configure the LAN settings to make the router’s client getting the IPv6 address. Access into the web user interface of Vigor2120. Open LAN>> General Setup. Click the IPv6 button to display the following page. Note: Only the subnet of LAN1 supports IPv6 feature.
Page 81 Make sure you have get the correct IPv6 IP address. Get into MS-DOS interface and type the command of “ipconfig”. Refer to the following figure. From the above figure we can see IPv6 IP address has been captured by the system. Use the Ping command to ping any IPv6 address indicating an IPv6 website.
Page 82 Connect to the website for IPv6. Open a web browser and type an URL of IPv6, e.g., www.kame.net. If your computer accesses into the website by using IPv6 address, you may see a turtle dancing on the screen. If not, only a steady turtle will be seen. If you can see a turtle dancing on the screen, that means IPv6 service is ready for you to access and utilize.
Page 83: How Can I Get The Files From Usb Storage Device Connecting To Vigor Router
Files on USB storage device can be reviewed by opening USB Applicaiton>>File Explorer. If it is necessary for you to delete, copy files on the device or write, paste files to the devcie, it must be done through or FTP server. Plug the USB device to the USB port on the router.
Page 84 Make sure the FTP service is running properly. Please open a browser and type ftp://192.168.1.1. Use the account "user1" to login. When the following screen appears, it means the FTP service is running properly. Return to USB Application >> USB Disk Status. The information for FTP server will be shown as below.
Page 85: (Main Mode)
Now, users in LAN of Vigor2120 can access into the USB storage device by typing ftp://192.168.1.1 on any browser. They can add or remove files / directories, depending on the Access Rule for FTP account settings in USB Application >>USB User Management. Log into the web user interface of Vigor router.
Page 86 Now navigate to the next section, Dial-In Settings to check PPTP, IPsec Tunnel and L2TP boxes. Check the box of Specify Remote… and type the Peer VPN Server IP (e.g., 218.242.130.19 in this case). Press the IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method.
Page 87 Open VPN and Remote Access>>Connection Management to check the dial-in connection status (from branch office). Log into the web user interface of Vigor router. Open VPN and Remote Access>>LAN to LAN to create a LAN-to-LAN profile. The following settings are for a permanent VPN connection. Click any index number to open the configuration page.
Page 88 Now navigate to the next section, Dial-Out Settings to select the IPsec Tunnel service and type the remote server IP/host name (e.g., 218.242.133.91, in this case). Press the IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method.
Page 89 Open VPN and Remote Access>>Connection Management to check the dial-in connection status (from head office). Vigor2120 Series User’s Guide...
Page 90: How To Optimize The Bandwidth Through Qos Technology
Internet connection line? The advanced bandwidth management technology-QoS (Quality of Service) helps you to well allocate the bandwidth upon your demand of Voice, Video, or Data transferring. Let's see how to get the optimum bandwidth per your request by using DrayTek Vigor router as below.
Page 91 In the pop-up window, choose Range Address as the Address Type and type the start IP address and end IP address in relational fields. Click OK to save the settings and exit the window. Click OK again to save the settings. Vigor2120 Series User’s Guide...
Page 92 The class rule for VoIP has been set. Click OK to return to previous page. Do the same steps to add class rules for IPTV and Data/Email with IP addresses as shown below. Vigor2120 Series User’s Guide...
Page 93 Assuming you get 2MB/512Kb Internet line. You can click the Setup link of WAN1 to set up the bandwidth for different groups among VoIP, IPTV and Data/Email. 10. In the Setup page, check the box of Enable the QoS Control. Type 30, 50 and 15 in the boxes for VoIP, IPTV and Data/Email respectively.
Page 94 11. Click OK to save the settings. The class rules for WAN1 are defined as shown below. Vigor2120 Series User’s Guide...
Page 95: How To Create An Account For Myvigor
The website of MyVigor (a server located on http://myvigor.draytek.com) provides several useful services (such as Anti-Spam, Web Content Filter, Anti-Intrusion, and etc.) to filtering the web pages for the sake of protecting your system. To access into MyVigor for getting more information, please create an account for MyVigor.
Page 96 2. Click the Activate link. A login page for MyVigor web site will pop up automatically. 3. Click the link of Create an account now. 4. Check to confirm that you accept the Agreement and click Accept. Vigor2120 Series User’s Guide...
Page 97 5. Type your personal information in this page and then click Continue. 6. Choose proper selection for your computer and click Continue. 7. Now you have created an account successfully. Click START. Vigor2120 Series User’s Guide...
Page 98 New Account Confirmation 8. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 9. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login.
Page 99: Create An Account Via Myvigor Web Site
1. Access into http://myvigor.draytek.com. Find the line of Not registered yet?. Then, click the link Click here! to access into next page. 2. Check to confirm that you accept the Agreement and click Accept. Vigor2120 Series User’s Guide...
Page 100 3. Type your personal information in this page and then click Continue. 4. Choose proper selection for your computer and click Continue. 5. Now you have created an account successfully. Click START. Vigor2120 Series User’s Guide...
Page 101 New Account Confirmation 6. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 7. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login.
Page 102: How To Send A Notification To Specified Phone Number Via Sms Service In Wan Disconnection
Follow the steps listed below: Log into the web user interface of Vigor router. Configure relational objects first. Open Object Settings>>SMS/Mail Server Object to get the following page. Index 1 to Index 8 allows you to choose the built-in SMS service provider. If the SMS service provider is not on the list, you can configure Index 9 and Index 10 to add the new service provider to Vigor router.
Page 103 After finished the settings, click OK to return to previous page. Now you have finished the configuration of the SMS Provider profile setting. Open Object Settings>>Notification Object to configure the event conditions of the notification. Choose any index number (e.g., Index 1 in this case) to configure conditions for sending the SMS.
Page 104 After finished the settings, click OK to return to previous page. You have finished the configuration of the notification object profile setting. Now, open Application >> SMS / Mail Alert Service. Use the drop down list to choose SMS Provider and the Notify Profile (specify the time of sending SMS). Then, type the phone number in the field of Recipient (the one who will receive the SMS).
Page 105 Choose one of the Index numbers (9 or 10) allowing you to customize the SMS Provider. In the web page, type the URL string of the SMS provider and type the username and password. After clicking OK, the new added SMS provider will be added and will be available for you to specify for sending SMS out.
Page 106: How To Configure Certain Computers Accessing To Internet
We can specify certain computers (e.g., 192.168.1.10 ~ 192.168.1.20) accessing to Internet through Vigor router. Others (e.g., 192.168.1.31 and 192.168.1.32) outside the range can get the source from LAN only. The way we can use is to set two rules under Firewall. For Rule 1 of Set 2 under Firewall>>Filter Setup is used as the default setting, we have to create a new rule starting from Filter Rule 2 of Set 2.
Page 107 Check the box of Check to enable the Filter Rule. Type the comments (e.g., block_all). Choose Block If No Further Match for the Filter setting. Then, click OK. Note: In default, the router will check the packets starting with Set 2, Filter Rule 2 to Filter Rule 7.
Page 108 A dialog box will be popped up. Choose Range Address as Address Type by using the drop down list. Type 192.168.1.10 in the field of Start IP, and type 192.168.1.20 in the field of End IP. Then, click OK to save the settings. The computers within the range can access into the Internet.
Page 109 Both filter rules have been created. Click OK. Now, all the settings are configured well. Only the computers with the IP addresses within 192.168.1.10 ~ 192.168.1.20 can access to Internet. Vigor2120 Series User’s Guide...
Page 110: How To Block Facebook Service Accessed By The Users Via Web Content Filter / Url Content Filter
There are two ways to block the facebook service, Web Content Filter and URL Content Filter. Web Content Filter, Benefits: Easily and quickly implement the category/website that you want to block. Note: License is required. URL Content Filter, Benefits: Free, flexible for customize webpage. Note: Manual setting (e.g., one keyword for one website.) Make sure the Web Content Filter (powered by Commtouch) license is valid.
Page 111 Open CSM >> Web Content Filter Profile to create a WCF profile. Check Social Networking with Action, Block. Enable this profile in Firewall>>General Setup>>Default Rule. Vigor2120 Series User’s Guide...
Page 112 Next time when someone accesses facebook via this router, the web page would be blocked and the following message would be displayed instead. A. Block the web page containing the word of “Facebook” Open Object Settings>>Keyword Object. Click an index number to open the setting page.
Page 113 When you finished the above steps, click OK. Then, open Firewall>>General Setup. Click the Default Rule tab. Choose the profile just configured from the drop down list in the field of URL Content Filter. Now, users cannot open any web page with the word “facebook”...
Page 114 Open CSM>>URL Content Filter Profile. Click an index number to open the setting page. Configure the settings as the following figure. When you finished the above steps, please open Firewall>>General Setup. Vigor2120 Series User’s Guide...
Page 115 Click the Default Rule tab. Choose the profile just configured from the drop down list in the field of URL Content Filter. Now, users cannot open any web page with the word “facebook” inside. Vigor2120 Series User’s Guide...
Page 116: How To Use Smartmonitor With Vigor2120 Series
For the models that support SmartMonitor, you can connect the device installed with SmartMonitor to the monitor port of Vigor router, then all the traffic in other LAN port will forward to the monitor port. But, there is no hardware monitor port for Vigor2120 series. Therefore we need to configure mirror port setting in the web user interface of Vigor2120 for using SmartMonitor.
Page 117: Advanced Configuration
This chapter will guide users to execute advanced (full) configuration through admin mode operation. Open a web browser on your PC and type http://192.168.1.1. The window will ask for typing username and password. Please type “admin/admin” on Username/Password for administration operation. Now, the Main Screen will appear.
Page 118 Modem to the USB port of Vigor2120, it can support HSDPA/ UMTS/EDGE/ GPRS/ GSM and the future 3G/4G standard (HSUPA, etc). Vigor2120n-plus with 3G/4G USB Modem allows you to receive 3G/4G signals at any place such as your car or certain location holding outdoor activity and share the bandwidth for using by more people.
Page 119: General Setup
The supported 3G/4G USB Modem will be listed on DrayTek web site. Please visit www.draytek.com for more detailed information. Below shows the menu items for WAN. This section will introduce some general settings of Internet and explain the connection modes for WAN1 and WAN2 in details.
Page 120 VLAN Tag insertion Enable – Enable the function of VLAN with tag. The router will add specific VLAN number to all packets on the WAN while sending them out. Please type the tag value and specify the priority for the packets sending by WAN1.
Page 121: Internet Access
For the router supports multi-WAN function, the users can set different WAN settings (for WAN1/WAN2) for Internet Access. Due to different Physical Mode for WAN interface, the Access Mode for these connections also varies. Refer to the following figures. Available settings are explained as follows: Item Description Index...
Page 122 To use PPPoE as the accessing protocol of the internet, please click the PPPoE tab. The following web page will be shown. Available settings are explained as follows: Item Description Click Enable for activating this function. If you click PPPoE Link Disable, this function will be closed and all the settings that you adjusted in this page will be invalid.
Page 123 you can use the number that you have set in that web page. Such function allows you to verify whether network WAN Connection connection is alive or not through ARP Detect or Ping Detection Detect. Mode – Choose ARP Detect or Ping Detect for the system to execute for WAN detection.
Page 124 other than the current one you are using. Type the additional WAN IP address and check the Enable box. Then click OK to exit the dialog. Fixed IP – Click Yes to use this function and type in a fixed IP address in the box of Fixed IP Address. Default MAC Address –...
Page 125 Available settings are explained as follows: Item Description Access Control Broadband Access - Click Enable for activating this function. If you click Disable, this function will be closed and all the settings that you adjusted in this page will be invalid.
Page 126  Primary/Secondary Ping IP – If you choose Ping Detect as detection mode, you have to type Primary or Secondary IP address in this field for pinging.  Ping Gateway IP – If you choose Ping Detect as detection mode, you also can enable this setting to use current WAN gateway IP address for pinging.
Page 127 Dynamic IP mode.  Router Name: Type in the router name provided by ISP.  Domain Name: Type in the domain name that you have assigned. DHCP Client Identifier - Check the box to specify username and password as the DHCP client identifier for some ISP.
Page 128 Available settings are explained as follows: Item Description PPTP/L2TP Link Enable PPTP- Click this radio button to enable a PPTP client to establish a tunnel to a DSL modem on the WAN interface. Enable L2TP - Click this radio button to enable a L2TP client to establish a tunnel to a DSL modem on the WAN interface.
Page 129 Internet after passing through the time without any action. IP Address Assignment Fixed IP - Usually ISP dynamically assigns IP address to Method(IPCP) you each time you connect to it and request. In some case, your ISP provides service to always assign you the same IP address whenever you request.
Page 130 To use 3G/4G USB Modem (PPP mode) as the accessing protocol of the internet, please choose Internet Access from WAN menu. Then, select 3G/4G USB Modem (PPP mode) for WAN2. The following web page will be shown. Available settings are explained as follows: Item Description Modem Support List...
Page 131 Modem Initial String2 The initial string 1 is shared with APN. In some cases, user may need another initial AT command to restrict 3G band or do any special settings. The maximum length of the string you can set is 47 characters.
Page 132 To use 3G/4G USB Modem (DHCP mode) as the accessing protocol of the internet, please choose Internet Access from WAN menu. Then, select 3G/4G USB Modem (DHCP mode) for WAN2. The following web page will be shown. Available settings are explained as follows: Item Description 3G/4G USB...
Page 133  Path MTU to – Type the IP address as the specific transmit path.  MTU reduce size by– It determines the decreasing size of MTU value. For example, the number specified in this field is “8”. The maximum MTU size is “1500”.
Page 134 – – When Offline is selected, the IPv6 connection will be disabled. – – During the procedure of IPv4 PPPoE connection, we can get the IPv6 Link Local Address between the gateway and Vigor router through IPv6CP. Later, use DHCPv6 or accept RA to acquire the IPv6 prefix address (such as: 2001:B010:7300:200::/64) offered by the ISP.
Page 135 detection mode, you have to type IP address in this field for pinging.  TTL (Time to Live) –If you choose Ping Detect as detection mode, you have to type TTL value. RIPng Protocol RIPng (RIP next generation) offers the same functions and benefits as IPv4 RIP v2.
Page 136 – – Tunnel setup protocol client (TSPC) is an application which could help you to connect to IPv6 network easily. Please make sure your IPv4 WAN connection is OK and apply one free account from hexago (http://gogonet.gogo6.com/page/freenet6-account ) before you try to use TSPC for network connection.
Page 137  Ping IP/Hostname – If you choose Ping Detect as detection mode, you have to type IP address in this field for pinging.  TTL (Time to Live) –If you choose Ping Detect as detection mode, you have to type TTL value. After finished the above settings, click OK to save the settings.
Page 138 Tunnel ID One user account may have several tunnels. And, each tunnel shall have one specified tunnel ID (e.g., T115394). Type the ID offered by Tunnel Broker. Subnet Prefix Type the subnet prefix address obtained from service provider. The maximum length of the prefix you can set is 128 characters.
Page 139 – – DHCPv6 client mode would use DHCPv6 protocol to obtain IPv6 address from server. Available settings are explained as follows: Item Description Identify Association Choose Prefix Delegation or Non-temporary Address as the identify association. IAID Type a number as IAID. WAN Connection Such function allows you to verify whether network Detection...
Page 140 Bridge Mode Enable Bridge Mode - If the function is enabled, the router will work as a bridge modem. Bridge Subnet – Make a bridge between the selected LAN subnet and such WAN interface. After finished the above settings, click OK to save the settings. Vigor2120 Series User’s Guide...
Page 141 – – This type allows you to setup static IPv6 address for WAN interface. Available settings are explained as follows: Item Description Static IPv6 Address IPv6 Address – Type the IPv6 Static IP Address. configuration Prefix Length – Type the fixed value for prefix length. Add –...
Page 142 on always.  Ping IP/Hostname – If you choose Ping Detect as detection mode, you have to type IP address in this field for pinging.  TTL (Time to Live) –If you choose Ping Detect as detection mode, you have to type TTL value. RIPng (RIP next generation) offers the same functions and RIPng Protocol benefits as IPv4 RIP v2.
Page 143 – – This type allows you to setup 6in4 Static Tunnel for WAN interface. Such mode allows the router to access IPv6 network through IPv4 network. However, 6in4 offers a prefix outside of 2002::0/16. So, you can use a fixed endpoint rather than anycast endpoint.
Page 144 Below shows an example for successful IPv6 connection based on 6in4 Static Tunnel mode. Vigor2120 Series User’s Guide...
Page 145 – – This type allows you to setup 6rd for WAN interface. Available settings are explained as follows: Item Description 6rd Mode Auto 6rd – Retrieve 6rd prefix automatically from 6rd service provider. The IPv4 WAN must be set as "DHCP". Static 6rd - Set 6rd options manually.
Page 146 detection mode, you have to type TTL value. After finished the above settings, click OK to save the settings. Below shows an example for successful IPv6 connection based on 6rd mode. Vigor2120 Series User’s Guide...
Page 147: Multi-Vlan
Multi-VLAN allows users to create profiles for specific WAN interface and bridge connections for user applications that require very high network throughput. Simply go to WAN and select Multi-VLAN. This page shows the basic configurations used by every channel. Available settings are explained as follows: Item Description Channel...
Page 148 Available settings are explained as follows: Item Description Multi-VLAN Channel Enable – Click it to enable the configuration of this (6~8) channel. Disable –Click it to disable the configuration of this channel. WAN Type The connections and interfaces created in every channel may select a specific WAN type to be built upon.
Page 149 Available settings are explained as follows: Item Description Enable – Click it to enable the configuration of this Multi-VLAN Channel channel. (3~5) Disable –Click it to disable the configuration of this channel. WAN Type The connections and interfaces created in every channel may select a specific WAN type to be built upon.
Page 150 traffic flowing on each channel will be identified by the system via their VLAN Tags. Channels using the same WAN type may not configure the same VLAN tag value. Priority – Choose the number to determine the packet priority for such VLAN. The range is from 0 to 7. Open Port-based Bridge The settings here will create a bridge between the LAN Connection for this...
Page 151: Lan
Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design of network structure is related to what type of public IP addresses coming from your ISP. The most generic function of Vigor router is NAT. It creates a private subnet of your own. As mentioned previously, the router will talk to other public hosts on the Internet by using public IP address and talking to local hosts by using its private IP address.
Page 152 Vigor router will exchange routing information with neighboring routers using the RIP to accomplish IP routing. This allows users to change the information of the router such as IP address and the routers will automatically inform for each other. When you have several subnets in your LAN, sometimes a more effective and quicker way for connection is the Static routes function rather than other method.
Page 153: General Setup
This page provides you the general settings for LAN. Click LAN to open the LAN settings page and choose General Setup. There are two subnets provided by the router which allow users to divide groups into different subnets (LAN1 – LAN2). In addition, different subnets can link for each other by configuring Inter-LAN Routing.
Page 154 Enable – Check the box to enable the function of DHCP Option. Each DHCP option is composed by an option number with data. For example, Option number:100 Data: abcd When such function is enabled, the specified values for DHCP option will be seen in DHCP reply packets. Interface –...
Page 155 – – There are two configuration pages for LAN1, Ethernet TCP/IP and DHCP Setup (based on IPv4) and IPv6 Setup. Click the tab for each type and refer to the following explanations for detailed information. Available settings are explained as follows: Item Description Network Configuration...
Page 156 request to. DHCP Server IP Address – It is available when Enable Relay Agent is checked. Set the IP address of the DHCP server you are going to use so the Relay Agent can help to forward the DHCP request to the DHCP server. Start IP Address - Enter a value of the IP address pool for the DHCP server to start with when issuing IP addresses.
Page 157 If both the Primary IP and Secondary IP Address fields are left empty, the router will assign its own IP address to local users as a DNS proxy server and maintain a DNS cache. If the IP address of a domain name is already in the DNS cache, the router will resolve the domain name immediately.
Page 158 routers. (Default) Enable – activate the RIP protocol. DHCP Server DHCP stands for Dynamic Host Configuration Protocol. Configuration The router by factory default acts a DHCP server for your network so it automatically dispatch related IP settings to any local user configured as a DHCP client. It is highly recommended that you leave the router enabled as a DHCP server if you do not have a DHCP server for your network.
Page 159 – – There are two configuration pages for LAN1, Ethernet TCP/IP and DHCP Setup (based on IPv4) and IPv6 Setup. Click the tab for each type and refer to the following explanations for detailed information. Below shows the settings page for IPv6. It provides 2 daemons for LAN side IPv6 address configuration.
Page 160 Enable Check the box to enable the configuration of LAN 1 IPv6 Setup. WAN Primary Interface Use the drop down list to specify a WAN interface for IPv6. IPv6 Address –Type static IPv6 address for LAN. Static IPv6 Address configuration Prefix Length –...
Page 161 Disable Server –Click it to disable DHCPv6 server. Auto IPv6 range – After check the box, Vigor router will assign the IPv6 range automatically. Start IPv6 Address / End IPv6 Address –Type the start and end address for IPv6 server. Advance setting –...
Page 162 (between minimum time and maximum time) for sending RA (Router Advertisement) packets. Default Lifetime (sec) –Within such period of time, Vigor2925 can be treated as the default gateway. Default Preference – It determines the priority of the host behind the router when RA (Router Advertisement) packets are transmitted.
Page 163: Static Route
Go to LAN to open setting page and choose Static Route. The router offers IPv4 and IPv6 for you to configure the static route. Both protocols bring different web pages. Available settings are explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings.
Page 164 Click any underline of index number to get the following page. Available settings are explained as follows: Item Description Enable Check it to enable this profile. Destination IP Address Type an IP address as the destination of such static route. Subnet Mask Type the subnet mask for such static route.
Page 165 You can set up to 40 profiles for IPv6 static route. Click the IPv6 tab to open the following page: Each item is explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings.
Page 166 Destination IPv6 Address Type the IP address with the prefix length for this entry. / Prefix Len Gateway IPv6 Address Type the gateway address for this entry. Use the drop down list to specify an interface for this static Network Interface route.
Page 167 Click the LAN >> Static Route and click on the Index Number 1. Check the Enable box. Please add a static route as shown below, which regulates all packets destined to 192.168.10.0 will be forwarded to 192.168.1.2. Click OK. Return to Static Route Setup page. Click on another Index Number to add another static route as show below, which regulates all packets destined to 211.100.88.0 will be forwarded to 192.168.1.3.
Page 168: Vlan
With the 4-port Gigabit switch on the LAN side, Vigor router provides extremely high speed connectivity for the highest speed local data transfer of any server or local PCs. On the Wireless-equipped model (Vigor2120n-plus), each of the wireless SSIDs can also be grouped within one of the VLANs.
Page 169 Wireless LAN (2.4GHz) SSID1 – SSID4 – Check the SSID boxes to group them under the selected VLAN. Wireless LAN (5GHz) SSID1 – SSID4 – Check the SSID boxes to group them under the selected VLAN. Subnet Choose one of them to make the selected VLAN mapping to the specified subnet only.
Page 170 Click OK. Open LAN>>General Setup. If you want to let the clients in both groups communicate with each other, simply activate Inter-LAN Routing by checking the box between LAN1 and LAN2. Vigor router supports up to six private IP subnets on LAN. Each can be independent (isolated) or common (able to communicate with each other).
Page 171: Bind Ip To Mac
This function is used to bind the IP and MAC address in LAN to have a strengthening control in network. When this function is enabled, all the assigned IP and MAC address binding together cannot be changed. If you modified the binding IP or MAC address, it might cause you not access into the Internet.
Page 172 Refresh Refresh the ARP table listed below to obtain the newest ARP table information. IP Address – Type the IP address that will be used for the Add or Update specified MAC address. Mac Address – Type the MAC address that is used to bind with the assigned IP address.
Page 173: Lan Port Mirror
LAN port mirror can be applied for the users in LAN. Generally speaking, this function copies traffic from one or more specific ports to a target port. This mechanism helps manager track the network errors or abnormal packets transmission without interrupting the flow of data access the network.
Page 174: Web Portal Setup
This page allows you to configure a profile with specified URL for accessing into or display a message when a wireless/LAN user connects to Internet through this router. No matter what the purpose of the wireless/LAN client is, he/she will be forced into the URL configured here while trying to access into the Internet or the desired web page through this router.
Page 175 To configure the profile, click any index number link to open the following page. Available settings are explained as follows: Item Description Enable Check the box to enable this function. Body Two types can be specified for web portal setup. URL Redirect - Any user who wants to access into Internet through this router will be redirected to the URL specified here first.
Page 176 Authentication Button click – Authenticate the user by clicking the button with the words defined below.  Text - Define the word (default word is “Continue”) shown on the button.  User must click button to proceed – Check it to force the user to click the button (with the word defined on Button box) to proceed the operation.
Page 177: Nat
Usually, the router serves as an NAT (Network Address Translation) router. NAT is a mechanism that one or more private IP addresses can be mapped into a single public one. Public IP address is usually assigned by your ISP, for which you may get charged. Private IP addresses are recognized only among internal hosts.
Page 178 The port redirection can only apply to incoming traffic. To use this function, please go to NAT page and choose Port Redirection web page. The Port Redirection Table provides 20 port-mapping entries for the internal hosts. Each item is explained as follows: Item Description Index...
Page 179 Public Port Display the port number which will be redirected to the specified Private IP and Port of the internal host. Private IP Display the IP address of the internal host providing the service. Display if the profile is enabled (v) or not (x). Status Press any number under Index to access into next page for configuring port redirection.
Page 180 Source IP Use the drop down list to specify an IP object. Or click IP Object link to create a new one for applying. Private IP Specify the private IP address of the internal host providing the service. If you choose Range as the port redirection mode, you will see two boxes on this field.
Page 181: Dmz Host
As mentioned above, Port Redirection can redirect incoming TCP/UDP or other traffic on particular ports to the specific private IP address/port of host in the LAN. However, other IP protocols, for example Protocols 50 (ESP) and 51 (AH), do not travel on a fixed port. Vigor router provides a facility DMZ Host that maps ALL unsolicited data on any protocol to a single host in the LAN.
Page 182 Available settings are explained as follows: Item Description Choose Private IP or Active True IP first. Active True IP selection is available for WAN1 only. Private IP Enter the private IP address of the DMZ host, or click Choose PC to select one. Choose IP Click this button and then a window will automatically pop up, as depicted below.
Page 183 If you previously have set up WAN Alias for PPPoE or Static or Dynamic IP mode in WAN interface, you will find them in Aux. WAN IP for your selection. Available settings are explained as follows: Item Description Enable Check to enable the DMZ Host function. Private IP Enter the private IP address of the DMZ host, or click Choose PC to select one.
Page 184: Open Ports
Open Ports allows you to open a range of ports for the traffic of special applications. Common application of Open Ports includes P2P application (e.g., BT, KaZaA, Gnutella, WinMX, eMule and others), Internet Camera etc. Ensure that you keep the application involved up-to-date to avoid falling victim to any security exploits.
Page 185 Available settings are explained as follows: Item Description Enable Open Ports Check to enable this entry. Comment Make a name for the defined network application/service. WAN Interface Specify the WAN interface that will be used for this entry. WAN IP Specify the WAN IP address that will be used for this entry.
Page 186: Address Mapping
After finishing all the settings here, please click OK to save the configuration. Address Mapping is used to map a specified private IP or a range of private IPs of NAT subnet into a specified WAN IP (or WAN IP alias IP). Refer to the following figure. Suppose the WAN settings for a router are configured as follows: WAN1: 202.211.100.10, WAN1 alias: 202.211.100.11 WAN2: 203.98.200.10...
Page 187 Available settings are explained as follows: Item Description Index Indicate the relative number for the particular entry that you want to configure You should click the appropriate index number to edit or clear the corresponding entry. Protocol Display the protocol used for this address mapping. Public IP Display the public IP address selected for this entry, e.g., 172.16.3.102.
Page 188: Port Triggering
WAN Interface Choose the WAN interface for such address mapping profile. WAN IP This is the source IP of a packet captured on the WAN side and sent by a NAT host specified in the Private IP field. The drop down menu contains WAN interface IPs and WAN IP alias IPs.
Page 189 Available settings are explained as follows: Item Description Comment Display the text which memorizes the application of this rule. Triggering Protocol Display the protocol of the triggering packets. Source IP Display the name of the IP object. Triggering Port Display the port of the triggering packets. Incoming Protocol Display the protocol for the incoming data of such triggering profile.
Page 190 Comment Type the text to memorize the application of this rule. Source IP Use the drop down list to specify an IP object. Or click IP Object link to create a new one for applying. Select the protocol (TCP, UDP or TCP/UDP) for such Triggering Protocol triggering profile.
Page 191: Hardware Acceleration
Hardware Acceleration is also called PPA in DrayTek for it is based on Protocol Processing Engine (PPE) of Infinion. It can only support 128 sessions for network traffic (IN & OUT). When the data traffic is heavy and data transmission is getting slowly and slowly, you can configure this page to accelerate the data streaming by hardware itself.
Page 192: Firewall
While the broadband users demand more bandwidth for multimedia, interactive applications, or distance learning, security has been always the most concerned. The firewall of the Vigor router helps to protect your local network against attack from unauthorized outsiders. It also restricts users in the local network from accessing the Internet.
Page 193 Stateful inspection is a firewall architecture that works at the network layer. Unlike legacy static packet filtering, which examines a packet based on the information in its header, stateful inspection builds up a state machine to track each connection traversing all interfaces of the firewall and makes sure they are valid.
Page 194: General Setup
General Setup allows you to adjust settings of IP Filter and common options. Here you can enable or disable the Call Filter or Data Filter. Under some circumstance, your filter set can be linked to work in a serial manner. So here you assign the Start Filter Set only. Also you can configure the Log Flag settings, Apply IP filter to VPN incoming packets, and Accept incoming fragmented UDP packets.
Page 195 enable “Accept large incoming fragmented UDP or ICMP Packets”. By checking this box, you can play these kinds of on-line games. If security concern is in higher priority, you cannot enable “Accept large incoming fragmented UDP or ICMP Packets”. Enable Strict Security For the sake of security, the router will execute strict Firewall security checking for data transmission.
Page 196 Such page allows you to choose filtering profiles including QoS, Policy Route, WCF, APP Enforcement, and URL Content Filter for data transmission via Vigor router. Available settings are explained as follows: Item Description Filter Select Pass or Block for the packets that do not match with the filter rules.
Page 197 APP Enforcement Select an APP Enforcement profile for global IM/P2P application blocking. If there is no profile for you to select, please choose [Create New] from the drop down list in this page to create a new profile. All the hosts in LAN must follow the standard configured in the APP Enforcement profile selected here.
Page 198 Codepage - This function is used to compare the characters among different languages. Choose correct codepage can help the system obtaining correct ASCII after decoding data from URL and enhance the correctness of URL Content Filter. The default value for this setting is ANSI 1252 Latin I.
Page 199: Filter Setup
Click Firewall and click Filter Setup to open the setup page. To edit or add a filter, click on the set number to edit the individual set. The following page will be shown. Each filter set contains up to 7 rules. Click on the rule number button to edit each rule.
Page 200 Action Display the packets to be passed /blocked. Display the content security managed Move Up/Down Use Up or Down link to move the order of the filter rules. Next Filter Set Set the link to the next filter set to be executed after the current filter run.
Page 201 Note: RT means routing domain for 2nd subnet or other LAN. Source/Destination Click Edit to access into the following dialog to choose the source/destination IP or IP ranges. To set the IP address manually, please choose Any Address/Single Address/Range Address/Subnet Address as the Address Type and type them in this dialog.
Page 202 (<) – the port number less than this value is available for this profile. 3. Click Next to get the following page. Available settings are explained as follows: Item Description Pass Immediately Packets matching the rule will be passed immediately. APP Enforcement - Select an APP Enforcement profile for global IM/P2P application blocking.
Page 203 DNS Filter - Select one of the DNS Filter profile settings (created in CSM>>DNS Filter) for applying with this router. Please set at least one profile in CSM>> Web Content Filter web page first. Or click the DNS Filter link from the drop down list in this page to create a new profile.
Page 204 To use Advance Mode, do the following steps: 1. Click the Advance Mode radio button. 2. Click Index 1 to access into the following page. Available settings are explained as follows: Item Description Check this box to enable the filter rule. Check to enable the Filter Rule Comments...
Page 205 Note: RT means routing domain for 2nd subnet or other LAN. Source/Destination Click Edit to access into the following dialog to choose the source/destination IP or IP ranges. To set the IP address manually, please choose Any Address/Single Address/Range Address/Subnet Address as the Address Type and type them in this dialog.
Page 206 To set the service type manually, please choose User defined as the Service Type and type them in this dialog. In addition, if you want to use the service type from defined groups or objects, please choose Group and Objects as the Service Type.
Page 207 Block If No Further Match - A packet matching the rule, and that does not match further rules, will be dropped. Pass If No Further Match - A packet matching the rule, and that does not match further rules, will be passed through.
Page 208 Syslog server. Please refer to section Syslog/Mail Alert for more detailed information. URL Content Filter Select one of the URL Content Filter profile settings (created in CSM>> URL Content Filter) for applying with this router. Please set at least one profile for choosing in CSM>>...
Page 209 TCP protocol only; session timeout is configured for the data flow which matched with the firewall rule. DrayTek Banner – Please uncheck this box and the following screen will not be shown for the unreachable web page. The default setting is Enabled.
Page 210: Dos Defense
As a sub-functionality of IP Filter/Firewall, there are 15 types of detect/ defense function in the DoS Defense setup. The DoS Defense functionality is disabled for default. Click Firewall and click DoS Defense to open the setup page. Available settings are explained as follows: Item Description Enable Dos Defense...
Page 211 for a period defined in Timeout. The default setting for threshold and timeout are 2000 packets per second and 10 seconds, respectively. That means, when 2000 packets per second received, they will be regarded as “attack event” and the session will be paused for 10 seconds.
Page 212 blocked. Activating the DoS/DDoS defense functionality might block some legal packets. For example, when you activate the fraggle attack defense, all broadcast UDP packets coming from the Internet are blocked. Therefore, the RIP packets from the Internet might be dropped. Block TCP flag scan Check the box to activate the Block TCP flag scan function.
Page 213 After finishing all the settings here, please click OK to save the configuration. Vigor2120 Series User’s Guide...
Page 214: Objects Settings
For IPs in a range and service ports in a limited range usually will be applied in configuring router’s settings, therefore we can define them with objects and bind them with groups for using conveniently. Later, we can select that object/group that can apply it. For example, all the IPs in the same department can be defined with an IP object (a range of IP address).
Page 215 IP object with the selected type will be shown on this page. Set to Factory Default Clear all profiles. Search Type a string of the IP object that you wan to search. Index Display the profile number that you can configure. Name Display the name of the object profile.
Page 216 allowed. Interface Choose a proper interface. For example, the Direction setting in Edit Filter Rule will ask you specify IP or IP range for WAN or LAN/RT/VPN or any IP address. If you choose LAN/RT/VPN as the Interface here, and choose LAN/RT/VPN as the direction setting in Edit Filter Rule, then all the IP addresses specified with LAN/RT/VPN interface will be opened for you to choose in Edit Filter Rule page.
Page 217 Vigor2120 Series User’s Guide...
Page 218: Ip Group
This page allows you to bind several IP objects into one IP group. Available settings are explained as follows: Item Description Clear all profiles. Set to Factory Default Index Display the profile number that you can configure. Name Display the name of the group profile. To set a new profile, please do the steps listed below: 1.
Page 219: Ipv6 Object
Available settings are explained as follows: Item Description Name Type a name for this profile. Maximum 15 characters are allowed. Interface Choose WAN, LAN or Any to display all the available IP objects with the specified interface. All the available IP objects with the specified interface Available IP Objects chosen above will be shown in this box.
Page 220 To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Name Type a name for this profile.
Page 221: Ipv6 Group
After finishing all the settings, please click OK to save the configuration. This page allows you to bind several IPv6 objects into one IPv6 group. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure.
Page 222: Service Type Object
Available settings are explained as follows: Item Description Name Type a name for this profile. Maximum 15 characters are allowed. Available IPv6 All the available IPv6 objects with the specified interface Objects chosen above will be shown in this box. Selected IPv6 Objects Click >>...
Page 223 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Name Type a name for this profile. Protocol Specify the protocol(s) which this profile will apply to. Source/Destination Source Port and the Destination Port columns are Port available for TCP/UDP protocol.
Page 224: Service Type Group
This page allows you to bind several service types into one group. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the group profile. To set a new profile, please do the steps listed below: 1.
Page 225: Keyword Object
Item Description Name Type a name for this profile. Available Service All the available service objects that you have added on Objects Setting>>Service Type Object will be shown in Type Objects this box. Selected Service Type Click >> button to add the selected IP objects in this box. Objects After finishing all the settings, please click OK to save the configuration.
Page 226 To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Name Type a name for this profile, e.g., game.
Page 227: Keyword Group
This page allows you to bind several keyword objects into one group. The keyword groups set here will be chosen as black /white list in CSM >>URL /Web Content Filter Profile. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles.
Page 228: File Extension Object
Item Description Name Type a name for this group. Maximum 15 characters are allowed. You can gather keyword objects from Keyword Object Available Keyword page within one keyword group. All the available Objects Keyword objects that you have created will be shown in this box.
Page 229 To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Profile column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Profile Name Type a name for this profile.
Page 230: Sms/Mail Service Object
This page allows you to set ten profiles which will be applied in Application>>SMS/Mail Alert Service. Each item is explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings. Index Display the profile number that you can configure.
Page 231 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Type a name for such SMS profile. The maximum length of Profile Name the name you can set is 31 characters. Service Provider Use the drop down list to specify the service provider which offers SMS service.
Page 232 Vigor router offers several SMS service provider to offer the SMS service. However, if your service provider cannot be found from the service provider list, simply use Index 9 and Index 10 to make customized SMS service. The profile name for Index 9 and Index 10 are fixed. You can click the number (e.g., #9) under Index column for configuration in details.
Page 233 the exact URL string. Username Type a user name that the sender can use to register to selected SMS provider. The maximum length of the name you can set is 31 characters. Type a password that the sender can use to register to Password selected SMS provider.
Page 234 To set a new profile, please do the steps listed below: 1. Click the Mail Server tab, and click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Profile Name...
Page 235: Notification Object
3. After finishing all the settings here, please click OK to save the configuration. This page allows you to set ten profiles which will be applied in Application>>SMS/Mail Alert Service. You can set an object with different monitoring situation. Each item is explained as follows: Item Description Set to Factory Default...
Page 236 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Profile Name Type a name for such notification profile. The maximum length of the name you can set is 15 characters. Category Display the types that will be monitored. Status Display the status for the category.
Page 237: Csm
CSM is an abbreviation of Content Security Management which is used to control IM/P2P usage, filter the web content and URL content to reach a goal of security management. As the popularity of all kinds of instant messenger application arises, communication cannot become much easier.
Page 238: App Enforcement Profile
You can define policy profiles for IM (Instant Messenger)/P2P (Peer to Peer)/Protocol/Misc application. This page allows you to set 32 profiles for different requirements. The APP Enforcement Profile will be applied in Default Rule of Firewall>>General Setup for filtering. For the telnet command usage, please refer to “Telnet Command: csm appe prof”...
Page 239 Below shows the items which are categorized under Protocol. Available settings are explained as follows: Item Description Profile Name Type a name for the CSM profile. The maximum length of the name you can set is 15 characters. Select All Click it to choose all of the items in this page.
Page 240: Url Content Filter Profile
To provide an appropriate cyberspace to users, Vigor router equips with URL Content Filter not only to limit illegal traffic from/to the inappropriate web sites but also prohibit other web feature where malicious code may conceal. Once a user type in or click on an URL with objectionable keywords, URL keyword blocking facility will decline the HTTP request to that web page thus can limit user’s access to the website.
Page 241 your necessity or click this button to get the default message which will be displayed on the field of Administration Message. You can set eight profiles as URL content filter. Simply click the index number under Profile to open the following web page. Available settings are explained as follows: Item Description...
Page 242 Control and Web Feature below, such function can determine the priority for the actions executed. For this one, the router will process the packages with the conditions set below for web feature first, then URL second. None – There is no log file will be recorded for this profile. Pass –...
Page 243 a partial noun, or a complete URL string. Multiple keywords within a frame are separated by space, comma, or semicolon. In addition, the maximal length of each frame is 32-character long. After specifying keywords, the Vigor router will decline the connection request to the website whose URL string matched to any user-defined keyword.
Page 244: Web Content Filter Profile
Note: If you have used Service Activation Wizard to activate WCF service, you can skip this section. WCF adopts the mechanism developed and offered by certain service provider (e.g., DrayTek). No matter activating WCF feature or getting a new license for web content filter, you have to click Activate to satisfy your request.
Page 245 Setup Test Server It is recommended for you to use the default setting, auto-selected. Find more Click it to open http://myvigor.draytek.com for searching another qualified and suitable server. Test a site to verify Click this link to do the verification.
Page 246 with faster rate. L2 – the router will check the URL that the user wants to access via WCF. If the data has been accessed previously, the IP addresses of source and destination IDs will be memorized for a short time (about 1 second) in the router. When the user tries to access the same destination ID, the router will check it by comparing the record stored.
Page 247 Black/White List Enable – Activate white/black list function for such profile. Group/Object Selections – Click Edit to choose the group or object profile as the content of white/black list. Pass - allow accessing into the corresponding webpage with the characters listed on Group/Object Selections. If the web pages do not match with the specified feature set here, they will be processed with the categories listed on the box below.
Page 248: Dns Filter Profile
The DNS Filter monitors DNS queries on UDP port 53 and will pass the DNS query information to the WCF to help with categorizing HTTPS URL's. Note: For DNS filter must use the WCF service profile to filter the packets, therefore WCF license must be activated first.
Page 249 from clients on LAN when router’s DNS server is used. DNS Filter - Check Enable to enable such feature. Syslog - The filtering result can be recorded according to the setting selected for Syslog.  None – There is no log file will be recorded for this profile.
Page 250: Bandwidth Management
Below shows the menu items for Bandwidth Management. A PC with private IP address can access to the Internet via NAT router. The router will generate the records of NAT sessions for such connection. The P2P (Peer to Peer) applications (e.g., BitTorrent) always need many sessions for procession and also they will occupy over resources which might result in important accesses impacted.
Page 251 session. Default session limit - Defines the default session number used for each computer in LAN. Limitation List Displays a list of specific limitations that you set on this web page. Start IP- Defines the start IP address for limit session. Specific Limitation End IP - Defines the end IP address for limit session.
Page 252: Bandwidth Limit
The downstream or upstream from FTP, HTTP or some P2P applications will occupy large of bandwidth and affect the applications for other programs. Please use Limit Bandwidth to make the bandwidth usage more efficient. In the Bandwidth Management menu, click Bandwidth Limit to open the web page. To activate the function of limit bandwidth, simply click Enable and set the default upstream and downstream limit.
Page 253 downstream for each computer in LAN. Allow auto adjustment… - Check this box to make the best utilization of available bandwidth. Limitation List Display a list of specific limitations that you set on this web page. Specific Limitation Start IP - Define the start IP address for limit bandwidth. End IP - Define the end IP address for limit bandwidth.
Page 254: Quality Of Service
Deploying QoS (Quality of Service) management to guarantee that all applications receive the service levels required and sufficient bandwidth to meet performance expectations is indeed one important aspect of modern enterprise network. One reason for QoS is that numerous TCP-based applications tend to continually increase their transmission rate and consume all available bandwidth, which is called TCP slow start.
Page 255 However, each node may take different attitude toward packets with high priority marking since it may bind with the business deal of SLA among different DS domain owners. It’s not easy to achieve deterministic and consistent high-priority QoS traffic throughout the whole network with merely Vigor router’s effort.
Page 256 You can configure general setup for the WAN interface, edit the Class Rule, and edit the Service Type for the Class Rule for your request. Display an online statistics for quality of service for your reference. This feature is available only when the Quality of Service for WAN interface is enabled.
Page 257 Available settings are explained as follows: Item Description Enable the QoS Control The factory default for this setting is checked. Please also define which traffic the QoS Control settings will apply to. IN - apply to incoming traffic only. OUT - apply to outgoing traffic only. BOTH - apply to both incoming and outgoing traffic.
Page 258 The first three (Class 1 to Class 3) class rules can be adjusted for your necessity. To add, edit or delete the class rule, please click the Edit link of that one. After you click the Edit link, you will see the following page. Now you can define the name for that Class.
Page 259 Available settings are explained as follows: Item Description Check this box to invoke these settings. Hardware Check this box to enable the hardware acceleration when Acceleration such rule is applied. Ethernet Type Please specify which protocol (IPv4 or IPv6) will be used for this rule.
Page 260 By the way, you can set up to 20 rules for one Class. If you want to edit an existed rule, please select the radio button of that one and click Edit to open the rule edit page for modification. To add a new service type, edit or delete an existed service type, please click the Edit link under Service Type field.
Page 261 For adding a new service type, click Add to open the following page. Available settings are explained as follows: Item Description Service Name Type in a new service for your request. The maximum length of the name you can set is 11 characters. Service Type Choose the type (TCP, UDP or TCP/UDP or other) for the new service.
Page 262: App Qos
The QoS function is used to do bandwidth management for the services with certain IP or port number. However, there is no effect of bandwidth management on the service such as IM or P2P without fixed IP or port number. APP QoS employs the function of APP Enforcement to detect several types of software in application layer.
Page 263 Open Bandwidth Management>>APP QoS to display the following page. The following shows web page under Traceable. The following shows web page under Untraceable. Vigor2120 Series User’s Guide...
Page 264: Applications
Available settings are explained as follows: Item Description Enable/Disable Click Enable to activate APP QoS function. Click Disable to deactivate APP QoS function. Select All Click it to choose all of the items in this page. Clear All Uncheck all the selected boxes. Action The APP can be specified with different QoS Class.
Page 265 Available settings are explained as follows: Item Description Set to Factory Clear all profiles and recover to factory settings. Default Enable Dynamic Check this box to enable DDNS function. DNS Setup View Log Display DDNS log status. Force the router updates its information to DDNS server. Force Update Auto-Update Set the time for the router to perform auto update for DDNS...
Page 266 Available settings are explained as follows: Item Description Enable Dynamic Check this box to enable the current account. If you did DNS Account check the box, you will see a check mark appeared on the Active column of the previous web page in step 2). Service Provider Select the service provider for the DDNS account.
Page 267: Lan Dns
router is private, it will be converted to public IP before DDNS update takes place. Click OK button to activate the settings. You will see your setting has been saved. Disable the Function and Clear all Dynamic DNS Accounts In the DDNS setup menu, uncheck Enable Dynamic DNS Setup, and push Clear All button to disable the function and clear all accounts from the router.
Page 268 Open Applications>>LAN DNS to get the following page: Each item is explained as follows: Item Description Set to Factory Default Clear all profiles and recover to factory settings. Enable Check the box to enable the selected profile. Index Click the number below Index to access into the setting page.
Page 269 Available settings are explained as follows: Item Description Enable Check this box to enable such profile. Profile Type a name for such profile. Domain Name Type the domain name for such profile. IP Address List The IP address listed here will be used for mapping with the domain name specified above.
Page 270: Schedule
Click OK button to save the settings. A new LAN DNS profile has been created. The Vigor router has a built-in clock which can update itself manually or automatically by means of Network Time Protocols (NTP). As a result, you can not only schedule the router to dialup to the Internet at a specified time, but also restrict Internet access to certain hours so that users can connect to the Internet only during certain hours, say, business hours.
Page 271 Index Click the number below Index to access into the setting page of schedule. Status Display if this schedule setting is active or inactive. You can set up to 15 schedules. Then you can apply them to your Internet Access or VPN and Remote Access >>...
Page 272: Radius
Idle Timeout Specify the duration (or period) for the schedule. How often -Specify how often the schedule will be applied Once -The schedule will be applied just once Weekdays -Specify which days in one week should perform the schedule. Click OK button to save the settings. Example Suppose you want to control the PPPoE Internet access connection to be always on (Force On) from 9:00 to 18:00 for whole week.
Page 273: Upnp
Available settings are explained as follows: Item Description Enable Check to enable RADIUS client feature. Server IP Address Type the IP address of RADIUS server The UDP port number that the RADIUS server is using. The Destination Port default value is 1812, based on RFC 2138. Shared Secret The RADIUS server and client share a secret that is used to authenticate the messages sent between them.
Page 274 Available settings are explained as follows: Item Description Enable UPNP Service Accordingly, you can enable either the Connection Control Service or Connection Status Service. Default WAN It is used to specify the WAN interface for applying such function. The reminder as regards concern about Firewall and UPnP Can't work with Firewall Software Enabling firewall applications on your PC may cause the UPnP function not working properly.
Page 275: Igmp
IGMP is the abbreviation of Internet Group Management Protocol. It is a communication protocol which is mainly used for managing the membership of Internet Protocol multicast groups. Available settings are explained as follows: Item Description Enable IGMP Proxy Check this box to enable this function. The application of multicast will be executed through WAN port.
Page 276: Wake On Lan
A PC client on LAN can be woken up by the router it connects. When a user wants to wake up a specified PC through the router, he/she must type correct MAC address of the specified PC on this web page of Wake on LAN (WOL) of this router. In addition, such PC must have installed a network card supporting WOL function.
Page 277: Sms / Mail Alert Service
The function of SMS (Short Message Service)/Mail Alert is that Vigor router sends a message to user’s mobile or e-mail box through specified service provider to assist the user knowing the real-time abnormal situations. Vigor router allows you to set up to 10 SMS profiles which will be sent out according to different conditions.
Page 278 After finishing all the settings here, please click OK to save the configuration. This page allows you to specify Mail Server profile, who will get the notification e-mail, what the content is and when the message will be sent. Available settings are explained as follows: Item Description Check the box to enable such profile.
Page 279: Bonjour
Bonjour is a service discovery protocol which is a built-in service in Mac OS X; for Windows or Linux platform, there is correspondent softwares to enable this function for free. Usually, users have to configure the router or personal computers to use above services. Sometimes, the configuration (e.g., IP settings, port number) is complicated and not easy to complete.
Page 280 3. Open System Maintenance>>Management. Type a name (e.g., Dray_2925) as the Router Name and click OK. 4. Next, open Applications>>Bonjour. Check the service that you want to use via Bonjour. 5. Open the DNSSD page again. The available items will be changed as the follows. It means the Vigor router (based on Bonjour protocol) is ready to be used as a printer server, FTP server, SSH Server, Telnet Server, and HTTP Server.
Page 281 6. Now, any page or document can be printed out through Vigor router (installed with a printer). Vigor2120 Series User’s Guide...
Page 282: Vpn And Remote Access
A Virtual Private Network (VPN) is the extension of a private network that encompasses links across shared or public networks like the Internet. In short, by VPN technology, you can send data between two computers across a shared or public network in a manner that emulates the properties of a point-to-point private link.
Page 283: Ppp General Setup
This submenu only applies to PPP-related VPN connections, such as PPTP, L2TP, L2TP over IPsec. Available settings are explained as follows: Item Description PAP Only - elect this option to force the router to Dial-In PPP authenticate dial-in users with the PAP protocol. Authentication PAP /CHAP/MS-CHAP/MS-CHAPv2 - Selecting this option means the router will attempt to authenticate dial-in...
Page 284 authentication. You should further specify the Username and Password of the mutual authentication peer. The length of the name/password is limited to 23/19 characters. Assigned IP Start Enter a start IP address for the dial-in PPP connection. You should choose an IP address from the local private network. For example, if the local private network is 192.168.1.0/255.255.255.0, you could choose 192.168.1.200 as the Start IP Address.
Page 285: Ipsec General Setup
In IPsec General Setup, there are two major parts of configuration. There are two phases of IPsec.  Phase 1: negotiation of IKE parameters including encryption, hash, Diffie-Hellman parameter values, and lifetime to protect the following IKE exchange, authentication of both peers using either a Pre-Shared Key or Digital Signature (x.509).
Page 286 from remote dial-in user, Certificate (X.509) and Pre-Shared Key. Certificate for Dial-in –Choose one of the local certificates from the drop down list. Pre-Shared Key- Specify a key for IKE authentication. Confirm Pre-Shared Key- Retype the characters to confirm the pre-shared key. Note: Any packets from the remote dial-in user which does not match the rule defined in VPN and Remote Access>>Remote Dial-In User will be applied with the...
Page 287: Ipsec Peer Identity
To use digital certificate for peer authentication in either LAN-to-LAN connection or Remote User Dial-In connection, here you may edit a table of peer certificate for selection. As shown below, the router provides 32 entries of digital certificates for peer dial-in users. Available settings are explained as follows: Item Description...
Page 288 Available settings are explained as follows: Item Description Profile Name Type the name of the profile. The maximum length of the name you can set is 32 characters. Enable this account Check it to enable such account profile. Accept Any Peer ID Click to accept any peer regardless of its identity.
Page 289: Remote Dial-In User
You can manage remote access by maintaining a table of remote user profile, so that users can be authenticated to dial-in via VPN connection. You may set parameters including specified connection peer ID, connection type (VPN connection - including PPTP, IPsec Tunnel, and L2TP by itself or over IPsec) and corresponding security methods, etc.
Page 290 Available settings are explained as follows: Item Description Enable this account - Check the box to enable this User account and Authentication function. Idle Timeout- If the dial-in user is idle over the limitation of the timer, the router will drop this connection. By default, the Idle Timeout is set to 300 seconds.
Page 291  Nice to Have - Apply the IPsec policy first, if it is applicable during negotiation. Otherwise, the dial-in VPN connection becomes one pure L2TP connection.  Must -Specify the IPsec policy to be definitely applied on the L2TP connection. SSL Tunnel –...
Page 292: Lan To Lan
or without specifying the IP address of the remote node. Pre-Shared Key - Check the box of Pre-Shared Key to invoke this function and type in the required characters (1-63) as the pre-shared key. Digital Signature (X.509) – Check the box of Digital Signature to invoke this function and Select one predefined Profiles set in the VPN and Remote Access >>IPsec Peer Identity.
Page 293 Available settings are explained as follows: Item Description Set to Factory Default Click to clear all indexes. Name Indicate the name of the LAN-to-LAN profile. The symbol ??? represents that the profile is empty. Active V – means the profile has been enabled. X –...
Page 294 Available settings are explained as follows: Item Description Profile Name – Specify a name for the profile of the Common Settings LAN-to-LAN connection. Enable this profile - Check here to activate this profile. Netbios Naming Packet  Pass – click it to have an inquiry for data transmission between the hosts located on both sides of VPN Tunnel while connecting.
Page 295  Both:-initiator/responder  Dial-Out- initiator only  Dial-In- responder only. Always On-Check to enable router always keep VPN connection. Idle Timeout: The default value is 300 seconds. If the connection has been idled over the value, the router will drop the connection. Enable PING to keep IPsec Tunnel alive - This function is to help the router to determine the status of IPsec VPN connection, especially useful in the case of abnormal VPN...
Page 296 or L2TP with or without IPsec policy above. The length of the password is limited to 15 characters. PPP Authentication - This field is applicable when you select, PPTP or L2TP with or without IPsec policy above. PAP/CHAP/MS-CHAP/MS-CHAPv2 is the most common selection due to wild compatibility.
Page 297  AES with Authentication-Use AES encryption algorithm and apply MD5 or SHA-1 authentication algorithm. Advanced - Specify mode, proposal and key life of each IKE phase, Gateway, etc. The window of advance setup is shown as below: IKE phase 1 mode -Select from Main mode and Aggressive mode.
Page 298 Available settings are explained as follows: Item Description Dial-In Settings Allowed Dial-In Type - Determine the dial-in connection with different types.  PPTP - Allow the remote dial-in user to make a PPTP VPN connection through the Internet. You should set the User Name and Password of remote dial-in user below.
Page 299  SSL Tunnel- Allow the remote dial-in user to trigger an SSL VPN connection through Internet. Specify Remote VPN Gateway - You can specify the IP address of the remote dial-in user or peer ID (should be the same with the ID setting in dial-in type) by checking the box.
Page 300 payload (data) will be encrypted and authenticated. You may select encryption algorithm from Data Encryption Standard (DES), Triple DES (3DES), and AES. TCP/IP Network My WAN IP –This field is only applicable when you select Settings PPTP or L2TP with or without IPsec policy above. The default value is 0.0.0.0, which means the Vigor router will get a PPP IP address from the remote router during the IPCP negotiation phase.
Page 301 do - If the remote network only allows you to dial in with single IP, please choose NAT, otherwise choose Route. Change default route to this VPN tunnel - Check this box to change the default route with this VPN tunnel. IPSec VPN with the For both ends (e.g., different sections in a company) are Same subnet...
Page 302 Translated Type – There are two types for you to choose.  Whole Subnet  Specific IP Address Virtual IP Mapping – A pop up dialog will appear for you to specify the local IP address and the mapping virtual IP address.
Page 303: Connection Management
You can find the summary table of all VPN connections. You may disconnect any VPN connection by clicking Drop button. You may also aggressively Dial-out by using Dial-out Tool and clicking Dial button. Available settings are explained as follows: Item Description Dial-out Tool Dial - Click this button to execute dial out function.
Page 304: Local Certificate
Available settings are explained as follows: Item Description Generate Click this button to open Generate Certificate Request window. Type in all the information that the window requests. Then click Generate again. Import Click this button to import a saved file as the certification information.
Page 305 Note: Please be noted that “Common Name” must be configured with rotuer’s WAN IP or domain name. After clicking GENERATE, the generated information will be displayed on the window below: IMPORT Vigor router allows you to generate a certificate request and submit it the CA server, then import it as “Local Certificate”.
Page 306 Available settings are explained as follows: Item Description Upload Local Certificate It allows users to import the certificate which is generated by Vigor router and signed by CA server. If you have done well in certificate generation, the Status of the certificate will be shown as “OK”.
Page 307: Trusted Ca Certificate
Note: You have to copy the certificate request information from above window. Next, access your CA server and enter the page of certificate request, copy the information into it and submit a request. A new certificate will be issued to you by the CA server. You can save it.
Page 308 Click Create Root CA to open the following page. Type in all the information that the window request such as certifcate name (used for identifying different certificate), subject alternative name type and relational settings for subject name. Then click GENERATE again. To import a pre-saved trusted CA certificate, please click IMPORT to open the following window.
Page 309 Vigor2120 Series User’s Guide...
Page 310: Certificate Backup
Local certificate and Trusted CA certificate for this router can be saved within one file. Please click Backup on the following screen to save them. If you want to set encryption password for these certificates, please type characters in both fields of Encrypt password and Retype password.
Page 311: Wireless Lan(2.4Ghz/5Ghz)
This function is used for “n/n-plus” models only. Over recent years, the market for wireless communications has enjoyed tremendous growth. Wireless technology now reaches or is capable of reaching virtually every location on the surface of the earth. Hundreds of millions of people exchange information every day via wireless communication products.
Page 312 Vigor router supports four SSID settings for wireless connections. Each SSID can be defined with different name and download/upload rate for selecting by stations connected to the router wirelessly. Real-time Hardware Encryption: Vigor Router is equipped with a hardware AES encryption engine so it can apply the highest protection to your data without influencing user experience.
Page 313: General Setup
By clicking the General Settings, a new web page will appear so that you could configure the SSID and the wireless channel. Please refer to the following figure for more information. Available settings are explained as follows: Item Description Enable Wireless LAN Check the box to enable wireless function.
Page 314 2.4G Channel Means the channel of frequency of the wireless LAN. The default channel is 6. You may switch channel if the selected channel is under serious interference. If you have no idea of choosing the frequency, please select Auto to let system determine for you.
Page 315: Security
Download – Type the transmitting rate for data download. Default value is 30,000 kbps. Schedule Set the wireless LAN to work at certain time interval only. You may choose up to 4 schedules out of the 15 schedules pre-defined in Applications >> Schedule setup. The default setting of this field is blank and the function will always work.
Page 316 Available settings are explained as follows: Item Description Mode There are several modes provided for you to choose. Note: You should also set RADIUS Server simultaneously if 802.1x mode is selected. Disable - Turn off the encryption mechanism. WEP-Accepts only WEP clients and the encryption key should be entered in WEP Key.
Page 317 encryption key is obtained dynamically from RADIUS server with 802.1X protocol. Mixed (WPA+WPA2/802.1x only) - Accepts WPA and WPA2 clients simultaneously and the encryption key is obtained dynamically from RADIUS server with 802.1X protocol. WPA/PSK-Accepts only WPA clients and the encryption key should be entered in PSK.
Page 318: Access Control
In the Access Control, the router may restrict wireless access to certain wireless clients only by locking their MAC address into a black or white list. The user may block wireless clients by inserting their MAC addresses into a black list, or only let them be able to connect by inserting their MAC addresses into a white list.
Page 319: Wps
address. Add a new MAC address into the list. Delete Delete the selected MAC address in the list. Edit Edit the selected MAC address in the list. Cancel Give up the access control set up. Click it to save the access control list. Clear All Clean all entries in the MAC address list.
Page 320  On the side of Vigor2120 series which served as an AP, press WPS button once on the front panel of the router or click Start PBC on web configuration interface. On the side of a station with network card installed, press Start PBC button of network card. ...
Page 321 Below shows Wireless LAN>>WPS web page: Available settings are explained as follows: Item Description Enable WPS Check this box to enable WPS setting. WPS Status Display related system information for WPS. If the wireless security (encryption) function of the router is properly configured, you can see ‘Configured’...
Page 322: Wds
WDS means Wireless Distribution System. It is a protocol for connecting two access points (AP) wirelessly. Usually, it can be used for the following application:  Provide bridge traffic between two LANs through the air.  Extend the coverage range of a WLAN. To meet the above requirement, two WDS modes are implemented in Vigor router.
Page 323 Click WDS from Wireless LAN menu. The following page will be shown. Available settings are explained as follows: Item Description Mode Choose the mode for WDS setting. Disable mode will not invoke any WDS setting. Bridge mode is designed to fulfill the first type of application.
Page 324 Security There are three types for security, Disable, WEP and Pre-shared key. The setting you choose here will make the following WEP or Pre-shared key field valid or not. Choose one of the types for the router. Check this box to use the same key set in Security Settings page.
Page 325: Advanced Setting
This page allows users to set advanced settings such as operation mode, channel bandwidth, guard interval, and aggregation MSDU for wireless data transmission. 2.4G Available settings are explained as follows: Item Description Mixed Mode – the router can transmit data with the ways Operation Mode supported in both 802.11a/b/g and 802.11n standards.
Page 326 happen between 11n systems only. In addition, it does not have protection mechanism to avoid the conflict with neighboring devices of 802.11a/b/g. Channel Bandwidth 20- the router will use 20MHz for data transmission and receiving between the AP and the stations. 40- the router will use 40MHz for data transmission and receiving between the AP and the stations.
Page 327 Note: * means the real transmission rate depends on the environment of the network. Antenna Vigor router can be attached with two antennas to have good data transmission via wireless connection. However, if you have only one antenna attached, please choose 1T1R. TX Power Set the power percentage for transmission signal of access point.
Page 328: Station Control
Station Control is used to specify the duration for the wireless client to connect and reconnect Vigor router. If such function is not enabled, the wireless client can connect Vigor router until the router shuts down. Such feature is especially useful for free Wi-Fi service. For example, a coffee shop offers free Wi-Fi service for its guests for one hour every day.
Page 329: Ap Discovery
Vigor router can scan all regulatory channels and find working APs in the neighborhood. Based on the scanning result, users will know which channel is clean for usage. Also, it can be used to facilitate finding an AP for a WDS link. Notice that during the scanning process (about 5 seconds), no client is allowed to connect to Vigor.
Page 330: Airtime Fairness
Airtime fairness is essential in wireless networks that must support critical enterprise applications. Most of the applications are either symmetric or require more downlink than uplink capacity; telephony and email send the same amount of data in each direction, while video streaming and web surfing involve more traffic sent from access points to clients than the other way around.
Page 331 It is similar to automatic Bandwidth Limit. The dynamic bandwidth limit of each station depends on instant active station number and airtime assignment. Please note that Airtime Fairness of 2.4GHz and 5GHz are independent. But stations of different SSIDs function together, because they all use the same wireless channel.
Page 332: Band Steering
Band Steering detects if the wireless clients are capable of 5GHz operation, and steers them to that frequency. It helps to leave 2.4GHz band available for legacy clients, and improves users experience by reducing channel utilization. If dual-band is detected, the AP will let the wireless client connect to less congested wireless LAN, such as 5GHz to prevent from network congestion.
Page 333 Open Wireless LAN (2.4GHz)>>Band Steering to get the following web page: Available settings are explained as follows: Item Description Enable Band Steering If it is enabled, Vigor router will detect if the wireless client is capable of dual-band or not within the time limit. Check Time….
Page 334 How to Use Band Steering? 1. Open Wireless LAN(2.4GHz)>>Band Steering. 2. Check the box of Enable Band Steering and use the default value (15) for check time setting. 3. Click OK to save the settings. 4. Open Wireless LAN (2.4GHz)>>General Setup and Wireless LAN (5GHz)>> General Setup.
Page 335 5. Open Wireless LAN (2.4GHz)>>Security and Wireless LAN (5GHz)>>Security. Configure Security as 12345678 for both pages. Click OK to save the settings. Same value for 2.4GHz and 5GHz 6. Now, Vigor router will let the wireless clients connect to less congested wireless LAN, such as 5GHz to prevent from network congestion.
Page 336: Station List
Station List provides the knowledge of connecting wireless clients now along with its status code. There is a code summary below for explanation. For convenient Access Control, you can select a WLAN station and click Add to Access Control below. Available settings are explained as follows: Item Description...
Page 337: Ssl Vpn
An SSL VPN (Secure Sockets Layer virtual private network) is a form of VPN that can be sed with a standard Web browser. There are two benefits that SSL VPN provides:  It is not necessary for users to preinstall VPN client software for executing SSL VPN connection.
Page 338: Ssl Application
It provides a secure and flexible solution for network resources, including VNC (Virtual Network Computer) /RDP (Remote Desktop Protocol), to any remote user with access to Internet and a web browser. Each item is explained as follows: Item Description Name Display the application name of the profile that you create.
Page 339 2. The following page will appear. Available settings are explained as follows: Item Description Enable Application Check the box to enable such profile. Server Application Name Type a name for such application. The length of the name is limited to 23 characters. Application There are three types offered for you to create an application profile.
Page 340: User Account
4. After finished the above settings, click OK to save the configuration. With SSL VPN, Vigor2120 series let teleworkers have convenient and simple remote access to central site VPN. The teleworkers do not need to install any VPN software manually. From regular web browser, you can establish VPN connection back to your main office even in a guest network or web cafe.
Page 341 Available settings are explained as follows: Item Description User account and Enable this account - Check the box to enable this function. Authentication Idle Timeout- If the dial-in user is idle over the limitation of the timer, the router will drop this connection. By default, the Idle Timeout is set to 300 seconds.
Page 342 Item Description  Must -Specify the IPSec policy to be definitely applied on the L2TP connection. Must - It allows the remote dial-in user to make an SSL VPN Tunnel connection through Internet, suitable for the application through network accessing (e.g., PPTP/L2TP/IPSec) If you check this box, the function of SSL Tunnel for this account will be activated immediately.
Page 343 Item Description remote node. The only exception is Digital Signature (X.509) can be set when you select IPSec tunnel either with or without specify the IP address of the remote node. Pre-Shared Key - Check the box of Pre-Shared Key to invoke this function and type in the required characters (1-63) as the pre-shared key.
Page 344: Online User Status
If you have finished the configuration of SSL Web Proxy (server), users can find out corresponding settings when they access into Draytek SSL VPN portal interface. Next, users can open SSL VPN>> Online Status to view logging status of SSL VPN.
Page 345: Usb Application
USB storage disk connected on Vigor router can be regarded as a server or WAN interface. By way of Vigor router, clients on LAN can access, write and read data stored in USB storage disk with different applications. After setting the configuration in USB Application, you can type the IP address of the Vigor router and username/password created in USB Application>>USB User Management on the client software.
Page 346 Available settings are explained as follows: Item Description General Settings Simultaneous FTP Connections - This field is used to specify the quantity of the FTP sessions. The router allows up to 6 FTP sessions connecting to USB storage disk at one time.
Page 347: Usb User Management
name must not be the same as the host name. The workgroup name can have as many as 15 characters and the host name can have as many as 23 characters. Both them cannot contain any of the following--- ; : " < > * + = \ | ?. Workgroup Name –...
Page 348 for FTP service. Later, the user can use the username specified in this page to login into FTP server. Disable – Click this button to disable such profile. Username Type the username for FTP users for accessing into FTP server (USB storage disk). Be aware that users cannot access into USB storage disk in anonymity.
Page 349: File Explorer
such profile. Before you click OK, you have to insert a USB storage disk into the USB interface of the Vigor router. Otherwise, you cannot save the configuration. File Explorer offers an easy way for users to view and manage the content of USB storage disk connected on Vigor router.
Page 350 Available settings are explained as follows: Item Description Connection Status If there is no USB storage disk connected to Vigor router, “No Disk Connected” will be shown here. Disk Capacity It displays the total capacity of the USB storage disk. Free Capacity It displays the free space of the USB storage disk.
Page 351: Modem Support List
Such page provides the information about the brand name and model name of the USB modems which are supported by Vigor router. Vigor2120 Series User’s Guide...
Page 352: Smb Client Support List
SMB Client Support List provides the test status information for applications with file sharing operated under different platforms. Vigor2120 Series User’s Guide...
Page 353: System Maintenance
For the system setup, there are several items that you have to know the way of configuration: System Status, TR-069, Administrator Password, User Password, Login Page Greeting, Configuration Backup, Syslog /Mail Alert, Time and Date, SNMP, Management, Reboot System, Firmware Upgrade and Activation. Below shows the menu items for System Maintenance.
Page 354 Available settings are explained as follows: Item Description Model Name Display the model name of the router. Firmware Version Display the firmware version of the router. Build Date/Time Display the date and time of the current firmware build. MAC Address - Display the MAC address of the LAN Interface.
Page 355: 339
This device supports TR-069 standard. It is very convenient for an administrator to manage a TR-069 device through an Auto Configuration Server, e.g., VigorACS. Available settings are explained as follows: Item Description Tr069 Click Enable to activate the settings on this page. ACS Server On Choose the interface for the router connecting to ACS server.
Page 356 user’s manual for detailed information. Test With Inform – Click it to send a message based on the event code selection to test if such CPE is able to communicate with VigorACS SI server. Event Code – Use the drop down menu to specify an event to perform the test.
Page 357: Administrator Password
This page allows you to set new password. Available settings are explained as follows: Item Description Old Password Type in the old password. The factory default setting for password is “admin”. New Password Type in new password in this field. The length of the password is limited to 23 characters.
Page 358 The settings on simple web user interface will be different with full web use interface accessed by using the administrator password. Password Type in new password in this field. The length of the password is limited to 31 characters. Confirm Password Type in the new password again.
Page 359 5. The following window will be open to ask for username and password. Type the new user password in the filed of Password and click Login. 6. The main screen with User Mode will be shown as follows. Settings to be configured in User Mode will be less than settings in Admin Mode. Only basic configuration settings will be available in User Mode.
Page 360: Login Page Title
Check this box to enable the login customization function. Login Page Title Type a brief description (e.g., Welcome to DrayTek) which will be shown on the heading of the login dialog. Type words or sentences here. It will be displayed for Welcome Message and bulletin message.
Page 361 Below shows an example of login customization with the information typed in Login Description and Bulletin. Vigor2120 Series User’s Guide...
Page 362: Configuration Backup
Such function can be used to apply the router settings configured by Vigor2110 to Vigor2120. Follow the steps below to backup your configuration. Go to System Maintenance >> Configuration Backup. The following windows will be popped-up, as shown below. Available settings are explained as follows: Item Description Restoration...
Page 363 In Save As dialog, the default filename is config.cfg. You could give it another name by yourself. Click Save button, the configuration will download automatically to your computer as a file named config.cfg. The above example is using Windows platform for demonstrating examples. The Mac or Linux platform will appear different windows, but the backup function is still available.
Page 364 Go to System Maintenance >> Configuration Backup. The following windows will be popped-up, as shown below. Click the Choose File button to choose the correct configuration file for uploading to the router. Click the Restore button and wait for few seconds, the following picture will tell you that the restoration procedure is successful.
Page 365: Syslog/Mail Alert
SysLog function is provided for users to monitor router. Available settings are explained as follows: Item Description Enable - Check Enable to activate function of syslog. SysLog Access Setup Syslog Save to – Check Syslog Server to save the log to Syslog server.
Page 366 Send a test e-mail - Make a simple test for the e-mail address specified in this page. Please assign the mail address first and click this button to execute a test for verify the mail address is available or not. SMTP Server/SMTP Port - The IP address/Port number of the SMTP server.
Page 367 Vigor2120 Series User’s Guide...
Page 368: Time And Date
It allows you to specify where the time of the router should be inquired from. Available settings are explained as follows: Item Description Current System Time Click Inquire Time to get the current time. Use Browser Time Select this option to use the browser time from the remote administrator PC host as router’s system time.
Page 369 Use the default time setting or set user defined time for your requirement. Check the box to enable the daylight saving. Such feature is Enable Daylight Saving available for certain area. Automatically Update Select a time interval for updating from the NTP server. Interval Send NTP Request Specify a WAN interface to send NTP request for time...
Page 370: Snmp
This page allows you to configure settings for SNMP and SNMPV3 services. The SNMPv3 is more secure than SNMP through the encryption method (support AES and DES) and authentication method (support MD5 and SHA) for the management needs. Available settings are explained as follows: Item Description Enable SNMP Agent...
Page 371 The maximum length of the text is limited to 23 characters. Manager Host IP (IPv4) Set one host as the manager to execute SNMP function. Please type in IPv4 address to specify certain host. Manager Host IP (IPv6) Set one host as the manager to execute SNMP function. Please type in IPv6 address to specify certain host.
Page 372: Management
This page allows you to manage the settings for access control, access list and port setup. For example, as to management access control, the port number is used to send/receive SIP message for building a session. The management pages for IPv4 and IPv6 protocols are different. Available settings are explained as follows: Item Description...
Page 373 Logout icon manually. Allow management from the Internet - Enable the Internet Access Control checkbox to allow system administrators to login from the Internet. There are several servers provided by the system to allow you managing the router from Internet. Check the box(es) to specify.
Page 374 Client, you may still need to enable SSL 3.0 to make sure you can connect, however, it's not recommended. Device Management Check the box to enable the device management function for Vigor2120 (series). Respond to external device – If it is enabled, Vigor2120 (series) will be regarded as slave device.
Page 375: Self-Signed Certificate
A self-signed certificate is a unique identification for the device (e.g., Vigor router) which generates the certificate by itself to ensure the router security. Such self-signed certificate is signed with its own private key. The self-signed certificate will be applied in SSL VPN, HTTPS, and so on. In addition, it can be created for free by using a wide variety of tools.
Page 376: Reboot System
The Web user interface may be used to restart your router. Click Reboot System from System Maintenance to open the following page. Index (1-15) in Schedule Setup - You can type in four sets of time schedule for performing system reboot. All the schedules can be set previously in Applications >> Schedule web page and you can use the number that you have set in that web page.
Page 377: Firmware Upgrade
Note that this example is running over Windows OS (Operating System). Download the newest firmware from DrayTek's web site or FTP site. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and FTP site is ftp.DrayTek.com.
Page 378: Activation
After you have finished the setting profiles for WCF (refer to Web Content Filter Profile), it is the time to activate the mechanism for your computer. Click System Maintenance>>Activation to open the following page for accessing http://myvigor.draytek.com. Available settings are explained as follows: Item...
Page 379 Below shows the successful activation of Web Content Filter: Vigor2120 Series User’s Guide...
Page 380: Diagnostics
Diagnostic Tools provide a useful way to view or diagnose the status of your Vigor router. Below shows the menu items for Diagnostics. Click Diagnostics and click Dial-out Triggering to open the web page. The internet connection (e.g., PPPoE) is triggered by a package sending from the source IP address. Available settings are explained as follows: Item Description...
Page 381: Routing Table
Click Diagnostics and click Routing Table to open the web page. Available settings are explained as follows: Item Description Refresh Click it to reload the page. Vigor2120 Series User’s Guide...
Page 382: Arp Cache Table
Click Diagnostics and click ARP Cache Table to view the content of the ARP (Address Resolution Protocol) cache held in the router. The table shows a mapping between an Ethernet hardware address (MAC Address) and an IP address. Available settings are explained as follows: Item Description Refresh...
Page 383: Dhcp Table
Item Description Refresh Click it to reload the page. The facility provides information on IP address assignments. This information is helpful in diagnosing network problems, such as IP address conflicts, etc. Click Diagnostics and click DHCP Table to open the web page. Available settings are explained as follows: Item Description...
Page 384: Nat Sessions Table
Refresh Click it to reload the page. Click Diagnostics and click NAT Sessions Table to open the list page. Available settings are explained as follows: Item Description Private IP:Port It indicates the source IP address and port of local PC. #Pseudo Port It indicates the temporary port of the router used for NAT.
Page 385: Dns Cache Table
Click Diagnostics and click DNS Cache Table to open the web page. The record of domain Name and the mapping IP address for answering the DNS query from LAN will be stored on Vigor router’s Cache temporarily and displayed on Diagnostics >> DNS Cache Table.
Page 386: Ping Diagnosis
Click Diagnostics and click Ping Diagnosis to open the web page. And, Available settings are explained as follows: Item Description IPV4 /IPV6 Choose the interface for such function. Ping to Use the drop down list to choose the destination that you want to ping.
Page 387: Data Flow Monitor
Clear Click this link to remove the result on the window. This page displays the running procedure for the IP address monitored and refreshes the data in an interval of several seconds. The IP address listed here is configured in Bandwidth Management.
Page 388 Refresh Seconds Use the drop down list to choose the time interval of refreshing data flow that will be done by the system automatically. Refresh Click this link to refresh this page manually. Index Display the number of the data flow. IP Address Display the IP address of the monitored device.
Page 389: Traffic Graph
Click Diagnostics and click Traffic Graph to open the web page. Choose WAN1 Bandwidth, Backup WAN Bandwidth, Sessions, daily or weekly for viewing different traffic graph. Click Reset to zero the accumulated RX/TX (received and transmitted) data of WAN. Click Refresh to renew the graph at any time.
Page 390: Trace Route
Click Diagnostics and click Trace Route to open the web page. This page allows you to trace the routes from router to the host. Simply type the IP address of the host in the box and click Run. The result of route trace will be shown on the screen. And, Available settings are explained as follows: Item...
Page 391: System Explorer
Host/IP Address It indicates the IP address of the host. Trace Host/IP Address It indicates the IPv6 address of the host. Click this button to start route tracing work. Clear Click this link to remove the result on the window. Such page provides real-time syslog and displays the information on the screen.
Page 392 will be recorded by the system. Time Display the time of the event occurred. Message Display the information for each event. This page displays the syslog recorded on the USB storage disk. Available settings are explained as follows: Item Description Display the time of the event occurred.
Page 393: Ipv6 Tspc Status
IPv6 TSPC status web page could help you to diagnose the connection status of TSPC. If TSPC has configured properly, the router will display the following page when the user connects to tunnel broker successfully. Available settings are explained as follows: Item Description Refresh...
Page 394 Note: The icon - - means there is something wrong (e.g., attacking the system) with that IP address. Vigor2120 Series User’s Guide...
Page 395: Trouble Shooting
This section will guide you to solve abnormal situations if you cannot access into the Internet after installing the router and finishing the web configuration. Please follow sections below to check your basic installation status stage by stage.  Checking if the hardware status is OK or not. ...
Page 396: Checking If The Network Connection Settings On Your Computer Is Ok Or Not
 The example is based on Windows 7. As to the examples for other operation systems, please refer to the similar steps or find support notes in www.DrayTek.com. Open All Programs>>Getting Started>>Control Panel. Click Network and Sharing Center. In the following window, click Change adapter settings.
Page 397 Select Internet Protocol Version 4 (TCP/IP) and then click Properties. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4.
Page 398 Vigor2120 Series User’s Guide...
Page 399: Pinging The Router From Your Computer
The default gateway IP address of the router is 192.168.1.1. For some reason, you might need to use “ping” command to check the link status of the router. The most important thing is that the computer will receive a reply from 192.168.1.1. If not, please check the IP address of your computer.
Page 400: Checking If The Isp Settings Are Ok Or Not
 If the problem of LEDs cannot be solved by the above measures, please contact with the nearest reseller, or send an e-mail to DrayTek FAE for technical support.  Check if the settings offered by ISP are configured well or not.
Page 401: Backing To Factory Default Setting If Necessary
Please open DrayTek Syslog Tool to capture the connection information (WAN Log) and send the page (similar to the following graphic) to the service center of DrayTek. Please connect your Notebook with 3G/4G USB Modem to test the connection speed to verify if the problem is caused by Vigor2120.
Page 402 Go to System Maintenance and choose Reboot System on the web page. The following screen will appear. Choose Using factory default configuration and click Reboot Now. After few seconds, the router will return all the settings to the factory settings. While the router is running (ACT LED blinking), press the Factory Reset button and hold for more than 5 seconds.
Page 403: Contacting Draytek
If the router still cannot work correctly after trying many efforts, please feel free to send e-mail to support@DrayTek.com. Vigor2120 Series User’s Guide...
Page 404 This page is left blank. Vigor2120 Series User’s Guide...
Page 405: Telnet Command Reference
This chapter also gives you a general description for accessing telnet and describes the firmware versions for the routers explained in this manual. Note: For Windows 7 user, please make sure the Windows Features of Telnet Client has been turned on under Control Panel>>Programs. Type cmd and press Enter.
Page 406: Telnet Command: Bpa
For users using previous Windows system (e.g., 2000/XP), simply click Start >> Run and type Telnet 192.168.1.1 in the Open box as below. Next, type admin/admin for Account/Password. And, type ? to get a list of valid/common commands This command allows to configure a network setting specified for Australia’s ISP. bpa m [-<command>...
Page 407: Telnet Command: Csm Appe Prof
-l <List> List all settings configured. > bpa 1 -a 1 -n testUser -p testPassword -s 4 > bpa -l -------index: 1 active------ UserName[1]: testUser PassWord[1]: testPassword ServerIP[1]:4 -------index: 2 inactive------ UserName[2]: PassWord[2]: ServerIP[2]:0 > Commands under CSM allow you to set CSM profile to define policy profiles for different policy of IM (Instant Messenger)/P2P (Peer to Peer) application.
Page 408: Telnet Command: Csm Appe Show
IM, P2P, Protocol and MISC, AP_IDX It means to specify the index of the APP Enforcement profile. It means to view the configuration (IM/P2P/Protocol/MISC) of the profile. It means to enable blocking for a specific application. It means to disable blocking for a specific application. It means to set the action for specific application >...
Page 409: Telnet Command: Csm Appe Config
It is used to show configuration of specified APP Enforcement profile. csm appe config -v INDEX [-i|-p|-t|-m] It means to view the configuration of the profile. INDEX It means to specify the index number of profile, from 1 to 32. It means to show IM group setting configuration for the specified profile.
Page 410 It is used to configure settings for URL control filter profile. csm ucf show csm ucf cache csm ucf setdefault csm ucf msg MSG csm ucf obj INDEX [-n PROFILE_NAME | -l [P|B|A|N] | uac | wf ] csm ucf obj INDEX -n PROFILE_NAME csm ucf obj INDEX -p VALUE csm ucf obj INDEX -l P|B|A|N csm ucf obj INDEX uac...
Page 411: Telnet Command: Csm Ucf Obj Index Uac
> csm ucf obj 1 -n game -l B Profile Index: 1 Profile Name:[game] Log:[none] Priority Select : [Bundle : Pass] [ ]Enable URL Access Control Action:[pass] [ ]Prevent web access from IP address. No Obj NO. Object Name --- -------- --------------------------------- No Grp NO.
Page 412 Set the keyword group. KEY_WORD_Group_Inde Specify the index number of the group profile. > csm ucf obj 1 uac -i E Profile Index: 1 Profile Name:[game] Log:[none] Priority Select : [Bundle : Pass] [ ]Enable URL Access Control Action:[pass] [v]Prevent web access from IP address. No Obj NO.
Page 413: Telnet Command: Csm Ucf Obj Index Wf
It means to configure the settings regarding to Web Feature (wf). csm ucf obj INDEX wf -v csm ucf obj INDEX wf -e csm ucf obj INDEX wf -d csm ucf obj INDEX wf -a P|B csm ucf obj INDEX wf -s WEB_FEATURE csm ucf obj INDEX wf -u WEB_FEATURE csm ucf obj INDEX wf -f File_Extension_Object_index Parameter...
Page 414: Telnet Command: Csm Wcf
No Obj NO. Object Name --- -------- --------------------------------- No Grp NO. Group Name --- -------- --------------------------------- [ ]Enable Restrict Web Feature Action:[pass] File Extension Object Index : [0] Profile Name : [] [V] Cookie [ ] Proxy [ ] Upload It means to configure the settings regarding to web control filter (wcf).
Page 415 profile, from 1 to 8. It means to view the web content filter profile. Set the action of web content filter profile, P or B. B: Block. The web access meets the web feature will be blocked. P: Pass. The web access meets the web feature will be passed.
Page 416: Telnet Command: Csm Dnsf
Dining,Shopping, Translators, General, Cults,Greetig cards, Image Sharing, Network Errors, Parked Domains, Private IP Addresses) > csm wcf obj 1 -n test_wcf Profile Index: 1 Profile Name:[test_wcf] []White/Black list Action:[block] No Obj NO. Object Name --- -------- --------------------------------- No Grp NO. Group Name --- -------- --------------------------------- Action:[block]...
Page 417: Telnet Command: Ddns Log
be sent to Syslog. A: All. Records for the packets passing through or blocked by DNS filter will be sent to Syslog. N: None. No record will be sent to Syslog. service WCF_PROFILE WCF_PROFILE: Specify a WCF profile as the base of DNS filtering.
Page 418: Telnet Command: Dos
ddns time <update in minutes> Valid: 1 ~ 1440 %Now: 1440 > ddns time 1000 ddns time <update in minutes> Valid: 1 ~ 1440 %Now: 1000 This command allows users to configure the settings for DoS defense system. dos [-V | D | A] dos [-s ATTACK_F [THRESHOLD][ TIMEOUT]] dos [-a | e [ATTACK_F][ATTACK_0] | d [ATTACK_F][ATTACK_0]] Parameter...
Page 419: Telnet Command: Exit
Type this command will leave telnet window. This command allows you to configure detailed settings for WAN connection. internet -W n -M n [-<command> <parameter> | ... ] Parameter Description -M n M means to set Internet Access Mode (Mandatory) and n means different modes (represented by 0 –...
Page 420: Telnet Command: Ip Pubsubnet
-s <server ip> It means to set PPTP/L2TP server IP. It means to view Internet Access profile. >internet -M 1 -S tcom -u username -p password -a 0 -t -1 -i 0.0.0.0 WAN1 Internet Mode set to PPPoE/PPPoA WAN1 ISP Name set to tcom WAN1 Username set to username WAN1 Password set successful WAN1 PPP Authentication Type set to PAP/CHAP...
Page 421: Telnet Command: Ip Pubmask
Parameter Description Display an IP address which allows users set as the public subnet IP address. public subnet IP address Specify an IP address. The system will set the one that you specified as the public subnet IP address. > ip pubaddr ? % ip addr <public subnet IP address>...
Page 422: Telnet Command: Ip Addr
It means the auxiliary WAN IP address. Join to NAT Pool 0 (disable) or 1 (enable). index Type the index number of the table displayed on your screen. > ip aux add 192.168.1.65 1 % 192.168.1.65 has added in index 2. >...
Page 423: Telnet Command: Ip Nmask
This command allows users to set/add a specified netmask for your router. ip nmask [IP netmask] Parameter Description IP netmask It means the netmask of LAN IP. > ip nmask 255.255.0.0 % Set IP netmask OK !!! ARP displays the matching condition for IP and MAC address. ip arp add [IP address] [MAC address] [LAN or WAN] ip arp del [IP address] [LAN or WAN] ip arp flush...
Page 424: Telnet Command: Ip Dhcpc
> ip arp accept status Accept illegal source mac arp: disable Accept illegal dest mac arp: disable Accept VRRP mac into arp table: disable > ip arp status [ARP Table] Index IP Address MAC Address Netbios Name 192.168.1.113 00-05-5D-E4-D8-EE A1000351 This command is available for WAN DHCP.
Page 425: Telnet Command: Ip Ping
>ip dhcpc status I/F#3 DHCP Client Status: DHCP Server IP : 172.16.3.7 WAN Ipm : 172.16.3.40 WAN Netmask : 255.255.255.0 WAN Gateway : 172.16.3.1 Primary DNS : 168.95.192.1 Secondary DNS : 0.0.0.0 Leased Time : 259200 Leased Time T1 : 129600 Leased Time T2 : 226800 Leased Elapsed...
Page 426: Telnet Command: Ip Telnet
>ip tracert 22.128.2.62 WAN1 Traceroute to 22.128.2.62, 30 hops max 172.16.3.7 10ms 172.16.1.2 10ms Request Time out. 168.95.90.66 50ms 211.22.38.134 50ms 220.128.2.62 50ms Trace complete This command allows users to access specified device by telnet. ip telnet [IP address][Port] Parameter Description IP address Type the WAN or LAN IP address of the remote device.
Page 427: Telnet Command: Ip Wanrip
This command allows users to set the RIP (routing information protocol) of WAN IP. ip wanrip [ifno] -e [0/1] Parameter Description ifno It means the connection interface. 1: WAN1,2: WAN2, 3: PVC3,4: PVC4,5: PVC5 Note: PVC3 ~PVC5 are virtual WANs. It means to disable or enable RIP setting for specified WAN interface.
Page 428: Telnet Command: Ip Route
This command allows users to set static route. ip route add [dst] [netmask][gateway][ifno][rtype] ip route del [dst] [netmask][rtype] ip route status ip route cnc ip route default [wan1/wan2/off/?] ip route clean [1/0] Parameter Description It means to add an IP address as static route. It means to delete specified IP address.
Page 429: Telnet Command: Ip Igmp_Proxy
This command allows users to enable/disable igmp proxy server. ip igmp_proxy set ip igmp_proxy reset ip igmp_proxy wan ip igmp_proxy t_home[on/off/show/help] ip igmp_proxy query ip igmp_proxy ppp [0/1] ip igmp_proxy status Parameter Description It means to enable proxy server. reset It means to disable proxy server.
Page 430 ip igmp_snoop disable ip igmp_snoop status ip igmp_snoop table ip igmp_snoop txquery ip igmp_snoop mode ip igmp_snoop chkleave ip igmp_snoop separate ip igmp_snoop portchk Parameter Description enable It means to enable igmp snoop function disable It means to disable igmp snoop function. status It means to display current igmp configuration.
Page 431: Telnet Command: Ip Wanaddr
This command is used to configure WAN IP address. ip wanaddr [IP address] ]<IP netmask] [gateway ip] Parameter Description IP address Type the IP address for WAN. IP netmask Type the net mask for the IP address. gateway ip Type the IP address of the gateway. >...
Page 432: Telnet Command: Ip Dmzswitch
This command allows users to set DMZ mode. ip dmzswitch off ip dmzswitch private ip dmzswitch trueip ip dmzswitch active_trueip Parameter Description It means to turn off DMZ function. private It means to set DMZ with private IP. trueip It means to set DMZ with true IP. active_trueip It means to set the DMZ with active true IP.
Page 433: Telnet Command: Ip Bandwidth
status It means to display the current settings. show It means to display all session limit settings in the IP range. timer [num] It means to set when the IP session block works. The unit is second. [block/unblock][IP] It means to block/unblock the specified IP address. Block: The IP cannot access Internet through the router.
Page 434: Telnet Command: Ip Bindmac
range is from 0 – 65535 Kpbs. status It means to display the current settings. show It means to display all the bandwidth limits settings within the IP range. It means to add the bandwidth within the IP range. It means to delete the bandwidth within the IP range. IP1-IP2 It means the range of IP address specified for this command.
Page 435 show It means to display the IP address and MAC address of the pair of binded one. It means to add one ip bindmac. It means to delete one ip bindmac. It means to type the IP address for binding with specified MAC address.
Page 436: Telnet Command: Ip Maxnatuser
It means to list detailed information of profile configuration. > ip lanDNSRes -l % Idx: 7 % State: Enable % Profile: DrayTekFTP % Domain Name: ftp.draytek.com % -------- Address Mapping Table -------- Vigor2120 Series User’s Guide...
Page 437: Telnet Command: Ip6 Addr
0: reply all subnet packets. 1: reply only same subnet packet. It means to update LAN DNS configuration to DNS cache. > ip lanDNSRes -i 1 -n ftp.drayTek.com % Configure Set1's DomainName:ftp.drayTek.com ip lanDNSRes -i 1 -n ftp.drayTek.com >...
Page 438: Telnet Command: Ip6 Dhcp Req_Opt
It means to delete an ipv6 address. It means to show current address(es) status. It means to show only unicast addresses. prefix It means to type the prefix number of IPv6 address. prefix-length It means to type a fixed value as the length of the prefix. LAN|WAN1|WAN2|iface# It means to specify LAN or WAN interface for such address.
Page 439: Telnet Command: Ip6 Dhcp Client
It means to ask BCMCS name. It means to ask refresh time. Parameter 1: the parameter related to the request will be displayed. 0: the parameter related to the request will not be displayed. > ip6 dhcp req_opt WAN2 -S 1 >...
Page 440: Telnet Command: Ip6 Dhcp Server
DHCPv6 client enabled request IA_NA whose IAID equals to 2008 > system reboot This command allows you to configure DHCPv6 server. ip6 dhcp server [-<command> <parameter>| ... ] Parameter Description server It means the dhcp server settings. The available commands with parameters are listed below. [<command>...
Page 441: Telnet Command: Ip6 Internet
This command allows you to configure settings for accessing Internet. ip6 internet -W n -M n [-<command> <parameter> | ... ] Parameter Description -W n W means to set WAN interface and n means different selections. Default is WAN1. n=1: WAN1 n=2: WAN2 n=3: WAN3 n=X: WANx...
Page 442: Telnet Command: Ip6 Neigh
RADVD. <dhcp/ra/none>= type IPv6 address. It means to view IPv6 Internet Access Profile. It means to set AICCU always on. 1=On, 0=Off > ip6 internet -W 2 -M 2 -u 88886666 -p draytek123456 –s amsterdam.freenet6.net This setting will take effect after rebooting. Please use "sys reboot"...
Page 443: Telnet Command: Ip6 Pneigh
This command allows you to add a proxy neighbour. ip6 pneigh -s inet6_addr [LAN|WAN1|WAN2] ip6 pneigh -d inet6_addr [LAN|WAN1|WAN2] ip6 pneigh -a [inet6_addr] [-N LAN|WAN1|WAN2] Parameter Description It means to add a proxy neighbour. It means to delete a proxy neighbour. It means to show proxy neighbour status.
Page 444: Telnet Command: Ip6 Ping
PREFIX/PREFIX-LEN _EXPIRES_ _NEXT-HOP_ I/F METRIC STATE FLAGS ------------------------------------------------------------------------ FE80::/128 UNICAST FE80::250:7FFF:FE00:0/128 UNICAST FE80::/64 UNICAST FE80::/16 1024 UNICAST FE80::250:7FFF:FE12:100 FF02::1/128 UNICAST FF02::1 FF00::/8 UNICAST ::/0 UNREACHABLE ! This command allows you to pin an IPv6 address or a host. ip6 ping [IPV6 address/Host] [LAN/WAN1/WAN2] Parameter Description IPV6 address/Host...
Page 445: Telnet Command: Ip6 Tspc
This command allows you to display TSPC status. ip6 tspc [ifno] Parameter Description ifno It means the connection interface. Ifno=1 (means WAN1) Info=2 (means WAN2) > ip6 tspc 2 Local Endpoint v4 Address : 111.243.177.223 Local Endpoint v6 Address : 2001:05c0:1400:000b:0000:0000:0000:10b9 Router DNS name : 8886666.broker.freenet6.net Remote Endpoint v4 Address :81.171.72.11 Remote Endpoint v6 Address : 2001:05c0:1400:000b:0000:0000:0000:10b8...
Page 446: Telnet Command: Ip6 Mngt
-r [num] It means RA test for item [num]. > ip6 radvd -s 1 1800 > ip6 radvd -V % IPv6 Radvd Config: Radvd : Enable, Default Lifetime : 1800 seconds This command allows you to manage the settings for access list. ip6 mngt list ip6 mngt list [add<index>...
Page 447: Telnet Command: Ip6 Online
FE80::250:7FFF:FE12:2080 > ip6 mngt status % IPv6 Remote Management : telnet : off, http : off, ping : off This command allows you to check the online status of IPv6 LAN /WAN. ip6 online [ifno] Parameter Description It means the connection interface. ifno 0=LAN1 1=WAN1...
Page 448: Telnet Command: Ip6 Ntp
ifno It means the connection interface. 1=WAN1 2=WAN2 It means to add an IPv6 address which can be used to execute management through Internet. prefix It means to type the IPv6 address which will be used for accessing Internet. prefix-length It means to type a fixed value as the length of the prefix.
Page 449: Telnet Command: Ipf Set
ipf view [-VcdhrtzZ] Parameter Description It means to show the version of this IP filter. It means to show the running call filter rules. It means to show the running data filter rules. It means to show the hit-number of the filter rules. It means to show the running call and data filter rules.
Page 450 Type “2” to display the log of blocked packet. Type “3” to display the log of non-matching packet. - p [VALUE] It means to setup actions for packet not matching any rule, e.g., -p 1 Type “0” to let all the packets pass; Type “1”...
Page 451: Telnet Command: Ipf Rule
Session timeout : 1440 DrayTek Banner : Enable --------------------------------------------------------------- Apply IP filter to VPN incoming packets : Enable Accept large incoming fragmented UDP or ICMP packets: Enable ---------------------------------------------------------------- Strict Security Checking [ ]APP Enforcement > This command is used to set filter rule for firewall.
Page 452 –d u <Address Type> It means to configure destination IP address including <Start IP Address> <End address type, start IP address, end IP address and address IP Address> | <Address mask. Mask> u – It means “user defined”. Address Type - Type the number (representing different address type).
Page 453 1 – Block Immediately, 2 – Pass if no further match, 3 – Block if no further match. It means the classification for QoS. 1– Class 1, 2 – Class 2, 3 – Class 3, 4 – Other It means load balance policy. Such function is used for “debug”...
Page 454: Telnet Command: Ipf Flowtrack
------------------------------------------------------------------ CodePage : ANSI(1252)-Latin I Window size : 65535 Session timeout : 1440 DrayTek Banner : Enable ------------------------------------------------------------------ Strict Security Checking [ ]APP Enforcement This command is used to set and view flowtrack sessions. ipf flowtrack set [-re] ipf flowtrack view [-f] [-b]...
Page 455: Telnet Command: Log
ipf flowtrack [-i][-p][-t] Parameter Description It means to refresh the flowtrack. It means to enable or disable the flowtrack. 0: Disable 1: Enable It means to show the sessions state of flowtrack. If you do not specify any IP address, then all the session state of flowtrack will be displayed.
Page 456 Parameter Description It means to show the latest call log. It means to show the IP filter log. It means to show the flush log buffer. a: flush all logs c: flush the call log f: flush the IP filter log w: flush the WAN log It means to show this usage help.
Page 457: Telnet Command: Mngt Ftpport
This command allows users to set FTP port for management. mngt ftpport [FTP port] Parameter Description FTP port It means to type the number for FTP port. The default setting is 21. > mngt ftpport 21 % Set FTP server port to 21 done. This command allows users to set HTTP port for management.
Page 458: Telnet Command: Mngt Telnetport
This command allows users to set telnet port for management. mngt telnetport [Telnet port] Parameter Description Telnet port It means to type the number for telnet port. The default setting is 23. > mngt telnetport 23 % Set Telnet server port to 23 done. This command allows users to set SSH port for management.
Page 459: Telnet Command: Mngt Noping
This command is used to pass or block Ping from LAN PC to the internet. mngt noping [on] mngt noping [off] mngt noping [viewlog] mngt noping [clearlog] Parameter Description All PING packets will be forwarded from LAN PC to Internet. All PING packets will be blocked from LAN PC to Internet.
Page 460: Telnet Command: Mngt Defenseworm
This command can block specified port for passing through the router. mngt defenseworm [on] mngt defenseworm [off] mngt defenseworm [add port] mngt defenseworm [del port] mngt defenseworm [viewlog] mngt defenseworm [clearlog] Parameter Description It means to activate the function of defense worm packet out. It means to inactivate the function of defense worm packet out.
Page 461: Telnet Command: Mngt Echoicmp
disable It means to deny the system administrators to login from the Internet. http/https/ftp/telnet/ssh/tr0 It means to specify one of the servers/protocols for enabling or disabling. on – enable the function. on/off off – disable the function. > mngt rmtcfg ftp on Enable server fail Remote configure function has been disabled please enable by enter mngt rmtcfg enable...
Page 462: Telnet Command: Mngt Snmp
list It can display current setting for your reference. It means adding a new entry. index It means to specify the number of the entry. ip addr It means to specify an IP address. mask It means to specify the subnet mask for the IP address. remove It means to delete the selected item.
Page 463: Telnet Command: Msubnet Switch
> mngt snmp -e 1 -g draytek -s DK -m 192.168.1.1 -t trapcom -n 10.20.3.40 -T 88 SNMP Agent Turn on!!! Get Community set to draytek Set Community set to DK Manager Host IP set to 192.168.1.1 Trap Community set to trapcom Notification Host IP set to 10.20.3.40...
Page 464: Telnet Command: Msubnet Nmask
Please use "sys reboot" command to reboot the router. This command is used to configure net mask address for the specified LAN interface. msubnet nmask [2][IP address] Parameter Description It means LAN interface. 2=LAN2 IP address Type the subnet mask address for the specified LAN interface.
Page 465: Telnet Command: Msubnet Nat
Off means disabling the DHCP server. > msubnet dhcps 2 off % LAN2 Subnet DHCP Server disabled! This setting will take effect after rebooting. Please use "sys reboot" command to reboot the router. This command is used to configure the subnet for NAT or Routing usage. msubnet nat [2] [On/Off] Parameter Description...
Page 466: Telnet Command: Msubnet Ipcnt
This setting will take effect after rebooting. Please use "sys reboot" command to reboot the router. This command is used to defined the total number allowed for each LAN interface. msubnet ipcnt [2] [IP counts] Parameter Description It means LAN interface. 2=LAN2 IP counts Specify a total number of IP address allowed for each LAN...
Page 467: Telnet Command: Msubnet Startip
% LAN2 > This command is used to configure a starting IP address for DCHP. msubnet startip [2] [Gateway IP] Parameter Description It means LAN interface. 2=LAN2 Gateway IP Type an IP address as the starting IP address for a subnet. >...
Page 468: Telnet Command: Msubnet Nodetype
This command is used to specify the type for node which is required by DHCP option. msubnet nodetype [2][count] Parameter Description It means LAN interface. 2=LAN2 Choose the following number for specifying different node count type. 1= B-node 2= P-node 4= M-node 8= H-node 0= Not specify any type for node.
Page 469: Telnet Command: Msubnet Secwins
This command is used to configure secondary WINS server. msubnet secWINS [2] [WINS IP] Parameter Description It means LAN interface. 2=LAN2 WINS IP Type the IP address as the WINS IP. > msubnet secWINS 2 192.168.3.89 % Set LAN2 Dhcp Secondary WINS IP done !!! >...
Page 470: Telnet Command: Msubnet Tftp
This command is used to set TFTP server for multi-subnet. msubnet tftp [2 [TFTP server name] Parameter Description It means LAN interface. 2=LAN2 Type a name to indicate the TFTP server. TFTP server name > msubnet tftp ? % msubnet tftp <2> <TFTP server name> % Now: LAN2 >...
Page 471: Telnet Command: Object Ip Obj
LAN1 MTU: 1492 (Bytes) LAN2 MTU: 1500 (Bytes) IP Routed Subnet MTU: 1500 (Bytes) > This command is used to create an IP object profile. object ip obj setdefault object ip obj INDEX -v object ip obj INDEX -n NAME object ip obj INDEX -i INTERFACE object ip obj INDEX -s INVERT object ip obj INDEX -a TYPE [START_IP] [END/MASK_IP]...
Page 472: Telnet Command: Object Ip Grp
[START_IP] When the TYPE is set with 2, you have to type an IP address as a starting point and another IP address as end point. Type an IP address. [END/MASK_IP] Type an IP address (different with START_IP) as the end IP address.
Page 473 The IP object profiles with index number 1,2,3,4 and 5 will be group under such profile. > object ip grp 2 -n First IP Group Profile 2 Name :[First] Interface:[Any] Included ip object index: [0:][0] [1:][0] [2:][0] [3:][0] [4:][0] [5:][0] [6:][0] [7:][0] >...
Page 474: Telnet Command: Object Ipv6 Obj
This comman is used to create an IP object profile. object ip obj setdefault object ip obj INDEX -v object ip obj INDEX -n NAME object ip obj INDEX -i INTERFACE object ip obj INDEX -s INVERT object ip obj INDEX -a TYPE [START_IP] [END/MASK_IP] Parameter Description It means to return to default settings for all profiles.
Page 475: Telnet Command: Object Ipv6 Grp
> object ip obj 1 -n marketing > object ip obj 1 -a 1 192.168.1.45 > object ip obj 1 -v IP Object Profile 1 Name :[marketing] Interface:[Any] Address type:[single] Start ip address:[192.168.1.45] End/Mask ip address:[0.0.0.0] Invert Selection:[0] This command is used to integrate several IP objects under an IP group profile. object ip grp setdefault object ip grp INDEX -v object ip grp INDEX -n NAME...
Page 476: Telnet Command: Object Service Obj
Name :[First] Interface:[Any] Included ip object index: [0:][0] [1:][0] [2:][0] [3:][0] [4:][0] [5:][0] [6:][0] [7:][0] [8:][0] [9:][0] [10:][0] [11:][0] > object ip grp 2 -i 1 > object ip grp 2 -a 1 2 IP Group Profile 2 Name :[First] Interface:[Lan] Included ip object index: [0:][1]...
Page 477 INDEX It means the index number of the specified service object profile. It means to view the information of the specified service object profile. Example: object service obj 1 -v -n NAME It means to define a name for the IP object. NAME: Type a name with less than 15 characters.
Page 478: Telnet Command: Object Service Grp
This command is used to integrate several service objects under a service group profile. object service grp setdefault object service grp INDEX -v object service grp INDEX -n NAME object service grp INDEX -a SER_OBJ_INDEX Parameter Description setdefault It means to return to default settings for all profiles. INDEX It means the index number of the specified group profile.
Page 479: Telnet Command: Object Kw
[3:][0] [4:][0] [5:][0] [6:][0] [7:][0] This command is used to create keyword profile. object kw obj setdefault object kw obj show PAGE object kw obj INDEX -v object kw obj INDEX -n NAME object kw obj INDEX -a CONTENTS Parameter Description setdefault It means to return to default settings for all profiles.
Page 480: Telnet Command: Object Fe
This command is used to create File Extension Object profile. object fe show object fe setdefault object fe obj INDEX -v object fe obj INDEX -n NAME object fe obj INDEX -e CATEGORY|FILE_EXTENSION object fe obj INDEX -d CATEGORY|FILE_EXTENSION Parameter Description It means to show the contents for all of the profiles.
Page 481 > object fe obj 1 -n music > object fe obj 1 -e Audio > object fe obj 1 -v Profile Index: 1 Profile Name:[music] ------------------------------------------------------------------------- ------ Image category: [ ].bmp [ ].dib [ ].gif [ ].jpeg [ ].jpg [ ].jpg2 [ ].jp2 [ ].pct [ ].pcx [ ].pic...
Page 482: Telnet Command: Port
This command allows users to check the connection speed used by each port. port status Parameter Description status It means to view the Ethernet port status. > port status % port 1 : link DOWN, speed= ---- Mbps, duplex= ----, FlowControl= -- % port 2 : link DOWN, speed= ---- Mbps, duplex= ----, FlowControl= -- % port 3 : link UP , speed= 100 Mbps, duplex= FULL, FlowControl= OFF % port 4 : link DOWN, speed= ---- Mbps, duplex= ----, FlowControl= --...
Page 483: Telnet Command: Prn
> portmaptime -t 86400 -u 300 -i 10 > portmaptime -l ------ Current setting ------ TCP Timeout : 86400 sec. UDP Timeout : 300 sec. IGMP Timeout : 10 sec. TCP WWW Timeout: 60 sec. TCP SYN Timeout: 60 sec. This command allows you to view current status (interface and driver) of USB printer.
Page 484 0: disable 1: enable Default is disable. -p <ratio> It means to enable bandwidth limit ratio for UDP. -t <mode> It means to enable/disable Outbound TCP ACK Prioritize. 0: disable 1: enable Show all the settings. Set all to factory default (for all WANs). […] It means that you can type in several commands in one line.
Page 485: Telnet Command: Qos Class
This command allows user to set QoS class. qos class -c [no] –[a|e|d] [no][-<command> <parameter> | ... ] Parameter Description [<command> The available commands with parameters are listed below. <parameter>|…] […] means that you can type in several commands in one line.
Page 486: Telnet Command: Qos Type
Show the rule in the specified class. It means that you can type in several commands in one line. […] > qos class -c 2 -n draytek -a -m 1 -l 192.168.1.50:192.168.1.80 Following setting will set in the class2 class 2 name set to draytek...
Page 487: Telnet Command: Quit
> qos type -a draytek -t 6 -p 510:1330 service name set to draytek service type set to 6:TCP Port type set to Range Service Port set to 510 ~ 1330 > This command can exit the telnet command screen.
Page 488: Telnet Command: Show Dmz
This command displays current status of DMZ host. > show dmz WAN1 DMZ mapping status: Index Status WAN1 aux IP Private IP ---------------------------------------------------- Disable 172.16.3.221 Disable 192.168.1.65 This command displays current status of DNS setting > show dns Domain name server settings: Primary DNS: [Not set] Secondary DNS: [Not set] This command displays current status of open port setting.
Page 489: Telnet Command: Show Portmap
0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] This command displays the table of NAT Active Sessions. > show portmap -------------------------------------------------------------------------- Private_IP:Port Pseudo_IP:Port Peer_IP:Port [Timeout/Protocol/Flag] -------------------------------------------------------------------------- This command displays the reuse time of NAT session. Level0: It is the default setting.
Page 490: Telnet Command: Show Traffic
IP:172.16.3.2 TX Packets:0 TX Rate:0 RX Packets:0 RX Rate:0 ADSL Information: ADSL Firmware Version:05-04-04-04-00-01 Mode: State:TRAINING TX Block:0 RX Block:0 Corrected Blocks:0 Uncorrected Blocks:0 UP Speed:0 Down Speed:0 SNR Margin:0 Loop Att.:0 This comman can display traffic graph for WAN1, WAN2, transmitted bytes, receivied bytes and sessions.
Page 491: Telnet Command: Srv Dhcp Dhcp2
This command is used to enable DCHP2 server. srv dhcp dhcp2 [-<command> <parameter> | ... ] Parameter Description [<command> The available commands with parameters are listed below. <parameter>|…] […] means that you can type in several commands in one line. -l<enable>...
Page 492: Telnet Command: Srv Dhcp Dns1
IP address It means to specify an IP address as the starting point in the IP address pool. It means the IP count number. IP counts It means to specify the number of IP addresses in the pool. The maximum is 10. status It means the execution result of this command.
Page 493: Telnet Command: Srv Dhcp Dns2
This command allows users to set Secondary IP Address for DNS Server in LAN. srv dhcp dns2 [lan1/lan2/lan3/lan4] [DNS IP address] Parameter Description lan1/lan2/lan3/lan4 It means to specify the LAN port. DNS IP address It means the IP address that you want to use as DNS2. Note: The IP Routed Subnet DNS must be the same as NAT Subnet DNS).
Page 494: Telnet Command: Srv Dhcp Ipcnt
> srv dhcp gateway 192.168.2.1 This setting will take effect after rebooting. Please use "sys reboot" command to reboot the router. This command allows users to specify IP counts for DHCP server. srv dhcp ipcnt [?] srv dhcp ipcnt [IP counts] Parameter Description It means to display current used IP count number.
Page 495: Telnet Command: Srv Dhcp Startip
> srv dhcp relay servip ? % srv dhcp relay servip <server ip> % Now: 192.168.1.46 srv dhcp startip [?] srv dhcp startip [IP address] Parameter Description It means to display current used start IP address. IP address It means the IP address that you can specify for the DHCP server as the starting point.
Page 496: Telnet Command: Srv Dhcp Leasetime
This command can set the lease time for the DHCP server. srv dhcp leasetime [?] srv dhcp leasetime [Lease Time (sec)] Parameter Description It means to display current leasetime used for the DHCP server. Lease Time (sec) It means the lease time that DHCP server can use. The unit is second.
Page 497: Telnet Command: Srv Dhcp Primwins
This command can set the primary IP address for the DHCP server. srv dhcp primWINS [WINS IP address] srv dhcp primWINS clear Parameter Description WINS IP address It means the IP address of primary WINS server. clear It means to remove the IP address settings of primary WINS server.
Page 498: Telnet Command: Srv Dhcp Exprecycleip
This command can set the time to check if the IP address can be assigned again by DHCP server or not. srv dhcp expRecycleIP <sec time> Parameter Description sec time It means to set the time (5~300 seconds) for checking if the IP can be assigned again or not.
Page 499: Telnet Command: Srv Dhcp Option
This command can set the custom option for the DHCP server. srv dhcp option -h srv dhcp option -l srv dhcp option -d [idx] srv dhcp option -e [1 or 0] -i [lan number] -c [option number] -v [option value] srv dhcp option -e [1 or 0] -i [lan number] -c [option number] -a [option value] srv dhcp option -e [1 or 0] -i [lan number] -c [option number] -x [option value] srv dhcp option -u [idx unmber]...
Page 500: Telnet Command: Srv Nat Addrmapping
This command allows users to map specific private IP to specific WAN IP alias. srv nat addrmapping n [-<command> <parameter> | ... ] Parameter Description It means the number of the address mapping rule profile. n = 1 to 10 [<command>...
Page 501: Telnet Command: Srv Nat Dmz
This command allows users to set DMZ host. Before using this command, please set WAN IP Alias first. Srv nat dmz n m [-<command> <parameter> | … ] Parameter Description It means to map selected WAN IP to certain host. 1: wan1 2: wan2 It means the index number (1 ~ 8) of the DMZ host.
Page 502: Telnet Command: Srv Nat Openport
source port (500) preservation. status It means to display current status for checking. > srv nat ipsecpass status %% Status: IPsec ESP pass-thru and IKE src_port:500 preservation is OFF. This command allows users to set open port settings for NAT server. srv nat openport n m [-<command>...
Page 503: Telnet Command: Srv Nat Portmap
profiles. > srv nat openport 1 1 -a 1 -c games -i 192.168.1.100 -w 1 -p TCP -s 23 -e 83 > srv nat openport -v %% Status: Enable %% Comment: games %% Private IP address: 192.168.1.100 Index Protocal Start Port End Port ***************************************************************** %% Status: Disable...
Page 504 del [idx] It means to remove the selected port redirection setting. disable [idx] It means to inactivate the selected port redirection setting. enable [idx] It means to activate the selected port redirection setting. flush It means to clear all the port mapping settings. table It means to display Port Redirection Configuration Table.
Page 505 line. It means to type a brief description for the setting profile. It means to enable/disable the specified profile. 1: Enable 0: Disable It means to set the the protocol for the profile. 1: TCP 2: UDP 3: All It means to set triggering port. It means to set the protocol for incomming packets.
Page 506: Telnet Command: Srv Nat Showall
Telnet Command: srv nat status This command allows users to view NAT Port Redirection Running Table. > srv nat status NAT Port Redirection Running Table: Index Protocol Public Port Private IP Private Port 192.168.1.11 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0...
Page 507: Telnet Command: Switch Status
switch not_respond 1 Parameter Description It means the index number of the switch profile. switch idx_no option The available commands with parameters are listed below. traffic [on/off/status/tx/rx] It means to send command to the client. It means to set the client authentication account and password.
Page 508: Telnet Command: Sys Cfg
-t <enable> It is used to disable/enable telnet service (0: disable, 1: enable). -f <enable> It is used to disable/enable FTP service (0: disable, 1: enable). It is used to disable/enable SSH service (0: disable, 1: -s <enable> enable). -p <enable> It is used to disable/enable printer service (0: disable, 1: enable).
Page 509: Telnet Command: Sys Ftpd
This command displays current status of FTP server. sys ftpd on sys ftpd off Parameter Description It means to turn on the FTP server of the system. It means to turn off the FTP server of the system. > sys ftpd on % sys ftpd turn on !!! This command can set and remove the domain name of the system when DHCP mode is selected for WAN.
Page 510: Telnet Command: Sys Iface
This command displays the current interface connection status (UP or Down) with IP address, MAC address and Netmask for the router. > sys iface Interface 0 Ethernet: Status: UP IP Address: 192.168.1.1 Netmask: 0xFFFFFF00 (Private) IP Address: 0.0.0.0 Netmask: 0xFFFFFFFF MAC: 00-50-7F-00-00-00 Interface 4 Ethernet: Status: DOWN...
Page 511: Telnet Command: Sys Name
This command can set and remove the name for the router when DHCP mode is selected for WAN. sys name [wan1] [ASCII string] sys name [wan1] clear Parameter Description wan1 It means to specify WAN interface for assigning a name for ASCII string It means the name for router.
Page 512: Telnet Command: Sys Autoreboot
This command allows users to restart the router automatically within a certain time. sys autoreboot [on/off/hour(s)] Parameter Description on/off On – It means to enable the function of auto-reboot. Off – It means to disable the function of auto-reboot. It means to set the time schedule for router reboot. hours For example, if you type “2”...
Page 513: Telnet Command: Sys Version
This command can display current version for the system. > sys version Router Model: Vigor2120n+ Version: 3.7.5.4_RC1 [web]English Profile version: 3.0.0 Status: 1 (0x6df0ae83) Router IP: 192.168.1.1 Netmask: 255.255.255.0 Firmware Build Date/Time: Jan 7 2015 20:11:29 Router Name: Revision: 46359 2120_375 This command can display the system memory status and leakage list.
Page 514: Telnet Command: Sys Tr069
It means to turn off pulling buffer. > sys pollbuf on % Buffer polling is on! > sys pollbuf off % Buffer polling is off! This command can set CPE settings for applying in VigorACS. sys tr069 get [parm] [option] sys tr069 set [parm] [value] sys tr069 getnoti [parm] sys tr069 setnoti [parm] [value]...
Page 515 3-"3 SCHEDULED", 4-"4 VALUE CHANGE", 5-"5 KICKED", 6-"6 CONNECTION REQUEST", 7-"7 TRANSFER COMPLETE", 8-"8 DIAGNOSTICS COMPLETE", 9-"M Reboot" port [port num] It means to change tr069 listen port number. on: turn on certificate-based authentication. cert_auth [on/off] off: turn off certificate-based authentication. >...
Page 516: Telnet Command: Sys Sip_Alg
This command can turn on/off SIP ALG (Application Layer Gateway) for traversal. sys sip_alg [1] sys sip_alg [0] Parameter Description It means to turn on SIP ALG. It means to turn off SIP ALG. > sys sip_alg ? usage: sys sip_alg [value] 0 - disable SIP ALG 1 - enable SIP ALG current SIP ALG is disabled...
Page 517: Telnet Command: Sys Fr_Log
dev_chg It means to change the device key. dev_key It means to show device key. > sys license licifno License and Signature download interface setting: licifno [AUTO/WAN#] Ex: licifno wan1 Download interface is "auto-selected" now. This command is used to display the content of web syslog (including time and message). sys fr_log >...
Page 518: Telnet Command: Testmail
This command is used to display current settings for sending test mail. > testmail Send out test mail Mail Alert:[Disable] SMTP_Server:[0.0.0.0] Mail to:[] Return-Path:[] This command can close UPnP function. >upnp off UPNP say bye-bye This command can enable UPnP function. >upnp on UPNP start.
Page 519: Telnet Command: Upnp Service
PortMapLeaseDuration >>0<<, PortMapEnabled >>0<< 0<< --- MORE --- ['q': Quit, 'Enter': New Lines, 'Space Bar': Next Page] --- This command can display the information of the UPnP service. UPnP service must be enabled first. > upnp on UPNP start. > upnp service >>>>>...
Page 520: Telnet Command: Upnp Subscribe
This command can show all UPnP services subscribed. > upnp on UPNP start. > upnp subscribe Vigor> upnp subscribe >>>> (1) serviceType urn:schemas-microsoft-com:service:OSInfo:1 ----- Subscribtion1 ------- sid = 7a2bbdd0-0047-4fc8-b870-4597b34da7fb eventKey =1, ToSendEventKey = 1 expireTime =6926 active =1 DeliveryURLs =<http://192.168.1.113:2869/upnp/eventing/twtnpnsiun> >>>>...
Page 521: Telnet Command: Upnp Tmpvs
This command can display current status of temp Virtual Server of your router. Vigor> upnp tmpvs ****************** Temp virtual server status **************** ((0)) real_addr >>192.168.1.10<<, pseudo_addr >>172.16.3.229<< real_port >>0<<, pseudo_port >>0<< hit_portmap_index >>0<< The protocol >>TCP<< time >>0<< ((1)) real_addr >>0.0.0.0<<, pseudo_addr >>0.0.0.0<< real_port >>0<<, pseudo_port >>0<<...
Page 522: Telnet Command: Usb List
This command is used to display the information about the brand name and model name of the USB modems which are supported by Vigor router. > usb list ? Brand Module Standard ------------------------ -------- Aiko Aiko 83D 3.5G Alcatel Alcatel L100V Alcatel Alcatel W100 BandRich...
Page 523: Telnet Command: Vigbrg Status
This command can show whether the Vigor Bridge Function is enabled or disabled. > vigbrg status %Vigor Bridge Function is enable! %Wan1 management is disable! This command allows users to transfer a bridge modem into ADSL router by accessing into and adjusting specified IP address.
Page 524: Telnet Command: Vpn Group
This command allows you to set VLAN group. You can set four VLAN groups. Please run vlan restart command after you change any settings. vlan group id [set/set_ex] [p1/p2/p3/p4/s1/s2/s3/s4][5gs1/5gs2/5gs3/5gs4] Parameter Description It means the group 0 to 7 for VLAN. It indicates each port can join more than one VLAN group.
Page 525: Telnet Command: Vlan Restart
Parameter Description It means VLAN ID number. n=VLAN ID number (from 0 to 7). pri_no It means the priority of VLAN profile. pri_no=0 ~7 (from none to highest priority). > vlan pri 1 2 VLAN1: Priority=2 This command can make VLAN settings restarted with newest configuration. vlan restart >...
Page 526: Telnet Command: Vlan Subnet
This command is used to configure the LAN interface used by the VLAN group. vlan subnet group_id [1/2] Parameter Description [1/2] It means interfaces, LAN1 ~ LAN2. > vlan subnet group_id 2 % Vlan Group-0 using LAN2 This setting will take effect after rebooting. Please use "sys reboot"...
Page 527: Telnet Command: Vlan Tagged
This command is used to enable or disable the incoming of untagged packets. vlan tagged [n] [on/off] vlan tagged [unlimited] [on/off] Parameter Description It means VLAN channel. The ranage is from 0 to 7. on/off It means to enable/disable the tagged VLAN. [unlimited] [on/off] unlimited on: It allows the incoming of untagged packets even all VLAN are tagged.
Page 528: Telnet Command: Vlan Sysvid
This command is used to modify and show the scope (reserved 64) of the VLAN IDs used internally by the system. vlan sysvid [show | n] Parameter Description show It means to show the scope of VLAN ID used internally. It means the value to be set as VLAN ID.
Page 529: Telnet Command: Vpn L2Ldrop
aggressive It means the chosen DH group for aggressive mode It means “perfect forward secrete”. on/off It means to turn on or off the PFS function. phase1 It means phase 1 of IKE. lifetime It means the lifetime value (in second) for phase 1 and phase phase2 It means phase 2 of IKE.
Page 530 <secret> <pin> - Type the code for authentication (e.g, 1234). <secret> - Use the 32 digit-secret number generated by mOTP in the mobile phone (e.g., e759bb6f0e94c7ab4fe6) > vpn dinset 1 Dial-in profile index 1 Profile Name: ??? Status: Deactive Mobile OTP: Disabled Password: Idle Timeout: 300 sec >...
Page 531: Telnet Command: Vpn Subnet
This command allows users to specify a subnet selection for the specified remote dial-in VPN profile. vpn subnet [index] [1/2] Parameter Description <index> It means the index number of the VPN profile. <1/2> 1 – it means LAN1 2 – it means LAN2. >...
Page 532: Telnet Command: Vpn Setup
This command allows users to setup VPN for different types. Command of PPTP Dial-Out vpn setup <index> <name> pptp_out <ip> <usr> <pwd> <nip> <nmask> Command of IPSec Dial-Out vpn setup <index> <name> ipsec_out <ip> <key> <nip> <nmask> Command of L2Tp Dial-Out vpn setup <index>...
Page 533 e.g.,, vpn setup 1 name1 l2tp_out 1.2.3.4 vigor 1234 192.168.1.0 255.255.255.0 For Dial-In It means the index number of the profile. <index> <name> It means the name of the profile. <ip> It means the IP address allowed to dial in. <usr>...
Page 534: Telnet Command: Vpn Option
This command allows users to configure settings for LAN to LAN profile. vpn option <index> <cmd1>=<param1> [<cmd2>=<para2> | ... ] Parameter Description <index> It means the index number of the profile. Available index numbers: 1 ~ 32 For Common Settings <index>...
Page 535 “ctype= l” means L2TP(IPSec Policy None). “ctype= l1” means L2TP(IPSec Policy Nice to Have). “ctype= l2” means L2TP(IPSec Policy Must). dialto It means Server IP/Host Name for VPN. (such as draytek.com or 123.45.67.89). ltype It means Link Type. “ltype=0” means “Disable”. “ltype=1” means “64kbps”.
Page 536 Type “off” means any remote IP is allowed to dial in. peerid It means the peer ID for Remote VPN Gateway. Type “draytek” means the word is used as local ID. iname It means Dial-in Username. “iname=admin” means to set username as “admin”.
Page 537: Telnet Command: Vpn Mroute
droute It means to Change default route to this VPN tunnel ( Only single WAN supports this). droute=on/off means to enable/disable the function. > vpn option 1 idle=250 % Change Log.. % Idle Timeout = 250 This command allows users to list, add or delete static routes for a certain LAN to LAN VPN profile.
Page 538 Parameter Description It means to list configuration of the specified profile. It means to list common settings of the specified profile. It means to list dial-out settings of the specified profile. It means to list dial-in settings of the specified profile. It means to list Network Settings of the specified profile.
Page 539: Telnet Command: Vpn Remote
% PING to keep alive : off > This command allows users to enable or disable PPTP/IPSec/L2TP VPN service. vpn remote [PPTP/IPSec/L2TP] [on/off] Parameter Description PPTP/IPSec/L2TP There are four types to be selected. on/off on – enable VPN remote setting. off –...
Page 540: Telnet Command: Vpn Mss
L2l means LAN-to-LAN Profile. Specify which one will be applied by NetBios. <index> The index number of the profile. Pass – Have an inquiry for data transmission between the <Block/Pass> hosts located on both sides of VPN Tunnel while connecting. Block –...
Page 541: Telnet Command: Vpn Ike
% VPN TCP maximum segment size (MSS) : PPTP = 1400 L2TP = 1360 IPSec = 1360 L2TP over IPSec = 1360 >vpn mss show VPN TCP maximum segment size (MSS) : PPTP = 1400 L2TP = 1360 IPSec = 1360 L2TP over IPSec = 1360 This command is used to display IKE memory status and leakage list.
Page 542: Telnet Command: Vpn Pass2Nd
This command allows users to determine if the packets coming from the second subnet passing through current used VPN tunnel. vpn pass2nd[on] vpn pass2nd [off] Parameter Description on/off on – the packets can pass through NAT. off – the packets cannot pass through NAT. >...
Page 543: Telnet Command: Wan Ppp_Mru
This command allows users to adjust the size of PPP LCP MRU. It is used for specific network. wan ppp_mru <WAN interface number> <MRU size > Parameter Description <WAN interface number> Type a number to represent the physical interface. For Vigor130, the number is 1 (which means WAN1).
Page 544: Telnet Command: Wan Df_Check
This command allows you to enable or disable the function of DF (Don’t fragment) wan DF_check [on] wan DF_check [off] Parameter Description on/off It means to enable or disable DF. > wan DF_check on %DF bit check enable! This command allows you to disable WAN connection. >...
Page 545: Telnet Command: Wan Status
This command allows you to display the status of WAN connection, including connection mode, TX/RX packets, DNS settings and IP address. > wan status WAN1: Offline, stall=N Mode: ---, Up Time=00:00:00 IP=---, GW IP=--- TX Packets=0, TX Rate(Bps)=0, RX Packets=0, RX Rate(Bps)=0 Primary DNS=0.0.0.0, Secondary DNS=0.0.0.0 PVC_WAN3: Offline, stall=N Mode: ---, Up Time=00:00:00...
Page 546: Telnet Command: Wan Wimax
init2[string] It means to set initial2 modem AT command. string: type text. dial [string] It means to set dial modem AT command. string: type the command (default: ATDT*99#). pin [string] It means to set PIN code (0: disable) on SIM card. If “0”...
Page 547: Telnet Command: Wan Detect
It means to disable WAN 3G/4G DHCP mode. > wan wimax ? Current status is wimax OFF wan wimax on > > This command allows you to Ping a specified IP to detect the WAN connection (static IP or PPPoE mode). wan detect [wan1][on/off/always_on] wan detect [wan1]target [ip addr] wan detect [wan1]ttl [1-255]...
Page 548: Telnet Command: Wan Lb
> wan detect status WAN1: on, Target=192.168.1.78, TTL=255 WAN2: off WAN3: off WAN4: off WAN5: off > This command allows you to Enable/Disable for each WAN to join auto load balance member. wan lb [wan1/wan2/…] on wan lb [wan1/wan2/…] off Parameter Description wan1/wan2...
Page 549: Telnet Command: Wan Multifno
on/off It means to turn on/off bridge mode for the specific channel. clear It means to turn off/clear the port. tag tag_no It means to tag a number for the VLAN. -1: No need to add tag number. 1-4095: Available setting numbers used as tagged number. service type It means to specify the service type for VLAN.
Page 550: Telnet Command: Wan Vlan
> wan multifno 5 1 % Configured channel 5 uplink to WAN1 > wan multifno status % Channel 3 uplink ifno: 3 % Channel 4 uplink ifno: 3 % Channel 5 uplink ifno: 3 % Channel 6 uplink ifno: 3 % Channel 7 uplink ifno: 3 >...
Page 551: Telnet Command: Wan Fiber
%Interface Enabled %====================================== %WAN1 %WAN2 > wan vlan wan 2 disable % Disabled VLAN header encap for WAN2 This command allows you to configure the transmission rate for fiber connection. wan fiber status wan fiber auto|100|1000 Parameter Description status It means to show fiber WAN link status. auto|100|1000 It means the transmission rate for fiber connection.
Page 552 It means to disnable such profile. It means to show the content of such command. It means to reset the specified profile. > wptl -e -p 1 -l 1,2 -s 1 -u http://www.draytek.com Profile 1 enable ... [OK] Applied LAN interfaces ... [OK] Applied WLAN interfaces ...
Page 553: Telnet Command: Wl Acl
This command allows the user to configure wireless access control settings. wl acl enable [ssid1 ssid2 ssid3 ssid4] wl acl disable [ssid1 ssid2 ssid3 ssid4] wl acl add [MAC] [ssid1 ssid2 ssid3 ssid4] [isolate] wl acl del [MAC] wl acl mode [ssid1 ssid2 ssid3 ssid4] [white/black] wl acl show wl acl showmode wl acl clean...
Page 554: Telnet Command: Wl Config
----------Enable Mac Address Filter--------- ssid1: dis ssid2: dis ssid3: dis ssid4: dis ----------MAC Address Filter---------- Index Attribute MAC Address Associated SSIDs 00:50:70:ff:12:70 ssid1 ssid2 ssid3 ssid4 00:50:70:ff:12:70 ssid1 ssid2 s: Isolate the station from LAN > This command allows users to configure general settings and security settings for wireless connection.
Page 555 field. However, some original 11b wireless network devices only support long preamble. 0: disable to use long preamble. 1: enable to use long preamble. txburst [enable] It means to enhance the performance in data transmission about 40%* more (by enabling Tx Burst). It is active only when both sides of Access Point and Station (in wireless client) invoke this function at the same time.
Page 556 isolate [ssid_num lan It means to isolate the wireless connection for LAN and/or member] Member. lan – It can make the wireless clients (stations) with remote-dial and LAN to LAN users not accessing for each other. member – It can make the wireless clients (stations) with the same SSID not accessing for each other.
Page 557: Telnet Command: Wl Set
This command allows users to configure basic wireless settings. wl set [SSID] [CHAN[En]] wl set txburst [enable] Parameter Description SSID It means to type the SSID for the router. The maximum character that you can use is 32. CHAN[En] It means to specify required channel for the router. CHAN: The range for the number is between 1 ~ 13.
Page 558: Telnet Command: Wl Stamgt
It means reconnection time. The unit is minute. > wl stamgt enable 1 % Station Management Status: enabled > wl stamgt set 1 60 60 > wl stamgt show 1 NO. SSID BSSID Connect time Reconnect time Draytek 00:11:22:aa:bb:cc 0d:0:58:26 0d:0:0 Vigor2120 Series User’s Guide...
Page 559: Telnet Command: Wl Iso_Vpn
This command allows users to activate the function of VPN isolation. wl iso_vpn [ssid] [En] Parameter Description ssid It means the number of SSID. 1: SSID1 2: SSID2 3: SSID3 4: SSID4 It means to enable or disable the function of VPN isolation. 0: disable 1: enable >...
Page 560: Telnet Command: Wl Ht
show It displays current status of WMM. QueIdx It means the number of the queue which the WMM settings will be applied to. There are four queues, best effort, background, voice, and video. It controls how long the client waits for each data Aifsn transmission.
Page 561: Telnet Command: Wl Restart
wl ht greenfield value Parameter Description The value you can type is 0 (for BW_20) and 1 (for BW_40). wl ht bw value wl ht gi value The value you can type is 0 (for GI_800) and 1 (for GI_4001) wl ht badecline value The value you can type is 0 (for disabling) and 1 (for enabling).
Page 562: Telnet Command: Wl Iwpriv
value 0: disable 1: enable > wl btnctl 1 Enable wireless botton control Current wireless botton control is on > It is reserved for RD debug. Do not use it. This command is used to configure parameters related to wireless RF hardware. At present, it is not allowed for end user to operate.
Page 563: Telnet Command: Wl Dual Apscan
client (identified with the MAC address) from LAN. del[MAC] It means to delete a MAC address entry defined in the access control list. [MAC] format: xx-xx-xx-xx-xx-xx or xx:xx:xx:xx:xx:xx or xx.xx.xx.xx.xx.xx mode [ssid1 ssid2 ssid3 It means to set white/black list for each SSID. ssid4] [white/black] show It means to display current status of access control.
Page 564: Telnet Command: Wl Dual Config
5G Access Point List : BSSID Channel SSID 00:1d:aa:b6:1b:ba Marketing-wi-fi_5G 00:1d:aa:ba:07:2a DrayTek_5G > This command allows users to configure general settings and security settings for wireless connection (5GHz). wl dual config enable [value] wl dual config enable show wl dual config mode [value] wl dual config mode show wl dual config channel [number] wl dual config channel show...
Page 565 …. Number=52, means Channel 52. channel show It means to display what the current channel is. preamble [enable] It means to define the length of the sync field in an 802.11 packet. Most modern wireless network uses short preamble with 56 bit sync field instead of long preamble with 128 bit sync field.
Page 566: Telnet Command: Wl Dual Cmd
SSID3 or SSID4. enable: It means to enable such function. 0: disable and 1:enable. isolate vpn [ssid_num It means to isolate the wireless connection from VPN. enable] ssid_num: Choose 1, 2, 3 or 4 to specify SSID1, SSID2, SSID3 or SSID4. enable: It means to enable such function.
Page 567: Telnet Command: Wl Dual Security
This command allows users to configure security settings for the wirelesss connection (5GHz). wl dual security[SSID_NUMBER] [mode][key][index] wl dual security show Parameter Description Security SSID_NUMBER: Type 1, 2, 3 or 4 to specify SSID1, SSID2, [SSID_NUMBER] SSID3 or SSID4. [mode][key][index] mode: Available settings are: disable: No security.
Page 568: Telnet Command: Wl Dual Stalist
This command is used to display the wireless station which accessing Internet via Vigor2120. wl dual stalist > wl dual stalist 5G Wireless Station List : SSID MAC Address Status 00:50:7f:f0:c5:3c Status Codes : C: Connected, No Encryption. E: Connected, WEP. P: Connected, WPA.
Page 569 wpa2psk [key]: WPA2/PSK key: Moreover, you have to add keys for wpapsk, wpa2psk, and wep, and specify index number of schedule profiles to be followed by the wireless connection. WEP keys must be in 5/13 ASCII text string or 10/26 Hexadecimal digit format;...
Page 570: Telnet Command: Wl Dual Wps
Index Enable MAC Address 00:00:00:00:00:00 00:00:00:00:00:00 00:00:00:00:00:00 00:00:00:00:00:00 Repeater : Index Enable MAC Address 00:00:00:00:00:00 00:00:00:00:00:00 00:00:00:00:00:00 00:00:00:00:00:00 > wl dual wds wep 12345 % <Note> Please restart router after you set the parameters. This command allows users to configure WPS for wireless connection (5GHz). wl dual wps enable [value] wl dual wps pbc wl dual wps pin [code]...
Page 571: Telnet Command: Wol
This command allows Administrator to set the white list of WAN IP addresses/Subnets, that the magic packet from these IP addresses/Subnets will be eligible to pass through NAT and wake up the LAN client. You also need to set NAT rule for LAN client. wol up [MAC Address]/[IP Address] wol fromWan [on/off/any] wol fromWan_Setting [idx][ip address][mask]...
Page 572 Parameter Description view It means to display current status of APP QoS. It means to enable or disable the function of APP QoS. enable[0/1] traceable/ untraceable The APPs are divided into traceable and untraceable based on their properties. It means to view the content of all traceable APs. Use “appqos traceable –v”...
