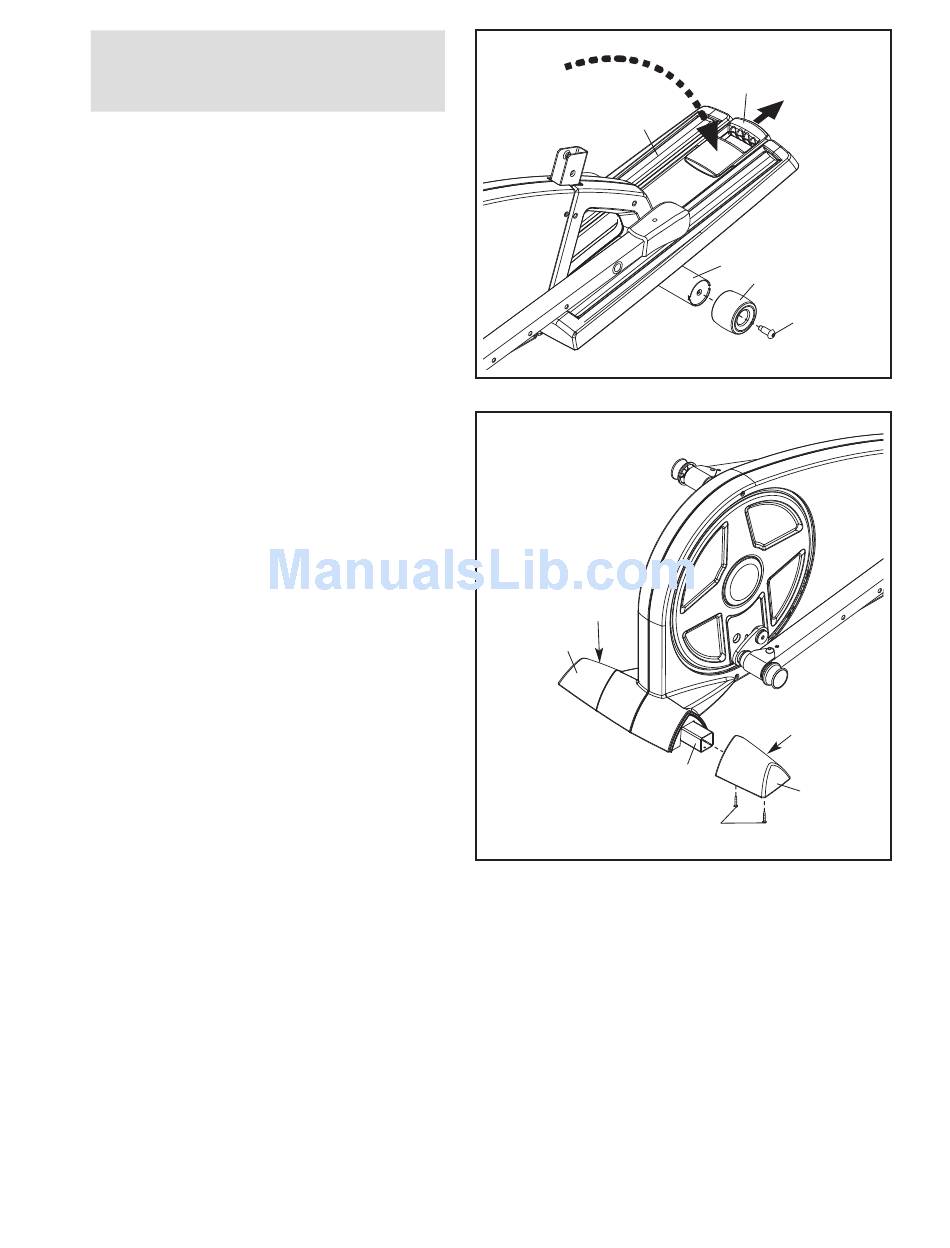

1.
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
Pull the ramp handle outward and lower the
Ramp (104) until it rests on the Frame (1).
Attach a Wheel (50) to the front of the Frame
(1) with an M10 x 41mm Shoulder Screw (63).
Attach the other Wheel (not shown) in the
same way.
2. Identify the Right Frame Cover (49), which is
marked with an "R" sticker. Then, orient the
Right Frame Cover so that the rounded side is in
the indicated location. While another person lifts
the rear of the Frame (1), attach the Right
Frame Cover with two M4 x 16mm Screws (84).
Repeat this step for the Left Frame Cover
(48).
1
104
2
Rounded
Side
48
6
Ramp
Handle
1
50
63
Rounded
Side
1
49
84
