HOW TO ADJUST THE STRIDE OF THE
ELLIPTICAL EXERCISER
To adjust the stride of the elliptical exerciser, first pull
one of the adjustment knobs until the adjustment
bracket pivots freely. Pivot the adjustment bracket until
the adjustment knob is aligned with one of the holes in
the crank arm, and gently release the knob. Then,
pivot the adjustment bracket back and forth slightly to
make sure that the adjustment pin is engaged in one
of the holes in the crank arm.

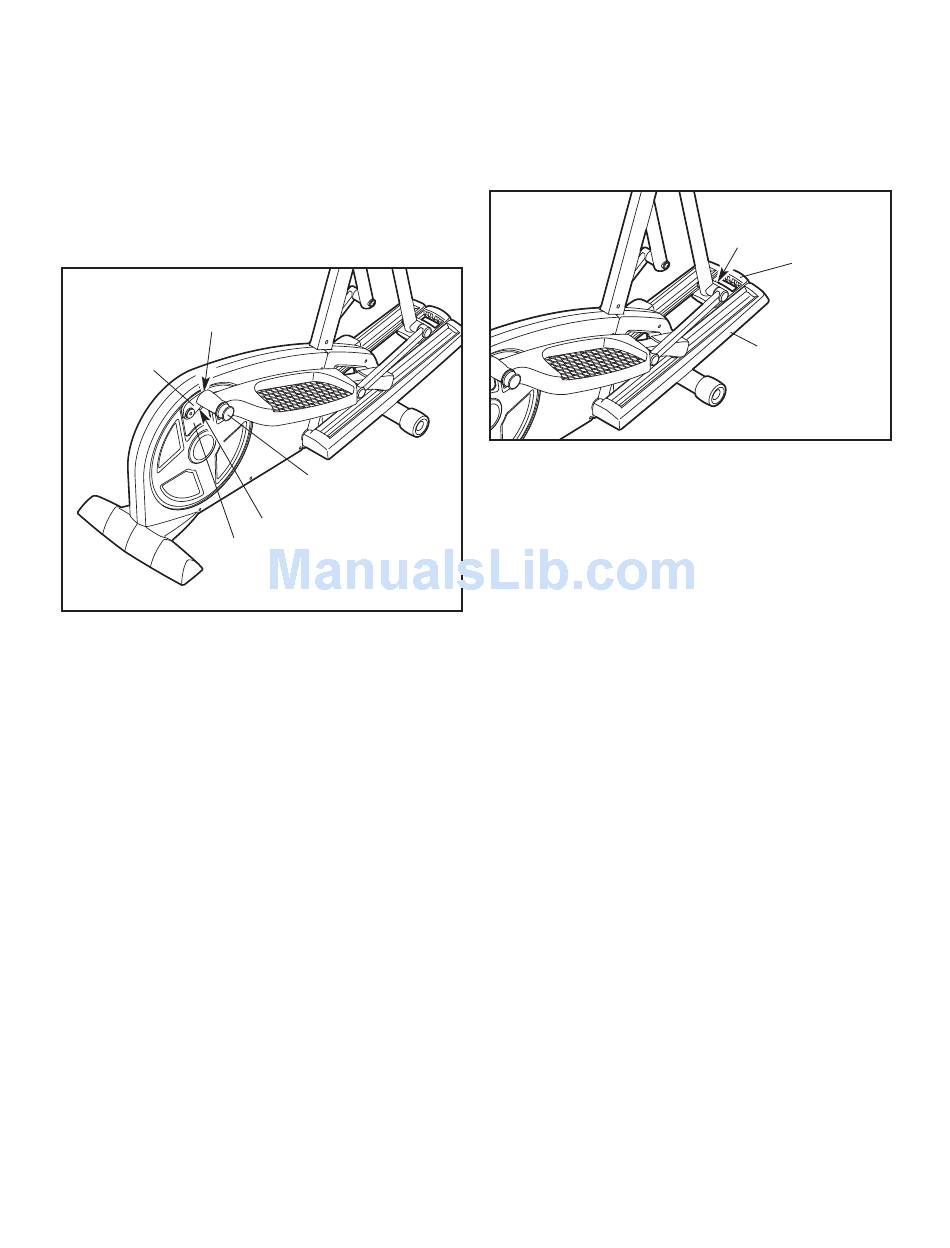

Adjustment
Pin
Adjustment
Bracket
Crank
Arm
Adjust the other side of the elliptical exerciser in the
same way.
Adjustment
Knob
Holes
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of the pedals, you can change the
incline of the ramp. To change the incline, pull the
ramp handle outward, raise or lower the ramp, and
engage the ramp pin into one of the adjustment holes
in the front of the frame.
13
Ramp
Pin
Ramp
Handle
Ramp
